Potentiometers: The knobs that adjust the electronics world

Hidden in the internal structure of electronic devices is a small but critical component, which is like a "fine-tuning knob" in the electronic world. It can accurately adjust the voltage or current level in the circuit, thereby changing the operating state of the electronic device. This magical component is the potentiometer. The potentiometer is essentially an electronic component with a variable resistance value. Its resistance value can be flexibly adjusted by a variety of operating methods such as rotation, sliding or push-pull.

Working principle:

The principle of the potentiometer is based on the variable resistance element in its construction. It usually consists of a fixed resistance bar and a sliding or rotating contact. When the contact moves along the resistance bar, the resistance value in the circuit changes. The resistance value changes due to the different lengths between the contact and the resistance bar. Depending on the position of the contact, different resistance values can be obtained, and thus the control and measurement of voltage, current or position can be achieved.

Parameters and characteristics:

The main parameters of potentiometers include nominal resistance, allowable deviation, rated power, resistance temperature coefficient, etc. These parameters are similar to resistors. In addition, potentiometers also have some unique indicators, such as wear life, starting torque, output function characteristics, compliance, resolution and sliding noise.

Output function characteristics: refers to the functional relationship between the voltage ratio (ratio of output voltage to input voltage) and the stroke ratio (ratio of the stroke of the brush on the resistor to the total stroke) of the potentiometer. Commonly used functional relationships include linear, exponential and logarithmic.

Conformity: refers to the degree of deviation between the actual output function characteristics of the potentiometer and the theoretical value, expressed as a percentage of the absolute difference between the actual output and the theoretical output.

Resolution: refers to the most precise adjustment ability of the potentiometer to the output voltage or resistance value, representing the output change that can be produced by the minimum movement of the brush.

Sliding noise: refers to the irregular parasitic potential caused by the movement of the brush on the resistor.

Types and functions:

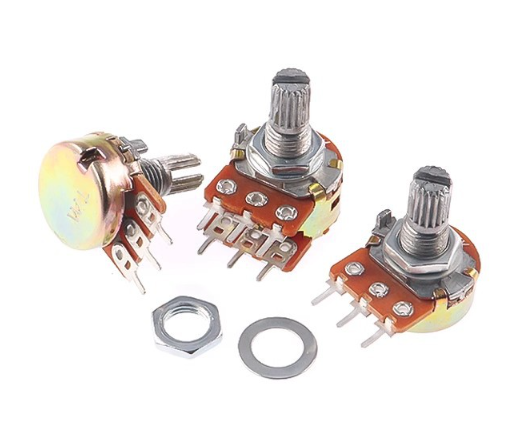

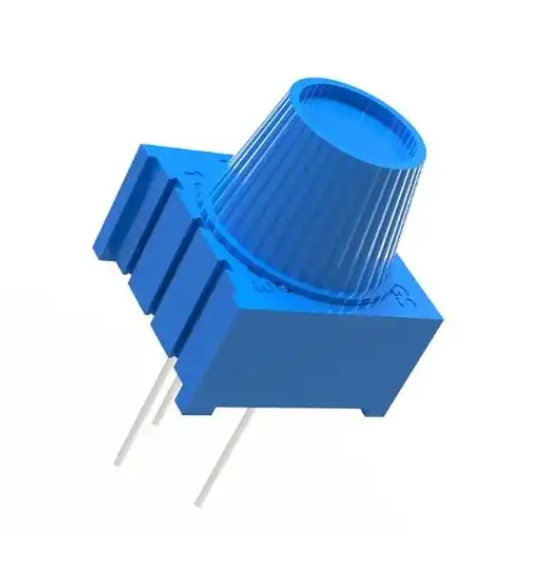

There are many types of potentiometers, which can be divided into many types according to the material, structure, and adjustment method of the resistor body. For example, wirewound potentiometers, carbon film potentiometers, metal glass glaze potentiometers, etc. According to the different adjustment methods, they can be divided into rotary potentiometers, sliding potentiometers, and multi-turn potentiometers.

One of the most common uses of a potentiometer is to adjust voltage. By rotating or sliding the potentiometer, the resistance value in the circuit can be changed, thereby adjusting the voltage divider ratio. This allows the potentiometer to be used to control the output voltage of the circuit and achieve precise regulation of the voltage. In addition to regulating voltage, potentiometers can also be used to control current. By adjusting the resistance value of the potentiometer, the total resistance in the circuit can be changed, which affects the magnitude of the current. This is very useful in certain application scenarios, such as adjusting the brightness of an LED light or controlling the speed of a motor. In addition, potentiometers can also be used as position sensors to measure the position or movement of an object. When the potentiometer is connected to a mechanical device, a change in the position of the device will cause the resistance value of the potentiometer to change. By measuring the resistance value of the potentiometer, the position of the device can be determined.

Potentiometer selection and precautions:

 When selecting a potentiometer, the resistor material, structure, type, specification and adjustment method of the potentiometer should be selected according to the specific requirements of the application circuit. For example, a power-type wirewound potentiometer should be used for high-power circuits; high-precision wirewound potentiometers or metal glass glaze potentiometers should be used in precision instrument circuits; carbon film potentiometers can be used for medium and high-frequency circuits.

When using a potentiometer, you need to pay attention to the following points:

Correct connection and installation: Connect the potentiometer correctly to the circuit and ensure that the connection is firm and reliable. If the potentiometer is used as a position sensor, it needs to be installed in a suitable position to accurately measure the position of the object.

Precise adjustment and control: By rotating or sliding the potentiometer, carefully adjust the resistance value in the circuit to achieve precise voltage regulation or current control.

Pay attention to reliability and life: The potentiometer is a component that is susceptible to wear and aging, so it needs regular inspection and maintenance. When choosing a potentiometer, pay attention to its reliability and life indicators to ensure long-term stable operation.

Although the potentiometer is simple, its role in the electronic world cannot be underestimated. Whether in household appliances, industrial equipment or precision instruments, the potentiometer is a key component to achieve precise control. Understanding the working principle and application of the potentiometer can help us better use and maintain electronic equipment and enjoy the convenience brought by technology.
