Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	NumberofBits	NumberofD/AConverters	SettlingTime	OutputType	DifferentialOutput	DataInterface	ReferenceType	Voltage-SupplyAnalog	Voltage-SupplyDigital	INL/DNL(LSB)	Architecture	OperatingTemperature
DAC081C085CIMMX/NOPB DAC081C085 8BIT MICRO PWR DAC W/ National Semiconductor	3,325	-	RFQ	Datasheet	8-TSSOP, 8-MSOP (0.118, 3.00mm Width)	Bulk	-	Active	8	1	4.5µs	Voltage - Buffered	No	I²C	External	2.7V ~ 5.5V	2.7V ~ 5.5V	±0.14, +0.04/-0.02	String DAC	-40°C ~ 125°C
DAC121C081CISD/NOPB DAC121C081 12-BIT MICRO POWER DI National Semiconductor	2,023	-	RFQ	Datasheet	-	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
DAC101S101CIMKX/NOPB DAC101S101 10-BIT MICRO POWER, R National Semiconductor	3,219	-	RFQ	Datasheet	SOT-23-6 Thin, TSOT-23-6	Bulk	-	Active	10	1	7.5µs	Voltage - Buffered	No	SPI, DSP	Supply	2.7V ~ 5.5V	2.7V ~ 5.5V	±0.6, +0.15/-0.05	String DAC	-40°C ~ 105°C
DAC101C081CISD/NOPB DAC101C081 10-BIT MICRO POWER DI National Semiconductor	3,041	-	RFQ	Datasheet	6-WDFN Exposed Pad	Bulk	-	Active	10	1	6µs	Voltage - Buffered	No	I²C	Supply	2.7V ~ 5.5V	2.7V ~ 5.5V	+0.6/-0.4, +0.12/-0.04	String DAC	-40°C ~ 125°C
DAC2904Y/1K DAC2904 DUAL-CHANNEL, 14-BIT, 12 National Semiconductor	3,988	-	RFQ	Datasheet	48-TQFP	Bulk	-	Active	14	2	30ns (Typ)	Current - Unbuffered	Yes	Parallel	External, Internal	3V ~ 5.5V	3V ~ 5.5V	±5, ±4	Segmented DAC	-40°C ~ 85°C

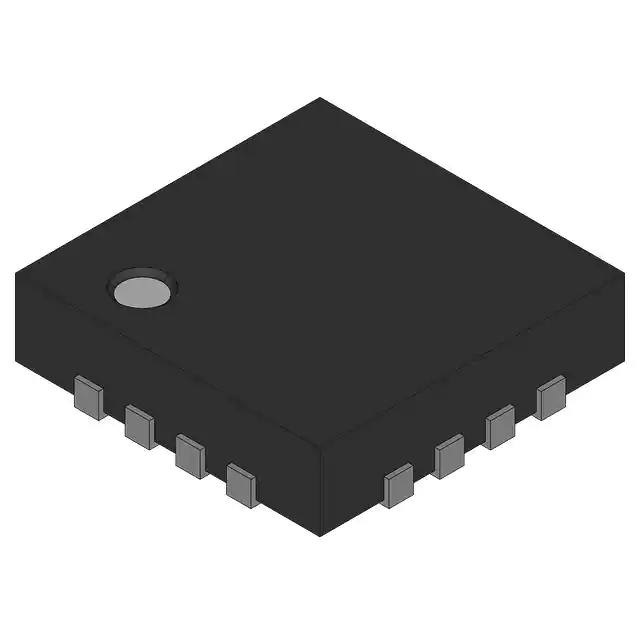

DAC161S055CISQE/NOPB DAC161S055 PRECISION 16-BIT, BUF National Semiconductor	3,130	-	RFQ	Datasheet	16-WFQFN Exposed Pad	Bulk	-	Active	16	1	5µs (Typ)	Voltage - Buffered	No	SPI	External	2.7V ~ 5.25V	1.7V ~ 5.25V	±1, +1.1 (Max)	R-2R	-40°C ~ 105°C
DAC104S085CIMMX/NOPB DAC104S085 10-BIT MICRO POWER QU National Semiconductor	3,943	-	RFQ	Datasheet	10-TFSOP, 10-MSOP (0.118, 3.00mm Width)	Bulk	-	Active	10	4	6µs	Voltage - Buffered	No	SPI, DSP	External	2.7V ~ 5.5V	2.7V ~ 5.5V	±0.7, +0.08	String DAC	-40°C ~ 105°C
DAC128S085CIMT D/A CONVERTER, 1 FUNC, SERIAL IN National Semiconductor	2,325	-	RFQ		16-TSSOP (0.173, 4.40mm Width)	Bulk	-	Obsolete	12	8	8.5µs	Voltage - Buffered	No	SPI, DSP	External	2.7V ~ 5.5V	2.7V ~ 5.5V	±2, +0.15/-0.09	String DAC	-40°C ~ 125°C
DAC081C081CIMK D/A CONVERTER, 1 FUNC, SERIAL IN National Semiconductor	2,733	-	RFQ	Datasheet	-	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
DAC101S101CIMM DAC, 1 FUNC, SERIAL INPUT LOADIN National Semiconductor	2,220	-	RFQ	Datasheet	8-TSSOP, 8-MSOP (0.118, 3.00mm Width)	Bulk	-	Active	10	1	7.5µs	Voltage - Buffered	No	SPI, DSP	Supply	2.7V ~ 5.5V	2.7V ~ 5.5V	±0.6, +0.15/-0.05	String DAC	-40°C ~ 105°C
DAC0807LCN DAC, PARALLEL, 8 BITS INPUT National Semiconductor	4,435	-	RFQ	Datasheet	16-DIP (0.300, 7.62mm)	Tube	-	Obsolete	-	-	-	-	-	-	-	-	-	-	-	-
DAC122S085CIMM-NS DAC, 1 FUNC, SERIAL INPUT LOADIN National Semiconductor	2,755	-	RFQ	Datasheet	10-TFSOP, 10-MSOP (0.118, 3.00mm Width)	Bulk	-	Active	12	2	6µs (Typ)	Voltage - Buffered	No	DSP, Microwire, QSPI, SPI	External	2.7V ~ 5.5V	2.7V ~ 5.5V	±2.4, ±0.2	String DAC	-40°C ~ 105°C
DAC1218LCJ-1 DAC, PARALLEL, WORD INPUT National Semiconductor	1,500	-	RFQ	Datasheet	-	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
DAC1219LCJ DAC, PARALLEL, WORD INPUT National Semiconductor	1,449	-	RFQ	Datasheet	-	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
