Solid State Inc.|Diodes-Rectifiers-Single - Page 1

MAX3232IDR DSPIC30F2010-30I/SP 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	RoHS	Speed	Diode Type	Part Status	Mounting Type	Capacitance @ Vr, F	Reverse Recovery Time (trr)	Current - Reverse Leakage @ Vr	Voltage - DC Reverse (Vr) (Max)	Current - Average Rectified (Io)	Operating Temperature	Voltage - Forward (Vf) (Max) @ If

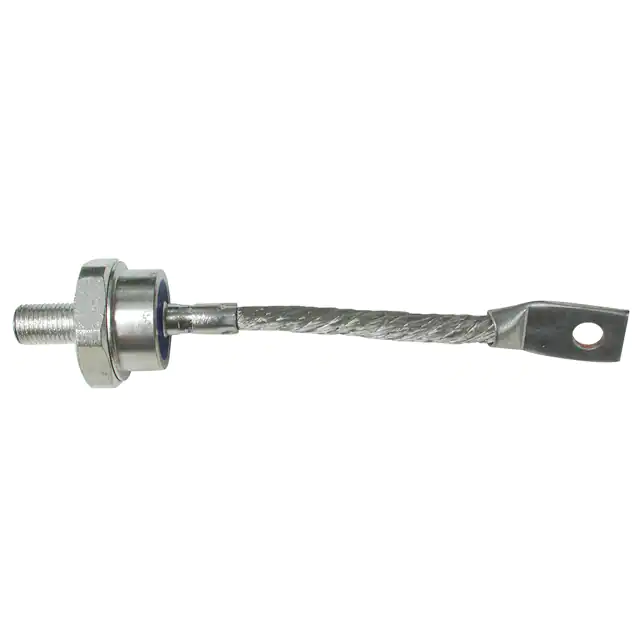

150K60A RECT 150 AMP 600 V DO8 Solid State Inc.	4,950	-	RFQ	Datasheet	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Stud Mount	-	-	35 mA @ 600 V	600 V	150A	-65°C ~ 200°C	1.33 V @ 471 A
300U60A RECT 300 AMP 600V DO9 Solid State Inc.	410	-	RFQ	Datasheet	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Stud Mount	-	-	40 mA @ 600 V	600 V	300A	-65°C ~ 200°C	1.4 V @ 942 A
A114B 1 AMP RECT 200 V DO 204 Solid State Inc.	950	-	RFQ	Datasheet	Box	RoHS	Fast Recovery =< 500ns, > 200mA (Io)	Standard	Active	Through Hole	-	200 ns	-	200 V	1A	-55°C ~ 125°C	1.1 V @ 1 A
1N2159 DO5 40 AMP SILICON RECTFIER Solid State Inc.	3,700	-	RFQ		Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Stud Mount	-	-	10 µA @ 500 V	500 V	40A	-65°C ~ 200°C	1.19 V @ 90 A
1N1434R DO5 40 AMP SILICON RECTFIER Solid State Inc.	2,012	-	RFQ		Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard, Reverse Polarity	Active	Stud Mount	-	-	10 µA @ 50 V	50 V	40A	-65°C ~ 200°C	1.19 V @ 90 A
1N2273R DO5 40 AMP SILICON RECTFIER Solid State Inc.	2,960	-	RFQ		Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard, Reverse Polarity	Active	Stud Mount	-	-	10 µA @ 100 V	100 V	40A	-65°C ~ 200°C	1.19 V @ 90 A
1N2285 DO5 40 AMP SILICON RECTFIER Solid State Inc.	3,480	-	RFQ		Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Stud Mount	-	-	10 µA @ 600 V	600 V	40A	-65°C ~ 200°C	1.19 V @ 90 A
60HFR60 DO5 60 AMP SILICON RECTFIER AK Solid State Inc.	2,764	-	RFQ	Datasheet	Bulk	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Stud Mount	-	-	200 µA @ 600 V	600 V	60A	-65°C ~ 150°C	1.3 V @ 60 A
1N2129A DO5 70 AMP SILICON RECTIFIER Solid State Inc.	100	-	RFQ		Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Stud Mount	-	-	25 µA @ 100 V	100 V	70A	-65°C ~ 200°C	1.25 V @ 200 A
1N2131R DO5 70 AMP SILICON RECTIFIER Solid State Inc.	2,941	-	RFQ		Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard, Reverse Polarity	Active	Stud Mount	-	-	25 µA @ 200 V	200 V	70A	-65°C ~ 200°C	1.25 V @ 200 A
85HFR80 DO5 85 AMP SILICON RECTFIER AK Solid State Inc.	2,928	-	RFQ	Datasheet	Bulk	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Stud Mount	-	-	200 µA @ 800 V	800 V	85A	-65°C ~ 150°C	1.3 V @ 85 A
12F100 12 AMP SILCON RECTIFIER DO4 KK Solid State Inc.	100	-	RFQ		Bulk	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Stud Mount	-	-	10 µA @ 1000 V	1000 V	12A	-65°C ~ 150°C	1.2 V @ 12 A
1N1402 DO8 100 AMP SILICON RECTIFIER Solid State Inc.	3,230	-	RFQ		Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Stud Mount	-	-	50 µA @ 500 V	500 V	100A	-65°C ~ 200°C	1.2 V @ 200 A
1N3294RA DO8 150 AMP SILICON RECTIFIER Solid State Inc.	2,921	-	RFQ		Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard, Reverse Polarity	Active	Stud Mount	-	-	50 µA @ 800 V	800 V	150A	-65°C ~ 200°C	1.1 V @ 200 A
1N3291RA DO8 150 AMP SILICON RECTIFIER Solid State Inc.	2,913	-	RFQ		Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard, Reverse Polarity	Active	Stud Mount	-	-	50 µA @ 400 V	400 V	150A	-65°C ~ 200°C	1.1 V @ 200 A
1N3288R DO8 100 AMP SILICON RECTIFIER Solid State Inc.	3,801	-	RFQ		Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard, Reverse Polarity	Active	Stud Mount	-	-	50 µA @ 100 V	100 V	100A	-65°C ~ 200°C	1.2 V @ 200 A
1N3288A DO8 150 AMP SILICON RECTIFIER Solid State Inc.	2,268	-	RFQ		Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard	Active	Stud Mount	-	-	50 µA @ 100 V	100 V	100A	-65°C ~ 200°C	1.2 V @ 200 A
1N2439R DO8 150 AMP SILICON RECTIFIER Solid State Inc.	2,932	-	RFQ	Datasheet	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard, Reverse Polarity	Active	Stud Mount	-	-	50 µA @ 200 V	200 V	150A	-65°C ~ 200°C	1.1 V @ 200 A
1N1397R DO8 100 AMP SILICON RECTIFIER Solid State Inc.	2,861	-	RFQ		Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard, Reverse Polarity	Active	Stud Mount	-	-	50 µA @ 100 V	100 V	100A	-65°C ~ 200°C	1.2 V @ 200 A
1N4589R DO8 150 AMP SILICON RECTIFIER Solid State Inc.	3,510	-	RFQ	Datasheet	Box	RoHS	Standard Recovery >500ns, > 200mA (Io)	Standard, Reverse Polarity	Active	Stud Mount	-	-	50 µA @ 300 V	300 V	150A	-65°C ~ 200°C	1.1 V @ 200 A
