Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)

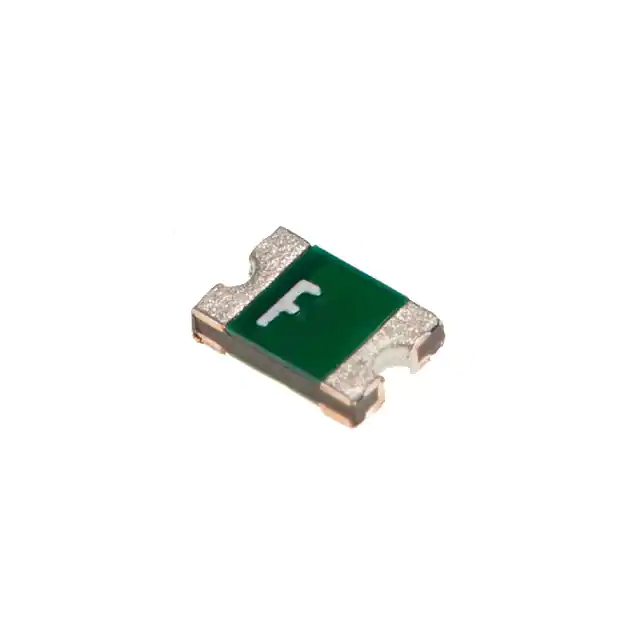

FSMD035-0805-R RESETTABLE FUSE - SMD, 0805 SIZE RFE/Fuzetec	4,000	-	RFQ	Datasheet	0805 (2012 Metric), Concave	Tape & Reel (TR)	FSMD0805	Active	-	6V	100 A	350 mA	750 mA	100 ms	250 mOhms	1.2 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.085 L x 0.053 W (2.15mm x 1.35mm)	-	0.030 (0.75mm)
FSMD020-0805-R RESETTABLE FUSE - SMD, 0805 SIZE RFE/Fuzetec	4,000	-	RFQ	Datasheet	0805 (2012 Metric), Concave	Tape & Reel (TR)	FSMD0805	Active	-	9V	100 A	200 mA	500 mA	20 ms	400 mOhms	3.5 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.085 L x 0.053 W (2.15mm x 1.35mm)	-	0.039 (1.00mm)

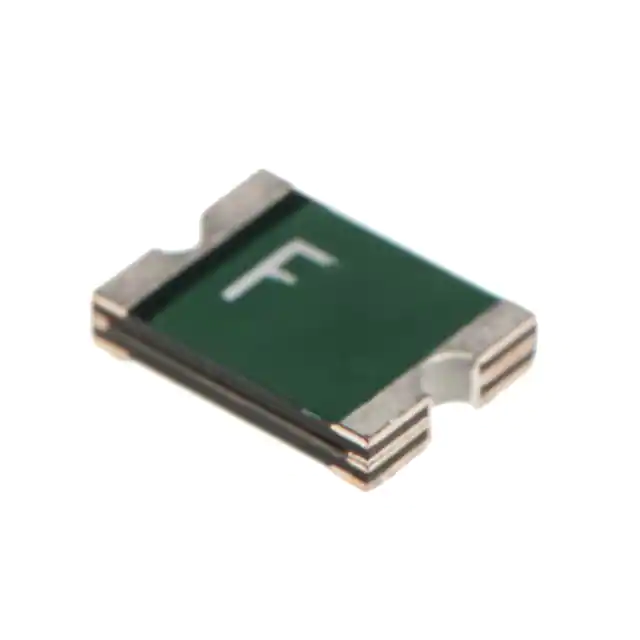

FSMD020-60-R RESETTABLE FUSE - SMD, 1812 SIZE RFE/Fuzetec	2,000	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR)	FSMD1812	Active	-	60V	100 A	200 mA	400 mA	20 ms	800 mOhms	5 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.035 (0.90mm)
FSMD030-R RESETTABLE FUSE - SMD, 1812 SIZE RFE/Fuzetec	2,000	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR)	FSMD1812	Active	-	30V	100 A	300 mA	600 mA	100 ms	200 mOhms	1.75 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.028 (0.70mm)
FSMD050-30-R RESETTABLE FUSE - SMD, 1812 SIZE RFE/Fuzetec	2,000	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR)	FSMD1812	Active	-	30V	100 A	500 mA	1 A	150 ms	150 mOhms	1 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.030 (0.75mm)
FSMD035-R RESETTABLE FUSE - SMD, 1812 SIZE RFE/Fuzetec	2,000	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR)	FSMD1812	Active	-	16V	100 A	350 mA	700 mA	100 ms	320 mOhms	1.5 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.028 (0.70mm)
FSMD020-R RESETTABLE FUSE - SMD, 1812 SIZE RFE/Fuzetec	2,000	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR)	FSMD1812	Active	-	30V	100 A	200 mA	400 mA	20 ms	800 mOhms	5 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.035 (0.90mm)
FSMD125-R RESETTABLE FUSE - SMD, 1812 SIZE RFE/Fuzetec	2,000	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR)	FSMD1812	Active	-	6V	100 A	1.25 A	2.5 A	400 ms	50 mOhms	140 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.022 (0.55mm)
FSMD050-R RESETTABLE FUSE - SMD, 1812 SIZE RFE/Fuzetec	2,000	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR)	FSMD1812	Active	-	16V	100 A	500 mA	1 A	150 ms	150 mOhms	1 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.026 (0.65mm)
FSMD075-R RESETTABLE FUSE - SMD, 1812 SIZE RFE/Fuzetec	2,000	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR)	FSMD1812	Active	-	16V	100 A	750 mA	1.5 A	200 ms	110 mOhms	450 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.026 (0.65mm)
FSMD014-R RESETTABLE FUSE - SMD, 1812 SIZE RFE/Fuzetec	1,900	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR)	FSMD1812	Active	-	60V	100 A	140 mA	300 mA	8 ms	1.2 Ohms	6.5 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.035 (0.90mm)

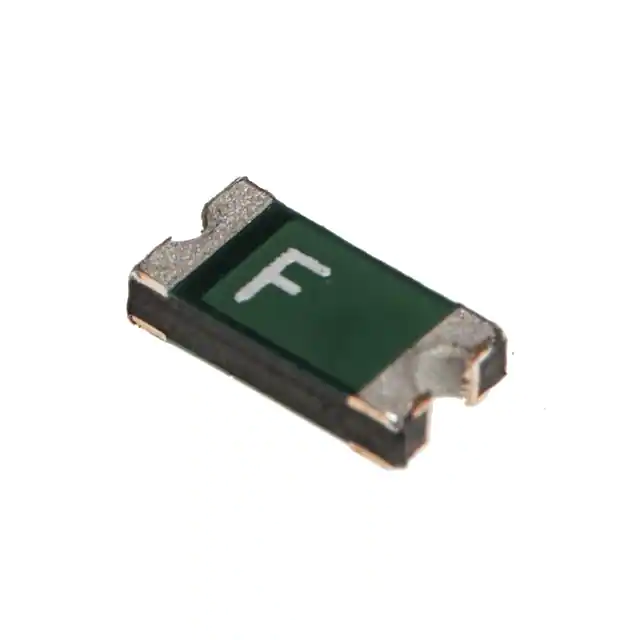

FSMD050-1206-R RESETTABLE FUSE - SMD, 1206 SIZE RFE/Fuzetec	12,000	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR)	FSMD1206	Active	-	8V	100 A	500 mA	1 A	100 ms	150 mOhms	700 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.128 L x 0.065 W (3.25mm x 1.65mm)	-	0.022 (0.55mm)
FSMD110-R RESETTABLE FUSE - SMD, 1812 SIZE RFE/Fuzetec	2,000	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR)	FSMD1812	Active	-	8V	100 A	1.1 A	2.2 A	300 ms	40 mOhms	210 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.022 (0.55mm)
FSMD035-30-R RESETTABLE FUSE - SMD, 1812 SIZE RFE/Fuzetec	1,750	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR)	FSMD1812	Active	-	30V	100 A	350 mA	700 mA	100 ms	320 mOhms	1.5 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.028 (0.70mm)
FSMD010-0805-R RESETTABLE FUSE - SMD, 0805 SIZE RFE/Fuzetec	4,000	-	RFQ	Datasheet	0805 (2012 Metric), Concave	Tape & Reel (TR)	FSMD0805	Active	-	15V	100 A	100 mA	300 mA	1.5 s	700 mOhms	6 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.085 L x 0.053 W (2.15mm x 1.35mm)	-	0.039 (1.00mm)
FSMD010-R RESETTABLE FUSE - SMD, 1812 SIZE RFE/Fuzetec	1,950	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR)	FSMD1812	Active	-	60V	100 A	100 mA	300 mA	20 ms	1.6 Ohms	15 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.035 (0.90mm)
FSMD075-1206R RESETTABLE FUSE - SMD, 1206 SIZE RFE/Fuzetec	2,950	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR)	FSMD1206	Active	-	8V	100 A	750 mA	1.5 A	200 ms	90 mOhms	290 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.128 L x 0.065 W (3.25mm x 1.65mm)	-	0.049 (1.25mm)
FSMD110-16-R RESETTABLE FUSE - SMD, 1812 SIZE RFE/Fuzetec	2,000	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR)	FSMD1812	Active	-	16V	100 A	1.1 A	2.2 A	500 ms	60 mOhms	180 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.035 (0.90mm)
FSMD150-R RESETTABLE FUSE - SMD, 1812 SIZE RFE/Fuzetec	2,000	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR)	FSMD1812	Active	-	8V	100 A	1.5 A	3 A	500 ms	40 mOhms	110 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.022 (0.55mm)
FSMD160-R RESETTABLE FUSE - SMD, 1812 SIZE RFE/Fuzetec	1,900	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR)	FSMD1812	Active	-	8V	100 A	1.6 A	3.2 A	500 ms	30 mOhms	100 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.035 (0.90mm)
