Signal Transformer|Wireless Charging Coils - Page 1

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Function	Type	Inductance	Tolerance	DCResistance(DCR)	Q@Freq	CurrentRating(Amps)	Current-Saturation(Isat)	Frequency-SelfResonant	OperatingTemperature
WTSC-6R3K-A11B SINGLE-COIL WIRELESS CHARGING CO Signal Transformer	3,534	-	RFQ	Datasheet	Box	WCC	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	40mOhm Max	-	6A	10A	-	-20°C ~ 85°C
WTSC-6R3K-A11 SINGLE-COIL WIRELESS CHARGING CO Signal Transformer	406	-	RFQ	Datasheet	Box	WCC	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	40mOhm Max	-	6A	10A	-	-20°C ~ 85°C
WTSC-24R0K-A10 SINGLE-COIL WIRELESS CHARGING CO Signal Transformer	344	-	RFQ	Datasheet	Box	WCC	Active	Transmitter	1 Coil, 2 Layer	24µH	±10%	85mOhm Max	-	6A	10A	-	-20°C ~ 85°C
WTM9R8K-A9 MULTI-COIL WIRELESS CHARGING COI Signal Transformer	2,298	-	RFQ	Datasheet	Box	WCC	Active	Transmitter	3 Coil, 1 Layer	9.8µH, 10.2µH, 9.8µH	±10%	60mOhm Max, 65mOhm Max	-	8A	10A	-	-20°C ~ 85°C
WTM12R5K-A28 MULTI-COIL WIRELESS CHARGING COI Signal Transformer	2,674	-	RFQ	Datasheet	Box	WCC	Active	Transmitter	3 Coil, 1 Layer	11.5µH, 12.5µH	±10%	65mOhm Max	-	7A	10A	-	-20°C ~ 85°C
WTM-12R5K-A6 MULTI-COIL WIRELESS CHARGING COI Signal Transformer	3,825	-	RFQ	Datasheet	Box	WCC	Active	Transmitter	3 Coil, 1 Layer	11.5µH, 12.5µH	±10%	65mOhm Max	-	7A	10A	-	-20°C ~ 85°C
WTSQ-6R3K-A11 SINGLE-COIL SQUARE BASE WIRELESS Signal Transformer	3,353	-	RFQ	Datasheet	Box	WCC	Active	Transmitter	2 Coil, 1 Layer	6.3µH	±10%	25mOhm Max	-	9A	10A	-	-20°C ~ 85°C
WTSC-10R0K-A3 SINGLE-COIL CIRCLE BASE WIRELESS Signal Transformer	3,317	-	RFQ	Datasheet	Box	WCC	Active	Transmitter	1 Coil, 2 Layer	10µH	±10%	75mOhm Max	-	4A	6A	-	-20°C ~ 85°C

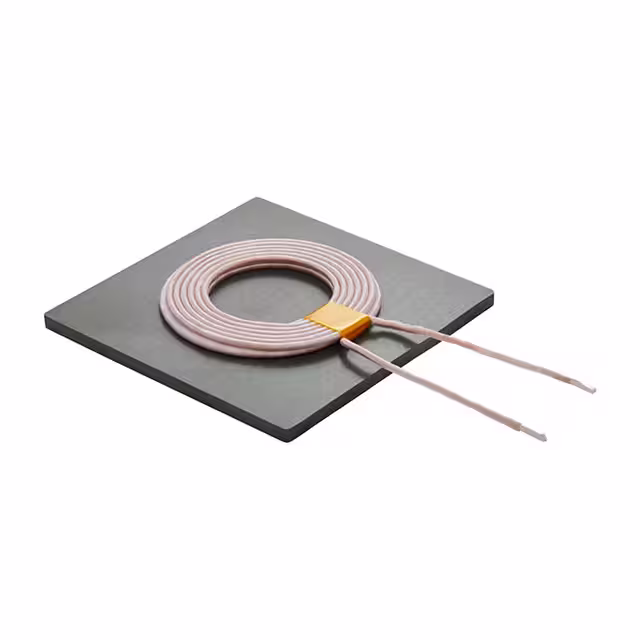

WTSQ-10R0K-MP-A5 SINGLE-COIL SQUARE BASE WIRELESS Signal Transformer	2,899	-	RFQ	Datasheet	Box	WCC	Active	Transmitter	1 Coil, 2 Layer	10µH	±10%	48mOhm Max	-	7A	10A	-	-20°C ~ 85°C

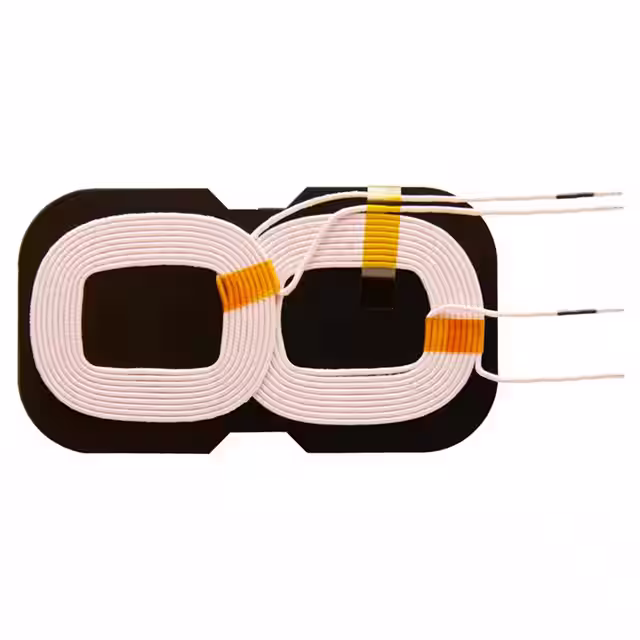

WTM-7R1K-A28 DOUBLE-COIL WIRELESS CHARGING CO Signal Transformer	3,379	-	RFQ	Datasheet	Box	WCC	Active	Transmitter	2 Coil, 1 Layer	7.1µH	±10%	45mOhm Max	-	7A	10A	-	-20°C ~ 85°C

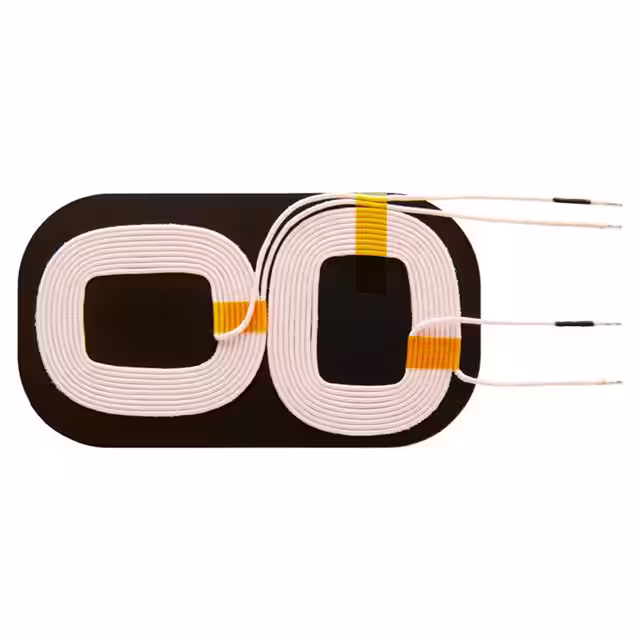

WTM-7R3K-S7 DOUBLE-COIL WIRELESS CHARGING CO Signal Transformer	2,048	-	RFQ	Datasheet	Box	WCC	Active	Transmitter	2 Coil, 1 Layer	7.3µH	±10%	50mOhm Max	-	7A	12A	-	-20°C ~ 85°C

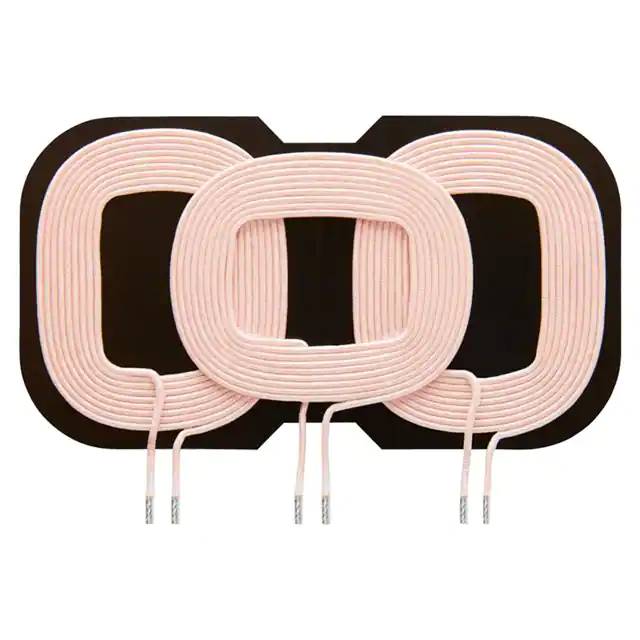

WTM-7R0K-A28 MULTI-COIL WIRELESS CHARGING COI Signal Transformer	2,105	-	RFQ	Datasheet	Box	WCC	Active	Transmitter	3 Coil, 1 Layer	6.5µH, 7µH	±10%	45mOhm Max	-	7A	12A	-	-20°C ~ 85°C
