Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Ratings	Applications	Features	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
RNS1C151MDN1PH CAP ALUM POLY 150UF 20% 16V T/H Nichicon	1,946	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	FPCAP, RNS	Active	Polymer	150 µF	±20%	16 V	10mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	550 mA @ 120 Hz	5.5 A @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole

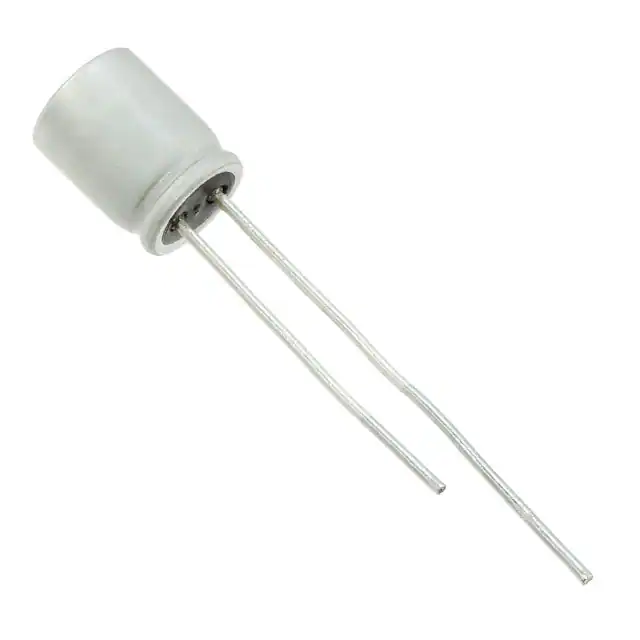

PLS0E331MCO8TD CAP ALUM POLY 330UF 20% 2.5V T/H Nichicon	2,000	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	PLS	Active	Polymer	330 µF	±20%	2.5 V	8mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	4.8 A @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.354 (9.00mm)	-	Through Hole
PLS0J561MCO8TD CAP ALUM POLY 560UF 20% 6.3V T/H Nichicon	2,808	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	PLS	Active	Polymer	560 µF	±20%	6.3 V	9mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	4.3 A @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.354 (9.00mm)	-	Through Hole
PLS0E821MCO8TD CAP ALUM POLY 820UF 20% 2.5V T/H Nichicon	3,557	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	PLS	Active	Polymer	820 µF	±20%	2.5 V	8mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	4.8 A @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.354 (9.00mm)	-	Through Hole

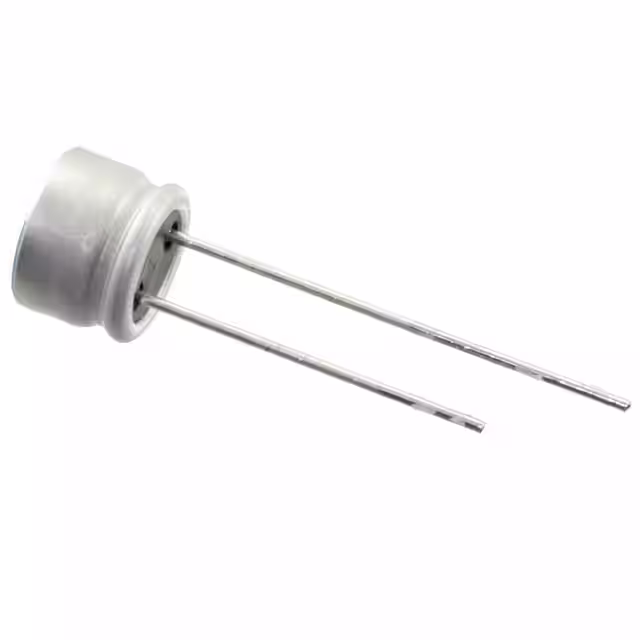

PLF1E220MCL7TD CAP ALUM POLY 22UF 20% 25V T/H Nichicon	2,408	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	PLF	Active	Polymer	22 µF	±20%	25 V	50mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	1.8 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.276 (7.00mm)	-	Through Hole
EEF-HX1E150R CAP ALUM POLY 15UF 20% 25V SMD Panasonic Electronic Components	6,505	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SP-Cap HX	Not For New Designs	Polymer	15 µF	±20%	25 V	40mOhm	1000 Hrs @ 125°C	-55°C ~ 125°C	-	General Purpose	-	-	3.2 A @ 100 kHz	-	-	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.079 (2.00mm)	-	Surface Mount
4SVPS33M CAP ALUM POLY 33UF 20% 4V SMD Panasonic Electronic Components	5,983	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	OS-CON™, SVPS	Active	Polymer	33 µF	±20%	4 V	200mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	37 mA @ 120 Hz	740 mA @ 100 kHz	-	-	0.157 Dia (4.00mm)	0.217 (5.50mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
PCK0E561MCO1GS CAP ALUM POLY 560UF 20% 2.5V SMD Nichicon	2,111	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PCK	Active	Polymer	560 µF	±20%	2.5 V	9mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	4.5 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.276 (7.00mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount
A758EK337M0JAAE016 CAP ALUM POLY 330UF 20% 6.3V T/H KEMET	1,043	-	RFQ	Datasheet	Bulk	A758	Active	Polymer	330 µF	±20%	6.3 V	16mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	3.1 A @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.354 (9.00mm)	-	Through Hole
HHXB160ARA151MF80G CAP ALUM POLY HYB 150UF 16V SMD United Chemi-Con	2,195	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	HXB	Not For New Designs	Hybrid	150 µF	±20%	16 V	27mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	AEC-Q200	Automotive	-	-	2.2 A @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.315 (8.00mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
A767KN566M1VLAE031 CAP ALUM POLY 56UF 20% 35V SMD KEMET	3,368	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	A767	Active	Polymer	56 µF	±20%	35 V	31mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	95 mA @ 120 Hz	1.9 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.394 (10.00mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount
PCX1E560MCL1GS CAP ALUM POLY 56UF 20% 25V SMD Nichicon	6,300	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PCX	Active	Polymer	56 µF	±20%	25 V	35mOhm	1500 Hrs @ 125°C	-55°C ~ 125°C	-	General Purpose	-	-	1.4 A @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.319 (8.10mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
A750KK567M1AAAE016 CAP ALUM POLY 560UF 20% 10V T/H KEMET	4,254	-	RFQ	Datasheet	Bulk	A750	Active	Polymer	560 µF	±20%	10 V	16mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	205 mA @ 120 Hz	4.1 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.354 (9.00mm)	-	Through Hole
A758EK567M0EAAE016 CAP ALUM POLY 560UF 20% 2.5V T/H KEMET	1,908	-	RFQ	Datasheet	Bulk	A758	Active	Polymer	560 µF	±20%	2.5 V	16mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	3.1 A @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.354 (9.00mm)	-	Through Hole
EEF-SR0G121R CAP ALUM POLY 120UF 20% 4V SMD Panasonic Electronic Components	6,740	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SP-Cap, SR	Active	Polymer	120 µF	±20%	4 V	9mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	6.3 A @ 100 kHz	-	-	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.039 (1.00mm)	0.287 L x 0.169 W (7.30mm x 4.30mm)	Surface Mount
A758EK567M0GAAE016 CAP ALUM POLY 560UF 20% 4V T/H KEMET	1,910	-	RFQ	Datasheet	Bulk	A758	Active	Polymer	560 µF	±20%	4 V	16mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	3.1 A @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.354 (9.00mm)	-	Through Hole
EEF-CS1C150R CAP ALUM POLY 15UF 20% 16V SMD Panasonic Electronic Components	11,030	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SP-Cap CS	Not For New Designs	Polymer	15 µF	±20%	16 V	40mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	3.2 A @ 100 kHz	-	-	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.047 (1.20mm)	-	Surface Mount
A758KK567M0JAAE014 CAP ALUM POLY 560UF 20% 6.3V T/H KEMET	2,340	-	RFQ	Datasheet	Bulk	A758	Active	Polymer	560 µF	±20%	6.3 V	14mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	4.1 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.354 (9.00mm)	-	Through Hole
EEF-CX0D391R CAP ALUM POLY 390UF 20% 2V SMD Panasonic Electronic Components	8,665	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SP-Cap CX	Active	Polymer	390 µF	±20%	2 V	15mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	5.1 A @ 100 kHz	-	-	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.075 (1.90mm)	0.287 L x 0.169 W (7.30mm x 4.30mm)	Surface Mount
EEF-SX0D471R CAP ALUM POLY 470UF 20% 2V SMD Panasonic Electronic Components	4,505	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SP-Cap SX	Not For New Designs	Polymer	470 µF	±20%	2 V	9mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	-	-	-	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.079 (2.00mm)	-	Surface Mount
