Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Ratings	Applications	Features	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
875105344007 CAP ALUM POLY 56UF 20% 16V SMD Würth Elektronik	1,364	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-PSLP	Active	Polymer	56 µF	±20%	16 V	30mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	110 mA @ 120 Hz	2.2 A @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.228 (5.80mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount

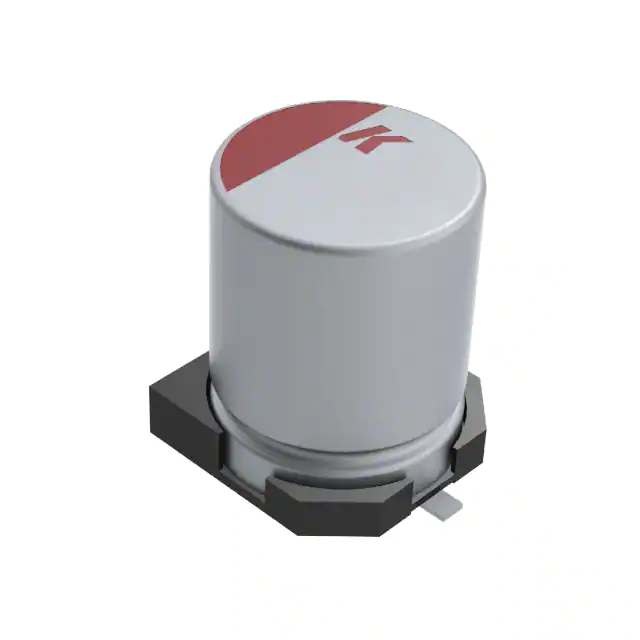

A766KE277M0GLAE022 CAP ALUM POLY 270UF 20% 4V SMD KEMET	1,500	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	A766	Active	Polymer	270 µF	±20%	4 V	22mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	161 mA @ 120 Hz	3.22 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.276 (7.00mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount
875105344008 CAP ALUM POLY 68UF 20% 16V SMD Würth Elektronik	1,733	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-PSLP	Active	Polymer	68 µF	±20%	16 V	30mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	110 mA @ 120 Hz	2.2 A @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.228 (5.80mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
A766KE567M0GLAE022 CAP ALUM POLY 560UF 20% 4V SMD KEMET	1,218	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	A766	Active	Polymer	560 µF	±20%	4 V	22mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	161 mA @ 120 Hz	3.22 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.276 (7.00mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount
A765KE477M0GLAE014 CAP ALUM POLY 470UF 20% 4V SMD KEMET	1,689	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	A765	Active	Polymer	470 µF	±20%	4 V	14mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	197.5 mA @ 120 Hz	3.95 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.236 (6.00mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount
875105444003 CAP ALUM POLY 22UF 20% 20V SMD Würth Elektronik	1,092	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-PSLP	Active	Polymer	22 µF	±20%	20 V	30mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	110 mA @ 120 Hz	2.2 A @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.228 (5.80mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
EEF-SX0D181R CAP ALUM POLY 180UF 20% 2V SMD Panasonic Electronic Components	6,083	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SP-Cap SX	Not For New Designs	Polymer	180 µF	±20%	2 V	9mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	-	-	-	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.079 (2.00mm)	-	Surface Mount
875105544001 CAP ALUM POLY 10UF 20% 25V SMD Würth Elektronik	1,759	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-PSLP	Active	Polymer	10 µF	±20%	25 V	30mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	110 mA @ 120 Hz	2.2 A @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.228 (5.80mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
HVK-50V101MH10E-R2 CAP ALUM POLY HYB 100UF 50V SMD Elna America	1,931	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	HVK	Active	Hybrid	100 µF	±20%	50 V	28mOhm	6000 Hrs @ 125°C	-55°C ~ 125°C	-	General Purpose	-	160 mA @ 120 Hz	1.6 A @ 100 kHz	-	-	0.394 Dia (10.00mm)	0.413 (10.50mm)	0.409 L x 0.409 W (10.40mm x 10.40mm)	Surface Mount
875105545004 CAP ALUM POLY 33UF 20% 25V SMD Würth Elektronik	1,356	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-PSLP	Active	Polymer	33 µF	±20%	25 V	25mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	133.5 mA @ 120 Hz	2.67 A @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.303 (7.70mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
APXF2R5ARA391MF61G CAP ALUM POLY 390UF 20% 2.5V SMD United Chemi-Con	1,086	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	NPCAP™-PXF	Active	Polymer	390 µF	±20%	2.5 V	10mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	3.9 A @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.228 (5.80mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
EEF-HX1A101R CAP ALUM POLY 100UF 20% 10V SMD Panasonic Electronic Components	3,500	-	RFQ	Datasheet	Tape & Reel (TR)	SP-Cap HX	Not For New Designs	Polymer	100 µF	±20%	10 V	40mOhm	1000 Hrs @ 125°C	-55°C ~ 125°C	-	General Purpose	-	-	3.2 A @ 100 kHz	-	-	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.079 (2.00mm)	-	Surface Mount

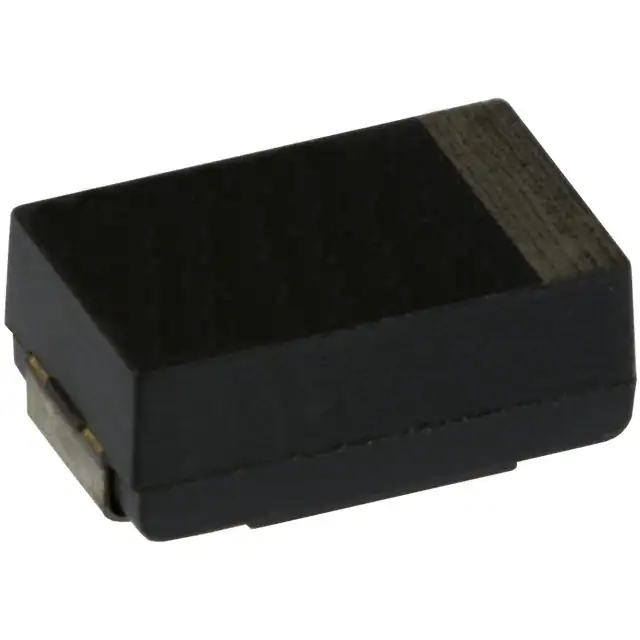

EEF-UD0G121R CAP ALUM POLY 120UF 20% 4V SMD Panasonic Electronic Components	19,538	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SP-Cap UD	Obsolete	Polymer	120 µF	±20%	4 V	15mOhm	1000 Hrs @ 105°C	-40°C ~ 105°C	-	General Purpose	-	-	-	-	-	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.118 (3.00mm)	0.287 L x 0.169 W (7.30mm x 4.30mm)	Surface Mount
EEF-UD0D221R CAP ALUM POLY 220UF 20% 2V SMD Panasonic Electronic Components	6,598	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SP-Cap UD	Obsolete	Polymer	220 µF	±20%	2 V	15mOhm	1000 Hrs @ 105°C	-40°C ~ 105°C	-	General Purpose	-	-	-	-	-	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.118 (3.00mm)	0.287 L x 0.169 W (7.30mm x 4.30mm)	Surface Mount
PVH-16V820MG70E-R2 CAP ALUM POLY 82UF 20% 16V SMD Elna America	2,000	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PVH	Active	Polymer	82 µF	±20%	16 V	30mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	2.7 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.276 (7.00mm)	0.331 L x 0.331 W (8.40mm x 8.40mm)	Surface Mount
PVH-25V220MG70E-R2 CAP ALUM POLY 22UF 20% 25V SMD Elna America	2,000	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PVH	Active	Polymer	22 µF	±20%	25 V	50mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	1.8 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.276 (7.00mm)	0.331 L x 0.331 W (8.40mm x 8.40mm)	Surface Mount
RNU1C101MDS1JX CAP ALUM POLY 100UF 20% 16V T/H Nichicon	2,825	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	FPCAP, RNU	Active	Polymer	100 µF	±20%	16 V	25mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	282 mA @ 120 Hz	2.82 A @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.453 (11.50mm)	-	Through Hole
RS80E471MDN1JT CAP ALUM POLY 470UF 20% 2.5V T/H Nichicon	1,453	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	FPCAP, RS8	Active	Polymer	470 µF	±20%	2.5 V	7mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	560 mA @ 120 Hz	5.6 A @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.315 (8.00mm)	-	Through Hole
EEF-SX0E391R CAP ALUM POLY 390UF 20% 2.5V SMD Panasonic Electronic Components	10,350	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SP-Cap SX	Not For New Designs	Polymer	390 µF	±20%	2.5 V	9mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	-	-	-	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.079 (2.00mm)	-	Surface Mount
A768KE187M1ELAS029 CAP ALUM POLY 180UF 20% 25V SMD KEMET	522	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	A768	Active	Polymer	180 µF	±20%	25 V	29mOhm	2000 Hrs @ 125°C	-55°C ~ 125°C	AEC-Q200	Automotive	-	80 mA @ 120 Hz	1.6 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.236 (6.00mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount
