Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofCoils | Inductance-ConnectedInParallel | Inductance-ConnectedInSeries | Tolerance | CurrentRating-Parallel | CurrentRating-Series | CurrentSaturation-Parallel | CurrentSaturation-Series | DCResistance(DCR)-Parallel | DCResistance(DCR)-Series | Shielding | Ratings | OperatingTemperature | MountingType | Size/Dimension |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
B82477C6473M603DUAL INDUCTOR 12.5X12.5X10.5MM 3 |
466 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | B82477C6xxxM603 | Active | 2 | 47 µH | 188 µH | ±20% | - | 3.02 A | 4.8 A | 2.4 A | 42.5mOhm Max | 170mOhm Max | Shielded | AEC-Q200 | -55°C ~ 150°C | Surface Mount | Nonstandard | |
B82477C6333M603DUAL INDUCTOR 12.5X12.5X10.5MM 3 |
328 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | B82477C6xxxM603 | Active | 2 | 33 µH | 132 µH | ±20% | - | 3.3 A | 5.2 A | 2.6 A | 34.5mOhm Max | 138mOhm Max | Shielded | AEC-Q200 | -55°C ~ 150°C | Surface Mount | Nonstandard | |
B82477C6223M603DUAL INDUCTOR 12.5X12.5X10.5MM 3 |
490 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | B82477C6xxxM603 | Active | 2 | 22 µH | 88 µH | ±20% | - | 3.85 A | 6.4 A | 3.2 A | 24mOhm Max | 96mOhm Max | Shielded | AEC-Q200 | -55°C ~ 150°C | Surface Mount | Nonstandard | |

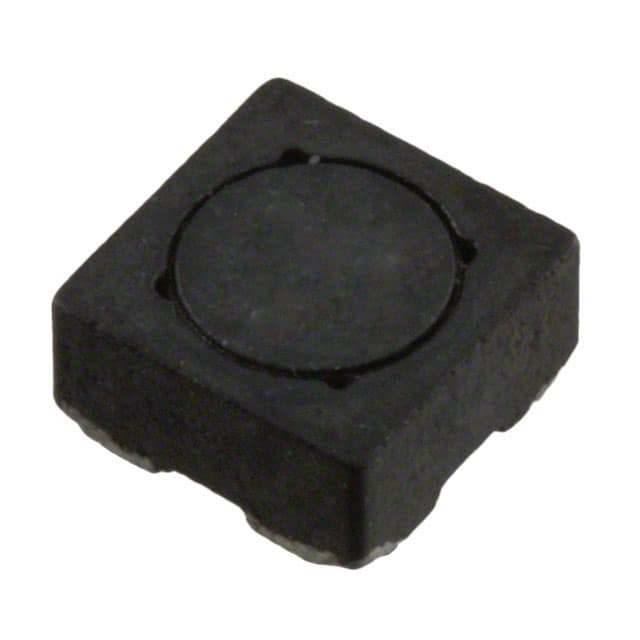

SDQ25-220-RINDUCT ARRAY 2 COIL 22.47UH SMD |
2,079 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SDQ | Active | 2 | 22.47 µH | 89.89 µH | ±20% | 1.01 A | 507 mA | 849 mA | 425 mA | 243.1mOhm | 972.4mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | Nonstandard | |
SDQ25-470-RINDUCT ARRAY 2 COIL 47.43UH SMD |
3,500 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SDQ | Active | 2 | 47.43 µH | 189.7 µH | ±20% | 749 mA | 374 mA | 584 mA | 292 mA | 446.1mOhm | 1.78Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | Nonstandard | |

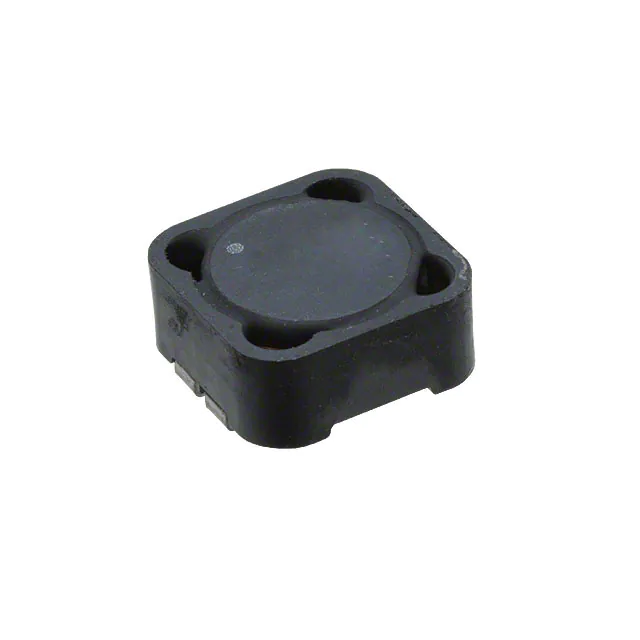

PF0552.473NLINDUCT ARRAY 2 COIL 47UH SMD |
3,263 | - |
RFQ |
Datasheet |
Tray | PF0552NL | Active | 2 | 47 µH | 190 µH | ±20% | 3.3 A | 1.7 A | 3.2 A | 1.6 A | 69mOhm Max | 270mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | Nonstandard | |
CTX300-1P-RINDUCT ARRAY 2 COIL 299.87UH SMD |
3,814 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Econo-Pac™ | Active | 2 | 299.87 µH | 1.199 mH | ±20% | 320 mA | 160 mA | - | - | 1.525Ohm Max | 6.1Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | Nonstandard | |
CTX200-1P-RINDUCT ARRAY 2 COIL 198.41UH SMD |
3,283 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Econo-Pac™ | Active | 2 | 198.41 µH | 793.65 µH | ±20% | 360 mA | 180 mA | - | - | 1.208Ohm Max | 4.831Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | Nonstandard | |

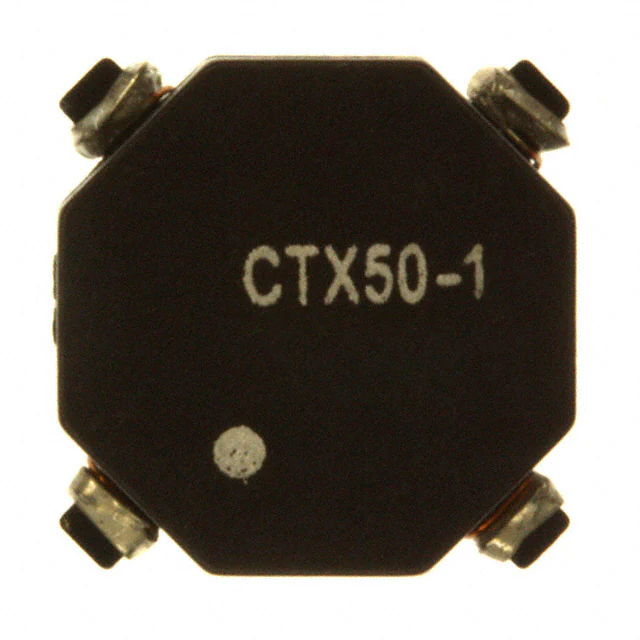

CTX50-1-RINDUCT ARRAY 2 COIL 50.63UH SMD |
2,974 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OCTA-PAC® | Active | 2 | 50.63 µH | 202.5 µH | ±20% | 640 mA | 320 mA | - | - | 365mOhm Max | 1.461Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | Nonstandard | |

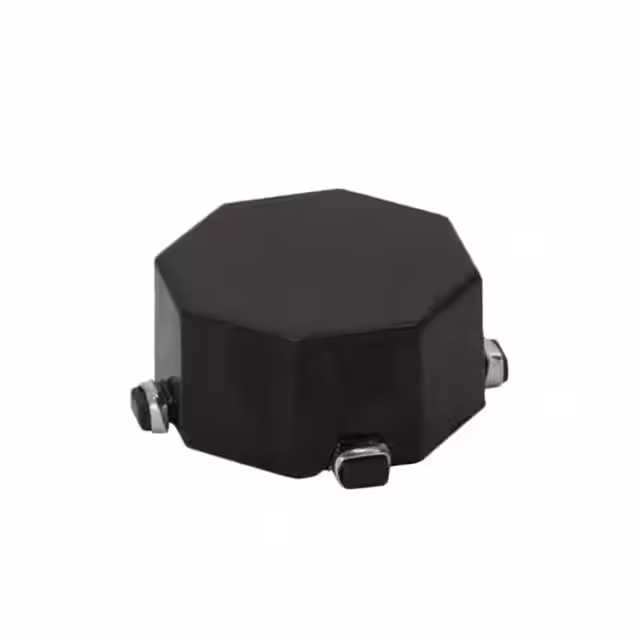

CTX100-4P-RINDUCT ARRAY 2 COIL 99.09UH SMD |
3,018 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Econo-Pac™ | Active | 2 | 99.09 µH | 396.38 µH | ±20% | 720 mA | 360 mA | - | - | 565mOhm Max | 2.259Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | Nonstandard | |
CTX200-3-RINDUCT ARRAY 2 COIL 198.74UH SMD |
800 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OCTA-PAC® | Active | 2 | 198.74 µH | 794.98 µH | ±20% | 390 mA | 200 mA | - | - | 619mOhm Max | 2.475Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | Nonstandard | |

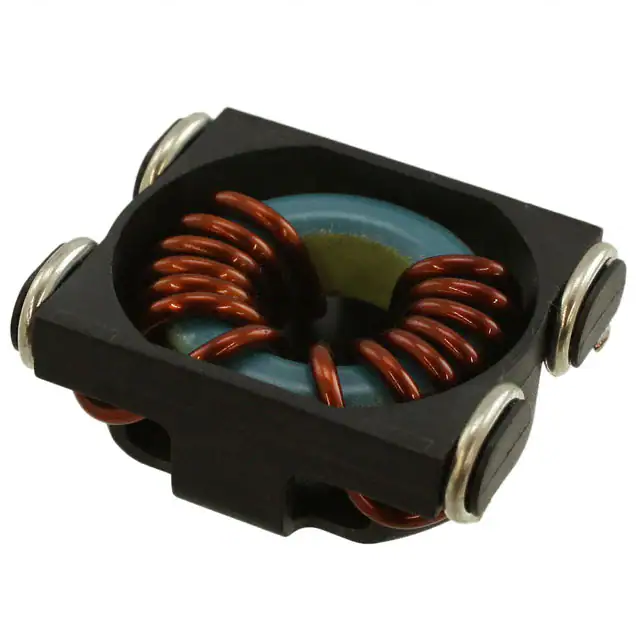

P0596NLTINDUCT ARRAY 2 COIL 8UH SMD |
225 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HCCI-80 | Active | 2 | 8 µH | 32 µH | ±15% | 24 A | 12 A | - | - | 3.5mOhm Max | 13.8mOhm Max | Unshielded | - | -40°C ~ 130°C | Surface Mount | Nonstandard | |
CTX300-4P-RINDUCT ARRAY 2 COIL 298.93UH SMD |
600 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Econo-Pac™ | Active | 2 | 298.93 µH | 1.2 mH | ±20% | 540 mA | 270 mA | - | - | 1.003Ohm Max | 4.011Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | Nonstandard | |
SRF0703-150MINDUCT ARRAY 2 COIL 15UH SMD |
2,168 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SRF0703 | Active | 2 | 15 µH | 60 µH | ±20% | 1.83 A | 916 mA | 2.05 A | 1.03 A | 119mOhm Max | 470mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | Nonstandard | |
SRF0703-4R7MINDUCT ARRAY 2 COIL 4.7UH SMD |
791 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SRF0703 | Active | 2 | 4.7 µH | 18.8 µH | ±20% | 3.09 A | 1.55 A | 3.78 A | 1.89 A | 40.6mOhm Max | 242mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | Nonstandard | |
SRF1260-221MINDUCT ARRAY 2 COIL 220UH SMD |
3,788 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SRF1260 | Active | 2 | 220 µH | 880 µH | ±20% | 1.19 A | 594 mA | 1.51 A | 755 mA | 354mOhm Max | 1.416Ohm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | Nonstandard | |
DRQ73-R33-RINDUCT ARRAY 2 COIL 306NH SMD |
2,436 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DRQ | Active | 2 | 306 nH | 1.224 µH | ±20% | 6.19 A | 3.1 A | 14.4 A | 7.18 A | 7.4mOhm | 29.6mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | Nonstandard | |
DRQ73-680-RINDUCT ARRAY 2 COIL 68.91UH SMD |
320 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DRQ | Active | 2 | 68.91 µH | 275.6 µH | ±20% | 890 mA | 444 mA | 960 mA | 480 mA | 358mOhm | 1.43Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | Nonstandard | |
DRQ74-1R0-RINDUCT ARRAY 2 COIL 952NH SMD |
2,814 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DRQ | Active | 2 | 952 nH | 3.808 µH | ±20% | 5.33 A | 2.66 A | 10.2 A | 5.1 A | 10mOhm | 40mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | Nonstandard | |
DRQ74-2R2-RINDUCT ARRAY 2 COIL 1.986UH SMD |
2,765 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DRQ | Active | 2 | 1.986 µH | 7.944 µH | ±20% | 4.66 A | 2.33 A | 7.06 A | 3.53 A | 13mOhm | 52.1mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | Nonstandard |
