Data Acquisition - Digital to Analog Converters (DAC)- Page 188

MAX3232IDR AOZ5311NQI-03 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	NumberofBits	NumberofD/AConverters	SettlingTime	OutputType	DifferentialOutput	DataInterface	ReferenceType	Voltage-SupplyAnalog	Voltage-SupplyDigital	INL/DNL(LSB)	Architecture	OperatingTemperature
AD9774ASZRL IC DAC 14BIT A-OUT 44MQFP Analog Devices Inc.	2,183	-	RFQ		44-QFP	Tape & Reel (TR)	TxDAC+®	Obsolete	14	1	35ns (Typ)	Current - Unbuffered	Yes	Parallel	External, Internal	2.7V ~ 5.5V	2.7V ~ 5.5V	±4, ±3	Current Source	-40°C ~ 85°C
DAC8426FSZ-REEL IC DAC 8BIT V-OUT 20SOIC Analog Devices Inc.	2,458	-	RFQ	Datasheet	20-SOIC (0.295, 7.50mm Width)	Tape & Reel (TR)	-	Obsolete	8	4	3µs (Typ)	Voltage - Buffered	No	Parallel	Internal	13.5V ~ 16.5V	13.5V ~ 16.5V	±1 (Max), ±1 (Max)	R-2R	-40°C ~ 85°C

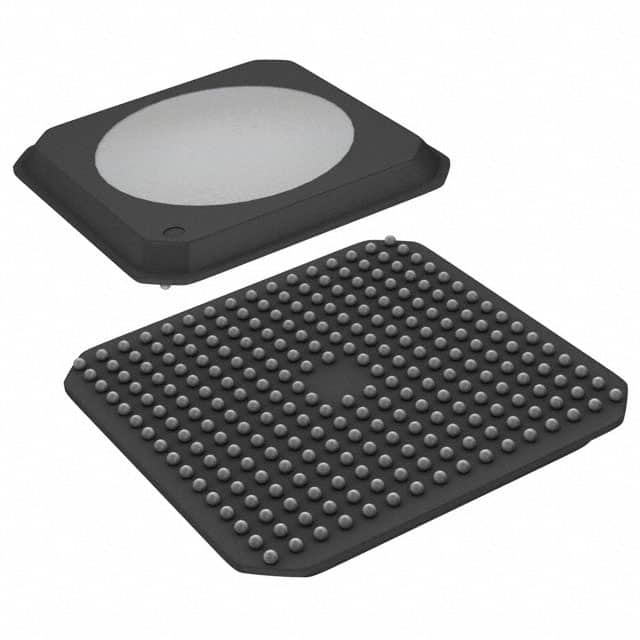

DAC5670IGDJ IC DAC 14BIT A-OUT 252BGA Texas Instruments	3,740	-	RFQ	Datasheet	252-BGA	Tray,Tray	-	Obsolete	14	1	3.5ns (Typ)	Current - Unbuffered	Yes	Parallel	External, Internal	3V ~ 3.6V	3V ~ 3.6V	±1.5, ±0.8	Current Sink	-40°C ~ 85°C
DS4402N+T&R/C IC DAC 5BIT A-OUT 14TDFN Analog Devices Inc./Maxim Integrated	3,325	-	RFQ	Datasheet	14-WFDFN Exposed Pad	Tape & Reel (TR)	-	Active	5	2	-	Current - Unbuffered	No	I²C	-	2.7V ~ 5.5V	2.7V ~ 5.5V	±1 (Max), ±0.5 (Max)	Current Sink, Current Source	-40°C ~ 85°C
AD5627BCPZ-R2 IC DAC 12BIT V-OUT 10LFCSP Analog Devices Inc.	3,408	-	RFQ	Datasheet	10-VFDFN Exposed Pad, CSP	Tape & Reel (TR),Cut Tape (CT),Bulk	nanoDAC®	Discontinued at Mosen	12	2	4.5µs	Voltage - Buffered	No	I²C	External	2.7V ~ 5.5V	2.7V ~ 5.5V	±0.5, ±0.25 (Max)	String DAC	-40°C ~ 105°C
AD5645RBCPZ-R2 IC DAC 14BIT V-OUT 10LFCSP Analog Devices Inc.	12,687	-	RFQ		10-VFDFN Exposed Pad, CSP	Tape & Reel (TR),Cut Tape (CT),Bulk	nanoDAC®	Discontinued at Mosen	14	4	5µs	Voltage - Buffered	No	I²C	External, Internal	2.7V ~ 5.5V	2.7V ~ 5.5V	±2, ±0.5 (Max)	String DAC	-40°C ~ 105°C
AD5647RBCPZ-R2 IC DAC 14BIT V-OUT 10LFCSP Analog Devices Inc.	270	-	RFQ	Datasheet	10-VFDFN Exposed Pad, CSP	Tape & Reel (TR),Cut Tape (CT),Bulk	nanoDAC®	Discontinued at Mosen	14	2	5µs	Voltage - Buffered	No	I²C	External, Internal	2.7V ~ 5.5V	2.7V ~ 5.5V	±2, ±0.5 (Max)	String DAC	-40°C ~ 105°C
AD5663BCPZ-R2 IC DAC 16BIT V-OUT 10LFCSP Analog Devices Inc.	3,064	-	RFQ	Datasheet	10-VFDFN Exposed Pad, CSP	Tape & Reel (TR),Cut Tape (CT),Bulk	nanoDAC®	Discontinued at Mosen	16	2	7µs	Voltage - Buffered	No	SPI, DSP	External	2.7V ~ 5.5V	2.7V ~ 5.5V	±6, ±1 (Max)	String DAC	-40°C ~ 105°C
AD5665BCPZ-R2 IC DAC 16BIT V-OUT 10LFCSP Analog Devices Inc.	9,683	-	RFQ		10-VFDFN Exposed Pad, CSP	Tape & Reel (TR),Cut Tape (CT),Bulk	nanoDAC®	Discontinued at Mosen	16	4	7µs	Voltage - Buffered	No	I²C	External	2.7V ~ 5.5V	2.7V ~ 5.5V	±8, ±1 (Max)	String DAC	-40°C ~ 105°C
AD5660BRJ-2500RL7 IC DAC 16BIT V-OUT SOT23-8 Analog Devices Inc.	3,595	-	RFQ		SOT-23-8	Tape & Reel (TR),Cut Tape (CT),Bulk	nanoDAC®	Obsolete	16	1	10µs	Voltage - Buffered	No	SPI, DSP	Internal	5V	5V	±16 (Max), ±1 (Max)	String DAC	-40°C ~ 105°C
AD5660BRJ-3500RL7 IC DAC 16BIT V-OUT SOT23-8 Analog Devices Inc.	3,094	-	RFQ		SOT-23-8	Tape & Reel (TR),Cut Tape (CT),Bulk	nanoDAC®	Obsolete	16	1	10µs	Voltage - Buffered	No	SPI, DSP	Internal	5V	5V	±16 (Max), ±1 (Max)	String DAC	-40°C ~ 105°C
AD5660BRJ-1500RL7 IC DAC 16BIT V-OUT SOT23-8 Analog Devices Inc.	2,279	-	RFQ		SOT-23-8	Tape & Reel (TR),Cut Tape (CT)	nanoDAC®	Obsolete	16	1	10µs	Voltage - Buffered	No	SPI, DSP	Internal	2.7V ~ 3.3V	2.7V ~ 3.3V	±16 (Max), ±1 (Max)	String DAC	-40°C ~ 105°C
AD5062ARJZ-1500RL7 IC DAC 16BIT V-OUT SOT23-8 Analog Devices Inc.	2,113	-	RFQ	Datasheet	SOT-23-8	Tape & Reel (TR),Cut Tape (CT),Bulk	nanoDAC®	Obsolete	16	1	4µs (Typ)	Voltage - Unbuffered	No	SPI, DSP	External	2.7V ~ 5.5V	2.7V ~ 5.5V	±0.5, ±0.5	R-2R	-40°C ~ 85°C
AD5662BRJ-1500RL7 IC DAC 16BIT V-OUT SOT23-8 Analog Devices Inc.	3,730	-	RFQ		SOT-23-8	Tape & Reel (TR),Cut Tape (CT),Bulk	nanoDAC®	Obsolete	16	1	10µs	Voltage - Buffered	No	SPI, DSP	External	2.7V ~ 5.5V	2.7V ~ 5.5V	±8, ±1 (Max)	String DAC	-40°C ~ 125°C
AD5662ARJ-2500RL7 IC DAC 16BIT V-OUT SOT23-8 Analog Devices Inc.	2,309	-	RFQ		SOT-23-8	Tape & Reel (TR),Bulk	nanoDAC®	Obsolete	16	1	10µs	Voltage - Buffered	No	SPI, DSP	External	2.7V ~ 5.5V	2.7V ~ 5.5V	±8, ±1 (Max)	String DAC	-40°C ~ 125°C
AD5662ARJ-1500RL7 IC DAC 16BIT V-OUT SOT23-8 Analog Devices Inc.	2,356	-	RFQ		SOT-23-8	Tape & Reel (TR),Cut Tape (CT),Bulk	nanoDAC®	Obsolete	16	1	10µs	Voltage - Buffered	No	SPI, DSP	External	2.7V ~ 5.5V	2.7V ~ 5.5V	±8, ±1 (Max)	String DAC	-40°C ~ 125°C
AD5640BRJ-2500RL7 IC DAC 14BIT V-OUT SOT23-8 Analog Devices Inc.	2,852	-	RFQ		SOT-23-8	Tape & Reel (TR),Cut Tape (CT),Bulk	nanoDAC®	Obsolete	14	1	10µs	Voltage - Buffered	No	SPI, DSP	Internal	5V	5V	±4 (Max), ±0.5 (Max)	String DAC	-40°C ~ 105°C
AD5640BRJ-1500RL7 IC DAC 14BIT V-OUT SOT23-8 Analog Devices Inc.	3,194	-	RFQ		SOT-23-8	Tape & Reel (TR),Cut Tape (CT),Bulk	nanoDAC®	Obsolete	14	1	10µs	Voltage - Buffered	No	SPI, DSP	Internal	2.7V ~ 3.3V	2.7V ~ 3.3V	±4 (Max), ±0.5 (Max)	String DAC	-40°C ~ 105°C
AD5640ARJZ-2500RL7 IC DAC 14BIT V-OUT SOT23-8 Analog Devices Inc.	3,412	-	RFQ		SOT-23-8	Tape & Reel (TR),Cut Tape (CT),Bulk	nanoDAC®	Obsolete	14	1	10µs	Voltage - Buffered	No	SPI, DSP	Internal	5V	5V	±8 (Max), ±0.5 (Max)	String DAC	-40°C ~ 105°C
AD5620BRJ-2500RL7 IC DAC 12BIT V-OUT SOT23-8 Analog Devices Inc.	3,477	-	RFQ		SOT-23-8	Tape & Reel (TR),Bulk	nanoDAC®	Obsolete	12	1	10µs	Voltage - Buffered	No	SPI, DSP	Internal	5V	5V	±1 (Max), ±0.25 (Max)	String DAC	-40°C ~ 105°C
