Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	NumberofBits	NumberofD/AConverters	SettlingTime	OutputType	DifferentialOutput	DataInterface	ReferenceType	Voltage-SupplyAnalog	Voltage-SupplyDigital	INL/DNL(LSB)	Architecture	OperatingTemperature
MCP4822T-E/SN IC DAC 12BIT V-OUT 8SOIC Microchip Technology	8,261	-	RFQ	Datasheet	8-SOIC (0.154, 3.90mm Width)	Tape & Reel (TR),Cut Tape (CT)	-	Active	12	2	4.5µs (Typ)	Voltage - Buffered	No	SPI	Internal	2.7V ~ 5.5V	2.7V ~ 5.5V	±4, ±0.25	String DAC	-40°C ~ 125°C
DAC104S085CISD/NOPB IC DAC 10BIT V-OUT 10WSON Texas Instruments	1,610	-	RFQ	Datasheet	10-WFDFN Exposed Pad	Tape & Reel (TR),Cut Tape (CT)	-	Active	10	4	6µs	Voltage - Buffered	No	SPI, DSP	External	2.7V ~ 5.5V	2.7V ~ 5.5V	±0.7, +0.08	String DAC	-40°C ~ 105°C
MAX5214GUA+T IC DAC 14BIT V-OUT 8UMAX Analog Devices Inc./Maxim Integrated	4,269	-	RFQ	Datasheet	8-TSSOP, 8-MSOP (0.118, 3.00mm Width)	Tape & Reel (TR),Cut Tape (CT)	-	Active	14	1	18µs (Typ)	Voltage - Buffered	No	SPI, DSP	External	2.7V ~ 5.5V	2.7V ~ 5.5V	±0.4, ±0.1	String DAC	-40°C ~ 105°C
TLV5620ID IC DAC 8BIT V-OUT 14SOIC Texas Instruments	4,773	-	RFQ	Datasheet	14-SOIC (0.154, 3.90mm Width)	Tube	-	Active	8	4	10µs (Typ)	Voltage - Buffered	No	SPI	External	2.7V ~ 5.25V	2.7V ~ 5.25V	±1 (Max), ±0.9 (Max)	String DAC	-40°C ~ 85°C
TLC5615IDR IC DAC 10BIT V-OUT 8SOIC Texas Instruments	6,698	-	RFQ	Datasheet	8-SOIC (0.154, 3.90mm Width)	Tape & Reel (TR),Cut Tape (CT)	-	Active	10	1	12.5µs (Typ)	Voltage - Buffered	No	SPI	External	5V	5V	±1 (Max), ±0.1	String DAC	-40°C ~ 85°C

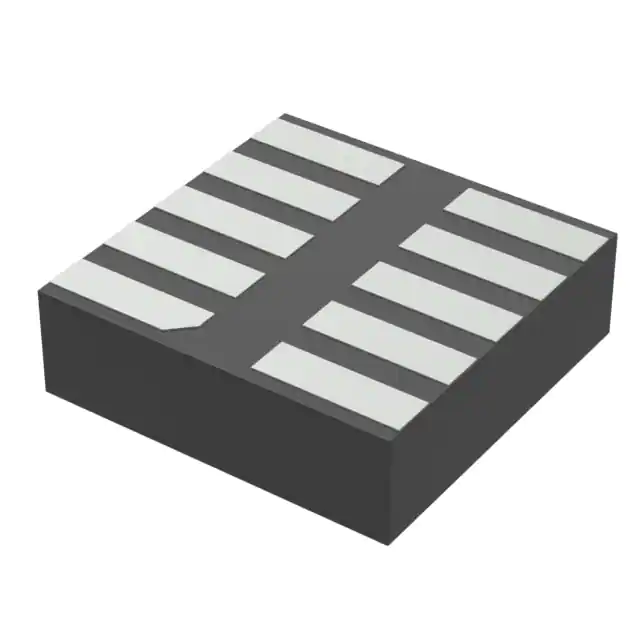

DAC60502DRXR DUAL CHANNEL 12 BIT DAC Texas Instruments	2,408	-	RFQ		10-WFDFN	Tape & Reel (TR),Cut Tape (CT)	-	Active	12	2	-	Voltage - Buffered	No	I²C, Serial, SPI	External, Internal	2.7V ~ 5.5V	2.7V ~ 5.5V	±1, ±1	R-2R	-40°C ~ 125°C
MCP4822-E/SN IC DAC 12BIT V-OUT 8SOIC Microchip Technology	1,385	-	RFQ	Datasheet	8-SOIC (0.154, 3.90mm Width)	Tube	-	Active	12	2	4.5µs (Typ)	Voltage - Buffered	No	SPI	Internal	2.7V ~ 5.5V	2.7V ~ 5.5V	±4, ±0.25	String DAC	-40°C ~ 125°C
AD5310BRMZ-REEL7 IC DAC 10BIT V-OUT 8MSOP Analog Devices Inc.	1,455	-	RFQ	Datasheet	8-TSSOP, 8-MSOP (0.118, 3.00mm Width)	Tape & Reel (TR),Cut Tape (CT)	-	Active	10	1	8µs	Voltage - Buffered	No	SPI, DSP	Supply	2.7V ~ 5.5V	2.7V ~ 5.5V	±4 (Max), ±0.5 (Max)	String DAC	-40°C ~ 105°C
AD5429YRUZ-REEL7 IC DAC 8BIT A-OUT 16TSSOP Analog Devices Inc.	2,230	-	RFQ	Datasheet	16-TSSOP (0.173, 4.40mm Width)	Tape & Reel (TR),Cut Tape (CT)	-	Active	8	2	120ns	Current - Unbuffered	Yes	SPI, DSP	External	2.5V ~ 5.5V	2.5V ~ 5.5V	±0.5 (Max), ±1 (Max)	R-2R	-40°C ~ 125°C
MAX518BCSA+T IC DAC 8BIT V-OUT 8SOIC Analog Devices Inc./Maxim Integrated	13,610	-	RFQ	Datasheet	8-SOIC (0.154, 3.90mm Width)	Tape & Reel (TR),Cut Tape (CT)	-	Active	8	2	6µs (Typ)	Voltage - Buffered	No	I²C	External	5V	5V	±1.5 (Max), ±1 (Max)	R-2R	0°C ~ 70°C
TLC7524CD IC DAC 8BIT A-OUT 16SOIC Texas Instruments	1,573	-	RFQ	Datasheet	16-SOIC (0.154, 3.90mm Width)	Tube	-	Active	8	1	100ns	Current - Unbuffered	Yes	Parallel	External	5V, 14.5V ~ 15.5V	5V, 14.5V ~ 15.5V	±0.5 (Max), ±2.5 (Max)	R-2R	0°C ~ 70°C
AD5433YRUZ-REEL7 IC DAC 10BIT A-OUT 20TSSOP Analog Devices Inc.	2,662	-	RFQ		20-TSSOP (0.173, 4.40mm Width)	Tape & Reel (TR),Cut Tape (CT)	-	Active	10	1	120ns	Current - Unbuffered	Yes	Parallel	External	2.5V ~ 5.5V	2.5V ~ 5.5V	±0.5 (Max), ±1 (Max)	R-2R	-40°C ~ 125°C
AD9704BCPZRL7 IC DAC 8BIT A-OUT 32LFCSP Analog Devices Inc.	4,438	-	RFQ		32-VFQFN Exposed Pad, CSP	Tape & Reel (TR),Cut Tape (CT)	TxDAC®	Active	8	1	11ns (Typ)	Current - Unbuffered	Yes	Parallel	External, Internal	1.8V, 3.3V	1.8V, 3.3V	±0.03, ±0.02	Current Source	-40°C ~ 85°C
DAC108S085CIMTX/NOPB IC DAC 10BIT V-OUT 16TSSOP Texas Instruments	3,912	-	RFQ	Datasheet	16-TSSOP (0.173, 4.40mm Width)	Tape & Reel (TR),Cut Tape (CT)	-	Active	10	8	6µs	Voltage - Buffered	No	SPI, DSP	External	2.7V ~ 5.5V	2.7V ~ 5.5V	±0.5, +0.08/-0.04	String DAC	-40°C ~ 125°C
AD7302BRZ-REEL7 IC DAC 8BIT V-OUT 20SOIC Analog Devices Inc.	1,484	-	RFQ	Datasheet	20-SOIC (0.295, 7.50mm Width)	Tape & Reel (TR),Cut Tape (CT)	-	Active	8	2	2µs	Voltage - Buffered	No	Parallel	External	2.7V ~ 5.5V	2.7V ~ 5.5V	±1 (Max), ±1 (Max)	Current Source	-40°C ~ 105°C
AD9748ACPZRL7 IC DAC 8BIT A-OUT 32LFCSP Analog Devices Inc.	6,202	-	RFQ	Datasheet	32-WFQFN Exposed Pad, CSP	Tape & Reel (TR),Cut Tape (CT)	TxDAC®	Active	8	1	11ns (Typ)	Current - Unbuffered	Yes	Parallel	External, Internal	2.7V ~ 3.6V	2.7V ~ 3.6V	±0.1, ±0.1	Current Source	-40°C ~ 85°C
AD5322ARMZ-REEL7 IC DAC 12BIT V-OUT 10MSOP Analog Devices Inc.	4,576	-	RFQ		10-TFSOP, 10-MSOP (0.118, 3.00mm Width)	Tape & Reel (TR),Cut Tape (CT)	-	Active	12	2	10µs	Voltage - Buffered	No	SPI, DSP	External	2.5V ~ 5.5V	2.5V ~ 5.5V	±2, ±0.2	String DAC	-40°C ~ 105°C
MAX5530ETC+ IC DAC 12BIT V-OUT 12TQFN Analog Devices Inc./Maxim Integrated	1,646	-	RFQ	Datasheet	12-WQFN Exposed Pad	Tube	-	Active	12	1	660µs (Typ)	Voltage - Buffered	No	SPI	External	1.8V ~ 5.5V	1.8V ~ 5.5V	±4, ±0.2	R-2R	-40°C ~ 85°C
DAC8580IPW IC DAC 16BIT V-OUT 16TSSOP Texas Instruments	1,464	-	RFQ	Datasheet	16-TSSOP (0.173, 4.40mm Width)	Tube	-	Not For New Designs	16	1	650ns	Voltage - Buffered	No	SPI	External	±4V ~ 6V	1.8V ~ 6V	-, ±0.25	String DAC	-40°C ~ 85°C
AD5310BRMZ IC DAC 10BIT V-OUT 8MSOP Analog Devices Inc.	1,833	-	RFQ	Datasheet	8-TSSOP, 8-MSOP (0.118, 3.00mm Width)	Tube	-	Active	10	1	8µs	Voltage - Buffered	No	SPI, DSP	Supply	2.7V ~ 5.5V	2.7V ~ 5.5V	±4 (Max), ±0.5 (Max)	String DAC	-40°C ~ 105°C
