Data Acquisition - Digital to Analog Converters (DAC)- Page 26

MAX3232IDR PIC18F25K22T-I/SO 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	NumberofBits	NumberofD/AConverters	SettlingTime	OutputType	DifferentialOutput	DataInterface	ReferenceType	Voltage-SupplyAnalog	Voltage-SupplyDigital	INL/DNL(LSB)	Architecture	OperatingTemperature
AD7545CQ IC DAC 12BIT A-OUT 20CDIP Analog Devices Inc.	2,468	-	RFQ	Datasheet	20-CDIP (0.300, 7.62mm)	Bulk,Tube	-	Active	12	1	2µs	Current - Unbuffered	No	Parallel	External	5V ~ 15V	5V ~ 15V	±0.5 (Max), ±1 (Max)	R-2R	-25°C ~ 85°C
LTC2668IUJ-12#TRPBF IC DAC 12BIT V-OUT 40QFN Analog Devices Inc.	2,159	-	RFQ	Datasheet	40-WFQFN Exposed Pad	Tape & Reel (TR)	SoftSpan™	Active	12	16	15.5µs (Typ)	Voltage - Buffered	No	SPI	External, Internal	±4.5V ~ 15.75V	1.71V ~ 5.5V	±0.2, ±0.05	-	-40°C ~ 85°C
DAC71416RHAR DIGITAL TO ANALOG CONVERTER Texas Instruments	3,953	-	RFQ	Datasheet	40-VFQFN Exposed Pad	Tape & Reel (TR)	-	Active	14	16	12µs (Typ)	Voltage - Buffered	No	SPI, DSP	Internal	4.5V ~ 5.5V	4.5V ~ 5.5V	±0.5, ±0.5	R-2R	-40°C ~ 125°C
DAC3482IRKDR IC DAC 16BIT A-OUT 88WQFN Texas Instruments	3,288	-	RFQ	Datasheet	88-WQFN Exposed Pad	Tape & Reel (TR)	-	Active	16	2	10ns (Typ)	Current - Unbuffered	Yes	LVDS - Parallel	External, Internal	3.14V ~ 3.46V	1.14V ~ 1.32V	±4, ±2	Current Source	-40°C ~ 85°C
MX7534KP+T IC DAC 14BIT A-OUT 20PLCC Analog Devices Inc./Maxim Integrated	2,581	-	RFQ	Datasheet	20-LCC (J-Lead)	Tape & Reel (TR)	-	Active	14	1	1.5µs	Current - Unbuffered	No	Parallel	External	11.4V ~ 15.75V	11.4V ~ 15.75V	±1 (Max), ±1 (Max)	R-2R	0°C ~ 70°C

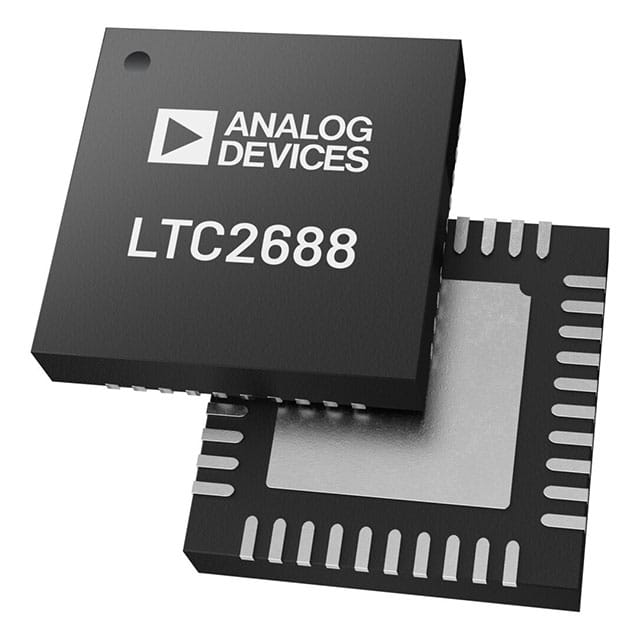

LTC2688CUJ-16#TRPBF 16 CHANNEL 16-BIT 15V SOFTSPAN D Analog Devices Inc.	3,043	-	RFQ	Datasheet	40-WFQFN Exposed Pad	Tape & Reel (TR)	-	Active	16	16	28µs	Voltage - Buffered	No	SPI	External, Internal	4.75V ~ 5.25V	1.71V ~ 5.5V	±3 (Max), ±1 (Max)	Multiplying DAC	0°C ~ 70°C
AD7237AARZ-REEL IC DAC 12BIT V-OUT 24SOIC Analog Devices Inc.	3,471	-	RFQ	Datasheet	24-SOIC (0.295, 7.50mm Width)	Tape & Reel (TR)	DACPORT®	Active	12	2	8µs	Voltage - Buffered	No	Parallel	External, Internal	±10.8V ~ 16.5V	-	±1 (Max), ±0.9 (Max)	R-2R	-40°C ~ 85°C
AD7237AARZ-REEL7 IC DAC 12BIT V-OUT 24SOIC Analog Devices Inc.	2,227	-	RFQ	Datasheet	24-SOIC (0.295, 7.50mm Width)	Tape & Reel (TR)	DACPORT®	Active	12	2	8µs	Voltage - Buffered	No	Parallel	External, Internal	±10.8V ~ 16.5V	-	±1 (Max), ±0.9 (Max)	R-2R	-40°C ~ 85°C
LTC1595AIS8#TRPBF IC DAC 16BIT A-OUT 8SOIC Analog Devices Inc.	2,723	-	RFQ	Datasheet	8-SOIC (0.154, 3.90mm Width)	Tape & Reel (TR)	-	Active	16	1	1µs (Typ)	Current - Unbuffered	No	SPI	External	5V	5V	±0.35, ±0.2	R-2R	-40°C ~ 85°C
AD3542RBCPZ16-RL7 DUAL CH 16 BIT LVSS Analog Devices Inc.	2,931	-	RFQ		28-VFQFN, CSP	Tape & Reel (TR)	-	Active	16	2	100ns	Voltage - Unbuffered	No	SPI	External, Internal	4.75V ~ 5.25V	1.71V ~ 1.89V	±4 (Max), ±2 (Max)	Multiplying DAC	-40°C ~ 105°C
LTC2704CGW-16#TRPBF IC DAC 16BIT V-OUT 44SSOP Analog Devices Inc.	2,489	-	RFQ	Datasheet	44-BSOP (0.295, 7.50mm Width)	Tape & Reel (TR)	SoftSpan™	Active	16	4	10µs (Typ)	Voltage - Buffered	No	SPI	External	±4.5V ~ 16.5V	2.7V ~ 5.5V	±2 (Max), ±1 (Max)	-	0°C ~ 70°C
LTC2704IGW-14#TRPBF IC DAC 14BIT V-OUT 44SSOP Analog Devices Inc.	3,650	-	RFQ	Datasheet	44-BSOP (0.295, 7.50mm Width)	Tape & Reel (TR)	SoftSpan™	Active	14	4	9µs (Typ)	Voltage - Buffered	No	SPI	External	±4.5V ~ 16.5V	2.7V ~ 5.5V	±1 (Max), ±1 (Max)	-	-40°C ~ 85°C
MAX5890EGK+D IC DAC 14BIT LVDS 600MSPS 68-QFN Analog Devices Inc./Maxim Integrated	2,785	-	RFQ	Datasheet	68-VFQFN Exposed Pad	Tube	-	Active	14	1	11µs (Typ)	Current - Unbuffered	Yes	LVDS - Parallel	External, Internal	1.71V ~ 1.89V, 3.135V ~ 3.465V	1.71V ~ 1.89V, 3.135V ~ 3.465V	±1, ±0.5	Current Steering	-40°C ~ 85°C
AD9751ASTZRL IC DAC 10BIT A-OUT 48LQFP Analog Devices Inc.	7,530	-	RFQ	Datasheet	48-LQFP	Tape & Reel (TR),Bulk	TxDAC+®	Active	10	1	11ns (Typ)	Current - Unbuffered	Yes	Parallel	External, Internal	3V ~ 3.6V	3V ~ 3.6V	±0.3, ±0.2	Current Source	-40°C ~ 85°C
AD5764BSUZ-REEL7 IC DAC 16BIT V-OUT 32TQFP Analog Devices Inc.	2,974	-	RFQ		32-TQFP	Tape & Reel (TR)	iCMOS®	Active	16	4	10µs	Voltage - Buffered	No	SPI, DSP	External	±11.4V ~ 16.5V	2.7V ~ 5.25V	±2 (Max), ±1 (Max)	R-2R	-40°C ~ 85°C
MAX5774UTK+ IC DAC 14BIT V-OUT 68TQFN Analog Devices Inc./Maxim Integrated	2,517	-	RFQ	Datasheet	68-WFQFN Exposed Pad	Tube	-	Active	14	32	20µs (Typ)	Voltage - Buffered	No	SPI, DSP	External	5V	2.7V ~ 5.25V	±1, ±1 (Max)	Pipelined	0°C ~ 85°C
MAX536AEWE+ IC DAC 12BIT V-OUT 16SOIC Analog Devices Inc./Maxim Integrated	3,660	-	RFQ	Datasheet	16-SOIC (0.295, 7.50mm Width)	Tube	-	Active	12	4	3µs (Typ)	Voltage - Buffered	No	SPI	External	10.8V ~ 13.2V, -5V	-	±0.15, ±1 (Max)	R-2R	-40°C ~ 85°C
AD9139BCPZRL IC DAC 16BIT A-OUT 72LFCSP Analog Devices Inc.	2,749	-	RFQ	Datasheet	72-VFQFN Exposed Pad, CSP	Tape & Reel (TR)	TxDAC+®	Active	16	1	20ns (Typ)	Current - Unbuffered	Yes	LVDS - Parallel	External, Internal	3.13V ~ 3.47V	1.7V ~ 1.9V	±3.7, ±2.1	Current Source	-40°C ~ 85°C
MAX5887EGK+TD IC DAC 14BIT A-OUT 68QFN Analog Devices Inc./Maxim Integrated	2,765	-	RFQ	Datasheet	68-VFQFN Exposed Pad	Tape & Reel (TR)	-	Active	14	1	11µs (Typ)	Current - Unbuffered	Yes	LVDS - Parallel	External, Internal	3.135V ~ 3.465V	3.135V ~ 3.465V	±0.8, ±0.5	Current Steering	-40°C ~ 85°C
AD9778BSVZRL IC DAC 14BIT A-OUT 100TQFP Analog Devices Inc.	2,981	-	RFQ	Datasheet	100-TQFP Exposed Pad	Tape & Reel (TR),Bulk	-	Active	14	2	-	Current - Unbuffered	Yes	Parallel	Internal	3.13V ~ 3.47V	1.7V ~ 1.9V, 3.13V ~ 3.47V	±1, ±0.65	Oversampling Interpolating DAC	-40°C ~ 85°C
