Data Acquisition - Digital to Analog Converters (DAC)- Page 36

MAX3232IDR PIC18F25K22T-I/SO 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	NumberofBits	NumberofD/AConverters	SettlingTime	OutputType	DifferentialOutput	DataInterface	ReferenceType	Voltage-SupplyAnalog	Voltage-SupplyDigital	INL/DNL(LSB)	Architecture	OperatingTemperature
AD9135BCPAZRL IC DAC 11BIT A-OUT 88LFCSP Analog Devices Inc.	3,395	-	RFQ	Datasheet	88-VFQFN Exposed Pad, CSP	Tape & Reel (TR)	TxDAC+®	Active	11	2	20ns (Typ)	Current - Unbuffered	Yes	JESD204B	Internal	3.13V ~ 3.47V	1.14V ~ 1.26V	±0.35, ±0.175	Current Source	-40°C ~ 85°C
AD7845SQ/883B IC DAC 12BIT MULT LC2MOS 24CDIP Analog Devices Inc.	876	-	RFQ	Datasheet	-	Bulk,Tube	-	Active	-	-	-	-	-	-	-	-	-	-	-	-

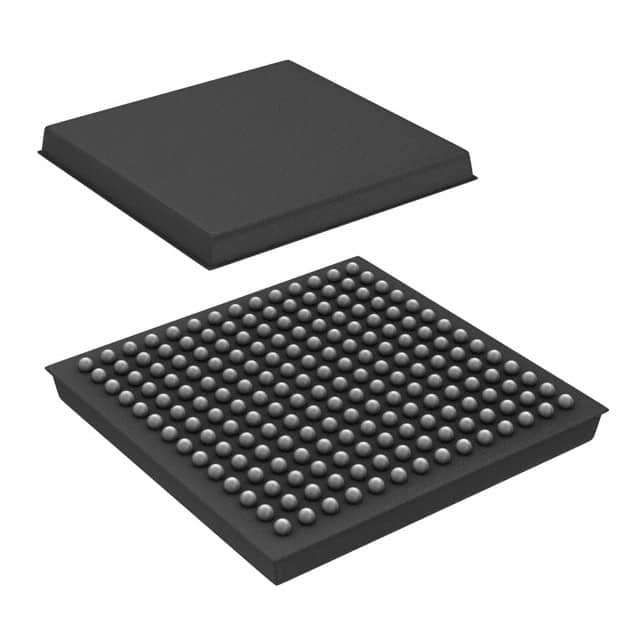

DAC3484IZAY IC DAC 16BIT A-OUT 196NFBGA Texas Instruments	3,723	-	RFQ	Datasheet	196-LFBGA	Tray	-	Active	16	4	10ns (Typ)	Current - Unbuffered	Yes	LVDS - Parallel	External, Internal	3.14V ~ 3.46V	1.14V ~ 1.32V	±4, ±2	Current Source	-40°C ~ 85°C
DAC34H84IZAY IC DAC 16BIT A-OUT 196NFBGA Texas Instruments	2,429	-	RFQ	Datasheet	196-LFBGA	Tray	-	Active	16	4	10ns (Typ)	Current - Unbuffered	Yes	LVDS - Parallel	External, Internal	3.14V ~ 3.46V	1.14V ~ 1.26V	±4, ±2	Current Source	-40°C ~ 85°C
DAC11001BPFBT HIGH-GRADE, 20-BIT, MONOTONIC DA Texas Instruments	2,975	-	RFQ		48-TQFP	Tape & Reel (TR)	-	Active	20	1	2.5µs	Voltage - Unbuffered	No	Serial, SPI	External	4.5V ~ 5.5V	2.7V ~ 5.5V	±1 (Max), ±1 (Max)	R-2R	-40°C ~ 125°C
5962-8770002EA IC DAC 8BIT MULTIPLYING 16CDIP Analog Devices Inc.	696	-	RFQ	Datasheet	16-CDIP (0.300, 7.62mm)	Bulk,Tube	-	Active	8	1	500ns	Current - Unbuffered	Yes	Parallel	External	5V ~ 15V	5V ~ 15V	±0.5 (Max), -	R-2R	-55°C ~ 125°C
AD5532ABCZ-3 IC DAC 14BIT V-OUT 74CSPBGA Analog Devices Inc.	3,502	-	RFQ		74-LBGA, CSPBGA	Bulk,Tray	-	Active	14	32	30µs	Voltage - Unbuffered	No	Parallel, SPI	External	5V, 8V ~ 16.5V, -4.75V ~ 16.5V	2.7V ~ 5.5V	±0.39 (Max), ±1 (Max)	-	-40°C ~ 85°C
5962-8770101RA IC DAC 8BIT A-OUT 20CERDIP Analog Devices Inc.	3,591	-	RFQ	Datasheet	20-CDIP (0.300, 7.62mm)	Tube	-	Active	8	2	400ns	Current - Unbuffered	No	Parallel	External	5V ~ 15V	5V ~ 15V	±1 (Max), ±1 (Max)	R-2R	-55°C ~ 125°C

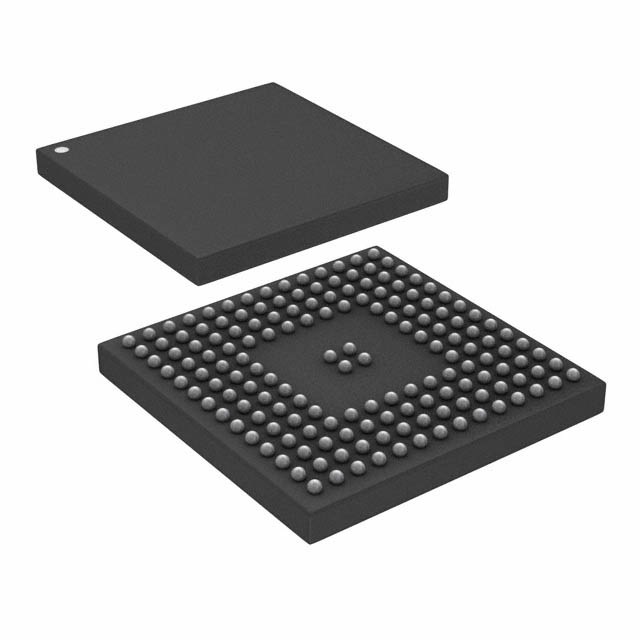

AD9789BBCZRL IC DAC 14BIT A-OUT 164CSPBGA Analog Devices Inc.	3,029	-	RFQ		164-LFBGA, CSPBGA	Tape & Reel (TR)	-	Active	14	1	13ns (Typ)	Current - Unbuffered	Yes	LVDS - Parallel, Parallel	External, Internal	3.14V ~ 3.47V	1.43V ~ 1.58V, 1.71V ~ 1.89V, 3.14V ~ 3.47V	-	Oversampling Interpolating DAC	-40°C ~ 85°C

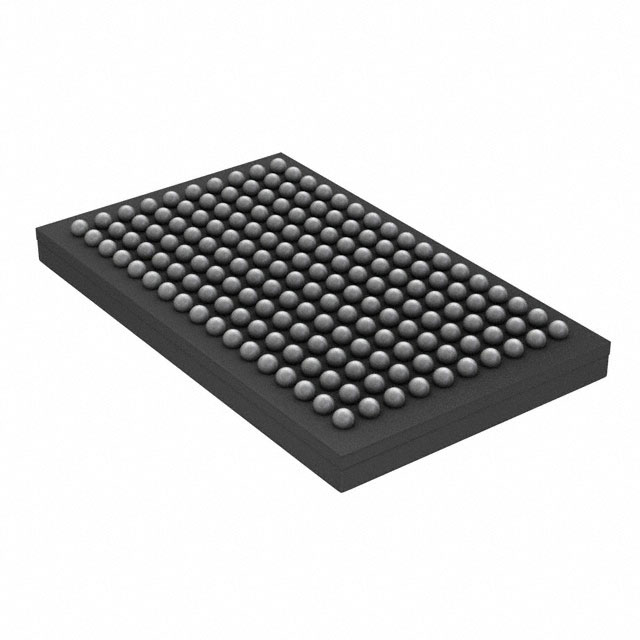

LTC2000AIY-14#PBF IC DAC 14BIT A-OUT 170BGA Analog Devices Inc.	600	-	RFQ	Datasheet	170-LFBGA	Bulk,Tray	-	Active	14	1	2.2ns (Typ)	Current - Unbuffered	Yes	LVDS - Parallel	External, Internal	1.8V ~ 1.92V, 3.135V ~ 3.465V	1.8V ~ 1.92V, 3.135V ~ 3.465V	±0.5, ±0.2	Current Steering	-40°C ~ 85°C
5962-8770102RA IC DAC 8BIT A-OUT 20CERDIP Analog Devices Inc.	2,371	-	RFQ	Datasheet	20-CDIP (0.300, 7.62mm)	Tube	-	Active	8	2	400ns	Current - Unbuffered	No	Parallel	External	5V ~ 15V	5V ~ 15V	±0.5 (Max), ±1 (Max)	R-2R	-55°C ~ 125°C
DAC60096IZEB IC DAC 12BIT V-OUT 196NFBGA Texas Instruments	340	-	RFQ	Datasheet	196-LBGA	Bulk,Tube	-	Active	12	96	65µs	Voltage - Unbuffered	No	SPI, DSP	External	11.2V ~ 12.6V	3V ~ 5.5V	±0.15, ±0.1	R-2R	-40°C ~ 85°C
MAX5734BUTN+ IC DAC 16BIT V-OUT 56TQFN Analog Devices Inc./Maxim Integrated	2,769	-	RFQ	Datasheet	56-WFQFN Exposed Pad	Tube	-	Active	16	32	20µs (Typ)	Voltage - Buffered	No	SPI, DSP	External	5V	2.7V ~ 5.25V	±8, ±1 (Max)	Pipelined	0°C ~ 85°C
AD9135BCPZ IC DAC 11BIT A-OUT 88LFCSP Analog Devices Inc.	3,814	-	RFQ	Datasheet	88-VFQFN Exposed Pad, CSP	Bulk,Tray	TxDAC+®	Active	11	2	20ns (Typ)	Current - Unbuffered	Yes	JESD204B	Internal	3.13V ~ 3.47V	1.14V ~ 1.26V	±0.35, ±0.175	Current Source	-40°C ~ 85°C
AD9135BCPAZ IC DAC 11BIT A-OUT 88LFCSP Analog Devices Inc.	191	-	RFQ	Datasheet	88-VFQFN Exposed Pad, CSP	Bulk,Tray	TxDAC+®	Active	11	2	20ns (Typ)	Current - Unbuffered	Yes	JESD204B	Internal	3.13V ~ 3.47V	1.14V ~ 1.26V	±0.35, ±0.175	Current Source	-40°C ~ 85°C
AD5371BSTZ-REEL IC DAC 14BIT V-OUT 80LQFP Analog Devices Inc.	2,732	-	RFQ	Datasheet	80-LQFP	Tape & Reel (TR),Bulk	-	Active	14	40	30µs	Voltage - Buffered	No	SPI, DSP	External	9V ~ 16.5V, -4.5V ~ 16.5V	2.5V ~ 5.5V	±1 (Max), ±1 (Max)	String DAC	-40°C ~ 85°C
DAC38RF84IAAVR DAC38RF84IAAVR Texas Instruments	3,353	-	RFQ	Datasheet	144-FBGA, FCBGA	Tape & Reel (TR)	-	Active	14	1	1ns (Typ)	Voltage - Buffered	No	JESD204B	External, Internal	1.71V ~ 1.89V	0.95V ~ 1.05V	±6, ±4	Current Source	-40°C ~ 85°C
DAC38J82IAAVR IC DAC 144FCBGA Texas Instruments	33,661	-	RFQ	Datasheet	144-FBGA, FCBGA	Tape & Reel (TR),Bulk	-	Active	16	2	10ns (Typ)	Current - Unbuffered	Yes	JESD204B	External, Internal	3.15V ~ 3.45V	0.85V ~ 0.95V	±6, ±4	Current Source	-40°C ~ 85°C

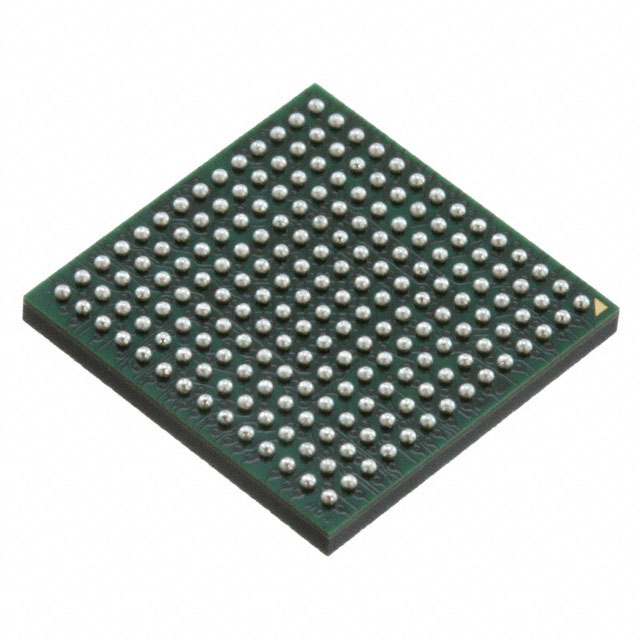

AD9148BBCZRL IC DAC 16BIT A-OUT 196CSPBGA Analog Devices Inc.	34,349	-	RFQ	Datasheet	196-LFBGA, CSPBGA	Tape & Reel (TR),Bulk	TxDAC+®	Active	16	4	20ns (Typ)	Current - Unbuffered	Yes	LVDS - Parallel	External, Internal	3.13V ~ 3.47V	1.71V ~ 1.89V	±3.7, ±2.1	Current Source	-40°C ~ 85°C

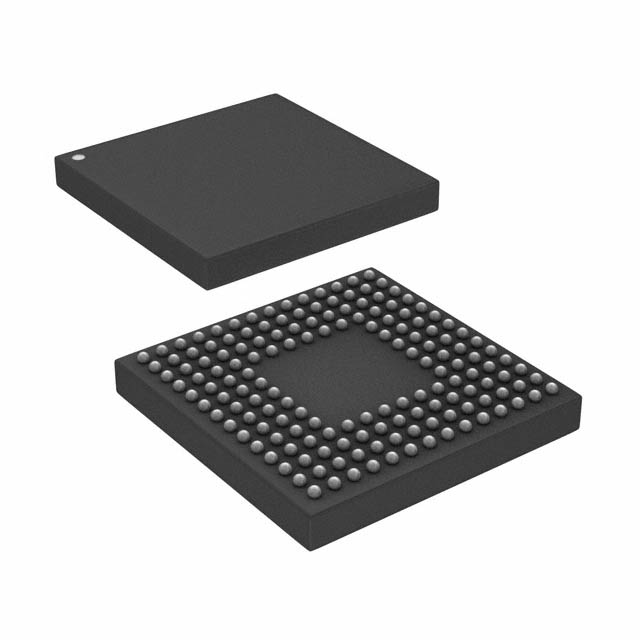

AD9739BBC IC DAC 14BIT A-OUT 160CSPBGA Analog Devices Inc.	2,568	-	RFQ	Datasheet	160-LFBGA, CSPBGA	Tray	-	Active	14	1	13ns (Typ)	Current - Unbuffered	Yes	LVDS - Parallel	External, Internal	1.7V ~ 1.9V, 3.1V ~ 3.5V	1.7V ~ 1.9V, 3.1V ~ 3.5V	±1.3, ±0.8	Quad-Switch	-40°C ~ 85°C
