Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GBU2506-HFRECTIFIER BRIDGE GPP 600V 25A GB |
2,088 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 25 A | 1 V @ 12.5 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||
GBU2501-HFRECTIFIER BRIDGE GPP 100V 25A GB |
3,116 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 100 V | 25 A | 1 V @ 12.5 A | 5 µA @ 100 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||
GBU25005-HFRECTIFIER BRIDGE GPP 50V 25A GBU |
3,315 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 50 V | 25 A | 1 V @ 12.5 A | 5 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||
GBU2504-HFRECTIFIER BRIDGE GPP 400V 25A GB |
3,226 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 400 V | 25 A | 1 V @ 12.5 A | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||
GBU2510-HFRECTIFIER BRIDGE GPP 1000V 25A G |
2,188 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 1 kV | 25 A | 1 V @ 12.5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||
GBU2502-HFRECTIFIER BRIDGE GPP 200V 25A GB |
3,260 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 200 V | 25 A | 1 V @ 12.5 A | 5 µA @ 200 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||
KBJ604GBRIDGE RECT 1PHASE 400V 6A KBJ |
3,738 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 400 V | 6 A | 1 V @ 3 A | 5 µA @ 400 V | -65°C ~ 150°C (TJ) | Through Hole | 4-SIP, KBJ | |||||||

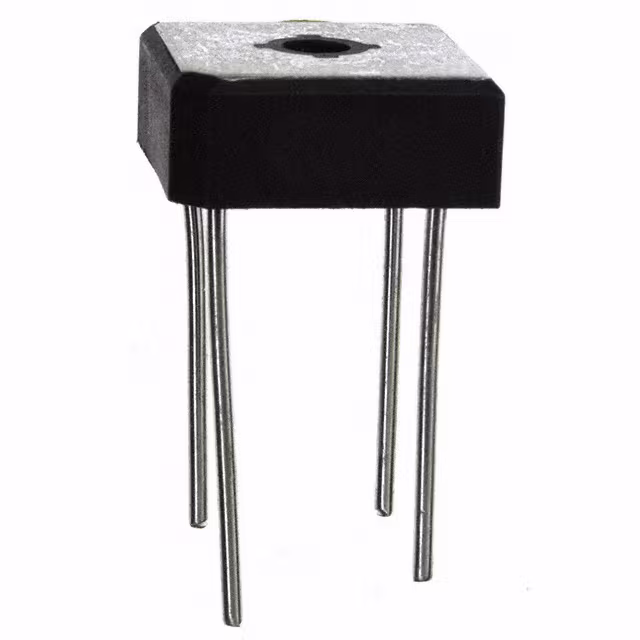

MP10005G-GBRIDGE RECT 1PHASE 50V 10A MP8 |
2,907 | - |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 50 V | 10 A | 1.1 V @ 5 A | 10 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, MP-8 | |||||||
MP1001G-GBRIDGE RECT 1PHASE 100V 10A MP8 |
3,322 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 100 V | 10 A | 1.1 V @ 5 A | 10 µA @ 100 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, MP-8 | |||||||
MP1002G-GBRIDGE RECT 1PHASE 200V 10A MP8 |
3,891 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 200 V | 10 A | 1.1 V @ 5 A | 10 µA @ 200 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, MP-8 | |||||||
MP1006G-GBRIDGE RECT 1PHASE 600V 10A MP8 |
3,487 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 600 V | 10 A | 1.1 V @ 5 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, MP-8 | |||||||
MP1008G-GBRIDGE RECT 1PHASE 800V 10A MP8 |
3,762 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 800 V | 10 A | 1.1 V @ 5 A | 10 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, MP-8 | |||||||
GBU4A-M3/51BRIDGE RECT 1PHASE 50V 3A GBU |
2,349 | - |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 50 V | 3 A | 1 V @ 4 A | 5 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||
GBU4B-M3/51BRIDGE RECT 1PHASE 100V 4A GBU |
2,461 | - |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 100 V | 4 A | 1 V @ 4 A | 5 µA @ 100 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||
GBU4D-M3/51BRIDGE RECT 1PHASE 200V 4A GBU |
3,256 | - |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 200 V | 4 A | 1 V @ 4 A | 5 µA @ 200 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||
GBU4G-M3/51BRIDGE RECT 1PHASE 400V 4A GBU |
2,899 | - |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 400 V | 4 A | 1 V @ 4 A | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||
GBU4J-M3/51BRIDGE RECT 1PHASE 600V 4A GBU |
2,725 | - |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 600 V | 4 A | 1 V @ 4 A | 5 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||
GBU4K-M3/51BRIDGE RECT 1PHASE 800V 4A GBU |
2,930 | - |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 800 V | 4 A | 1 V @ 4 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||
GBU4M-M3/51BRIDGE RECT 1PHASE 1KV 4A GBU |
2,475 | - |
RFQ |
Datasheet |
Tray | - | Active | Single Phase | Standard | 1 kV | 4 A | 1 V @ 4 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU | |||||||
GBU4A-M3/45BRIDGE RECT 1PHASE 50V 3A GBU |
3,585 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 50 V | 3 A | 1 V @ 4 A | 5 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GBU |
