Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Technology | Voltage-PeakReverse(Max) | Current-AverageRectified(Io) | Voltage-Forward(Vf)(Max)@If | Current-ReverseLeakage@Vr | OperatingTemperature | MountingType | VRRM(V) | I(AV)(A) | IFSM(A) | VF@IF(V) | VF@IF(A) | IR(μA) | Trr(ns) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
KBPC1506TBRIDGE RECT 1PHASE 600V 15A KBPC |
2,484 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 600 V | 15 A | 1.1 V @ 7.5 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | QC Terminal | 4-Square, KBPC-T | |||||||
KBPC1508TBRIDGE RECT 1PHASE 800V 15A KBPC |
3,434 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 800 V | 15 A | 1.1 V @ 7.5 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | QC Terminal | 4-Square, KBPC-T | |||||||
KBPC15005WBRIDGE RECT 1P 50V 15A KBPC-W |
3,720 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 50 V | 15 A | 1.1 V @ 7.5 A | 5 µA @ 50 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, KBPC-W | |||||||
KBPC1501WBRIDGE RECT 1P 100V 15A KBPC-W |
2,299 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 100 V | 15 A | 1.1 V @ 7.5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, KBPC-W | |||||||
KBPC1502WBRIDGE RECT 1P 200V 15A KBPC-W |
2,333 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 200 V | 15 A | 1.1 V @ 7.5 A | 5 µA @ 200 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, KBPC-W | |||||||
KBPC1504WBRIDGE RECT 1P 400V 15A KBPC-W |
2,768 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 400 V | 15 A | 1.1 V @ 7.5 A | 5 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, KBPC-W | |||||||
KBPC1506WBRIDGE RECT 1P 600V 15A KBPC-W |
2,843 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 600 V | 15 A | 1.1 V @ 7.5 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, KBPC-W | |||||||
KBPC1508WBRIDGE RECT 1P 800V 15A KBPC-W |
3,909 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 800 V | 15 A | 1.1 V @ 7.5 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-Square, KBPC-W | |||||||
TS50P05GHBRIDGE RECT 1P 600V 50A TS-6P |
3,016 | - |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | Single Phase | Standard | 600 V | 50 A | 1.1 V @ 25 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS-6P | |||||||
TS50P06GHBRIDGE RECT 1P 800V 50A TS-6P |
3,354 | - |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | Single Phase | Standard | 800 V | 50 A | 1.1 V @ 25 A | 10 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS-6P | |||||||
TS50P07GHBRIDGE RECT 1PHASE 1KV 50A TS-6P |
3,720 | - |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Active | Single Phase | Standard | 1 kV | 50 A | 1.1 V @ 25 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS-6P | |||||||
KBPC1510TBRIDGE RECT 1P 1KV 15A KBPC-T |
2,537 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 1 kV | 15 A | 1.1 V @ 7.5 A | 5 µA @ 800 V | -55°C ~ 150°C (TJ) | QC Terminal | 4-Square, KBPC-T | |||||||
KBPC1510WBRIDGE RECT 1P 1KV 15A KBPC-W |
3,527 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 1 kV | 15 A | 1.1 V @ 7.5 A | 5 µA @ 1000 V | -55°C ~ 150°C (TJ) | Chassis Mount | 4-Square, KBPC-W | |||||||
GSIB2520N-M3/45BRIDGE RECT 1P 200V 25A GSIB-5S |
2,024 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 200 V | 25 A | 1 V @ 12.5 A | 10 µA @ 200 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GSIB-5S | |||||||
GSIB2540N-M3/45BRIDGE RECT 1P 400V 25A GSIB-5S |
3,538 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 400 V | 25 A | - | 10 µA @ 400 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GSIB-5S | |||||||
GSIB2560N-M3/45BRIDGE RECT 1P 600V 25A GSIB-5S |
3,620 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 600 V | 25 A | 1 V @ 12.5 A | 10 µA @ 600 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, GSIB-5S | |||||||
PB3008-E3/45BRIDGE RECT 1P 800V 30A PB |
3,487 | - |
RFQ |
Datasheet |
Tube | - | Active | Single Phase | Standard | 800 V | 30 A | 1.1 V @ 15 A | 10 µA @ 800 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, PB | |||||||

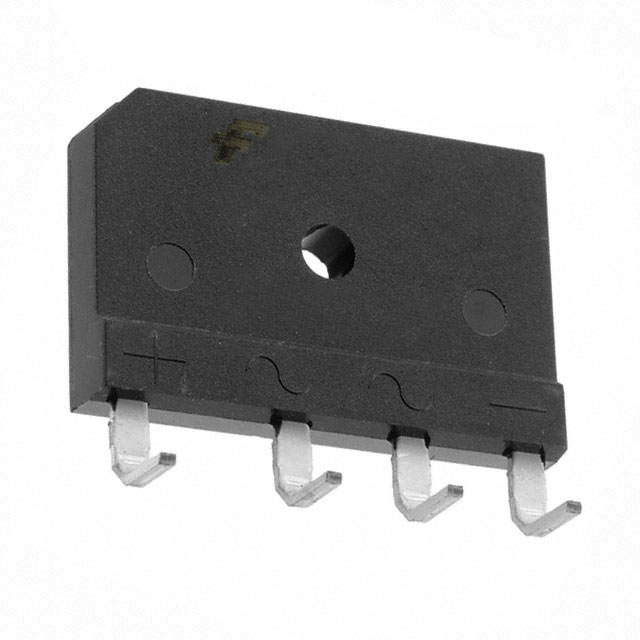

DFB20100F162BRIDGE RECT 1PHASE 1V 20A TS6P |
2,572 | - |
RFQ |
Datasheet |
Bulk,Bulk | - | Active | Single Phase | Standard | 1 kV | 20 A | 1.1 V @ 20 A | 10 µA @ 1000 V | -55°C ~ 150°C (TJ) | Through Hole | 4-SIP, TS-6P | |||||||
KBPC25005TBRIDGE RECT 1PHASE 50V 25A KBPC |
2,402 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 50 V | 25 A | 1.1 V @ 12.5 A | 5 µA @ 50 V | -55°C ~ 150°C (TJ) | QC Terminal | 4-Square, KBPC-T | |||||||
KBPC2501TBRIDGE RECT 1PHASE 100V 25A KBPC |
2,293 | - |
RFQ |
Datasheet |
Bulk | - | Active | Single Phase | Standard | 100 V | 25 A | 1.1 V @ 12.5 A | 5 µA @ 100 V | -55°C ~ 150°C (TJ) | QC Terminal | 4-Square, KBPC-T |
