Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeConfiguration | DiodeType | Voltage-DCReverse(Vr)(Max) | Current-AverageRectified(Io)(perDiode) | Voltage-Forward(Vf)(Max)@If | Speed | ReverseRecoveryTime(trr) | Current-ReverseLeakage@Vr | OperatingTemperature-Junction | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BAT54C-BO-HE3-18DIODE SCHOTTKY DUAL CC SOT23 |
3,803 | - |
RFQ |
Tape & Reel (TR) | Automotive, AEC-Q101 | Obsolete | 1 Pair Common Cathode | Schottky | 30 V | 200mA (DC) | 800 mV @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 2 µA @ 25 V | 125°C (Max) | Surface Mount | ||
IDW20S120FKSA1DIODE SCHOTTKY 1200V 10A TO247-3 |
3,451 | - |
RFQ |
Datasheet |
Tube,Tube | CoolSiC™+ | Obsolete | 1 Pair Common Cathode | Silicon Carbide Schottky | 1200 V | 10A (DC) | 1.8 V @ 10 A | No Recovery Time > 500mA (Io) | - | 240 µA @ 1200 V | -55°C ~ 175°C | Through Hole | |
IDW30S120FKSA1DIODE SCHOTTKY 1200V 15A TO247-3 |
3,988 | - |
RFQ |
Datasheet |
Tube,Tube | CoolSiC™+ | Obsolete | 1 Pair Common Cathode | Silicon Carbide Schottky | 1200 V | 15A (DC) | 1.8 V @ 30 A | No Recovery Time > 500mA (Io) | - | 305 µA @ 1200 V | -55°C ~ 175°C | Through Hole | |
GP2D030A120UDIODE SIC 1200V 50A TO24 |
2,529 | - |
RFQ |
Datasheet |
Tube | Amp+™ | Discontinued at Mosen | 1 Pair Common Cathode | Silicon Carbide Schottky | 1200 V | 50A (DC) | 1.8 V @ 15 A | No Recovery Time > 500mA (Io) | - | 30 µA @ 1200 V | -55°C ~ 175°C | Through Hole | |

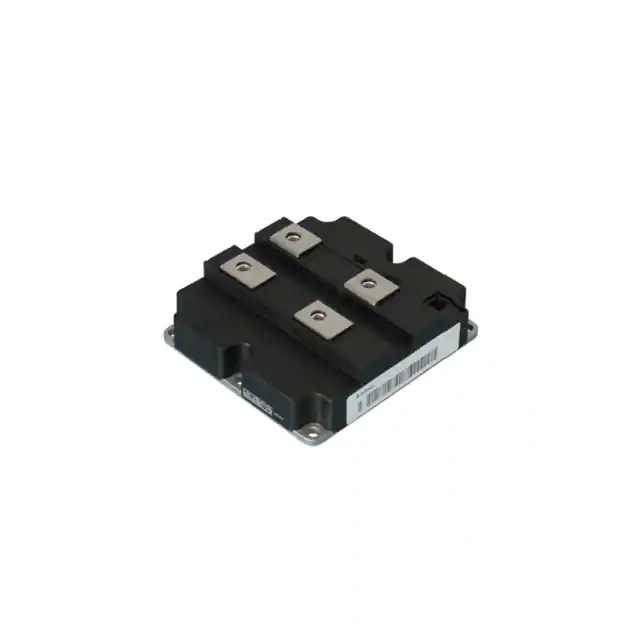

DD1200S33K2CNOSA1DIODE MOD 3300VA-IHV130-3-1 |
2,681 | - |
RFQ |
Datasheet |
Tray | - | Obsolete | 2 Independent | Standard | 3300 V | 1200A (DC) | 3.5 V @ 1200 A | Standard Recovery >500ns, > 200mA (Io) | - | 1700 A @ 1800 V | -40°C ~ 125°C | Chassis Mount | |
DD1200S33KL2CB5NOSA1DIODE MOD 3300V A-IHV130-6-1 |
3,820 | - |
RFQ |
Datasheet |
Tray | - | Obsolete | 2 Independent | Standard | 3300 V | 1200A (DC) | 3.5 V @ 1200 A | Standard Recovery >500ns, > 200mA (Io) | - | 1700 A @ 1800 V | -40°C ~ 125°C | Chassis Mount | |
MBR10H100CT-E3/4WDIODE SCHOTTKY DUAL CC TO220 |
3,057 | - |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 5A | 760 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3.5 µA @ 100 V | -65°C ~ 175°C | Through Hole | |
MBR20H100CT-E3/4WDIODE SCHOTTKY DUAL CC TO220 |
3,824 | - |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 10A | 770 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4.5 µA @ 100 V | -65°C ~ 175°C | Through Hole | |
MBR20H100CTG-E3/4WDIODE SCHOTTKY DUAL CC TO220 |
3,951 | - |
RFQ |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 10A | 850 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 3.5 µA @ 100 V | -65°C ~ 175°C | Through Hole | ||
MBR30H100CT81E3/45DIODE SCHOTTKY DUAL CC TO220 |
2,283 | - |
RFQ |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 15A | 820 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 µA @ 100 V | -65°C ~ 175°C | - | ||
MBRB20H100CTGHE3/4DIODE SCHOTTKY DUAL CC TO263 |
3,560 | - |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 10A | 770 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4.5 µA @ 100 V | -65°C ~ 175°C | Surface Mount | |
MBRB20H100CTGHE3/8DIODE SCHOTTKY DUAL CC TO263 |
2,953 | - |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 10A | 770 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4.5 µA @ 100 V | -65°C ~ 175°C | Surface Mount | |
MBRF20H100CTGHE3/4DIODE SCHOTTKY DUAL CC ITO220 |
2,084 | - |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 10A | 770 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 4.5 µA @ 100 V | -65°C ~ 175°C | Through Hole | |
MBR10100CD-E1DIODE ARRAY SCHOTTKY 100V TO252 |
3,560 | - |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 5A | 850 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | 150°C (Max) | Surface Mount | |
MBR10100CD-G1DIODE ARRAY SCHOTTKY 100V TO252 |
3,551 | - |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 5A | 850 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | 150°C (Max) | Surface Mount | |
MBR10100CDTR-E1DIODE ARRAY SCHOTTKY 100V TO252 |
3,073 | - |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 5A | 850 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | 150°C (Max) | Surface Mount | |
MBR10100CDTR-G1DIODE ARRAY SCHOTTKY 100V TO252 |
2,712 | - |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 5A | 850 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | 150°C (Max) | Surface Mount | |
MBR10100CS2-E1DIODE ARRAY SCHOTTKY 100V TO263 |
2,342 | - |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 5A | 850 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | 150°C (Max) | Surface Mount | |
MBR10100CS2-G1DIODE ARRAY SCHOTTKY 100V TO263 |
3,573 | - |
RFQ |
Datasheet |
Tube | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 5A | 850 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | 150°C (Max) | Surface Mount | |
MBR10100CS2TR-E1DIODE ARRAY SCHOTTKY 100V TO263 |
2,841 | - |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | 1 Pair Common Cathode | Schottky | 100 V | 5A | 850 mV @ 5 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 100 µA @ 100 V | 150°C (Max) | Surface Mount |
