Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
VS-40HFL60S05DIODE GEN PURP 600V 40A DO203AB |
2,441 | - |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | 500 ns | 100 µA @ 600 V | 600 V | 40A | -40°C ~ 125°C | 1.95 V @ 40 A | ||
JAN1N6073DIODE GEN PURP 50V 850MA AXIAL |
2,655 | - |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/503 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 30 ns | 1 µA @ 50 V | 50 V | 850mA | -65°C ~ 155°C | 2.04 V @ 9.4 A | |
VS-70HFLR80S05DIODE GEN PURP 800V 70A DO203AB |
3,951 | - |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 500 ns | 100 µA @ 800 V | 800 V | 70A | -40°C ~ 125°C | 1.85 V @ 219.8 A | ||
VS-15ETU12HN3DIODE GEN PURP 1.2KV 15A TO220AC |
3,790 | - |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 167 ns | 80 µA @ 1200 V | 1200 V | 15A | -55°C ~ 175°C | 2.78 V @ 15 A | |
VS-8EWF10STRR-M3DIODE GEN PURP 1KV 8A D-PAK |
3,098 | - |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 270 ns | 100 µA @ 1000 V | 1000 V | 8A | -40°C ~ 150°C | 1.3 V @ 8 A | ||
PCFFS5065AFDIODE SCHOTTKY 650V 50A DIE |
2,120 | - |
RFQ |
Tray | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 2530pF @ 1V, 100kHz | 0 ns | 200 µA @ 650 V | 650 V | 60A (DC) | -55°C ~ 175°C | 1.75 V @ 50 A | |||
VS-40HFLR60S05DIODE GEN PURP 600V 40A DO203AB |
3,304 | - |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 500 ns | 100 µA @ 600 V | 600 V | 40A | -40°C ~ 125°C | 1.95 V @ 40 A | ||
JAN1N6621UDIODE GEN PURP 400V 1.2A A-MELF |
2,160 | - |
RFQ |
Bulk | Military, MIL-PRF-19500/585 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 30 ns | 500 nA @ 400 V | 400 V | 1.2A | -65°C ~ 150°C | 1.4 V @ 1.2 A | ||
JANTXV1N3595USZENER DIODE |
2,342 | - |
RFQ |
Bulk,Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 3 µs | - | 125 V | 4A | -65°C ~ 150°C | 1 V @ 200 mA | |||
SD101AW-HE3-08DIODE SCHOTTKY 400MW 60V SOD123 |
2,779 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 2pF @ 0V, 1MHz | 1 ns | 200 nA @ 50 V | 60 V | 30mA (DC) | -55°C ~ 125°C | 1 V @ 15 mA | |
SK3200A-LTPDIODE SCHOTTKY 200V 3A DO-214AC |
3,024 | - |
RFQ |
- | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 10 µA @ 200 V | 200 V | 3A | -55°C ~ 175°C | 860 mV @ 3 A | |||
BAS521Q-13DIODE GEN PURP 300V 250MA SOD523 |
2,783 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 150 nA @ 250 V | 300 V | 250mA (DC) | -65°C ~ 150°C | 1.1 V @ 100 mA | |

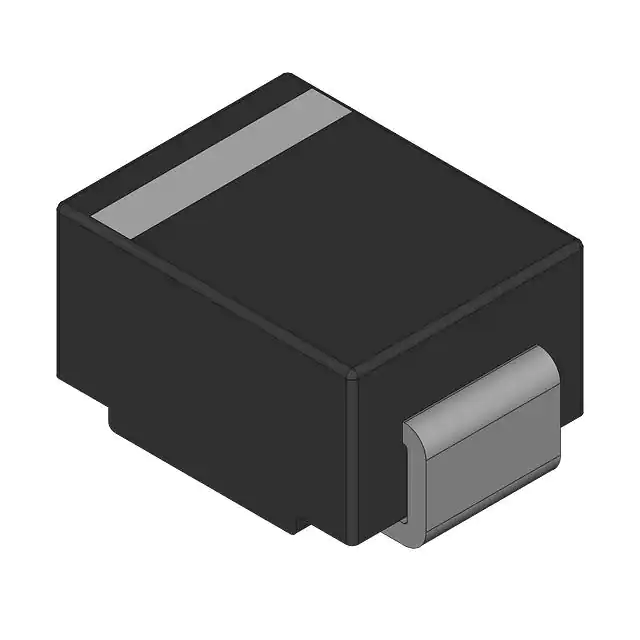

SK26-AU_R1_000A1SMB, SKY |
1,600 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 80pF @ 4V, 1MHz | - | 90 µA @ 60 V | 60 V | 2A | -55°C ~ 150°C | 700 mV @ 2 A | |
MRA4003T3GDIODE GEN PURP 300V 1A SMA |
2,840 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 10 µA @ 300 V | 300 V | 1A | -55°C ~ 175°C | 1.1 V @ 1 A | ||
MB28_R1_00001SURFACE MOUNT SCHOTTKY BARRIER R |
3,855 | - |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 50 µA @ 80 V | 80 V | 2A | -55°C ~ 175°C | 800 mV @ 2 A | |||
SMMBD914LT1GDIODE GP 100V 200MA SOT23-3 |
3,648 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | 4 ns | 5 µA @ 75 V | 100 V | 200mA (DC) | -55°C ~ 150°C | 1 V @ 10 mA | ||
ER1B_R1_00001SURFACE MOUNT SUPER FAST RECOVER |
2,752 | - |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 35 ns | 1 µA @ 100 V | 100 V | 1A | -55°C ~ 150°C | 950 mV @ 1 A | |||

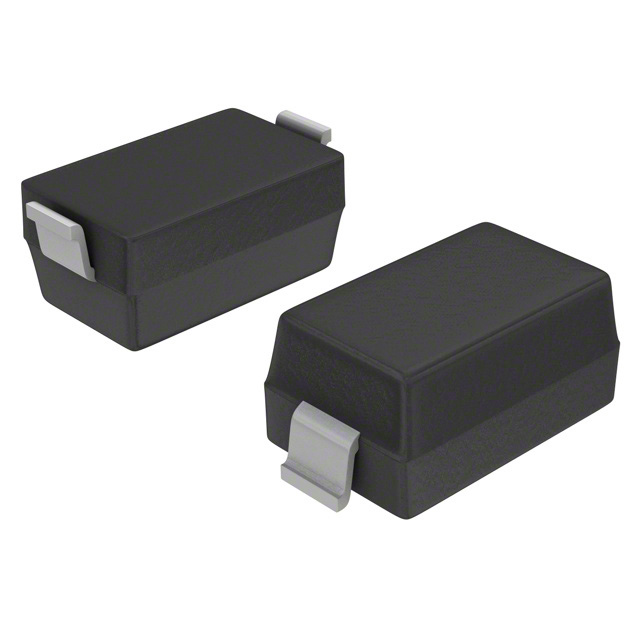

BAT41ZFILMDIODE SCHOTTKY 100V 200MA SOD123 |
2,195 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | 10pF @ 1V, 1MHz | - | 100 nA @ 50 V | 100 V | 200mA (DC) | 150°C (Max) | 1 V @ 200 mA | ||
ER1C_R1_00001SURFACE MOUNT SUPER FAST RECOVER |
2,719 | - |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 35 ns | 1 µA @ 150 V | 150 V | 1A | -55°C ~ 150°C | 950 mV @ 1 A | |||
BAT48ZFILMDIODE SCHOTTKY 40V 350MA SOD123 |
3,010 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 30pF @ 0V, 1MHz | - | 25 µA @ 40 V | 40 V | 350mA (DC) | -40°C ~ 150°C | 750 mV @ 200 mA |
