Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
VS-20ETF10STRL-M3DIODE GEN PURP 1KV 20A TO263AB |
3,633 | - |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 400 ns | 100 µA @ 1000 V | 1000 V | 20A | -40°C ~ 150°C | 1.31 V @ 20 A | ||
1N5807USDIODE GEN PURP 50V 6A |
3,279 | - |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 60pF @ 5V, 1MHz | 30 ns | 5 µA @ 50 V | 50 V | 6A | - | 875 mV @ 4 A | ||
VS-HFA16TB120SHM3DIODE GEN PURP 1.2KV 16A TO263AB |
3,494 | - |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, HEXFRED® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 90 ns | 20 µA @ 1200 V | 1200 V | 16A | -55°C ~ 150°C | 3 V @ 16 A | |
MUR2560RDIODE GEN PURP REV 600V 25A DO4 |
3,633 | - |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | 90 ns | 10 µA @ 50 V | 600 V | 25A | -55°C ~ 150°C | 1.7 V @ 25 A | ||
RURG3040RECTIFIER DIODE |
2,867 | - |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Avalanche | Active | Through Hole | - | 60 ns | 500 µA @ 400 V | 400 V | 30A | -65°C ~ 175°C | 1.5 V @ 30 A | ||
CMR1-04M TR13 PBFREEDIODE GEN PURP 400V 1A SMA |
2,816 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 8pF @ 4V, 1MHz | - | 5 µA @ 400 V | 400 V | 1A | -65°C ~ 150°C | 1.1 V @ 1 A | ||

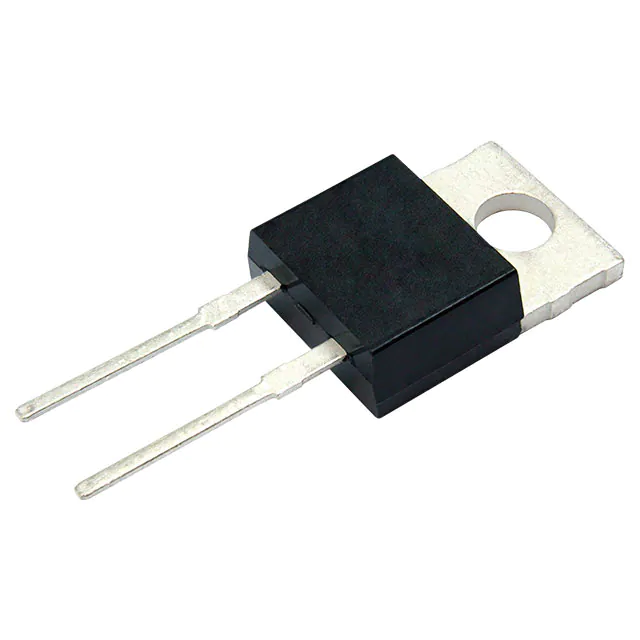

DSEP8-06ADIODE GEN PURP 600V 10A TO220AC |
3,481 | - |
RFQ |
Datasheet |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 35 ns | 60 µA @ 600 V | 600 V | 10A | -55°C ~ 175°C | 2.1 V @ 10 A | |
BYW54-TRDIODE AVALANCHE 600V 2A SOD57 |
2,955 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Active | Through Hole | - | 4 µs | 1 µA @ 1000 V | 600 V | 2A | -55°C ~ 175°C | 1 V @ 1 A | ||
DSEP8-06BDIODE GEN PURP 600V 10A TO220AC |
2,334 | - |
RFQ |
Datasheet |
Tube | HiPerFRED™ | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 30 ns | 60 µA @ 600 V | 600 V | 10A | -55°C ~ 175°C | 2.66 V @ 10 A | |
SS3P6L-M3/86ADIODE SCHOTTKY 60V 3A TO277A |
2,806 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | eSMP® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 200pF @ 4V, 1MHz | - | 150 µA @ 60 V | 60 V | 3A | -55°C ~ 150°C | 600 mV @ 3 A | |
VS-E5TX3006-M330A, 600V, "X" SERIES FRED PT IN |
3,026 | - |
RFQ |
Datasheet |
Tube | FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 41 ns | 20 µA @ 600 V | 600 V | 30A | -55°C ~ 175°C | 2.1 V @ 30 A | |
B340LB-E3/52TDIODE SCHOTTKY 40V 3A DO214AA |
2,713 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 400 µA @ 40 V | 40 V | 3A | -65°C ~ 150°C | 450 mV @ 3 A | ||
UGS20JH50NS, 20A, 600V, HIGH EFFICIENT |
2,487 | - |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 94.5pF @ 4V, 1MHz | 50 ns | 1 µA @ 600 V | 600 V | 20A (DC) | -55°C ~ 150°C | 2 V @ 20 A | ||
1N3595DIODE GEN PURP 150V 200MA DO35 |
2,296 | - |
RFQ |
Datasheet |
Bulk,Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | 8pF @ 0V, 1MHz | 3 µs | 1 nA @ 125 V | 150 V | 200mA | 175°C (Max) | 1 V @ 200 mA | ||
PSDH30120S1_T0_00001TO-247AD-2LD, FAST |
2,018 | - |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 200 ns | 250 µA @ 1200 V | 1200 V | 30A | -55°C ~ 150°C | 3.5 V @ 30 A | ||
S3NDIODE GEN PURP 1200V 3A SMC |
3,201 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 60pF @ 4V, 1MHz | 2.5 µs | 5 µA @ 1200 V | 1200 V | 3A | -55°C ~ 150°C | 1.2 V @ 3 A | ||
DSS16-0045ADIODE SCHOTTKY 45V 16A TO-220AC |
3,472 | - |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 45 V | 45 V | 16A | - | 670 mV @ 15 A | ||
STPS1045SF45V POWER SCHOTTKY RECTIFIER |
3,162 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | ECOPACK®2 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 50 µA @ 45 V | 45 V | 10A | 175°C (Max) | - | |

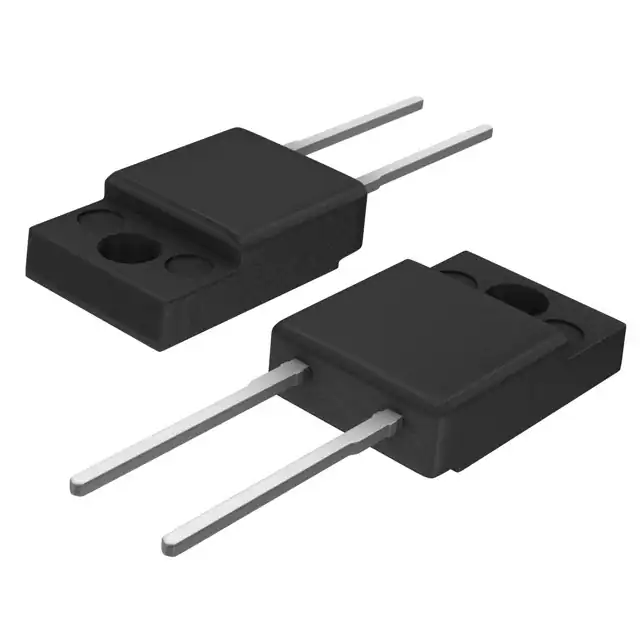

STTH20R04FPDIODE GEN PURP 400V 20A TO220FP |
3,364 | - |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Not For New Designs | Through Hole | - | 45 ns | 20 µA @ 400 V | 400 V | 20A | 175°C (Max) | 1.7 V @ 20 A | ||
DMA10I1600PADIODE GEN PURP 1600V 10A TO220AC |
3,950 | - |
RFQ |
Datasheet |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 4pF @ 400V, 1MHz | - | 10 µA @ 1600 V | 1600 V | 10A | -55°C ~ 175°C | 1.26 V @ 10 A |
