Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

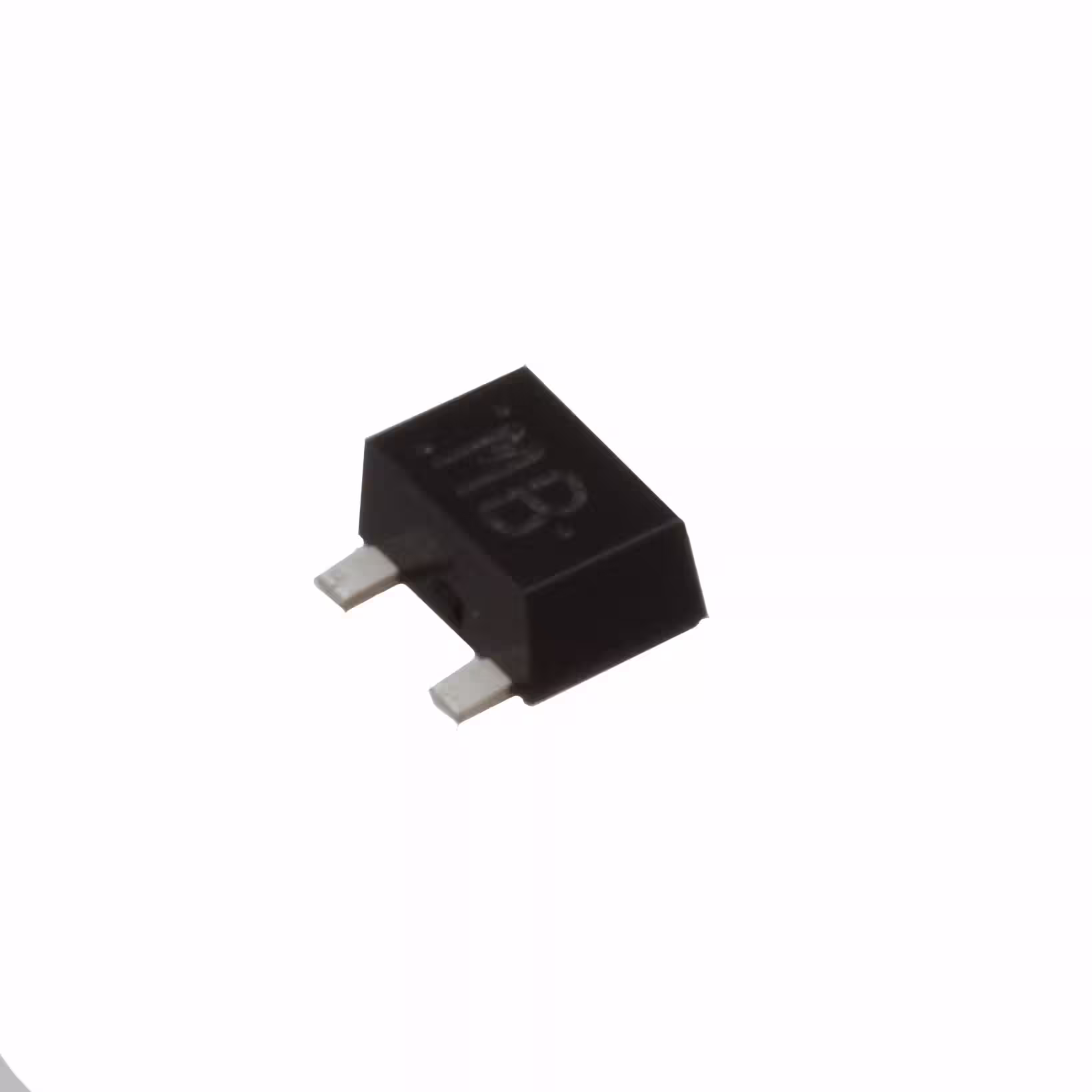

MA3J142A0LDIODE GEN PURP 80V 100MA SMINI3 |
35,958 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Surface Mount | 15pF @ 0V, 1MHz | 10 ns | 100 nA @ 75 V | 80 V | 100mA (DC) | 150°C (Max) | 1.2 V @ 100 mA | ||
BAS116-TP225MWSWITCHINGDIODESSOT-23 |
254 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 2pF @ 0V, 1MHz | 3 µs | 5 nA @ 75 V | 75 V | 200mA (DC) | -55°C ~ 150°C | 1.25 V @ 150 mA | ||
CSA2D-E3/IDIODE GPP 2A 200V DO-214AC SMA |
14,265 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Obsolete | Surface Mount | 11pF @ 4V, 1MHz | 2.1 µs | 5 µA @ 200 V | 200 V | 1.6A | -55°C ~ 150°C | 1.15 V @ 2 A | ||
RB510VM-30FHTE-17RB510VM-30FH IS LOW V F |
495 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | - | - | 300 nA @ 10 V | 30 V | 100mA | 150°C (Max) | 460 mV @ 10 mA | |
BAS16HMT116BAS16HM IS HIGH RELIABILITY AND |
3,000 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 2pF @ 0V, 1MHz | 4 ns | 500 nA @ 80 V | 80 V | 215mA (DC) | 150°C (Max) | 1.25 V @ 150 mA | ||
RB511VM-40FHTE-17RB511VM-40FH IS SUPRT LOW V |
137 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | - | - | 25 µA @ 40 V | 40 V | 100mA | 125°C (Max) | 410 mV @ 10 mA | |
1SS400CSFHT2RASWITCHING DIODES (CORRESPONDS TO |
16,610 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 3pF @ 500mV, 1MHz | 4 ns | 100 nA @ 80 V | 80 V | 100mA | 150°C (Max) | 1.2 V @ 100 mA | |
S1BL RVGDIODE GEN PURP 100V 1A SUB SMA |
108 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 9pF @ 4V, 1MHz | 1.8 µs | 5 µA @ 100 V | 100 V | 1A | -55°C ~ 175°C | 1.1 V @ 1 A | ||
SS16E-TPDIODE SCHOTTKY 60V 1A SMAE |
136,041 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Not For New Designs | Surface Mount | 110pF @ 4V, 1MHz | - | 500 µA @ 60 V | 60 V | 1A | -55°C ~ 150°C | 700 mV @ 1 A | ||

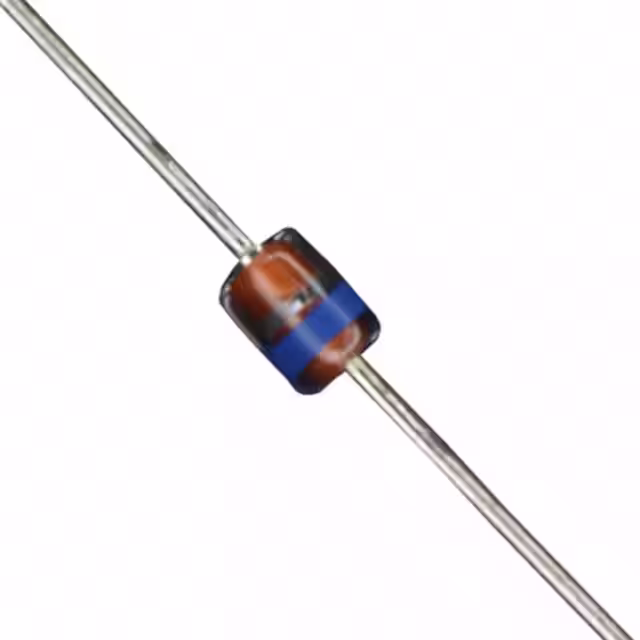

MA2C0290BFDIODE GEN PURP 6V 50MA DO34 |
469 | - |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Obsolete | Through Hole | - | - | 10 µA @ 6 V | 6 V | 50mA | 150°C (Max) | 1.1 V @ 50 mA | ||
BAL99-7DIODE GEN PURP 75V 300MA SOT23-3 |
10,105 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Discontinued at Digi-Key | Surface Mount | 2pF @ 0V, 1MHz | 4 ns | 2.5 µA @ 75 V | 75 V | 300mA (DC) | -65°C ~ 150°C | 1.25 V @ 150 mA | ||
BAV303-TRDIODE GP 200V 250MA MICROMELF |
263 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 1.5pF @ 0V, 1MHz | 50 ns | 100 nA @ 200 V | 200 V | 250mA (DC) | 175°C (Max) | 1 V @ 100 mA | |
SS110-TPDIODE SCHOTTKY 100V 1A SMA |
850 | - |
RFQ |
Datasheet |
Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | 30pF @ 4V, 1MHz | - | 500 µA @ 100 V | 100 V | 1A | -55°C ~ 125°C | 850 mV @ 1 A | ||
RBR1LAM40ATFTRAUTOMOTIVE SCHOTTKY BARRIER DIOD |
3,465 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 50 µA @ 40 V | 40 V | 1A | 150°C (Max) | - | |
FESB16FTHE3_A/PDIODE GEN PURP 300V 16A TO263AB |
3,506 | - |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 175pF @ 4V, 1MHz | 50 ns | 10 µA @ 300 V | 300 V | 16A | -65°C ~ 150°C | 1.3 V @ 16 A | |
VB30120S-E3/8WDIODE SCHOTTKY 120V 30A TO263AB |
3,333 | - |
RFQ |
Datasheet |
Tape & Reel (TR) | TMBS® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 500 µA @ 120 V | 120 V | 30A | -40°C ~ 150°C | 1.1 V @ 30 A | |
FESB16ATHE3_A/PDIODE GEN PURP 50V 16A TO263AB |
2,146 | - |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 175pF @ 4V, 1MHz | 35 ns | 10 µA @ 50 V | 50 V | 16A | -65°C ~ 150°C | 975 mV @ 16 A | |
VS-6FR60DIODE GEN PURP 600V 6A DO203AA |
2,732 | - |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard, Reverse Polarity | Active | Chassis, Stud Mount | - | - | 12 mA @ 600 V | 600 V | 6A | -65°C ~ 175°C | 1.1 V @ 19 A | ||
AS1PKHM3/84ADIODE AVALANCHE 800V 1.5A DO220 |
3,222 | - |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, eSMP® | RoHS | Standard Recovery >500ns, > 200mA (Io) | Avalanche | Active | Surface Mount | 10.4pF @ 4V, 1MHz | 1.5 µs | 5 µA @ 800 V | 800 V | 1.5A (DC) | -55°C ~ 175°C | 1.15 V @ 1.5 A | |

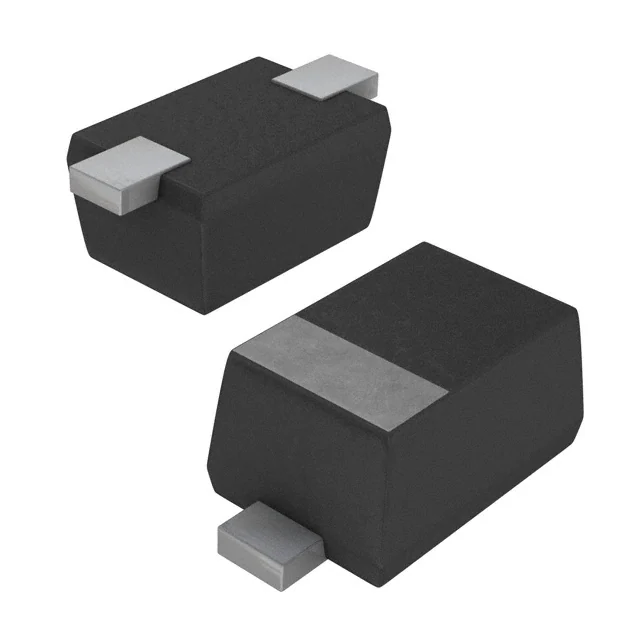

BAT54-02V-V-G-08DIODE SCHOTTKY 30V 200MA SOD523 |
2,580 | - |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Obsolete | Surface Mount | 10pF @ 1V, 1MHz | 5 ns | 2 µA @ 25 V | 30 V | 200mA | 125°C (Max) | 800 mV @ 100 mA |
