Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RFUS20TM4SDIODE GEN PURP 430V 20A TO220NFM |
840 | - |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 35 ns | 10 µA @ 430 V | 430 V | 20A | 150°C (Max) | 1.6 V @ 20 A | ||

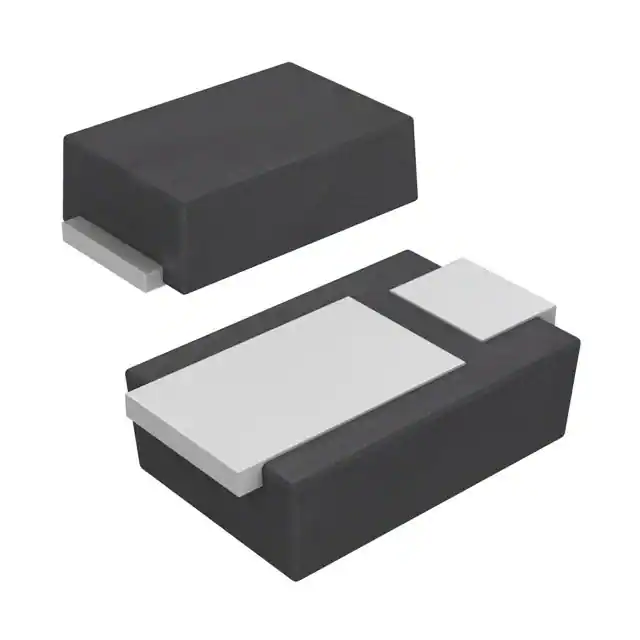

RBR2VWM30ATRLOW VF, 30V, 2A, SCHOTTKY BARRIE |
2,838 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 50 µA @ 30 V | 30 V | 2A | 150°C | 530 mV @ 2 A | |
S3D03065ETRDIODE SCHOTTKY SILICON CARBIDE S |
1,000 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 179pF @ 0V, 1MHz | 0 ns | 5 µA @ 650 V | 650 V | 3A | -55°C ~ 175°C | 1.7 V @ 3 A | ||
MPG06M-E3/73DIODE GEN PURP 1KV 1A MPG06 |
2,934 | - |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 10pF @ 4V, 1MHz | 600 ns | 5 µA @ 1000 V | 1000 V | 1A | -55°C ~ 150°C | 1.1 V @ 1 A | ||
VS-10ETS08STRL-M3DIODE GEN PURP 800V 10A D2PAK |
425 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | - | 50 µA @ 800 V | 800 V | 10A | -40°C ~ 150°C | 1.1 V @ 10 A | ||
RRE02VTM6SFHTRRECTIFIER DIODES (CORRESPONDS TO |
2,900 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | - | - | 1 µA @ 600 V | 600 V | 200mA | 150°C (Max) | 1.1 V @ 200 mA | |

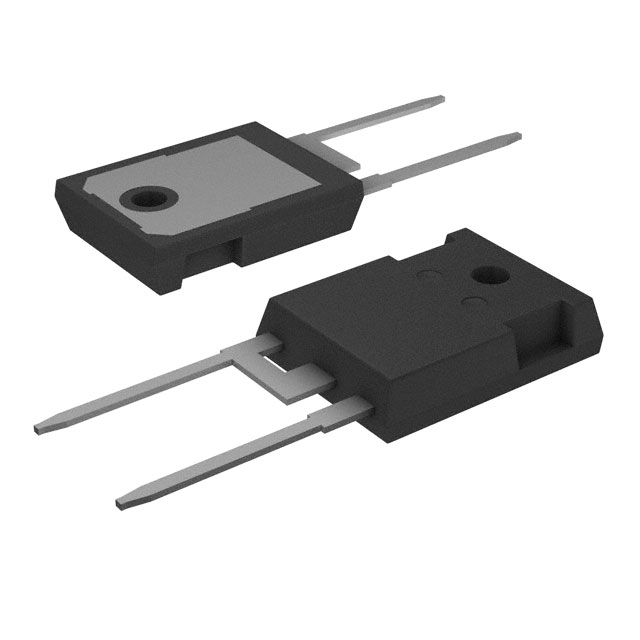

SDUR30Q60W600V30AUFRPACKAGE TO-247AC |
183 | - |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 40 ns | 10 µA @ 600 V | 600 V | 30A | -55°C ~ 150°C | 1.8 V @ 30 A | ||
RS3AB-HFRECTIFIER FAST RECOVERY 50V 3A S |
2,895 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 40pF @ 4V, 1MHz | 150 ns | 5 µA @ 50 V | 50 V | 3A | -55°C ~ 150°C | 1.3 V @ 3 A | ||
CDBZ5T1045-HFDIODE SCHOTTKY 45V 10A SMC |
374 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Surface Mount | - | - | 100 µA @ 45 V | 45 V | 10A | -55°C ~ 150°C | 550 mV @ 10 A | ||

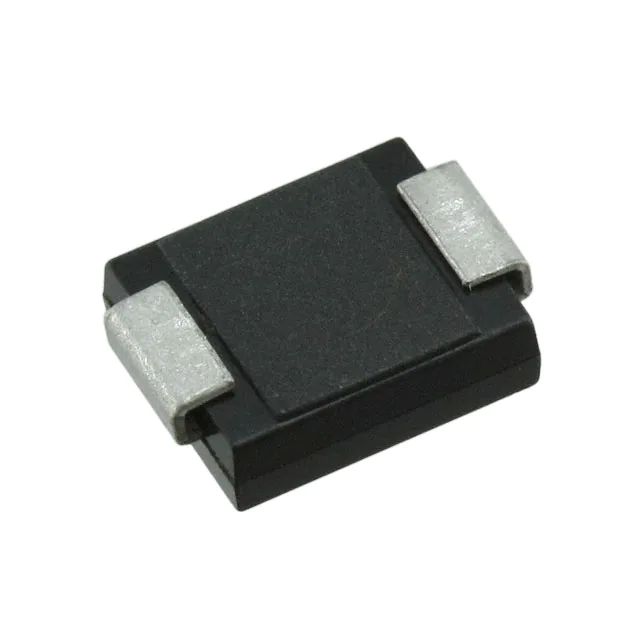

S3KDIODE GEN PURP 800V 3A SMC |
2,891 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 60pF @ 4V, 1MHz | 2.5 µs | 5 µA @ 800 V | 800 V | 3A | -55°C ~ 150°C | 1.2 V @ 3 A | ||
STPS20M120SRDIODE SCHOTTKY 120V 20A I2PAK |
761 | - |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Obsolete | Through Hole | - | - | 275 µA @ 120 V | 120 V | 20A | 150°C (Max) | 840 mV @ 20 A | ||

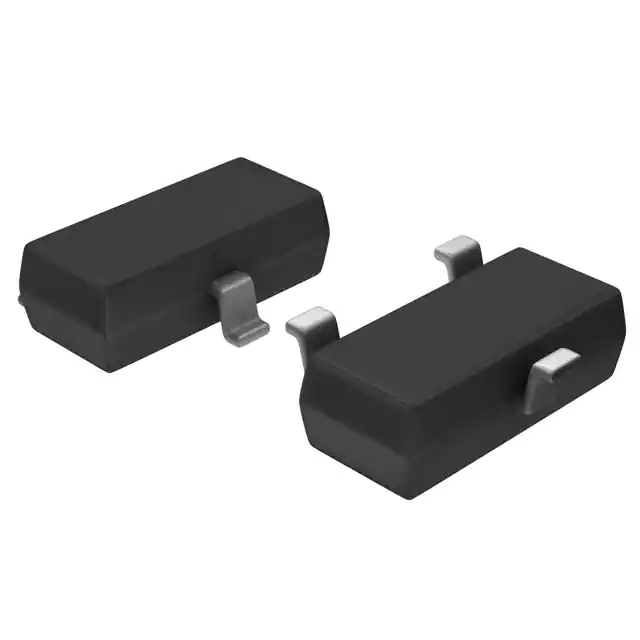

BAS116HYFHT116LOW-LEAKAGE, 80V, 215MA, SOT-23, |
2,890 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | 3 µs | 5 nA @ 75 V | 80 V | 215mA (DC) | 150°C | 1.25 V @ 150 mA | |
FFPF30UP20STUDIODE GEN PURP 200V 30A TO220F |
2,488 | - |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Obsolete | Through Hole | - | 50 ns | 100 µA @ 200 V | 200 V | 30A | -65°C ~ 150°C | 1.15 V @ 30 A | ||
VS-1ENH02HM3/84AFRED PT RECTIFIER AEC-Q101 SMP |
2,884 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 28 ns | 2 µA @ 200 V | 200 V | 1A | -55°C ~ 175°C | 920 mV @ 1 A | |
RFUS20TM6SDIODE GEN PURP 600V 20A TO220NFM |
827 | - |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 35 ns | 10 µA @ 600 V | 600 V | 20A | 150°C (Max) | 2.8 V @ 20 A | ||
SD1206S100S1R0DIODE SCHOTTKY 100V 1A 1206 |
1,815 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 100 V | 100 V | 1A (DC) | -55°C ~ 125°C | 850 mV @ 1 A | ||
S4D02120ETRDIODE SCHOTTKY SILICON CARBIDE S |
900 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Surface Mount | 116pF @ 0V, 1MHz | 0 ns | 10 µA @ 1200 V | 1200 V | 2A | -55°C ~ 175°C | 1.8 V @ 2 A | ||
APT30D20SGDIODE ULT FAST 30A 200V D3PAK |
3,174 | - |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 24 ns | 250 µA @ 200 V | 200 V | 30A | -55°C ~ 175°C | 1.3 V @ 30 A | ||
CD5817DIODE SMALL-SIGNAL SCHOTTKY |
3,854 | - |
RFQ |
Datasheet |
Tape & Reel (TR) | Military, MIL-PRF-19500/586 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 20 V | 20 V | 1A | -55°C ~ 125°C | 600 mV @ 1 A | |
VS-5EWX06FNTRR-M3DIODE GEN PURP 600V 5A D-PAK |
3,749 | - |
RFQ |
Datasheet |
Tape & Reel (TR) | FRED Pt® | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 18 ns | 20 µA @ 600 V | 600 V | 5A | -65°C ~ 175°C | 2.9 V @ 5 A |
