Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | DiodeType | Voltage-PeakReverse(Max) | Current-Max | Capacitance@VrF | Resistance@IfF | PowerDissipation(Max) | OperatingTemperature |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CLA4602-000DIODE LIMITER SILICON 15-30V |
100 | - |
RFQ |
Datasheet |
Tray | CLA | Active | PIN - Single | 30V | 200 mA | - | 2Ohm @ 10mA, 1MHz | 510 mW | -65°C ~ 175°C (TJ) | |
GMP4235-GM1SI PIN NON HERMETIC PLASTIC SMT |
3,180 | - |
RFQ |
Datasheet |
Bulk | GIGAMITE® | Active | PIN - Single | 250V | - | 0.6pF @ 10V, 1MHz | 800mOhm @ 20mA, 100MHz | - | -55°C ~ 125°C | |
LXP1002-23-4SI PIN NON HERMETIC EPSM SMT |
3,289 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | PIN - 1 Pair Series Connection | 50V | 100 mA | 0.32pF @ 50V, 1MHz | 4Ohm @ 100mA, 100MHz | 250 mW | -55°C ~ 125°C | |
L8104RF PIN DIODE 180V 3W CERAMIC MEL |
2,653 | - |
RFQ |
Datasheet |
Bulk | - | Active | PIN - Single | 180V | 50 mA | 1.2pF @ 40V, 100MHz | 750mOhm @ 50mA, 100MHz | 3 W | 175°C (TJ) | |
MLP7120-11LIMITER DIODE,DIE |
100 | - |
RFQ |
Tray | - | Active | PIN - Single | 180V | - | 0.15pF @ 6V, 1MHz | 1.5Ohm @ 10mA, 1GHz | 5 W | -55°C ~ 150°C | ||
BAP51-05W,115RF DIODE PIN 50V 240MW SOT323-3 |
2,855 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Obsolete | PIN - 1 Pair Series Connection | 50V | 50 mA | 0.35pF @ 5V, 1MHz | 2.5Ohm @ 10mA, 100MHz | 240 mW | -65°C ~ 150°C (TJ) | |
BAP70-03,115RF DIODE PIN 50V 500MW SOD323 |
2,350 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | PIN - Single | 50V | 100 mA | 0.25pF @ 20V, 1MHz | 1.9Ohm @ 100mA, 100MHz | 500 mW | -65°C ~ 150°C (TJ) | |
BAP64-06W,115RF DIODE PIN 100V 240MW SOT323-3 |
2,639 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | PIN - 1 Pair Common Anode | 100V | 100 mA | 0.35pF @ 20V, 1MHz | 1.35Ohm @ 100mA, 100MHz | 240 mW | -65°C ~ 150°C (TJ) | |
BAP64-04,215RF DIODE PIN 175V 250MW TO236AB |
3,851 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | PIN - 1 Pair Series Connection | 175V | 100 mA | 0.35pF @ 20V, 1MHz | 1.35Ohm @ 100mA, 100MHz | 250 mW | -65°C ~ 150°C (TJ) | |
BAP50LX,315RF DIODE PIN 50V 150MW SOD2 |
2,630 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | PIN - Single | 50V | 50 mA | 0.35pF @ 5V, 1MHz | 3Ohm @ 10mA, 100MHz | 150 mW | -65°C ~ 150°C (TJ) | |
HSMS-285C-BLKRF DIODE SCHOTTKY 2V SOT323 |
2,204 | - |
RFQ |
Bulk | - | Obsolete | Schottky - 1 Pair Series Connection | 2V | - | 0.3pF @ 1V, 1MHz | - | - | 150°C (TJ) | ||
HBAT-5400-TR1DIODE SCHOTTKY 30V 250MW SOT23-3 |
3,466 | - |
RFQ |
Datasheet |
Tape & Reel (TR) | HBAT-540x | Obsolete | Schottky - Single | 30V | 220 mA | - | - | 250 mW | 150°C (TJ) | |
HBAT-5402-TR1DIODE SCHOTTKY 30V 250MW SOT23-3 |
2,719 | - |
RFQ |
Datasheet |
Tape & Reel (TR) | HBAT-540x | Obsolete | Schottky - 1 Pair Series Connection | 30V | 220 mA | - | - | 250 mW | 150°C (TJ) | |
HBAT-540B-TR1DIODE SCHOTTKY 30V 825MW SOT323 |
3,195 | - |
RFQ |
Tape & Reel (TR) | HBAT-540x | Obsolete | Schottky - Single | 30V | 430 mA | - | - | 825 mW | 150°C (TJ) | ||
HBAT-540C-TR1DIODE SCHOTTKY 30V 825MW SOT323 |
3,819 | - |
RFQ |
Tape & Reel (TR) | HBAT-540x | Obsolete | Schottky - 1 Pair Series Connection | 30V | 430 mA | - | - | 825 mW | 150°C (TJ) | ||
MA4L021-134RF DIODE PIN 35V CHIP |
100 | - |
RFQ |
Datasheet |
Bulk | - | Active | PIN - Single | 35V | 100 mA | 0.2pF @ 0V, 1MHz | 2.1Ohm @ 10mA, 500MHz | - | -55°C ~ 125°C (TJ) | |
MMD830-0805DIODE,SRD-CHIP-PACKAGE, 0805-2X |
3,087 | - |
RFQ |
Datasheet |
Tray | MMDx | Active | PIN - Single | 25V | 150 mA | 1.06pF @ 6V, 1MHz | - | - | -65°C ~ 175°C | |

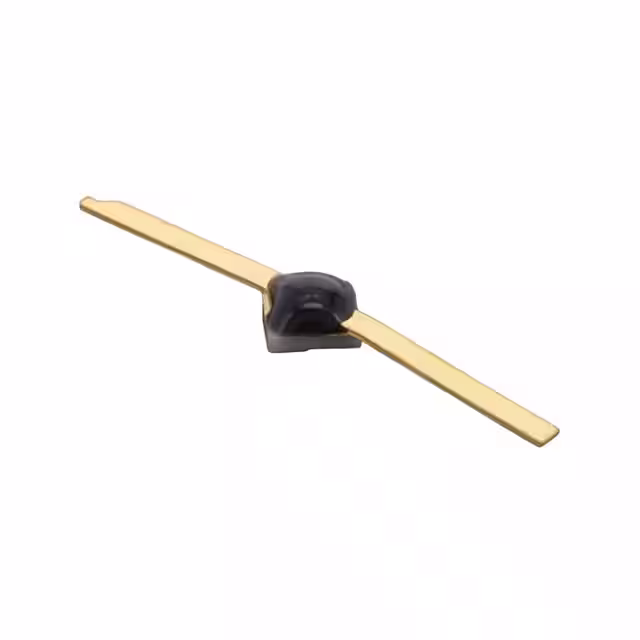

MMD805-E25DIODE,SRD-CHIP-PACKAGE, E25 |
2,959 | - |
RFQ |
Tray | MMDx | Active | Standard - Single | 60V | 150 mA | 3.57pF @ 6V, 1MHz | - | 250 mW | -65°C ~ 175°C | ||
MMD820-T86DIODE,SRD-GLASS,T86 PACKAGE |
2,019 | - |
RFQ |
Tray | MMDx | Active | Standard - Single | 40V | 150 mA | 1.88pF @ 6V, 1MHz | - | 250 mW | -65°C ~ 175°C | ||
MMDB30-E28XDIODE, BEAMLEAD SRD, E28X |
3,490 | - |
RFQ |
Tray | MMDx | Active | Standard - Single | 14V | 50 mA | 0.33pF @ 6V, 1MHz | - | 250 mW | -65°C ~ 175°C |
