Electric Double Layer Capacitors (EDLC), Supercapacitors- Page 27

MAX3232IDR PIC18F25K22T-I/SO 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	Termination	MountingType	LeadSpacing	Size/Dimension	Height-Seated(Max)
FG0H223ZF CAP 22MF -20% +80% 5.5V T/H KEMET	323	-	RFQ	Datasheet	Radial, Can	Bulk	FG	Active	22 mF	-20%, +80%	5.5 V	200Ohm @ 1kHz	-	PC Pins	Through Hole	0.200 (5.08mm)	0.433 Dia (11.00mm)	0.217 (5.50mm)
SCCS20E505PRB CAPACITOR 5F 0% +100% 3V T/H KYOCERA AVX	2,273	-	RFQ	Datasheet	Radial, Can	Bulk	SCC	Active	5 F	0%, +100%	3 V	70mOhm @ 1kHz	1000 Hrs @ 60°C	PC Pins	Through Hole	0.217 (5.50mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)

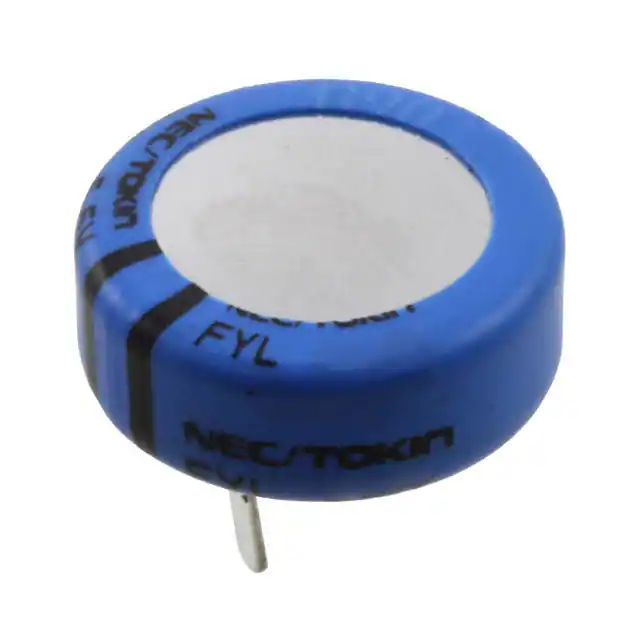

FYL0H473ZF CAP 47MF -20% +80% 5.5V T/H KEMET	579	-	RFQ	Datasheet	Radial, Can	Bulk	FYL	Active	47 mF	-20%, +80%	5.5 V	200Ohm @ 1kHz	-	PC Pins	Through Hole	0.200 (5.08mm)	0.472 Dia (12.00mm)	0.217 (5.50mm)
SCCT20B106PRB CAPACITOR 10F 0% +100% 2.7V T/H KYOCERA AVX	991	-	RFQ	Datasheet	Radial, Can	Bulk	SCC	Active	10 F	0%, +100%	2.7 V	50mOhm @ 1kHz	1000 Hrs @ 60°C	PC Pins	Through Hole	0.217 (5.50mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)
SCCS30B106PRB CAPACITOR 10F 0% +100% 2.7V T/H KYOCERA AVX	264	-	RFQ	Datasheet	Radial, Can	Bulk	SCC	Active	10 F	0%, +100%	2.7 V	40mOhm @ 1kHz	1000 Hrs @ 60°C	PC Pins	Through Hole	0.217 (5.50mm)	0.394 Dia (10.00mm)	1.260 (32.00mm)
MAL223051011E3 CAP 5F -20% +50% 3V T/H Vishay Beyschlag/Draloric/BC Components	530	-	RFQ	Datasheet	Radial, Can	Tray	ENYCAP™ 230 EDLC-HV	Active	5 F	-20%, +50%	3 V	32mOhm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)
SCCS30B106PRBLE SUPERCAP CYLINDRICAL KYOCERA AVX	217	-	RFQ	Datasheet	Radial, Can	Bulk	SCC LE	Active	10 F	0%, +100%	2.7 V	20mOhm @ 1kHz	2000 Hrs @ 65°C	PC Pins	Through Hole	0.197 (5.00mm)	0.394 Dia (10.00mm)	1.240 (31.50mm)
SCCT30E156SRB CAPACITOR 15F -10% +30% 3V T/H KYOCERA AVX	2,520	-	RFQ	Datasheet	Radial, Can	Bulk	SCC	Active	15 F	-10%, +30%	3 V	40mOhm @ 1kHz	1000 Hrs @ 60°C	PC Pins	Through Hole	0.217 (5.50mm)	0.492 Dia (12.50mm)	1.260 (32.00mm)

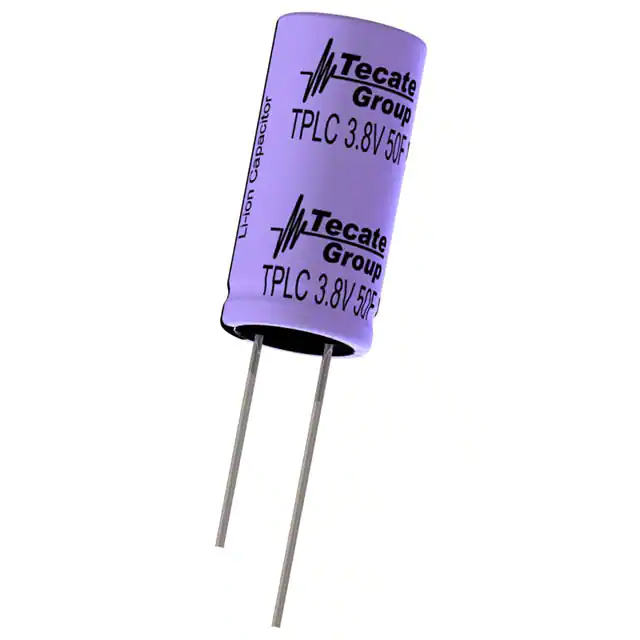

TPLC-3R8/50MR10X20 CAP LITH HYBRID 50F 3.8V T/H Tecate Group	2,503	-	RFQ	Datasheet	Radial, Can	Tray	TPLC	Active	50 F	±20%	3.8 V	235mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)
PHVL-3R9H305-R SUPERCAP 3.9V 3F 0.08 OHM HZ Eaton - Electronics Division	2,037	-	RFQ	Datasheet	Radial	Bulk	PHVL	Active	3 F	-10%, +30%	3.9 V	80mOhm	5000 Hrs @ 85°C	PC Pins	Through Hole	0.465 (11.80mm)	0.681 L x 0.354 W (17.30mm x 9.00mm)	1.280 (32.50mm)
PHVL-3R9H155-R SUPERCAP 3.9V 1.5F 0.16 OHM HZ Eaton - Electronics Division	2,699	-	RFQ	Datasheet	Radial	Bulk	PHVL	Active	1.5 F	-10%, +30%	3.9 V	160mOhm	5000 Hrs @ 85°C	PC Pins	Through Hole	0.465 (11.80mm)	0.681 L x 0.354 W (17.30mm x 9.00mm)	0.866 (22.00mm)
PHVL-3R9V255-R SUPERCAP 3.9V 2.5F 0.08 OHM VT Eaton - Electronics Division	2,301	-	RFQ	Datasheet	Radial	Bulk	PHVL	Active	2.5 F	-10%, +30%	3.9 V	80mOhm	5000 Hrs @ 85°C	PC Pins	Through Hole	0.209 (5.30mm)	0.839 L x 0.433 W (21.30mm x 11.00mm)	0.906 (23.00mm)
FYH0H105ZF CAP 1F -20% +80% 5.5V T/H KEMET	3,426	-	RFQ	Datasheet	Radial, Can	Bulk	FYH	Active	1 F	-20%, +80%	5.5 V	20Ohm @ 1kHz	-	PC Pins	Through Hole	0.400 (10.16mm)	1.122 Dia (28.50mm)	0.433 (11.00mm)

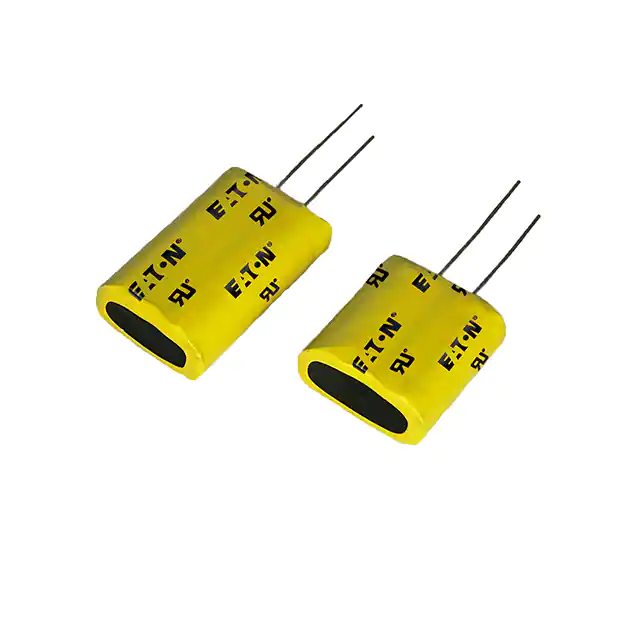

PTV-6R0H305-R CAP 3F -10% +20% 6V T/H Eaton - Electronics Division	2,232	-	RFQ	Datasheet	Radial	Bulk	PTV	Active	3 F	-10%, +20%	6 V	70mOhm	1000 Hrs @ 65°C	PC Pins	Through Hole	0.209 (5.30mm)	0.839 L x 0.433 W (21.30mm x 11.00mm)	0.925 (23.50mm)
PTV-6R0H505-R CAP 5F -10% +20% 6V T/H Eaton - Electronics Division	2,344	-	RFQ	Datasheet	Radial	Bulk	PTV	Active	5 F	-10%, +20%	6 V	54mOhm	1000 Hrs @ 65°C	PC Pins	Through Hole	0.209 (5.30mm)	0.839 L x 0.433 W (21.30mm x 11.00mm)	1.299 (33.00mm)
LP12352R7206 CAPACITOR 20F 20% 2.7V T/H Taiyo Yuden	2,644	-	RFQ		Radial, Can	Bulk	LP	Active	20 F	±20%	2.7 V	-	-	PC Pins	Through Hole	-	0.492 Dia (12.50mm)	1.457 (37.00mm)

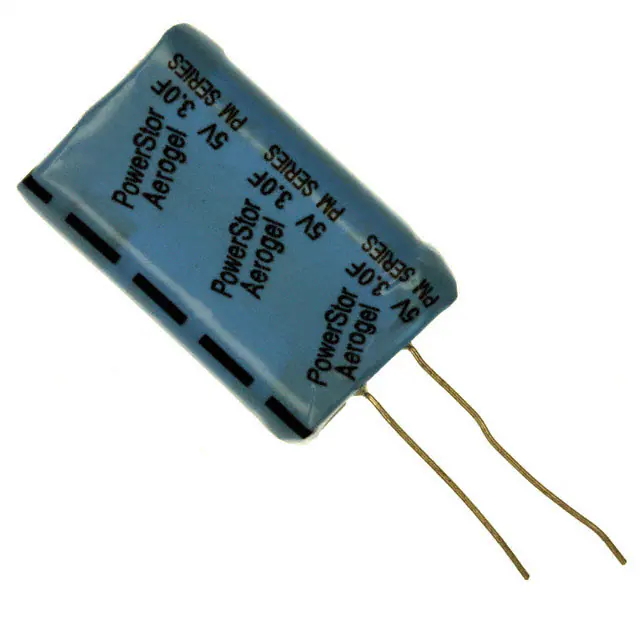

PM-5R0V305-R CAP 3F -20% +80% 5V T/H Eaton - Electronics Division	3,370	-	RFQ	Datasheet	Radial, Can	Bulk	PM	Active	3 F	-20%, +80%	5 V	70mOhm	1000 Hrs @ 60°C	PC Pins	Through Hole	0.209 (5.30mm)	0.839 L x 0.433 W (21.30mm x 11.00mm)	1.280 (32.50mm)
MAL219691214E3 CAP 15F -20% +80% 5.6V T/H Vishay Beyschlag/Draloric/BC Components	2,013	-	RFQ	Datasheet	Coin, Stacked Horizontal	Tray	ENYCAP™ 196HVC	Active	15 F	-20%, +80%	5.6 V	2.4Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	0.197 (5.00mm)	0.472 Dia x 0.394 L (12.00mm x 10.00mm)	0.472 (12.00mm)

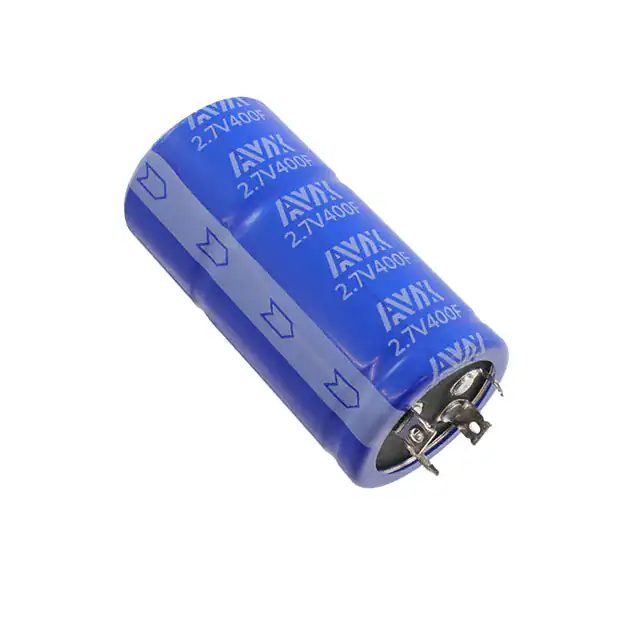

SCCY68B407SSB CAPACITOR 400F -10% +30% 2.7V TH KYOCERA AVX	3,353	-	RFQ	Datasheet	Radial, Can - Solder Lug	Bulk	SCC	Active	400 F	-10%, +30%	2.7 V	4mOhm @ 1kHz	1000 Hrs @ 60°C	Solder Lug	Through Hole	0.886 (22.50mm)	1.378 Dia (35.00mm)	2.756 (70.00mm)
SCAP,PBLS-0.83/32.4 CAP 830MF -10% +20% 32.4V UCAP Tecate Group	3,748	-	RFQ	Datasheet	Module, Wire Leads	Bulk	PBLS	Active	830 mF	-10%, +20%	32.4 V	780mOhm	1000 Hrs @ 65°C	Wire Leads with Connector	User Defined	-	2.520 L x 0.866 W (64.00mm x 22.00mm)	1.417 (36.00mm)
