Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	Termination	MountingType	LeadSpacing	Size/Dimension	Height-Seated(Max)
JJC0E566MELB CAP 56F 20% 2.5V T/H Nichicon	3,147	-	RFQ	Datasheet	Radial, Can - Snap-In	Bulk	EVerCAP® JC	Active	56 F	±20%	2.5 V	70mOhm @ 1kHz	2000 Hrs @ 60°C	PC Pins	Through Hole	0.394 (10.00mm)	1.181 Dia (30.00mm)	1.260 (32.00mm)
LX055475A MAXCAP 4.7F 5.5V Ohmite	2,771	-	RFQ	Datasheet	Radial, Can	Bulk	Maxcap®	Active	4.7 F	-20%, +80%	5.5 V	35Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.402 (10.20mm)	1.122 Dia (28.50mm)	0.866 (22.00mm)
JJC0E686MELC CAP 68F 20% 2.5V T/H Nichicon	2,416	-	RFQ	Datasheet	Radial, Can - Snap-In	Bulk	EVerCAP® JC	Active	68 F	±20%	2.5 V	60mOhm @ 1kHz	2000 Hrs @ 60°C	PC Pins	Through Hole	0.394 (10.00mm)	1.378 Dia (35.00mm)	1.260 (32.00mm)
JJC0E826MELA CAP 82F 20% 2.5V T/H Nichicon	3,768	-	RFQ	Datasheet	Radial, Can - Snap-In	Bulk	EVerCAP® JC	Active	82 F	±20%	2.5 V	60mOhm @ 1kHz	2000 Hrs @ 60°C	PC Pins	Through Hole	0.394 (10.00mm)	0.984 Dia (25.00mm)	2.047 (52.00mm)
MAL219691226E3 CAP 15F -20% +80% 8.4V T/H Vishay Beyschlag/Draloric/BC Components	3,592	-	RFQ	Datasheet	Coin, Stacked Horizontal	Tray	ENYCAP™ 196HVC	Active	15 F	-20%, +80%	8.4 V	3.6Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	0.618 (15.70mm)	0.472 Dia x 0.591 L (12.00mm x 15.00mm)	0.472 (12.00mm)
LF055224A DOUBLE LAYER CAPACITOR Ohmite	2,654	-	RFQ	Datasheet	Radial, Can	Bulk	Maxcap®	Active	220 mF	-20%, +80%	5.5 V	3.5Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.299 (7.60mm)	0.846 Dia (21.50mm)	0.610 (15.50mm)
MAL219690113E3 CAP 90F -20% +80% 2.8V T/H Vishay Beyschlag/Draloric/BC Components	2,496	-	RFQ	Datasheet	Coin, Stacked Horizontal	Bulk	ENYCAP™ 196HVC	Active	90 F	-20%, +80%	2.8 V	30mOhm	2000 Hrs @ 85°C	PC Pins	Through Hole	0.984 (25.00mm)	1.378 L x 0.984 W (35.00mm x 25.00mm)	0.295 (7.50mm)
MAL219691116E3 CAP 4F -20% +80% 8.4V T/H Vishay Beyschlag/Draloric/BC Components	2,515	-	RFQ	Datasheet	Coin, Stacked Horizontal	Tray	ENYCAP™ 196HVC	Active	4 F	-20%, +80%	8.4 V	15Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.571 (14.50mm)	0.276 Dia x 0.591 L (7.00mm x 15.00mm)	0.276 (7.00mm)
JJC0E826MELB CAP 82F 20% 2.5V T/H Nichicon	3,090	-	RFQ	Datasheet	Radial, Can - Snap-In	Bulk	EVerCAP® JC	Active	82 F	±20%	2.5 V	60mOhm @ 1kHz	2000 Hrs @ 60°C	PC Pins	Through Hole	0.394 (10.00mm)	1.181 Dia (30.00mm)	1.654 (42.00mm)
PHB-5R0H255-R CAP 2.5F -10% +30% 5V T/H Eaton - Electronics Division	3,903	-	RFQ	Datasheet	Radial, Can, Horizontal	Bulk	PHB	Active	2.5 F	-10%, +30%	5 V	200mOhm @ 100Hz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.209 (5.30mm)	0.906 L x 0.839 W (23.00mm x 21.30mm)	0.433 (11.00mm)
LJ055225A MAXCAP 2.2F 5.5V Ohmite	2,248	-	RFQ	Datasheet	Radial, Can	Bulk	Maxcap®	Active	2.2 F	-20%, +80%	5.5 V	1.8Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	0.402 (10.20mm)	1.122 Dia (28.50mm)	0.551 (14.00mm)
JJC0E127MELB CAP 120F 20% 2.5V T/H Nichicon	3,528	-	RFQ	Datasheet	Radial, Can - Snap-In	Bulk	EVerCAP® JC	Active	120 F	±20%	2.5 V	50mOhm @ 1kHz	2000 Hrs @ 60°C	PC Pins	Through Hole	0.394 (10.00mm)	1.181 Dia (30.00mm)	2.047 (52.00mm)

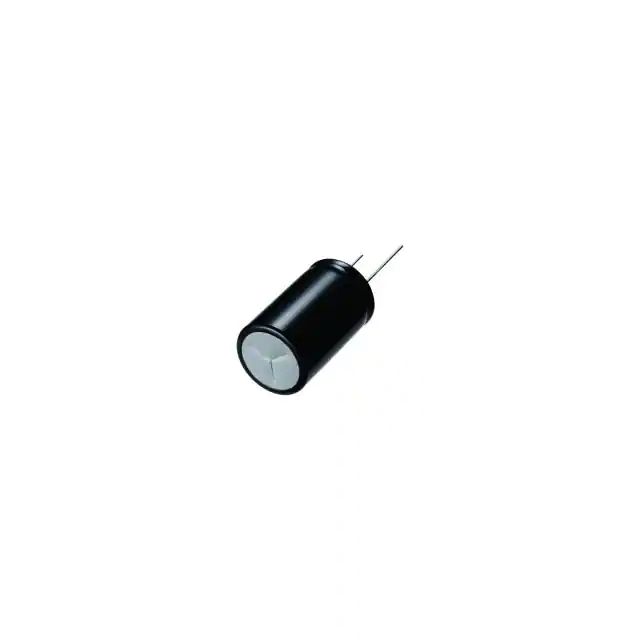

LIC1030RS3R8206 CAPACITOR 20F 15% 3.8V T/H Taiyo Yuden	2,898	-	RFQ	Datasheet	Radial, Can	Bulk	RS	Last Time Buy	20 F	±15%	3.8 V	-	-	PC Pins	Through Hole	0.197 (5.00mm)	0.394 Dia (10.00mm)	1.260 (32.00mm)
JJC0E127MELC CAP 120F 20% 2.5V T/H Nichicon	3,906	-	RFQ	Datasheet	Radial, Can - Snap-In	Bulk	EVerCAP® JC	Active	120 F	±20%	2.5 V	50mOhm @ 1kHz	2000 Hrs @ 60°C	PC Pins	Through Hole	0.394 (10.00mm)	1.378 Dia (35.00mm)	1.654 (42.00mm)

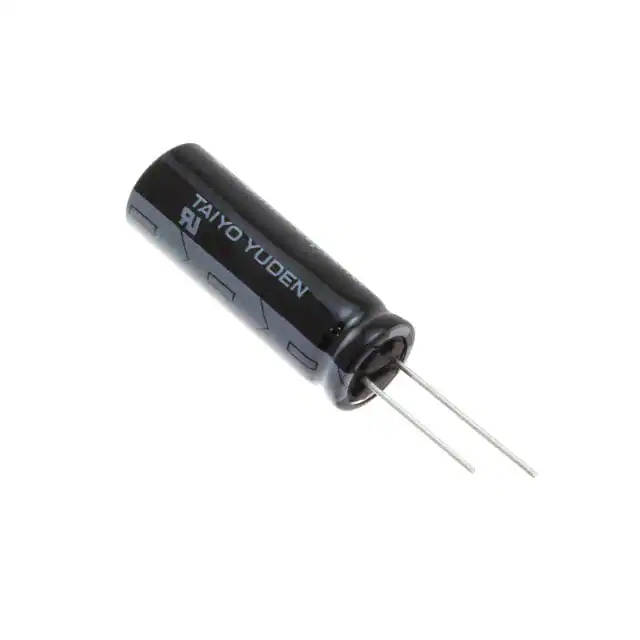

LIC1235RS3R8406 CAPACITOR 40F 20% 3.8V T/H Taiyo Yuden	2,834	-	RFQ	Datasheet	Radial, Can	Bulk	RS	Last Time Buy	40 F	±20%	3.8 V	70mOhm @ 1kHz	-	PC Pins	Through Hole	0.197 (5.00mm)	0.492 Dia (12.50mm)	1.378 (35.00mm)
107DCN2R7Q CAP 100F -10%, +30% 2.7V T/H Cornell Dubilier / Illinois Capacitor	2,453	-	RFQ	Datasheet	Radial, Can - Snap-In	Bulk	DCN	Active	100 F	-10%, +30%	2.7 V	18mOhm	1000 Hrs @ 60°C	PC Pins	Through Hole	0.394 (10.00mm)	0.866 Dia (22.00mm)	1.850 (47.00mm)
SCCY69B407SWBLE SUPERCAP CYLINDRICAL KYOCERA AVX	3,763	-	RFQ		Axial, Can - Screw Terminals	Bulk	SCC LE	Active	400 F	-10%, +30%	2.7 V	-	2000 Hrs @ 65°C	Screw Terminals	Chassis Mount	-	1.378 Dia x 2.717 L (35.00mm x 69.00mm)	-
SCCX66B307S2PBLE SUPERCAP CYLINDRICAL KYOCERA AVX	3,456	-	RFQ		Radial, Can	Bulk	SCC LE	Active	300 F	-10%, +30%	2.7 V	-	2000 Hrs @ 65°C	Quick Connect, Disconnect	Chassis Mount	-	1.181 Dia (30.00mm)	2.677 (68.00mm)
BZ015A503ZLB CAP 50MF -20% +80% 5.5V T/H KYOCERA AVX	2,669	-	RFQ	Datasheet	BZ01, 3 Lead	Bulk	BestCap® BZ	Obsolete	50 mF	-20%, +80%	5.5 V	160mOhm	1000 Hrs @ 70°C	PC Pins	Through Hole	-	1.102 L x 0.669 W (28.00mm x 17.00mm)	0.138 (3.50mm)
LV110105A MAXCAP 1F 11V Ohmite	3,991	-	RFQ	Datasheet	Radial, Can	Bulk	Maxcap®	Active	1 F	-20%, +80%	11 V	7Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.402 (10.20mm)	1.122 Dia (28.50mm)	1.240 (31.50mm)
