Electric Double Layer Capacitors (EDLC), Supercapacitors- Page 70

MAX3232IDR AOZ5311NQI-03 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	Termination	MountingType	LeadSpacing	Size/Dimension	Height-Seated(Max)
LJ055474AE DOUBLE LAYER CAPACITOR W/EPOXY Ohmite	2,767	-	RFQ	Datasheet	Radial, Can	Bulk	Maxcap®	Active	470 mF	-20%, +80%	5.5 V	6.5Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	0.201 (5.10mm)	0.650 Dia (16.50mm)	0.512 (13.00mm)
LF055104A DOUBLE LAYER CAPACITOR Ohmite	2,933	-	RFQ	Datasheet	Radial, Can	Bulk	Maxcap®	Active	100 mF	-20%, +80%	5.5 V	6.5Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.201 (5.10mm)	0.650 Dia (16.50mm)	0.551 (14.00mm)

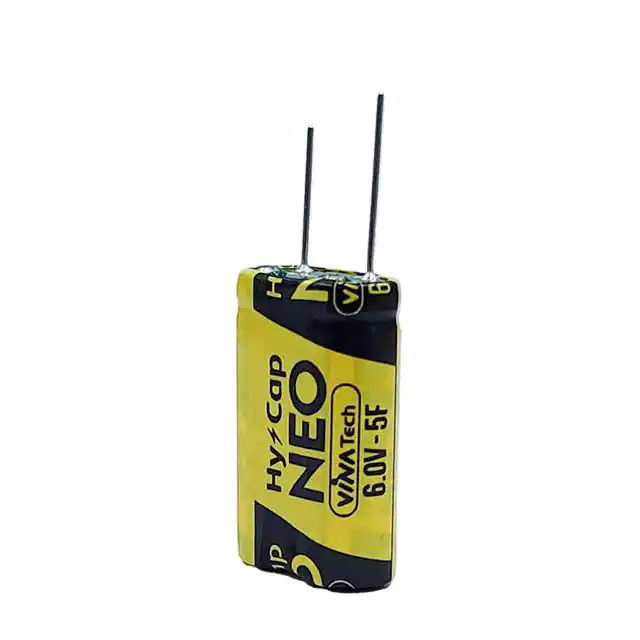

WEC6R0505QG-I 5F 6.0V 10.5*21.32 EDLC VINATech Co LTD	3,937	-	RFQ	Datasheet	Radial	Bag	-	Active	5 F	-10%, +30%	6 V	65mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	-	0.827 L x 0.413 W (21.00mm x 10.50mm)	1.319 (33.50mm)
USCFA00H473Z00 .047FV KEMET	2,366	-	RFQ		-	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-
LT055105AE DOUBLE LAYER CAPACITOR W/EPOXY Ohmite	3,028	-	RFQ	Datasheet	Radial, Can	Bulk	Maxcap®	Active	1 F	-20%, +80%	5.5 V	60Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	0.201 (5.10mm)	0.846 Dia (21.50mm)	0.866 (22.00mm)
ZCC227S0YK25RR Minimum discharge voltage 2.5V ANGA POW	2,045	-	RFQ	Datasheet	Radial, Can	Bulk	ZCC, Lithium Carbon Capacitor	Active	220 F	-20%, +50%	3.8 V	60mOhm	1000 Hrs @ 65°C	-	Through Hole	0.295 (7.50mm)	0.630 Dia (16.00mm)	0.984 (25.00mm)
VEC3R0107QG 100F 3.0V 22*45 SNAPIN TYPE EDLC VINATech Co LTD	2,445	-	RFQ	Datasheet	Radial, Can - Snap-In	Box	-	Active	100 F	-10%, +30%	3 V	6mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.394 (10.00mm)	0.866 Dia (22.00mm)	1.850 (47.00mm)
ZCC127S0YI25RR Minimum discharge voltage 2.5V ANGA POW	3,139	-	RFQ	Datasheet	Radial, Can	Bulk	ZCC, Lithium Carbon Capacitor	Active	120 F	-20%, +50%	3.8 V	80mOhm	1000 Hrs @ 65°C	-	Through Hole	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.984 (25.00mm)
VEC3R0367QG 360F 3.0V 35*62 SNAPIN TYPE EDLC VINATech Co LTD	2,870	-	RFQ	Datasheet	Radial, Can - Snap-In - 4 Lead	Box	-	Active	360 F	-10%, +30%	3 V	3mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.906 (23.00mm)	1.378 Dia (35.00mm)	2.520 (64.00mm)
PR13500F08R0-109W245L-T 13500 FARAD HIGH ENERGY SUPERCAP PowerRESPONDER	3,563	-	RFQ	Datasheet	Nonstandard SMD	Tray	-	Active	13500 F	0%, +30%	4 V	3mOhm @ 1kHz	1000 Hrs @ 65°C	SMD (SMT) Tabs	Surface Mount	-	9.646 L x 4.291 W (245.00mm x 109.00mm)	0.315 (8.00mm)
SB500-34 12V BANK, GROUP 34, 4,000W 500F XS POWER BATTERIES	2,395	-	RFQ		Module, Screw Terminals	Box	SuperBANK	Active	500 F	-	12 V	-	-	Screw Terminals	Chassis Mount	-	10.240 L x 6.750 W (260.10mm x 171.45mm)	7.200 (182.88mm)
EEC-HW0D226 CAP 22F -20% +40% 2.3V T/H Panasonic Electronic Components	3,285	-	RFQ	Datasheet	Radial, Can	Bulk	HW	Obsolete	22 F	-20%, +40%	2.3 V	100mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.457 (37.00mm)
DK-6R3D105T CAP 1F -20% +80% 6.3V T/H Elna America	3,241	-	RFQ	Datasheet	Radial, Can	Bulk	DK	Obsolete	1 F	-20%, +80%	6.3 V	30Ohm	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.846 Dia (21.50mm)	0.374 (9.50mm)
EEC-HL0E107 CAP 100F 20% 2.7V T/H Panasonic Electronic Components	600	-	RFQ	Datasheet	Radial, Can	Bulk,Tray	HL	Obsolete	100 F	±20%	2.7 V	10mOhm @ 1kHz	2000 Hrs @ 65°C	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	2.835 (72.00mm)
EEC-F5R5U105 CAP 1F -20% +80% 5.5V T/H Panasonic Electronic Components	2,350	-	RFQ	Datasheet	Radial, Can	Bulk	NF	Obsolete	1 F	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.846 Dia (21.50mm)	0.315 (8.00mm)
EEC-F5R5U474 CAP 470MF -20% +80% 5.5V T/H Panasonic Electronic Components	2,026	-	RFQ	Datasheet	Radial, Can	Bulk	NF	Obsolete	470 mF	-20%, +80%	5.5 V	30Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.846 Dia (21.50mm)	0.315 (8.00mm)
EEC-F5R5U104 CAP 100MF -20% +80% 5.5V T/H Panasonic Electronic Components	3,083	-	RFQ	Datasheet	Radial, Can	Bulk	NF	Obsolete	100 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.531 Dia (13.50mm)	0.295 (7.50mm)

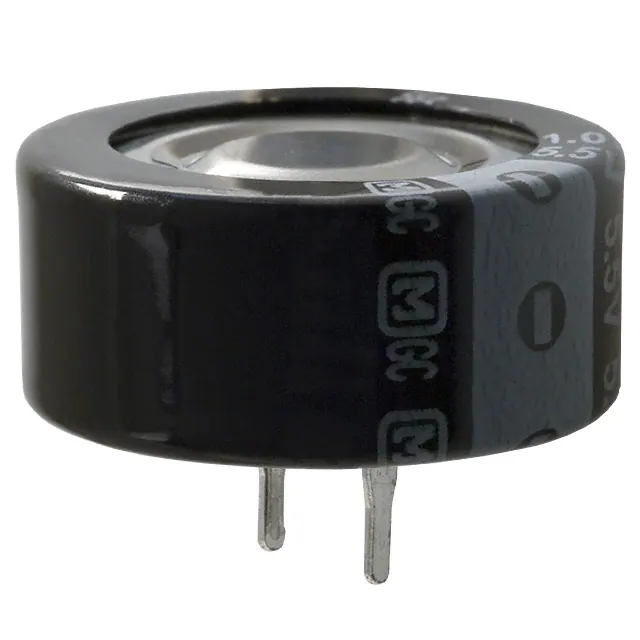

EEC-F5R5H684 CAP 680MF -20% +80% 5.5V T/H Panasonic Electronic Components	3,335	-	RFQ	Datasheet	Radial, Can	Bulk	F	Obsolete	680 mF	-20%, +80%	5.5 V	50Ohm @ 1kHz	1000 Hrs @ 85°C	PC Pins	Through Hole	0.197 (5.00mm)	0.846 Dia (21.50mm)	0.374 (9.50mm)
EEC-A0EL105 CAP 1F -20% +80% 2.5V T/H Panasonic Electronic Components	3,425	-	RFQ	Datasheet	Radial, Can	Bulk	AL	Obsolete	1 F	-20%, +80%	2.5 V	1Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.945 (24.00mm)
EEC-A0EL335 CAP 3.3F -20% +80% 2.5V T/H Panasonic Electronic Components	3,120	-	RFQ	Datasheet	Radial, Can	Bulk	AL	Obsolete	3.3 F	-20%, +80%	2.5 V	300mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.984 (25.00mm)
