Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	Termination	MountingType	LeadSpacing	Size/Dimension	Height-Seated(Max)
JUC0E336MHD CAP 33F 20% 2.5V THROUGH HOLE Nichicon	3,485	-	RFQ	Datasheet	Radial, Can	Bulk	EVerCAP® UC	Obsolete	33 F	±20%	2.5 V	100mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.319 (33.50mm)
JUC0E474MED CAP 470MF 20% 2.5V THROUGH HOLE Nichicon	3,790	-	RFQ	Datasheet	Radial, Can	Bulk	EVerCAP® UC	Obsolete	470 mF	±20%	2.5 V	7Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.413 (10.50mm)

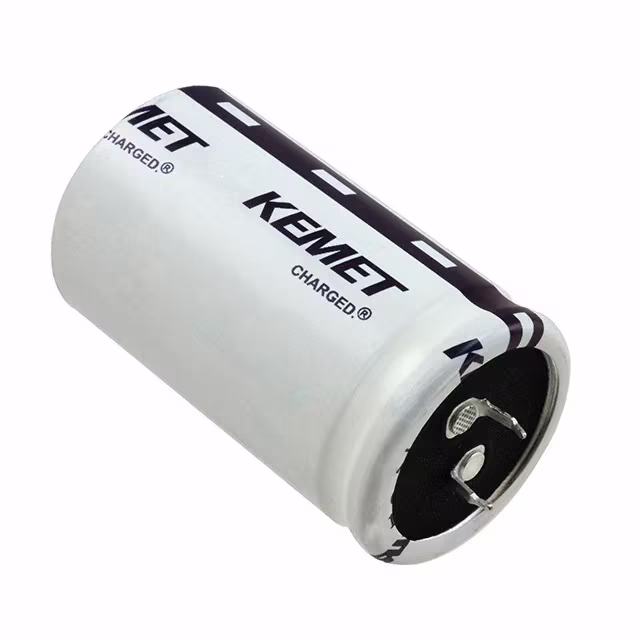

S501LF357V2R7A CAP 350F -5% +10% 2.7V T/H KEMET	2,498	-	RFQ	Datasheet	Radial, Can - Snap-In	Bulk	S501	Obsolete	350 F	-5%, +10%	2.7 V	3.1mOhm @ 1kHz	1000 Hrs @ 65°C	PC Pins	Through Hole	0.394 (10.00mm)	1.378 Dia (35.00mm)	2.402 (61.00mm)
S301RP128R2R7W CAP 1200F 0% 2.7V CHASSIS MOUNT KEMET	3,121	-	RFQ	Datasheet	Axial, Can - Screw Terminals	Bulk	S301	Obsolete	1200 F	-0%	2.7 V	0.25mOhm @ 1kHz	1000 Hrs @ 65°C	Screw Terminals	Chassis Mount	0.787 (20.00mm)	2.390 Dia x 3.169 L (60.70mm x 80.50mm)	-

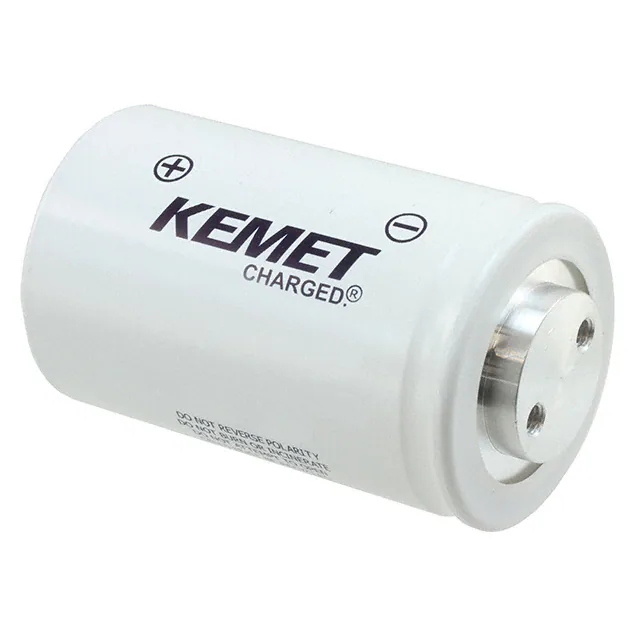

S301RS208R2R7W CAP 2000F 0% 2.7V CHASSIS MOUNT KEMET	2,108	-	RFQ	Datasheet	Axial, Can - Screw Terminals	Bulk	S301	Obsolete	2000 F	-0%	2.7 V	0.23mOhm @ 1kHz	1000 Hrs @ 65°C	Screw Terminals	Chassis Mount	0.787 (20.00mm)	2.390 Dia x 4.272 L (60.70mm x 108.50mm)	-

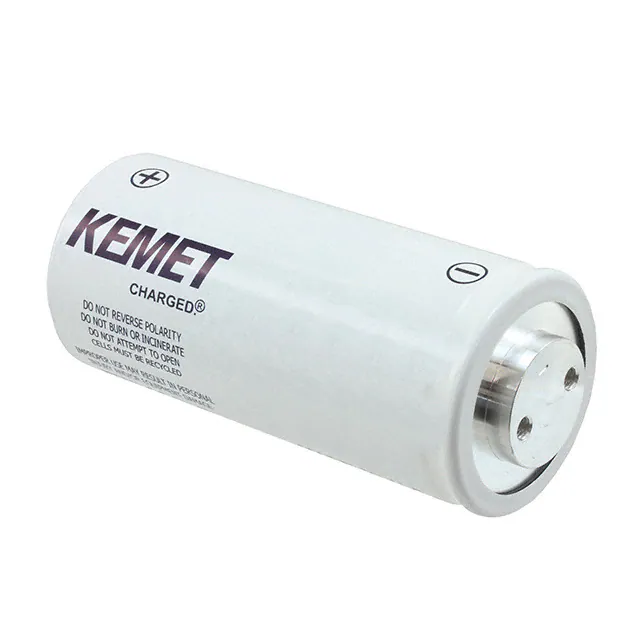

S301RV308R2R7W CAP 3000F 0% 2.7V CHASSIS MOUNT KEMET	3,180	-	RFQ	Datasheet	Axial, Can - Screw Terminals	Bulk	S301	Obsolete	3000 F	-0%	2.7 V	0.2mOhm @ 1kHz	1000 Hrs @ 65°C	Screw Terminals	Chassis Mount	0.787 (20.00mm)	2.390 Dia x 5.669 L (60.70mm x 144.00mm)	-

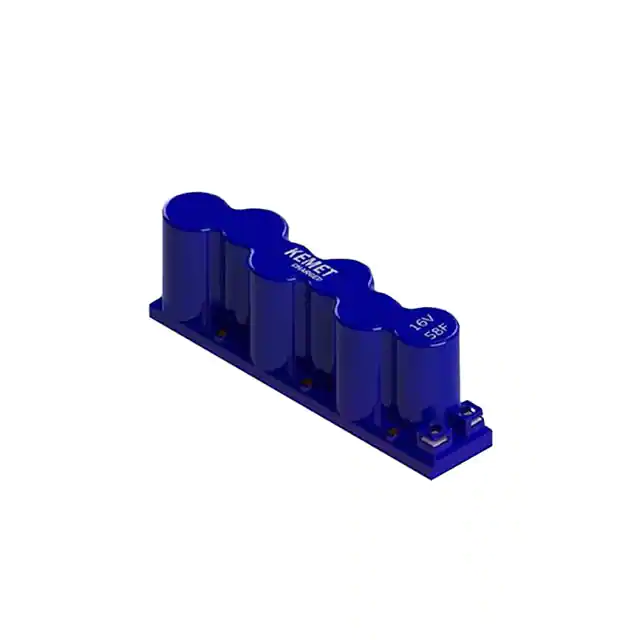

S01PM5805K016A CAP 58F 10% 16V CHASSIS MT KEMET	3,575	-	RFQ	Datasheet	Module	Bulk	S01	Obsolete	58 F	±10%	16 V	23mOhm	1000 Hrs @ 65°C	Screw Terminals	Chassis Mount	-	8.873 L x 2.000 W (225.37mm x 50.80mm)	3.000 (76.20mm)
JUC0E475MHD CAP 4.7F 20% 2.5V THROUGH HOLE Nichicon	2,335	-	RFQ	Datasheet	Radial, Can	Bulk	EVerCAP® UC	Obsolete	4.7 F	±20%	2.5 V	500mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.866 (22.00mm)
JUC0E476MHD CAP 47F 20% 2.5V THROUGH HOLE Nichicon	2,951	-	RFQ	Datasheet	Radial, Can	Bulk	EVerCAP® UC	Obsolete	47 F	±20%	2.5 V	100mOhm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.295 (7.50mm)	0.709 Dia (18.00mm)	1.654 (42.00mm)
PAS2126FR2R5504 CAP 500MF 20% 2.5V SMD Taiyo Yuden	3,749	-	RFQ	Datasheet	Nonstandard SMD	Bulk	FR	Obsolete	500 mF	±20%	2.5 V	80mOhm	-	SMD (SMT) Tabs	Surface Mount	-	1.024 L x 0.787 W (26.00mm x 20.00mm)	0.035 (0.90mm)
EEC-HW0D105 CAP 1F -20% +80% 2.3V T/H Panasonic Electronic Components	3,890	-	RFQ	Datasheet	Radial, Can	Bulk	HW	Obsolete	1 F	-20%, +80%	2.3 V	1Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.945 (24.00mm)
EEC-RF0H104 CAP 100MF -20% +80% 5.5V T/H Panasonic Electronic Components	2,205	-	RFQ	Datasheet	Radial, Can	Bulk	RF	Obsolete	100 mF	-20%, +80%	5.5 V	40Ohm	2000 Hrs @ 85°C	PC Pins	Through Hole	0.197 (5.00mm)	0.531 Dia (13.50mm)	0.374 (9.50mm)
EEC-RG0V224H CAP 220MF -20% +80% 3.6V T/H Panasonic Electronic Components	3,354	-	RFQ	Datasheet	Axial, Can - Horizontal	Bulk	RG	Obsolete	220 mF	-20%, +80%	3.6 V	50Ohm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	0.394 (10.00mm)	0.413 Dia (10.50mm)	0.236 (6.00mm)
EEC-RG0V224V CAP 220MF -20% +80% 3.6V T/H Panasonic Electronic Components	2,154	-	RFQ	Datasheet	Axial, Can - Vertical	Bulk	RG	Obsolete	220 mF	-20%, +80%	3.6 V	50Ohm @ 1kHz	2000 Hrs @ 85°C	PC Pins	Through Hole	0.197 (5.00mm)	0.413 Dia x 0.197 W (10.50mm x 5.00mm)	0.453 (11.50mm)
EEC-SE0H104 CAP 100MF -20% +80% 5.5V T/H Panasonic Electronic Components	2,707	-	RFQ	Datasheet	Axial, Can - Vertical	Tape & Box (TB)	SE	Obsolete	100 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.213 Dia (5.40mm)	0.528 (13.40mm)
EEC-SE0H223 CAP 22MF -20% +80% 5.5V T/H Panasonic Electronic Components	3,076	-	RFQ	Datasheet	Axial, Can - Vertical	Tape & Box (TB)	SE	Obsolete	22 mF	-20%, +80%	5.5 V	150Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.213 Dia (5.40mm)	0.528 (13.40mm)
EEC-SE0H224 CAP 220MF -20% +80% 5.5V T/H Panasonic Electronic Components	3,258	-	RFQ	Datasheet	Axial, Can - Vertical	Tape & Box (TB)	SE	Obsolete	220 mF	-20%, +80%	5.5 V	75Ohm @ 1kHz	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.213 Dia (5.40mm)	0.528 (13.40mm)
EEC-SE0H473 CAP 47MF -20% +80% 5.5V T/H Panasonic Electronic Components	3,063	-	RFQ	Datasheet	Axial, Can - Vertical	Tape & Box (TB)	SE	Obsolete	47 mF	-20%, +80%	5.5 V	120Ohm	1000 Hrs @ 70°C	PC Pins	Through Hole	0.197 (5.00mm)	0.213 Dia (5.40mm)	0.528 (13.40mm)
EEC-ER0E153 CAP 15MF 2.6V SURFACE MNT Panasonic Electronic Components	3,542	-	RFQ	Datasheet	Nonstandard SMD	Tape & Reel (TR),Cut Tape (CT)	ER	Obsolete	15 mF	-	2.6 V	300Ohm	500 Hrs @ 60°C	SMD (SMT) Tabs	Surface Mount	-	0.126 L x 0.098 W (3.20mm x 2.50mm)	0.039 (1.00mm)
EEC-EP0F333Y CAP 33MF -20% +80% 3.3V SMD Panasonic Electronic Components	2,521	-	RFQ	Datasheet	Coin, Wide and Thin Terminals - Opposite Sides	Tape & Reel (TR),Cut Tape (CT)	EP	Obsolete	33 mF	-20%, +80%	3.3 V	350Ohm @ 1kHz	250 Hrs @ 60°C	SMD (SMT) Tabs	Surface Mount	-	0.150 Dia (3.80mm)	0.061 (1.55mm)
