Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | SwitchCircuit | Multiplexer/DemultiplexerCircuit | NumberofCircuits | On-StateResistance(Max) | Channel-to-ChannelMatching(ΔRon) | Voltage-SupplySingle(V+) | Voltage-SupplyDual(V±) | SwitchTime(TonToff)(Max) | -3dbBandwidth | ChargeInjection | ChannelCapacitance(CS(off)CD(off)) | Current-Leakage(IS(off))(Max) | Crosstalk | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ISL54504IRUZ-TSPST, 1 CHANNEL, CMOS, PDSO6 |
24,195 | - |
RFQ |
Datasheet |
6-UFDFN | Bulk | - | Obsolete | SPST - NO | 1:1 | 1 | 2.5Ohm | - | 1.8V ~ 5.5V | - | 25ns, 15ns | 250MHz | 24pC | 7pF | 25nA | - | -40°C ~ 85°C (TA) | Surface Mount | |
ISL84541CBZSPST ANALOG SWITCH, 2 FUNC, 1 CH |
35,031 | - |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Tube | - | Obsolete | SPST - NO | 1:1 | 2 | 60Ohm | 800mOhm | 2.7V ~ 12V | - | 100ns, 75ns | - | 1pC | 8pF, 8pF | 100pA | -90dB @ 1MHz | 0°C ~ 70°C (TA) | Surface Mount | |
ISL43L120IU-TSPDT, 2 FUNC, 2 CHANNEL, CMOS |
12,300 | - |
RFQ |
Datasheet |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Bulk | - | Obsolete | SPST - NO | 1:1 | 2 | 250mOhm | 5mOhm | 1.65V ~ 3.6V | - | 25ns, 25ns | - | -125pC | 182pF, 182pF | 3nA | -94dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount | |
ISL43L712IUSPDT, 2 FUNC, 1 CHANNEL, CMOS |
16,618 | - |
RFQ |
Datasheet |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tube | - | Obsolete | SPST - NO/NC | 1:1 | 2 | 250mOhm | 5mOhm | 1.65V ~ 3.6V | - | 25ns, 25ns | - | -125pC | 182pF, 182pF | 3nA | -94dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount | |
ISL5123CBZSPDT, 2 FUNC, 1 CHANNEL, CMOS |
12,853 | - |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Bulk | - | Obsolete | SPDT | 2:1 | 1 | 20Ohm | 800mOhm | 2.7V ~ 12V | - | 35ns, 30ns | - | 5pC | 8pF, 8pF | 100pA | -105dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount | |
ISL84544IPZSPDT ANALOG SWITCH, 2 FUNC, 1 CH |
12,658 | - |
RFQ |
Datasheet |
8-DIP (0.300, 7.62mm) | Tube | - | Obsolete | SPDT | 2:1 | 1 | 60Ohm | 800mOhm | 2.7V ~ 12V | - | 100ns, 75ns | - | 1pC | 8pF, 8pF | 100pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | Through Hole | |
ISL43L122IUSPDT, 2 FUNC, 2 CHANNEL, CMOS |
12,637 | - |
RFQ |
Datasheet |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Bag | - | Obsolete | SPST - NO/NC | 1:1 | 2 | 250mOhm | 5mOhm | 1.65V ~ 3.6V | - | 25ns, 25ns | - | -125pC | 182pF, 182pF | 3nA | -94dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount | |
ISL43L122IU-TSPDT, 2 FUNC, 2 CHANNEL, CMOS |
12,350 | - |
RFQ |
Datasheet |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Bulk | - | Obsolete | SPST - NO/NC | 1:1 | 2 | 250mOhm | 5mOhm | 1.65V ~ 3.6V | - | 25ns, 25ns | - | -125pC | 182pF, 182pF | 3nA | -94dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount | |
ISL43110IBZSPST, 1 CHANNEL, CMOS, PDSO8 |
21,844 | - |
RFQ |
Datasheet |
8-SOIC (0.154, 3.90mm Width) | Bulk | - | Obsolete | SPST - NO | 1:1 | 1 | 10Ohm | - | 2.4V ~ 12V | - | 80ns, 50ns | - | 8pC | 15pF, 15pF | 1nA | - | -40°C ~ 85°C (TA) | Surface Mount | |
MAX4684EBC-T100.5 OHM/0.8 OHM LOW VOLTAGE, DUA |
19,780 | - |
RFQ |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
MAX4698EUB35OHM, LOW VOLTAGE, SPST ANALOG |
18,215 | - |
RFQ |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
ISL54501IRUZ-TSPST, 1 CHANNEL, CMOS, PDSO6 |
16,055 | - |
RFQ |
Datasheet |
6-UFDFN | Bulk | - | Obsolete | SPST - NO | 1:1 | 1 | 5Ohm | - | 1.62V ~ 5.5V | - | 22ns, 15ns | 350MHz | 16pC | 6pF | 25nA | - | -40°C ~ 85°C (TA) | Surface Mount | |
ADG802BRM-R2SPST SWITCH |
3,615 | - |
RFQ |
Datasheet |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Bulk | - | Active | SPST - NC | 1:1 | 1 | 300mOhm | - | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 45ns, 15ns | 12MHz | 50pC | 180pF, 180pF | 250pA | - | -40°C ~ 125°C (TA) | Surface Mount | |
ADG787BCPZ-REEL7DUAL 2:1 MUX/DEMUX USB SWITCH |
1,423 | - |
RFQ |
Datasheet |
10-VFDFN Exposed Pad, CSP | Bulk | ADG787 | Active | SPDT | 2:1 | 2 | 3Ohm | 20mOhm | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 19ns, 5ns | 145MHz | 14pC | 16pF | 50pA (Typ) | -110dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount | |
ADG819BRM-R22:1 MUX/SPDT SWITCH |
1,293 | - |
RFQ |
Datasheet |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Bulk | - | Active | SPDT | 2:1 | 1 | 600mOhm | 60mOhm | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 45ns, 16ns | 17MHz | 20pC | 80pF | 250pA | -72dB @ 100kHz | -40°C ~ 125°C (TA) | Surface Mount | |
DG411DY-TQUAD, SPST ANALOG SWITCH |
300 | - |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Bulk | - | Obsolete | SPST - NC | 1:1 | 4 | 35Ohm | - | 5V ~ 44V | ±5V ~ 20V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 100pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount | |

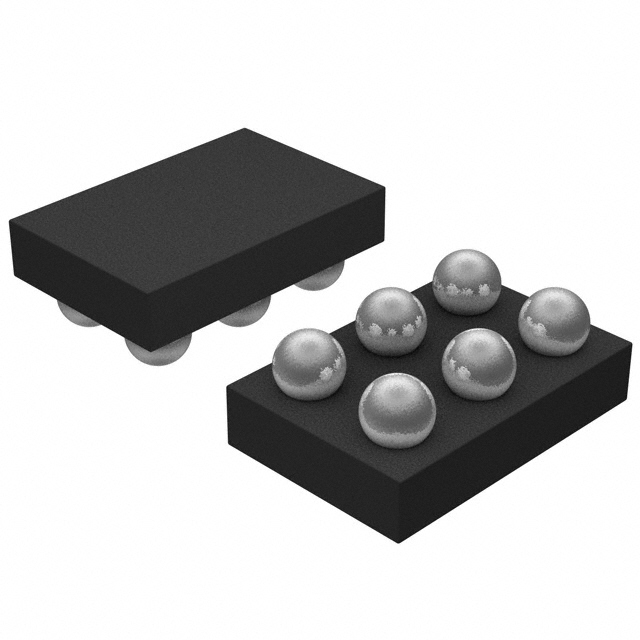

ADG819BCBZ-REEL7IC SWITCH SPDT 6WLCSP |
6,331 | - |
RFQ |
Datasheet |
6-WFBGA, WLCSP | Tape & Reel (TR),Cut Tape (CT) | - | Active | SPDT | 2:1 | 1 | 600mOhm | 60mOhm | 1.8V ~ 5.5V | - | 45ns, 16ns | 17MHz | 20pC | 80pF | 250pA | -72dB @ 100kHz | -40°C ~ 85°C (TA) | Surface Mount | |
DG413DY-TQUAD SPST ANALOG SWITCH |
199,838 | - |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Bulk | - | Obsolete | SPST - NO/NC | 1:1 | 4 | 35Ohm | - | 5V ~ 44V | ±5V ~ 20V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 100pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | Surface Mount | |
AD15/133-0REELQUAD SPST LOW R-ON I.C. |
20,000 | - |
RFQ |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
ISL54503IRUZ-TSPDT, 1 CHANNEL, CMOS, PDSO6 |
60,000 | - |
RFQ |
Datasheet |
6-UFDFN | Bulk | - | Obsolete | SPDT | 2:1 | 1 | 2.5Ohm | 3mOhm | 1.8V ~ 5.5V | - | 25ns, 15ns | 250MHz | 24pC | 7pF | 25nA | - | -40°C ~ 85°C (TA) | Surface Mount |
