Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Technology | NumberofChannels | Voltage-Isolation | CommonModeTransientImmunity(Min) | PropagationDelaytpLH/tpHL(Max) | PulseWidthDistortion(Max) | Rise/FallTime(Typ) | Current-OutputHighLow | Current-PeakOutput | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | Voltage-OutputSupply | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ADUM4120-1BRIZDGTL ISO 5KV 1CH GATE DRVR 6SOIC |
2,781 | - |
RFQ |
Datasheet |
Tube | iCoupler® | Active | Magnetic Coupling | 1 | 5000Vrms | 150kV/µs | 42ns, 58ns | 16.5ns | 18ns, 18ns | - | 2.3A | - | - | 7.5V ~ 35V | -40°C ~ 125°C | Surface Mount | |
SI823H6CD-IS35KV GATE DRIVER 14-WBSOIC |
2,971 | - |
RFQ |
Datasheet |
Tube | Si823Hx | Active | Capacitive Coupling | 2 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | -40°C ~ 125°C | Surface Mount | |
SI823H1CD-IS35KV GATE DRIVER 14-WBSOIC |
3,323 | - |
RFQ |
Datasheet |
Tube | Si823Hx | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | -40°C ~ 125°C | Surface Mount | |
SI823H4BD-IS35KV GATE DRIVER 14-WBSOIC |
3,806 | - |
RFQ |
Datasheet |
Tube | Si823Hx | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | -40°C ~ 125°C | Surface Mount | |
ADUM3223WCRZDGTL ISO 3KV 2CH GATE DVR 16SOIC |
3,607 | - |
RFQ |
Datasheet |
Bulk,Tube | Automotive | Active | Magnetic Coupling | 2 | 3000Vrms | 50kV/µs | 54ns, 54ns | - | 12ns, 12ns | - | 4A | - | - | 11.5V ~ 18V | -40°C ~ 125°C | Surface Mount | |
SI82520CD-IS35KV GATE DRIVER 14-WBSOIC |
3,236 | - |
RFQ |
Datasheet |
Tube | Si8252x | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5.6ns | 12ns, 12ns (Max) | 4A, 4A | 4A | - | - | 5.5V ~ 30V | -40°C ~ 125°C | Surface Mount | |
SI82520AD-IS35KV GATE DRIVER 14-WBSOIC |
2,518 | - |
RFQ |
Datasheet |
Tube | Si8252x | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5.6ns | 12ns, 12ns (Max) | 4A, 4A | 4A | - | - | 5.5V ~ 30V | -40°C ~ 125°C | Surface Mount | |
ADUM4223WARWZDGTL ISO 5KV 2CH GATE DVR 16SOIC |
3,209 | - |
RFQ |
Datasheet |
Tube | Automotive | Active | Magnetic Coupling | 2 | 5000Vrms | 50kV/µs | 59ns, 59ns | - | 12ns, 12ns | - | 4A | - | - | 4.5V ~ 18V | -40°C ~ 125°C | Surface Mount | |

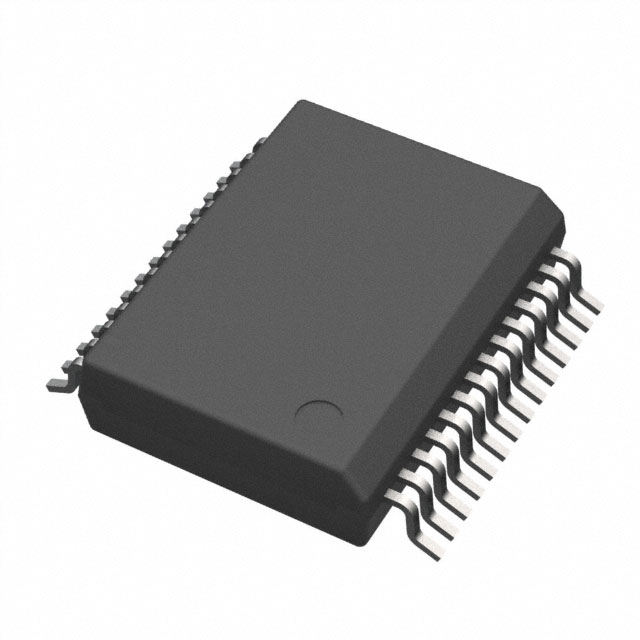

ADUM4137WBRNZ6A AUTOMOTIVE ISOLATED GATE DRIV |
2,623 | - |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q100 | Active | Magnetic Coupling | 1 | 5000Vrms | 150kV/µs | 131ns, 137ns | 70ns (Min) | 105ns, 107ns | - | 6A | - | - | 12V ~ 25V | -40°C ~ 150°C | Surface Mount | |
FOD8314R2OPTOISO 5KV 1CH GATE DRIVER 6SOP |
132 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 500ns, 500ns | 300ns | 60ns, 40ns | 1A, 1A | 1.5A | 1.5V | 25 mA | 16V ~ 30V | -40°C ~ 100°C | Surface Mount | |

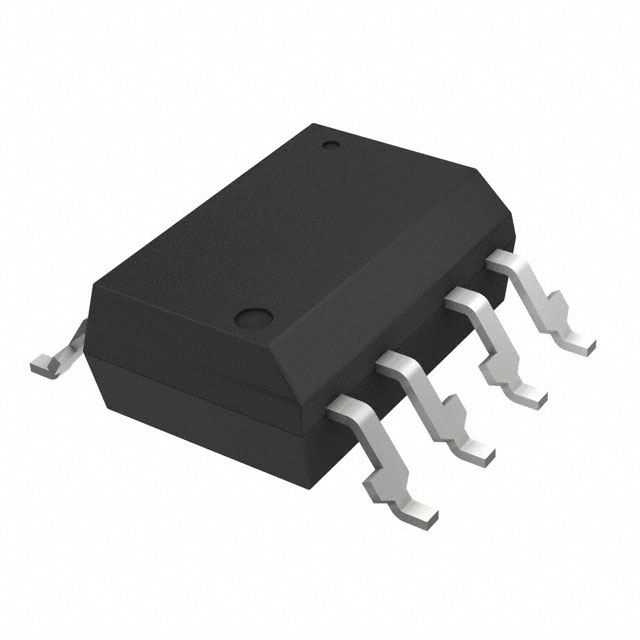

TLP352F(D4-TP4,F)OPTOISO 3.75KV 1CH GATE DVR 8SMD |
301 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 3750Vrms | 20kV/µs | 200ns, 200ns | 50ns | 15ns, 8ns | 2A, 2A | 2.5A | 1.55V | 20 mA | 15V ~ 30V | -40°C ~ 125°C | Surface Mount | |
IS341W6 PIN IGBT GATE DRIVEWIDE BODY & |
277 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 200ns, 200ns | 70ns | 35ns, 35ns | 2.5A, 2.5A | 3A | 1.37V | 25 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount | |
VO3150A-X017TOPTOISO 5.3KV 1CH GATE DRVR 8SMD |
947 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5300Vrms | 25kV/µs | 400ns, 400ns | 200ns | 100ns, 100ns | 500mA, 500mA | 500mA | 1.3V | 25 mA | 15V ~ 32V | -40°C ~ 110°C | Surface Mount | |
VOD3120AB-T2OPTOISO IGBT MOSFET DRIVER 2.5A |
702 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5300Vrms | 35kV/µs | 500ns, 500ns | 70ns | 35ns, 35ns | 2.5A | 2.5A | 1.37V | 20 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount | |
VOD3120AB-VT2OPTOISO IGBT MOSFET DRIVER 2.5A |
964 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5300Vrms | 35kV/µs | 500ns, 500ns | 70ns | 35ns, 35ns | 2.5A | 2.5A | 1.37V | 20 mA | 15V ~ 30V | -40°C ~ 105°C | Surface Mount | |
TLP5771(TP,EOPTOISO 5KV 1CH GATE DRIVER 6SO |
491 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 150ns, 150ns | 50ns | 15ns, 8ns | 1A, 1A | 1A | 1.65V | 8 mA | 10V ~ 30V | -40°C ~ 110°C | Surface Mount | |
UCC23511DWYR1A- SGNL CHAN ISO GD WITH OPTO 5 |
760 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Capacitive Coupling | 1 | 5700Vrms | 150kV/µs | 105ns, 105ns | 35ns | 28ns, 25ns | 1.5A, 2A | 2A, 1.5A | 2.1V | 16 mA | 14V ~ 33V | -40°C ~ 125°C | Surface Mount | |
PS9531L3-AXOPTOISO 5KV 1CH GATE DRIVER 8SMD |
100 | - |
RFQ |
Datasheet |
Tube | - | Discontinued at Mosen | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 175ns, 175ns | 75ns | 40ns, 40ns | 2A, 2A | 2.5A | 1.56V | 25 mA | 15V ~ 30V | -40°C ~ 125°C | Surface Mount | |
FOD3120SDOPTOISO 5KV 1CH GATE DRIVER 8SMD |
573 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 400ns, 400ns | 100ns | 60ns, 60ns | 2A, 2A | 3A | 1.5V | 25 mA | 15V ~ 30V | -40°C ~ 100°C | Surface Mount | |
FOD3180SVOPTOISO 5KV 1CH GATE DRIVER 8SMD |
693 | - |
RFQ |
Datasheet |
Tube | - | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 200ns, 200ns | 65ns | 75ns, 55ns | 2A, 2A | 2.5A | 1.43V | 25 mA | 10V ~ 20V | -40°C ~ 100°C | Surface Mount |
