Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | LogicType | NumberofCircuits | NumberofInputs | Features | Voltage-Supply | Current-Quiescent(Max) | Current-OutputHighLow | LogicLevel-Low | LogicLevel-High | MaxPropagationDelay@VMaxCL | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

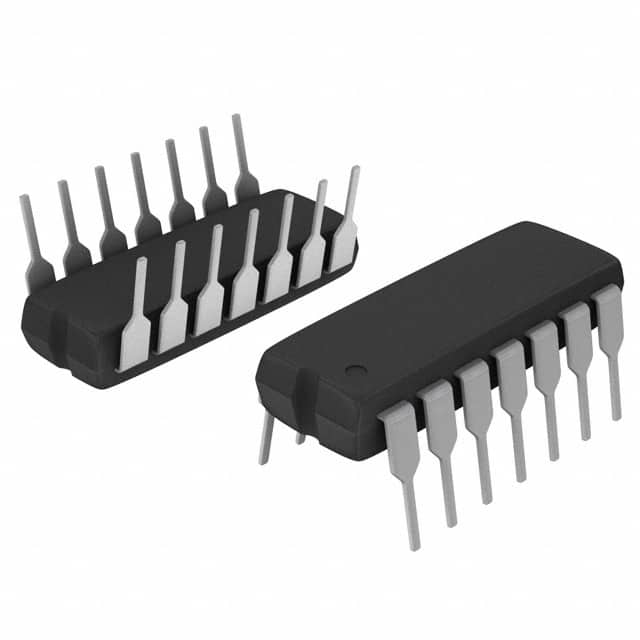

MC14001UBCPGIC GATE NOR 4CH 2-INP 14DIP |
3,360 | - |
RFQ |
Datasheet |
Tube,Tube | 4000B | Obsolete | NOR Gate | 4 | 2 | - | 3V ~ 18V | 1 µA | 3.5mA, 8.8mA | 1V ~ 2.5V | 4V ~ 12.5V | 80ns @ 15V, 50pF | -55°C ~ 125°C | Through Hole | |
MC14011BCPGIC GATE NAND 4CH 2-INP 14DIP |
3,336 | - |
RFQ |
Datasheet |
Tube | 4000B | Obsolete | NAND Gate | 4 | 2 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 80ns @ 15V, 50pF | -55°C ~ 125°C | Through Hole | |
MC14011UBCPGIC GATE NAND 4CH 2-INP 14DIP |
2,750 | - |
RFQ |
Datasheet |
Tube | 4000B | Obsolete | NAND Gate | 4 | 2 | - | 3V ~ 18V | 1 µA | 3.5mA, 8.8mA | 1V ~ 2.5V | 4V ~ 12.5V | 80ns @ 15V, 50pF | -55°C ~ 125°C | Through Hole | |
MC14012BCPGIC GATE NAND 2CH 4-INP 14DIP |
3,742 | - |
RFQ |
Datasheet |
Tube,Tube | 4000B | Obsolete | NAND Gate | 2 | 4 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 100ns @ 15V, 50pF | -55°C ~ 125°C | Through Hole | |
MC14023BCPGIC GATE NAND 3CH 3-INP 14DIP |
36,936 | - |
RFQ |
Datasheet |
Tube,Tube | 4000B | Obsolete | NAND Gate | 3 | 3 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 100ns @ 15V, 50pF | -55°C ~ 125°C | Through Hole | |
MC14025BCPGIC GATE NOR 3CH 3-INP 14DIP |
2,459 | - |
RFQ |
Datasheet |
Tube | 4000B | Obsolete | NOR Gate | 3 | 3 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 100ns @ 15V, 50pF | -55°C ~ 125°C | Through Hole | |
MC14049BCPGIC INVERTER 6CH 1-INP 16DIP |
3,071 | - |
RFQ |
Datasheet |
Tube | 4000B | Obsolete | Inverter | 6 | 1 | - | 3V ~ 18V | 4 µA | 10mA, 40mA | 1.5V ~ 4V | 3.5V ~ 11V | 60ns @ 15V, 50pF | -55°C ~ 125°C | Through Hole | |
MC14049UBCPGIC INVERTER 6CH 1-INP 16DIP |
3,978 | - |
RFQ |
Datasheet |
Tube | 4000B | Obsolete | Inverter | 6 | 1 | - | 3V ~ 18V | 4 µA | 10mA, 40mA | 1V ~ 2.5V | 4V ~ 12.5V | 50ns @ 15V, 50pF | -55°C ~ 125°C | Through Hole | |
MC14069UBCPGIC INVERTER 6CH 1-INP 14DIP |
2,675 | - |
RFQ |
Datasheet |
Tube | 4000B | Obsolete | Inverter | 6 | 1 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1V ~ 2.5V | 4V ~ 12.5V | 55ns @ 15V, 50pF | -55°C ~ 125°C | Through Hole | |
MC14070BCPGIC GATE XOR 4CH 2-INP 14DIP |
3,443 | - |
RFQ |
Datasheet |
Tube | 4000B | Obsolete | XOR (Exclusive OR) | 4 | 2 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 110ns @ 15V, 50pF | -55°C ~ 125°C | Through Hole | |
MC14071BCPGIC GATE OR 4CH 2-INP 14DIP |
3,191 | - |
RFQ |
Datasheet |
Tube | 4000B | Obsolete | OR Gate | 4 | 2 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 100ns @ 15V, 50pF | -55°C ~ 125°C | Through Hole | |
MC14073BCPGIC GATE AND 3CH 3-INP 14DIP |
3,626 | - |
RFQ |
Datasheet |
Tube | 4000B | Obsolete | AND Gate | 3 | 3 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 100ns @ 15V, 50pF | -55°C ~ 125°C | Through Hole | |
MC14077BCPGIC GATE XNOR 4CH 2-INP 14DIP |
21,638 | - |
RFQ |
Datasheet |
Tube,Tube | 4000B | Obsolete | XNOR (Exclusive NOR) | 4 | 2 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 110ns @ 15V, 50pF | -55°C ~ 125°C | Through Hole | |
MC14081BCPGIC GATE AND 4CH 2-INP 14DIP |
2,556 | - |
RFQ |
Datasheet |
Tube | 4000B | Obsolete | AND Gate | 4 | 2 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 100ns @ 15V, 50pF | -55°C ~ 125°C | Through Hole | |
MC14082BCPGIC GATE AND 2CH 4-INP 14DIP |
35,485 | - |
RFQ |
Datasheet |
Tube,Tube | 4000B | Obsolete | AND Gate | 2 | 4 | - | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 100ns @ 15V, 50pF | -55°C ~ 125°C | Through Hole | |
MC14093BCPGIC GATE NAND 4CH 2IN 14DIP |
3,904 | - |
RFQ |
Datasheet |
Tube | 4000B | Obsolete | NAND Gate | 4 | 2 | Schmitt Trigger | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 0.9V ~ 4V | 3.6V ~ 10.8V | 80ns @ 15V, 50pF | -55°C ~ 125°C | Through Hole | |
MC14106BCPGIC INVERT SCHMITT 6CH 1-IN 14DIP |
3,850 | - |
RFQ |
Datasheet |
Tube | 4000B | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 0.9V ~ 4V | 3.6V ~ 10.8V | 80ns @ 15V, 50pF | -55°C ~ 125°C | Through Hole | |
MC14584BCPGIC INVERT SCHMITT 6CH 1-IN 14DIP |
3,539 | - |
RFQ |
Datasheet |
Tube | 4000B | Obsolete | Inverter | 6 | 1 | Schmitt Trigger | 3V ~ 18V | 1 µA | 8.8mA, 8.8mA | 1.6V ~ 4.6V | 3.4V ~ 10.5V | 80ns @ 15V, 50pF | -55°C ~ 125°C | Through Hole | |
MC74AC02NGIC GATE NOR 4CH 2-INP 14DIP |
9,425 | - |
RFQ |
Datasheet |
Tube,Tube | 74AC | Obsolete | NOR Gate | 4 | 2 | - | 2V ~ 6V | 4 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 6.5ns @ 5V, 50pF | -40°C ~ 85°C | Through Hole | |
MC74AC08NGIC GATE AND 4CH 2-INP 14DIP |
3,950 | - |
RFQ |
Datasheet |
Tube,Tube | 74AC | Obsolete | AND Gate | 4 | 2 | - | 2V ~ 6V | 4 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | Through Hole |
