Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | LogicType | NumberofCircuits | NumberofInputs | Features | Voltage-Supply | Current-Quiescent(Max) | Current-OutputHighLow | LogicLevel-Low | LogicLevel-High | MaxPropagationDelay@VMaxCL | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
74AHC1G04QSE-7IC INVERTER 1CH 1-INP SOT353 |
3,705 | - |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, 74AHC | Active | Inverter | 1 | 1 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 125°C | Surface Mount | ||
74LVC1G08GV-Q100,1IC GATE AND 1CH 2-INP SC74A |
3,408 | - |
RFQ |
Datasheet |
Tape & Reel (TR) | 74LVC | Active | AND Gate | 1 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4ns @ 5V, 50pF | -40°C ~ 125°C (TA) | Surface Mount | |
74AHC1G02QW5-7IC GATE NOR 1CH 2-INP SOT25 |
3,926 | - |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, 74AHC | Active | NOR Gate | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 125°C | Surface Mount | ||
74HCT00D/AU118IC GATE NAND 4CH 2-INP 14SO |
3,402 | - |
RFQ |
Datasheet |
Bulk | 74HCT | Active | NAND Gate | 4 | 2 | - | 4.5V ~ 5.5V | 20 µA | 4mA, 5.2mA | 0.8V | 2V | 12ns @ 4.5V, 50pF | -40°C ~ 125°C | Surface Mount | |
74VHC05FTIC INVERTER OD 6CH 1-INP 14TSSOP |
3,236 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | 74VHC | Active | Inverter | 6 | 1 | Open Drain | 2V ~ 5.5V | 2 µA | -, 8mA | 0.5V | 1.5V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | Surface Mount | |
MC74ACT00DTELNAND GATE |
3,972 | - |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
SN74LS38MNAND GATE |
2,151 | - |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
74AHCT1G04GM,115IC INVERTER 1CH 1-INP 6XSON |
2,840 | - |
RFQ |
Datasheet |
Tape & Reel (TR) | 74AHCT | Active | Inverter | 1 | 1 | - | 4.5V ~ 5.5V | 1 µA | 8mA, 8mA | 0.8V | 2V | 7.7ns @ 5V, 50pF | -40°C ~ 125°C | Surface Mount | |
74AUP1G09GX,125IC GATE AND OD 1CH 2-INP 5X2SON |
3,748 | - |
RFQ |
Datasheet |
Tape & Reel (TR) | 74AUP | Active | AND Gate | 1 | 2 | Open Drain | 0.8V ~ 3.6V | 500 nA | -, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 12.7ns @ 3.3V, 30pF | -40°C ~ 125°C | Surface Mount | |
NL27WZ06DTT1GIC INVERTER OD 2CH 2-INP 6TSOP |
2,220 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | 27WZ | Active | Inverter | 2 | 2 | Open Drain | 1.65V ~ 5.5V | 1 µA | -, 32mA | - | - | 3ns @ 5V, 50pF | -55°C ~ 125°C | Surface Mount | |

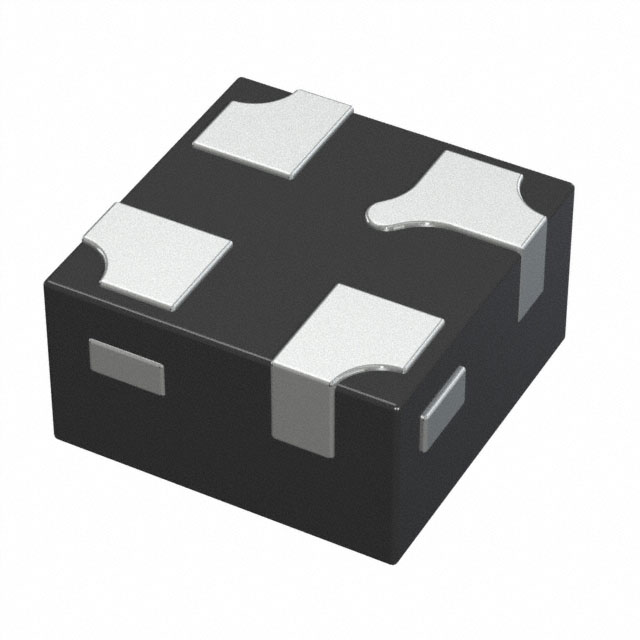

74LVC1G14GX4-Q100Z74LVC1G14-Q100 - SINGLE SCHMITT |
3,854 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, 74LVC | Active | Inverter | 1 | 1 | Schmitt Trigger | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.78V ~ 2.27V | 1.14V ~ 2.79V | 6.5ns @ 5V, 50pF | -40°C ~ 125°C | Surface Mount | |
74LVC3G06GT,115IC INVERTER OD 3CH 3-INP 8XSON |
2,613 | - |
RFQ |
Datasheet |
Tape & Reel (TR) | 74LVC | Active | Inverter | 3 | 3 | Open Drain | 1.65V ~ 5.5V | 4 µA | -, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 2.9ns @ 5V, 50pF | -40°C ~ 125°C | Surface Mount | |
74HCT2G14GV-Q100HIC INVERT SCHMITT 2CH 2-IN 6TSOP |
3,502 | - |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q100, 74HCT | Active | Inverter | 2 | 2 | Schmitt Trigger | 4.5V ~ 5.5V | 1 µA | 4mA, 4mA | 0.5V ~ 0.6V | 1.9V ~ 2.1V | 32ns @ 4.5V, 50pF | -40°C ~ 125°C | Surface Mount | |
SN74LVC1G332DRYRIC GATE OR 1CH 3-INP 6SON |
34,700 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | 74LVC | Active | OR Gate | 1 | 3 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4.5ns @ 5V, 50pF | -40°C ~ 125°C | Surface Mount | |
SN74AHC1G32TDCKRQ1IC GATE OR 1CH 2-INP SC70-5 |
3,669 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | Automotive, AEC-Q100, 74AHC | Active | OR Gate | 1 | 2 | - | 2V ~ 5.5V | 1 µA | 8mA, 8mA | 0.5V ~ 1.65V | 1.5V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 105°C | Surface Mount | |
74F32SCOR GATE, F/FAST SERIES, 4 FUNC |
3,842 | - |
RFQ |
Datasheet |
Bulk | 74F | Active | OR Gate | 4 | 2 | - | 4.5V ~ 5.5V | - | 1mA, 20mA | 0.8V | 2V | 5.6ns @ 5V, 50pF | 0°C ~ 70°C | ||
CD4093BEIC GATE NAND 4CH 2-INP 14DIP |
2,200 | - |
RFQ |
Tube | 4000B | Obsolete | NAND Gate | 4 | 2 | - | 3V ~ 18V | 4 µA | 3.4mA, 3.4mA | 0.9V ~ 4V | 3.6V ~ 10.8V | 130ns @ 15V, 50pF | -55°C ~ 125°C | Through Hole | ||
74HC00DB,118IC GATE NAND 4CH 2-INP 14SSOP |
3,476 | - |
RFQ |
Datasheet |
Bulk | 74HC | Active | NAND Gate | 4 | 2 | - | 2V ~ 6V | 40 µA | 5.2mA, 5.2mA | 0.5V ~ 1.8V | 1.5V ~ 4.2V | 7ns @ 6V, 50pF | -40°C ~ 125°C | Surface Mount | |
DM74LS05NIC INVERT OPEN COL 6CH 1IN 14DIP |
2,781 | - |
RFQ |
Tube | 74LS | Obsolete | Inverter | 6 | 1 | Open Collector | 4.75V ~ 5.25V | - | -, 8mA | 0.8V | 2V | 45ns @ 5V, 50pF | 0°C ~ 70°C | Through Hole | ||
SN74LS10ML1-ONNAND GATE 3-ELEMENT 3-IN BIPOLAR |
3,478 | - |
RFQ |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - |
