Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | OutputIsolation | InternalSwitch(s) | Voltage-Breakdown | Topology | Voltage-StartUp | Voltage-Supply(Vcc/Vdd) | DutyCycle | Frequency-Switching | Power(Watts) | FaultProtection | ControlFeatures | OperatingTemperature |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

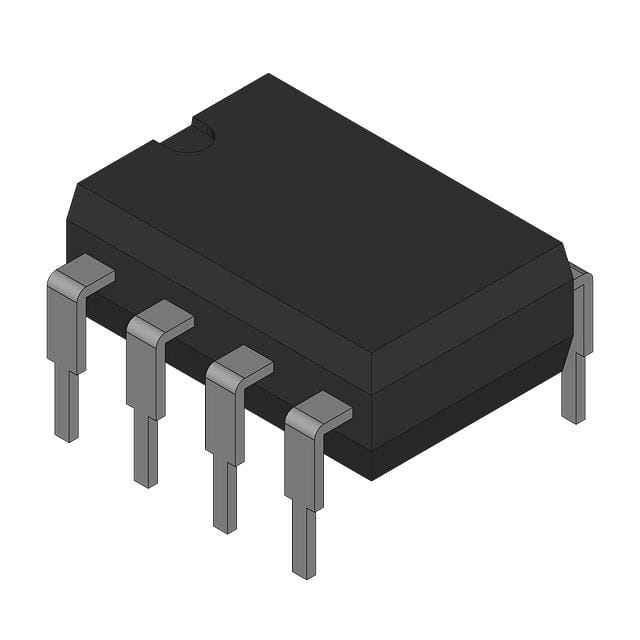

TOP221PNIC OFFLINE SWITCH MULT TOP 8DIP |
2,372 | - |
RFQ |
Datasheet |
Tube | TOPSwitch®-II | Not For New Designs | Isolated | Yes | 700V | Boost, Buck, Flyback, Forward | - | - | 67% | 100kHz | 9 W | Current Limiting, Over Temperature | - | -40°C ~ 150°C (TJ) | |
TOP245GN-TLIC OFFLINE SWITCH FLYBACK 8SMD |
3,892 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TOPSwitch®-GX | Not For New Designs | Isolated | Yes | 700V | Flyback | - | - | 66.5% | 66kHz ~ 132kHz | 30 W | Current Limiting, Over Temperature, Over Voltage | Frequency Control | -40°C ~ 150°C (TJ) | |
TOP223GN-TLIC OFFLINE SWITCH MULT TOP 8SMD |
2,347 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TOPSwitch®-II | Not For New Designs | Isolated | Yes | 700V | Boost, Buck, Flyback, Forward | - | - | 67% | 100kHz | 25 W | Current Limiting, Over Temperature | - | -40°C ~ 150°C (TJ) | |

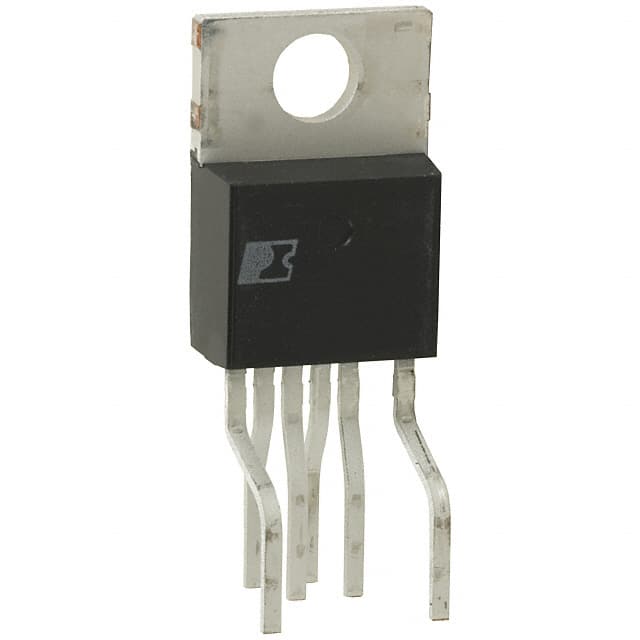

TOP254YNIC OFFLINE SW FLYBACK TO220-7C |
2,056 | - |
RFQ |
Datasheet |
Tube | TOPSwitch®-HX | Active | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz, 132kHz | 62 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | |
TOP267VGIC OFFLINE SWITCH FLYBACK 12EDIP |
3,240 | - |
RFQ |
Datasheet |
Tube | TOPSwitch®-JX | Active | Isolated | Yes | 725V | Flyback | - | - | 78% | 66kHz, 132kHz | 44 W | Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit | Frequency Control | -40°C ~ 150°C (TJ) | |
TOP242YNIC OFFLINE SW FLYBACK TO220-7C |
2,034 | - |
RFQ |
Datasheet |
Tube | TOPSwitch®-GX | Not For New Designs | Isolated | Yes | 700V | Flyback | - | - | 66.5% | 66kHz ~ 132kHz | 22 W | Current Limiting, Over Temperature, Over Voltage | Frequency Control | -40°C ~ 150°C (TJ) | |
TOP255YNIC OFFLINE SW FLYBACK TO220-7C |
2,450 | - |
RFQ |
Datasheet |
Tube | TOPSwitch®-HX | Active | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz, 132kHz | 81 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | |
TOP244R-TLIC OFFLINE SWITCH FLYBACK TO263 |
2,147 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TOPSwitch®-GX | Not For New Designs | Isolated | Yes | 700V | Flyback | - | - | 66.5% | 66kHz ~ 132kHz | 50 W | Current Limiting, Over Temperature, Over Voltage | Frequency Control | -40°C ~ 150°C (TJ) | |

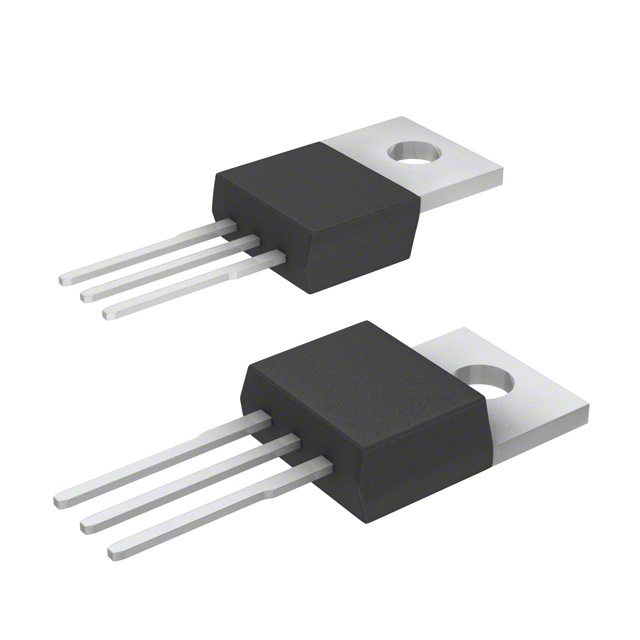

TOP221YNIC OFFLINE SW MULT TOP TO220-3 |
3,385 | - |
RFQ |
Datasheet |
Tube | TOPSwitch®-II | Not For New Designs | Isolated | Yes | 700V | Boost, Buck, Flyback, Forward | - | - | 67% | 100kHz | 12 W | Current Limiting, Over Temperature | - | -40°C ~ 150°C (TJ) | |
TOP222PNIC OFFLINE SWITCH MULT TOP 8DIP |
2,486 | - |
RFQ |
Datasheet |
Tube | TOPSwitch®-II | Not For New Designs | Isolated | Yes | 700V | Boost, Buck, Flyback, Forward | - | - | 67% | 100kHz | 15 W | Current Limiting, Over Temperature | - | -40°C ~ 150°C (TJ) | |
TOP258PGIC OFFLINE SWITCH FLYBACK 8DIP |
2,272 | - |
RFQ |
Datasheet |
Tube | TOPSwitch®-HX | Active | Isolated | Yes | 700V | Flyback | - | - | 78% | 66kHz | 48 W | Current Limiting, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | |
TOP222YNIC OFFLINE SW MULT TOP TO220-3 |
3,905 | - |
RFQ |
Datasheet |
Tube | TOPSwitch®-II | Not For New Designs | Isolated | Yes | 700V | Boost, Buck, Flyback, Forward | - | - | 67% | 100kHz | 25 W | Current Limiting, Over Temperature | - | -40°C ~ 150°C (TJ) | |
TOP223PNIC OFFLINE SWITCH MULT TOP 8DIP |
2,706 | - |
RFQ |
Datasheet |
Tube | TOPSwitch®-II | Not For New Designs | Isolated | Yes | 700V | Boost, Buck, Flyback, Forward | - | - | 67% | 100kHz | 25 W | Current Limiting, Over Temperature | - | -40°C ~ 150°C (TJ) | |
ICE2QR2280ZXKLA1IC OFFLINE SWITCH FLYBACK 7DIP |
3,815 | - |
RFQ |
Datasheet |
Tube | CoolMOS™, CoolSET™-Q1 | Active | Isolated | Yes | 800V | Flyback | 18 V | 10.5V ~ 27V | 50% | 52kHz | 54 W | Current Limiting, Over Load, Over Temperature, Over Voltage | - | -40°C ~ 150°C (TJ) | |
ICE5AR0680BZSXKLA1IC OFFLINE SWITCH FLYBACK 7DIP |
2,959 | - |
RFQ |
Datasheet |
Tube | CoolMOS™, CoolSET™ | Active | Isolated | Yes | 800V | Flyback | 16 V | 10V ~ 25.5V | 75% | 100kHz | 39 W | Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage | EN, Soft Start, Sync | -40°C ~ 125°C (TJ) | |
INN3977CQ-TLIC OFFLINE SW FLBACK INSOP-24D |
3,351 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | InnoSwitch™3-AQ | Active | Isolated | Yes | 750V | Flyback | - | 30V ~ 550V | - | 25kHz | 30 W | Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO | EN, Soft Start | -40°C ~ 125°C (TA) | |
TOP245YNIC OFFLINE SW FLYBACK TO220-7C |
3,876 | - |
RFQ |
Datasheet |
Tube | TOPSwitch®-GX | Not For New Designs | Isolated | Yes | 700V | Flyback | - | - | 66.5% | 66kHz ~ 132kHz | 85 W | Current Limiting, Over Temperature, Over Voltage | Frequency Control | -40°C ~ 150°C (TJ) | |
TOP224PNIC OFFLINE SWITCH MULT TOP 8DIP |
991 | - |
RFQ |
Datasheet |
Tube | TOPSwitch®-II | Not For New Designs | Isolated | Yes | 700V | Boost, Buck, Flyback, Forward | - | - | 67% | 100kHz | 30 W | Current Limiting, Over Temperature | - | -40°C ~ 150°C (TJ) | |
UCC2808D-1IC OFFLINE SW PUSH-PULL 8SOIC |
665 | - |
RFQ |
Datasheet |
Tube | - | Active | Isolated | No | - | Push-Pull | 12.5 V | 8.3V ~ 14V | 50% | 1MHz | - | - | Frequency Control | -55°C ~ 150°C (TJ) | |
UCC2808AD-1IC OFFLINE SWITCH MULT TOP 8SOIC |
3,224 | - |
RFQ |
Datasheet |
Tube | - | Active | Isolated | No | - | Full-Bridge, Half-Bridge, Push-Pull | 12.5 V | 8.3V ~ 15V | 49% | 1MHz | - | - | Frequency Control | -55°C ~ 150°C (TJ) |
