Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	OutputIsolation	InternalSwitch(s)	Voltage-Breakdown	Topology	Voltage-StartUp	Voltage-Supply(Vcc/Vdd)	DutyCycle	Frequency-Switching	Power(Watts)	FaultProtection	ControlFeatures	OperatingTemperature

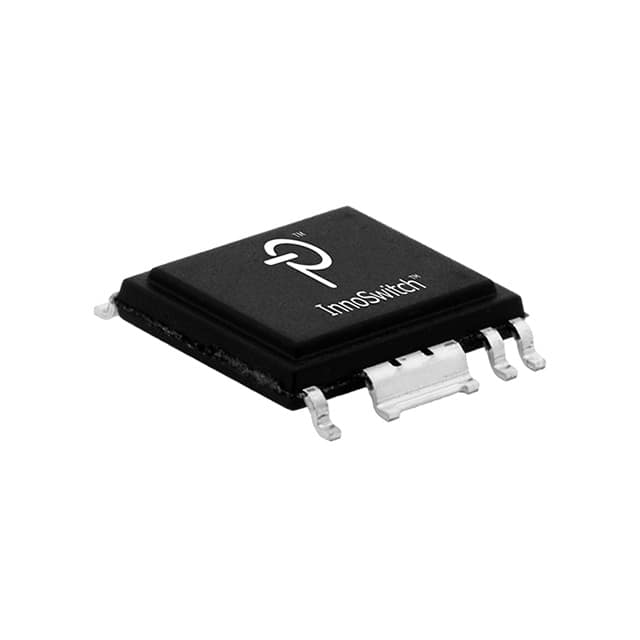

INN2005K IC OFFLINE SW MULT TOP 16ESOP Power Integrations	2,325	-	RFQ	Datasheet	Tube	InnoSwitch™-CH	Discontinued at Mosen	Isolated	Yes	650V	Flyback, Secondary Side SR	-	-	60%	100kHz	20 W	Current Limiting, Over Temperature, Over Voltage	-	-40°C ~ 85°C (TA)
INN2023K IC OFFLINE SW MULT TOP 16ESOP Power Integrations	3,057	-	RFQ	Datasheet	Tube	InnoSwitch™-CH	Discontinued at Mosen	Isolated	Yes	650V	Flyback, Secondary Side SR	-	-	60%	100kHz	12 W	Current Limiting, Over Temperature, Over Voltage	-	-40°C ~ 85°C (TA)
INN2024K IC OFFLINE SW MULT TOP 16ESOP Power Integrations	2,310	-	RFQ	Datasheet	Tube	InnoSwitch™-CH	Discontinued at Mosen	Isolated	Yes	650V	Flyback, Secondary Side SR	-	-	60%	100kHz	15 W	Current Limiting, Over Temperature, Over Voltage	-	-40°C ~ 85°C (TA)
INN2025K IC OFFLINE SW MULT TOP 16ESOP Power Integrations	2,378	-	RFQ	Datasheet	Tube	InnoSwitch™-CH	Discontinued at Mosen	Isolated	Yes	650V	Flyback, Secondary Side SR	-	-	60%	100kHz	20 W	Current Limiting, Over Temperature, Over Voltage	-	-40°C ~ 85°C (TA)
LNK6407D IC OFFLINE SWITCH FLYBACK 8SO Power Integrations	2,963	-	RFQ	Datasheet	Tube	LinkSwitch™-3	Discontinued at Mosen	Isolated	Yes	725V	Flyback	-	-	55%	Up to 85kHz	7.5 W	Current Limiting, Open Loop, Over Temperature, Short Circuit	-	-40°C ~ 150°C (TJ)
LNK6407K IC OFFLINE SWITCH FLYBACK 12ESOP Power Integrations	3,678	-	RFQ	Datasheet	Tube	LinkSwitch™-3	Discontinued at Mosen	Isolated	Yes	725V	Flyback	-	-	55%	Up to 85kHz	9 W	Current Limiting, Open Loop, Over Temperature, Short Circuit	-	-40°C ~ 150°C (TJ)
LNK6408K IC OFFLINE SWITCH FLYBACK 12ESOP Power Integrations	3,501	-	RFQ	Datasheet	Tube	LinkSwitch™-3	Discontinued at Mosen	Isolated	Yes	725V	Flyback	-	-	55%	Up to 85kHz	10 W	Current Limiting, Open Loop, Over Temperature, Short Circuit	-	-40°C ~ 150°C (TJ)
LNK6417K IC OFFLINE SWITCH FLYBACK 12ESOP Power Integrations	2,472	-	RFQ	Datasheet	Tube	LinkSwitch™-3	Discontinued at Mosen	Isolated	Yes	725V	Flyback	-	-	55%	Up to 85kHz	9 W	Current Limiting, Open Loop, Over Temperature, Short Circuit	-	-40°C ~ 150°C (TJ)
LNK6418K IC OFFLINE SWITCH FLYBACK 12ESOP Power Integrations	3,857	-	RFQ	Datasheet	Tube	LinkSwitch™-3	Discontinued at Mosen	Isolated	Yes	725V	Flyback	-	-	55%	Up to 85kHz	10 W	Current Limiting, Open Loop, Over Temperature, Short Circuit	-	-40°C ~ 150°C (TJ)
LNK6427D IC OFFLINE SWITCH FLYBACK 8SO Power Integrations	3,871	-	RFQ	Datasheet	Tube	LinkSwitch™-3	Discontinued at Mosen	Isolated	Yes	725V	Flyback	-	-	55%	Up to 85kHz	7.5 W	Current Limiting, Open Loop, Over Temperature, Short Circuit	-	-40°C ~ 150°C (TJ)
LNK6427K IC OFFLINE SWITCH FLYBACK 12ESOP Power Integrations	3,782	-	RFQ	Datasheet	Tube	LinkSwitch™-3	Discontinued at Mosen	Isolated	Yes	725V	Flyback	-	-	55%	Up to 85kHz	9 W	Current Limiting, Open Loop, Over Temperature, Short Circuit	-	-40°C ~ 150°C (TJ)
LNK6428K IC OFFLINE SWITCH FLYBACK 12ESOP Power Integrations	3,296	-	RFQ	Datasheet	Tube	LinkSwitch™-3	Discontinued at Mosen	Isolated	Yes	725V	Flyback	-	-	55%	Up to 85kHz	10 W	Current Limiting, Open Loop, Over Temperature, Short Circuit	-	-40°C ~ 150°C (TJ)
LNK6448K IC OFFLINE SWITCH FLYBACK 12ESOP Power Integrations	3,134	-	RFQ	Datasheet	Tube	LinkSwitch™-3	Discontinued at Mosen	Isolated	Yes	725V	Flyback	-	-	55%	Up to 85kHz	10 W	Current Limiting, Open Loop, Over Temperature, Short Circuit	-	-40°C ~ 150°C (TJ)
LNK6668K IC OFFLINE SWITCH FLYBACK 12ESOP Power Integrations	3,783	-	RFQ	Datasheet	Tube	LinkSwitch™-HP	Discontinued at Mosen	Isolated	Yes	650V	Flyback	-	-	64%	120kHz ~ 136kHz	68 W	Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit	-	-40°C ~ 150°C (TJ)
LNK6669K IC OFFLINE SWITCH FLYBACK 12ESOP Power Integrations	3,512	-	RFQ	Datasheet	Tube	LinkSwitch™-HP	Discontinued at Mosen	Isolated	Yes	650V	Flyback	-	-	64%	120kHz ~ 136kHz	77 W	Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit	-	-40°C ~ 150°C (TJ)
LNK6768K IC OFFLINE SWITCH FLYBACK 12ESOP Power Integrations	2,212	-	RFQ	Datasheet	Tube	LinkSwitch™-HP	Discontinued at Mosen	Isolated	Yes	650V	Flyback	-	-	64%	120kHz ~ 136kHz	68 W	Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit	-	-40°C ~ 150°C (TJ)
LNK6769K IC OFFLINE SWITCH FLYBACK 12ESOP Power Integrations	2,523	-	RFQ	Datasheet	Tube	LinkSwitch™-HP	Discontinued at Mosen	Isolated	Yes	650V	Flyback	-	-	64%	120kHz ~ 136kHz	77 W	Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit	-	-40°C ~ 150°C (TJ)
LNK6778K IC OFFLINE SWITCH FLYBACK 12ESOP Power Integrations	3,977	-	RFQ	Datasheet	Tube	LinkSwitch™-HP	Discontinued at Mosen	Isolated	Yes	725V	Flyback	-	-	64%	120kHz ~ 136kHz	68 W	Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit	-	-40°C ~ 150°C (TJ)
LNK6779K IC OFFLINE SWITCH FLYBACK 12ESOP Power Integrations	2,320	-	RFQ	Datasheet	Tube	LinkSwitch™-HP	Discontinued at Mosen	Isolated	Yes	725V	Flyback	-	-	64%	120kHz ~ 136kHz	77 W	Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit	-	-40°C ~ 150°C (TJ)
SC4808AIMSTRT IC OFFLINE SW MULT TOP 10MSOP Semtech Corporation	3,665	-	RFQ		Tape & Reel (TR)	-	Obsolete	Isolated	No	-	Full-Bridge, Half-Bridge, Push-Pull	12 V	7.5V ~ 18V	49%	Up to 1MHz	-	Current Limiting	Frequency Control, Sync	-40°C ~ 150°C (TJ)
