Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	OutputIsolation	InternalSwitch(s)	Voltage-Breakdown	Topology	Voltage-StartUp	Voltage-Supply(Vcc/Vdd)	DutyCycle	Frequency-Switching	Power(Watts)	FaultProtection	ControlFeatures	OperatingTemperature
LNK6416D IC OFFLINE SWITCH FLYBACK 8SO Power Integrations	2,020	-	RFQ	Datasheet	Tube	LinkSwitch™-3	Discontinued at Mosen	Isolated	Yes	725V	Flyback	-	-	55%	Up to 85kHz	6.1 W	Current Limiting, Open Loop, Over Temperature, Short Circuit	-	-40°C ~ 150°C (TJ)
LNK6424D IC OFFLINE SWITCH FLYBACK 8SO Power Integrations	2,602	-	RFQ	Datasheet	Tube	LinkSwitch™-3	Discontinued at Mosen	Isolated	Yes	725V	Flyback	-	-	55%	Up to 85kHz	4.1 W	Current Limiting, Open Loop, Over Temperature, Short Circuit	-	-40°C ~ 150°C (TJ)
LNK6425D IC OFFLINE SWITCH FLYBACK 8SO Power Integrations	2,950	-	RFQ	Datasheet	Tube	LinkSwitch™-3	Discontinued at Mosen	Isolated	Yes	725V	Flyback	-	-	55%	Up to 85kHz	5.1 W	Current Limiting, Open Loop, Over Temperature, Short Circuit	-	-40°C ~ 150°C (TJ)
LNK6426D IC OFFLINE SWITCH FLYBACK 8SO Power Integrations	2,943	-	RFQ	Datasheet	Tube	LinkSwitch™-3	Discontinued at Mosen	Isolated	Yes	725V	Flyback	-	-	55%	Up to 85kHz	6.1 W	Current Limiting, Open Loop, Over Temperature, Short Circuit	-	-40°C ~ 150°C (TJ)
LNK6436D IC OFFLINE SWITCH FLYBACK 8SO Power Integrations	3,864	-	RFQ	Datasheet	Tube	LinkSwitch™-3	Discontinued at Mosen	Isolated	Yes	725V	Flyback	-	-	55%	Up to 85kHz	6.1 W	Current Limiting, Open Loop, Over Temperature, Short Circuit	-	-40°C ~ 150°C (TJ)

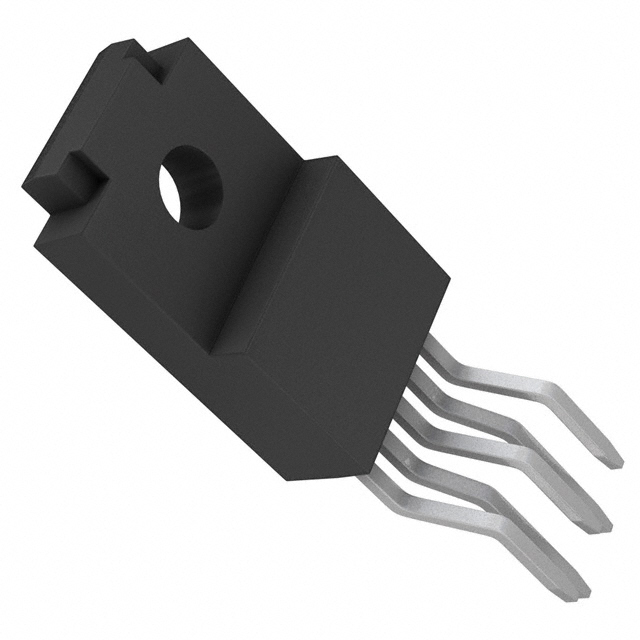

STR-W6072S IC OFFLINE SW FLYBACK TO220-5 Sanken	2,490	-	RFQ	Datasheet	Tube	STR-W6000S	Obsolete	Isolated	Yes	800V	Flyback	15.3 V	8.1V ~ 32V	71%	60kHz ~ 74kHz	50 W	Current Limiting, Over Load, Over Temperature, Over Voltage	-	-20°C ~ 115°C (TA)
STR-W6253MD IC OFFLINE SW FLYBACK TO220-5 Sanken	2,858	-	RFQ	Datasheet	Tube	-	Obsolete	Isolated	Yes	650V	Flyback	15.5 V	8V ~ 27V	75%	67kHz	-	Current Limiting, Over Load, Over Temperature, Over Voltage	-	-20°C ~ 150°C (TJ)
STR-Y6735A IC OFFLINE SW FLYBACK TO220F-7 Sanken	2,823	-	RFQ	Datasheet	Tube	STR-Y6700	Obsolete	Isolated	Yes	500V	Flyback	15.1 V	9.4V ~ 35V	-	18.4kHz ~ 24.4kHz	120 W	Current Limiting, Over Load, Over Temperature, Over Voltage	-	-20°C ~ 115°C (TA)
STR-Y6763A IC OFFLINE SW FLYBACK TO220F-7 Sanken	3,540	-	RFQ	Datasheet	Tube	STR-Y6700	Obsolete	Isolated	Yes	800V	Flyback	15.1 V	9.4V ~ 35V	-	18.4kHz ~ 24.4kHz	80 W	Current Limiting, Over Load, Over Temperature, Over Voltage	-	-20°C ~ 115°C (TA)
STR-Y6766A IC OFFLINE SW FLYBACK TO220F-7 Sanken	3,230	-	RFQ	Datasheet	Tube	STR-Y6700	Obsolete	Isolated	Yes	800V	Flyback	15.1 V	9.4V ~ 35V	-	18.4kHz ~ 24.4kHz	140 W	Current Limiting, Over Load, Over Temperature, Over Voltage	-	-20°C ~ 115°C (TA)
ICE2A280ZXKLA1 IC OFFLINE SWITCH FLYBACK 7DIP Infineon Technologies	3,530	-	RFQ	Datasheet	Tube	CoolSET®F2	Not For New Designs	Isolated	Yes	800V	Flyback	13.5 V	8.5V ~ 21V	72%	100kHz	50 W	Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage	Soft Start	-40°C ~ 150°C (TJ)
ICE2QS03XKLA1 IC OFFLINE SWITCH FLYBACK 8DIP Infineon Technologies	3,959	-	RFQ	Datasheet	Bulk,Tube	-	Obsolete	Isolated	No	-	Flyback	18 V	10.5V ~ 27V	50%	52kHz	-	Current Limiting, Open Loop, Over Load, Over Voltage	-	-40°C ~ 125°C (TJ)
ICE3BR1765JZXKLA1 IC OFFLINE SWITCH FLYBACK 7DIP Infineon Technologies	3,205	-	RFQ	Datasheet	Tube	CoolSET®F3R	Not For New Designs	Isolated	Yes	650V	Flyback	18 V	10.5V ~ 25V	75%	65kHz	44.5 W	Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage	-	-40°C ~ 150°C (TJ)
ICE3BR0665JZXKLA1 IC OFFLINE SWITCH FLYBACK 7DIP Infineon Technologies	2,149	-	RFQ	Datasheet	Tube	CoolMOS™, CoolSET™F3R	Not For New Designs	Isolated	Yes	650V	Flyback	18 V	10.5V ~ 25V	75%	65kHz	74 W	Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage	-	-40°C ~ 150°C (TJ)

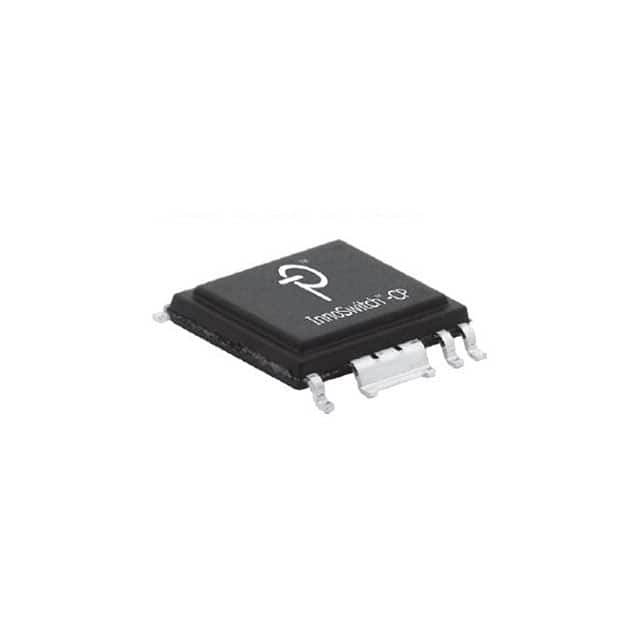

INN2214K IC OFFLINE SW MULT TOP 16ESOP Power Integrations	3,129	-	RFQ	Datasheet	Tube	InnoSwitch™-CP	Discontinued at Mosen	Isolated	Yes	650V	Flyback, Secondary Side SR	-	-	60%	100kHz	20 W	Current Limiting, Over Temperature, Over Voltage	-	-40°C ~ 150°C (TJ)
INN2215K IC OFFLINE SW MULT TOP 16ESOP Power Integrations	3,198	-	RFQ	Datasheet	Tube	InnoSwitch™-CP	Discontinued at Mosen	Isolated	Yes	650V	Flyback, Secondary Side SR	-	-	60%	100kHz	25 W	Current Limiting, Over Temperature, Over Voltage	-	-40°C ~ 150°C (TJ)
NCP1240ED065R2G IC OFFLINE SWITCH FLYBACK 7SOIC onsemi	2,602	-	RFQ	Datasheet	Tape & Reel (TR)	-	Obsolete	Isolated	No	-	Flyback	12 V	9.3V ~ 28V	80%	65kHz	-	Over Load, Over Power, Over Temperature, Over Voltage	-	-40°C ~ 150°C (TJ)
LYT5216D IC OFFLINE SW MULT TOP 16SO B Power Integrations	3,418	-	RFQ	Datasheet	Tube	LYTSwitch™-5	Discontinued at Mosen	Isolated	Yes	650V	Flyback, Step-Down (Buck), Step-Up (Boost)	-	-	-	132.7kHz	16 W	-	-	-40°C ~ 150°C (TJ)
LYT5218D IC OFFLINE SW MULT TOP 16SO B Power Integrations	3,283	-	RFQ	Datasheet	Tube	LYTSwitch™-5	Discontinued at Mosen	Isolated	Yes	650V	Flyback, Step-Down (Buck), Step-Up (Boost)	-	-	-	132.7kHz	25 W	-	-	-40°C ~ 150°C (TJ)
LYT5225D IC OFFLINE SW MULT TOP 16SO B Power Integrations	2,162	-	RFQ	Datasheet	Tube	LYTSwitch™-5	Discontinued at Mosen	Isolated	Yes	725V	Flyback, Step-Down (Buck), Step-Up (Boost)	-	-	-	132.7kHz	9 W	-	-	-40°C ~ 150°C (TJ)
