Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	OutputIsolation	InternalSwitch(s)	Voltage-Breakdown	Topology	Voltage-StartUp	Voltage-Supply(Vcc/Vdd)	DutyCycle	Frequency-Switching	Power(Watts)	FaultProtection	ControlFeatures	OperatingTemperature

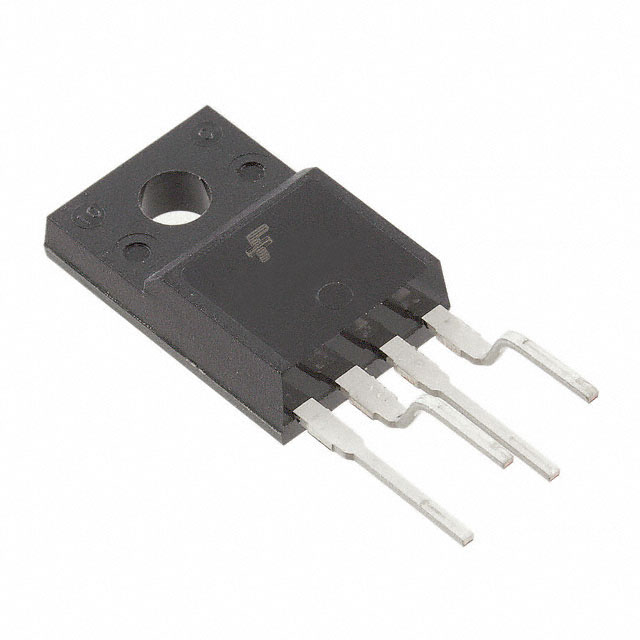

KA5L0365RYDTU IC OFFLINE SW MULT TOP TO220F Fairchild Semiconductor	2,333	-	RFQ	Datasheet	Tube	FPS™	Obsolete	-	Yes	650V	Flyback, Forward	15 V	9V ~ 30V	77%	50kHz	-	Current Limiting, Over Temperature, Over Voltage	-	-40°C ~ 85°C (TA)
MIC38C44AYM IC OFFLINE SWITCH MULT TOP 8SOIC Microchip Technology	380	-	RFQ	Datasheet	Tube	-	Active	Isolated	Yes	-	Boost, Buck, Flyback, Forward	14.5 V	9V ~ 20V	50%	500kHz	-	-	Frequency Control	-40°C ~ 150°C (TJ)
ISL6842IRZ-T IC OFFLINE SWITCH MULT TOP 8DFN Intersil	3,638	-	RFQ	Datasheet	Bulk	-	Obsolete	Isolated	No	-	Boost, Buck, Flyback	14.3 V	8.8V ~ 18V	96%	Up to 2MHz	-	Current Limiting	Frequency Control	-40°C ~ 105°C (TA)
TNY177PG 18 W (85-265 VAC) 23.5 W (230 VA Power Integrations	3,190	-	RFQ		Tube	-	Active	Isolated	Yes	650V	Flyback, Secondary Side SR	-	-	65%	132kHz	23.5 W	Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit	EN	-40°C ~ 150°C (TJ)
FSFR1700HS IC OFFLINE SW HALF-BRIDGE 9SIP Fairchild Semiconductor	3,039	-	RFQ	Datasheet	Bulk	FSFR-HS	Active	Isolated	Yes	500V	Half-Bridge	12.5 V	10V ~ 25V	50%	Up to 600kHz	200 W	Current Limiting, Over Temperature, Over Voltage	Frequency Control	-40°C ~ 130°C (TJ)
FSCQ1465RTYDTU IC OFFLINE SW FLBACK TO220F-5L Fairchild Semiconductor	3,623	-	RFQ	Datasheet	Tube	FSCQ	Obsolete	Isolated	Yes	650V	Flyback	15 V	9V ~ 20V	95%	20kHz	190 W	Current Limiting, Over Load, Over Temperature, Over Voltage	Sync	-25°C ~ 85°C (TA)
FSFR1600L IC OFFLINE SW HALF-BRIDGE 9SIP Fairchild Semiconductor	380	-	RFQ	Datasheet	Tube	FSFR	Obsolete	Isolated	Yes	500V	Half-Bridge	14.5 V	11.3V ~ 25V	50%	Up to 300kHz	160 W	Current Limiting, Over Load, Over Temperature, Over Voltage	EN, Frequency Control	-40°C ~ 130°C (TJ)
TNY279PN IC OFFLINE SWITCH FLYBACK 8DIP Power Integrations	2,360	-	RFQ	Datasheet	Tube	TinySwitch®-III	Active	Isolated	Yes	700V	Flyback	-	-	65%	132kHz	32 W	Current Limiting, Open Loop, Over Temperature, Over Voltage, Short Circuit	EN	-40°C ~ 150°C (TJ)
L6699DTR IC OFFLINE SW HALF-BRIDGE 16SO STMicroelectronics	3,476	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	Isolated	No	-	Half-Bridge	10.7 V	8.85V ~ 16V	50%	60kHz ~ 235kHz	-	Current Limiting	Soft Start	-40°C ~ 150°C (TJ)
UCC2802QDRQ1 IC OFFLINE SWITCH MULT TOP 8SOIC Texas Instruments	2,303	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT),Bulk	Automotive, AEC-Q100	Active	-	No	-	Boost, Flyback, Forward	12.5 V	8.3V ~ 12V	99%	Up to 1MHz	-	Current Limiting	Frequency Control	-40°C ~ 125°C (TA)
TOP244YN IC OFFLINE SW FLYBACK TO220-7C Power Integrations	3,084	-	RFQ	Datasheet	Tube	TOPSwitch®-GX	Not For New Designs	Isolated	Yes	700V	Flyback	-	-	66.5%	66kHz ~ 132kHz	65 W	Current Limiting, Over Temperature, Over Voltage	Frequency Control	-40°C ~ 150°C (TJ)
TOP234YN IC OFFLINE SW FLYBACK TO220-7B Power Integrations	2,513	-	RFQ	Datasheet	Tube	TOPSwitch®-FX	Last Time Buy	Isolated	Yes	700V	Flyback	-	-	78%	66kHz ~ 132kHz	75 W	Current Limiting, Over Temperature, Over Voltage	Frequency Control	-40°C ~ 150°C (TJ)
ISL6842IUZ-T7A IC OFFLINE SWITCH MULT TOP 8MSOP Elantec	750	-	RFQ		Bulk	-	Active	Isolated	No	-	Boost, Buck, Flyback	14.3 V	8.8V ~ 18V	96%	Up to 2MHz	-	Current Limiting	Frequency Control	-40°C ~ 105°C (TA)

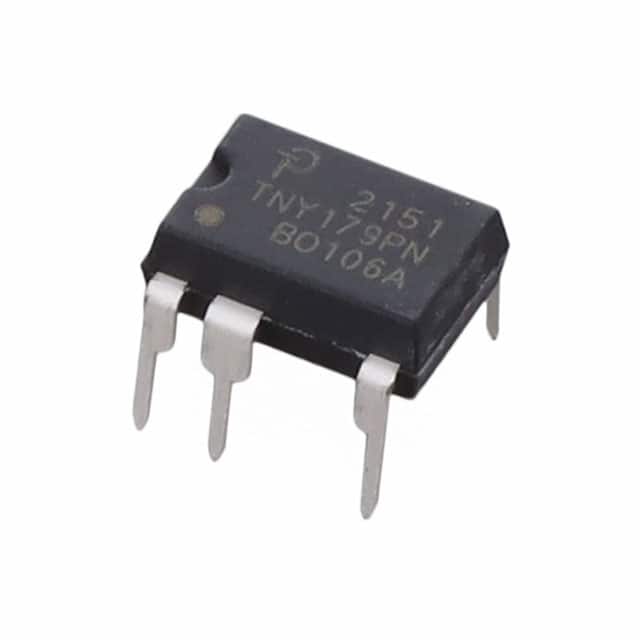

TNY179PN 25 W (85-265 VAC) 32 W (230 VAC) Power Integrations	2,999	-	RFQ		Tube	-	Active	Isolated	Yes	650V	Flyback, Secondary Side SR	-	-	65%	132kHz	32 W	Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit	EN	-40°C ~ 150°C (TJ)
FS6S1265REYDTU IC OFFLINE SWITCH TO3P-5L Fairchild Semiconductor	296	-	RFQ	Datasheet	Tube	FPS™	Obsolete	-	Yes	650V	-	15 V	9V ~ 35V	95%	Up to 150kHz	-	Current Limiting, Over Load, Over Temperature, Over Voltage	Soft Start, Sync	-25°C ~ 85°C (TA)
UCC3580N-2G4 IC OFFLINE SWITCH MULT TOP 16DIP Unitrode	125	-	RFQ	Datasheet	Tube	-	Obsolete	Isolated	No	-	Flyback, Forward	15 V	8.5V ~ 15V	66%	-	-	-	Soft Start	-55°C ~ 150°C (TJ)
STR-A6063MZ AC/DC CONVERTER IC (INTEGRATED M Sanken	3,604	-	RFQ	Datasheet	Tube	-	Active	Isolated	Yes	700V	Flyback	47 V	8.5V ~ 32V	75%	67kHz	37.5 W	Current Limiting, Over Load, Over Temperature, Over Voltage	Soft Start	-40°C ~ 125°C (TA)
HF500AGP-30 FIXED-FREQUENCY, EMI-OPTIMIZED F Monolithic Power Systems Inc.	3,933	-	RFQ		Tube	-	Active	Isolated	Yes	700V	Flyback	-	9V ~ 24V	-	65kHz	27 W	Current Limiting, Over Temperature, Over Voltage, Short Circuit	Soft Start	-40°C ~ 125°C (TJ)
UCC2580N-2 IC OFFLINE SWITCH MULT TOP 16DIP Unitrode	2,127	-	RFQ	Datasheet	Bulk	-	Active	Isolated	No	-	Flyback, Forward	15 V	8.5V ~ 15V	66%	-	-	-	Soft Start	-55°C ~ 150°C (TJ)
UC2875DWP/81261 IC OFFLINE SWITCH Texas Instruments	122	-	RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
