Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RTE44012RELAY GEN PURPOSE DPST 8A 12V |
2,609 | - |
RFQ |
Datasheet |
Box | RT2, SCHRACK | Active | Through Hole | 12VDC | DPST-NO (2 Form A) | 8 A | 400VAC - Max | 33.3 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | |
RT424005RELAY GEN PURPOSE DPDT 8A 5V |
3,151 | - |
RFQ |
Datasheet |
Box | RT2, SCHRACK | Active | Through Hole | 5VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 80.6 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.5 VDC | 0.5 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | |
T9GS5L14-24RELAY GEN PURPOSE SPDT 20A 24V |
3,928 | - |
RFQ |
Datasheet |
Bulk | T9G | Active | Through Hole | 24VDC | SPDT (1 Form C) | 20 A | 480VAC - Max | 37.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 18 VDC | 2.4 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | |

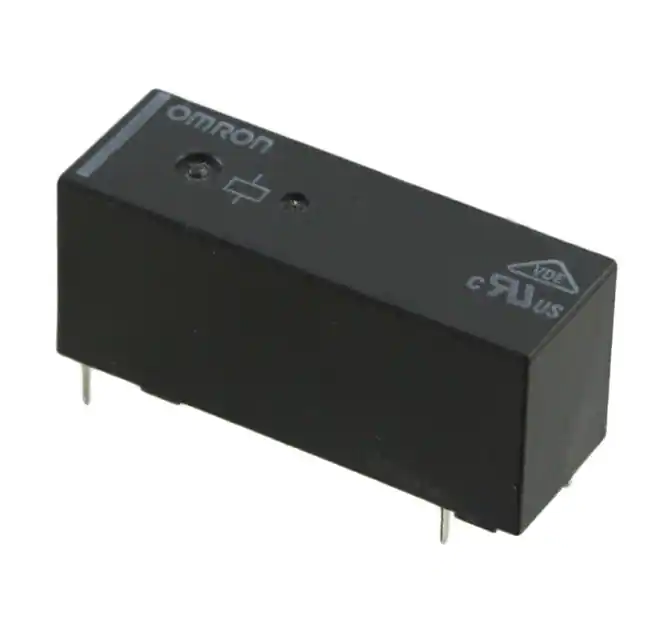

G6RL-1 DC5RELAY GENERAL PURPOSE SPDT 8A 5V |
2,187 | - |
RFQ |
Datasheet |
Tray | G6RL | Active | Through Hole | 5VDC | SPDT (1 Form C) | 8 A | 250VAC - Nom | 44 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | |
G2RL-1A4-E-CF DC24RELAY GEN PURPOSE SPST 16A 24V |
3,152 | - |
RFQ |
Datasheet |
Tube | G2RL | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 440VAC, 300VDC - Max | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | |
G6RL-1A4-ASI-DC12RELAY GEN PURPOSE SPST 10A 12V |
100 | - |
RFQ |
Datasheet |
Tray,Box | G6RL | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Nom | 18.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | |
RT334012FRELAY GEN PURPOSE SPST 16A 12V |
2,892 | - |
RFQ |
Datasheet |
Box | RT1 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | |
RTD34024FRELAY GEN PURPOSE SPST 16A 24V |
3,197 | - |
RFQ |
Datasheet |
Box | RT1 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | |
RT334024FRELAY GEN PURPOSE SPST 16A 24V |
2,528 | - |
RFQ |
Datasheet |
Box | RT1 | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 2.4 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | |
G2RL-14-E DC5RELAY GEN PURPOSE SPDT 16A 5V |
200 | - |
RFQ |
Tube | G2RL | Active | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 440VAC, 300VDC - Max | 80 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | ||
G2RL-1A-E2-CV-HA DC5RELAY GEN PURPOSE SPST 23A 5V |
3,051 | - |
RFQ |
Datasheet |
Tray | G2RL | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 23 A | 250VAC - Max | 80 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 105°C | Silver Alloy, Cadmium Free | |
G6RL-1A4-ASI-DC24RELAY GEN PURPOSE SPST 10A 24V |
3,671 | - |
RFQ |
Datasheet |
Bulk | G6RL | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 10 A | 250VAC - Nom | 9.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | |

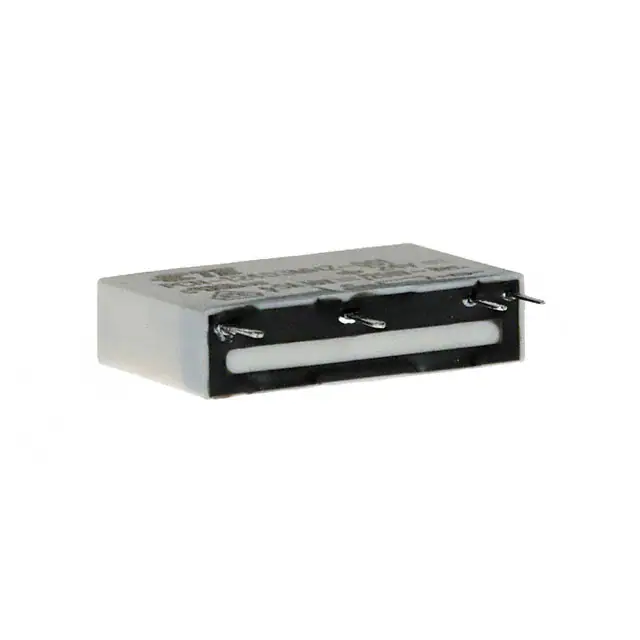

PCN-124D3MHZ,001RELAY GEN PURPOSE SPST 5A 24V |
3,203 | - |
RFQ |
Datasheet |
Tube | PCN, SCHRACK | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 277VAC, 125VDC - Max | 5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class A | 16.8 VDC | 2.4 VDC | - | - | -40°C ~ 85°C | Silver Nickel (AgNi) | |
G6RL-14-ASI-DC5RELAY GEN PURPOSE SPDT 8A 5V |
3,003 | - |
RFQ |
Datasheet |
Bulk | G6RL | Active | Through Hole | 5VDC | SPDT (1 Form C) | 8 A | 250VAC - Nom | 44 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.5 VDC | 0.5 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Indium (AgSnIn) | |

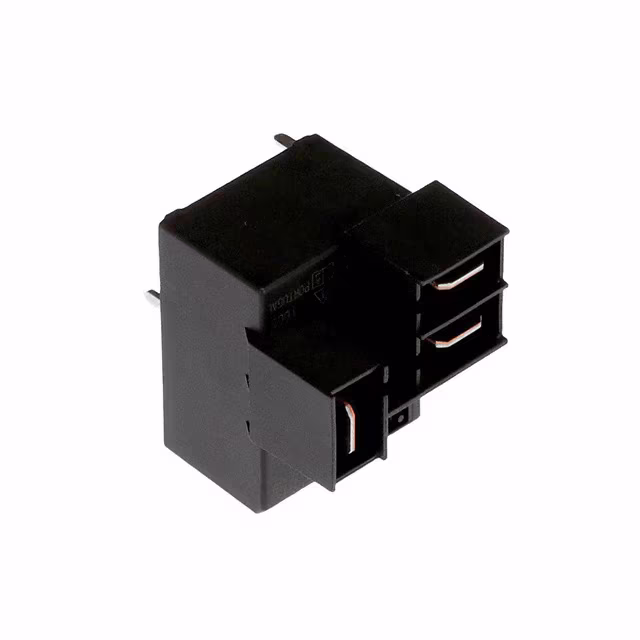

T9GV5L24-24RELAY GEN PURPOSE SPDT 20A 24V |
3,405 | - |
RFQ |
Datasheet |
Bulk | T9G | Active | Through Hole | 24VDC | SPDT (1 Form C) | 20 A | 480VAC - Max | 37.5 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Flux Protection | Class B | 18 VDC | 2.4 VDC | 15 ms | 22 ms | -40°C ~ 105°C | Silver Tin Oxide (AgSnO) | |
RTD14005FRELAY GEN PURPOSE SPDT 16A 5V |
2,017 | - |
RFQ |
Datasheet |
Box | RT1 | Active | Through Hole | 5VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 80.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.5 VDC | 0.5 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | |
RT314012FRELAY GEN PURPOSE SPDT 16A 12V |
3,870 | - |
RFQ |
Datasheet |
Box | RT1 | Active | Through Hole | 12VDC | SPDT (1 Form C) | 16 A | 400VAC - Max | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | |
G2RL-24 DC48RELAY GEN PURPOSE DPDT 8A 48V |
3,298 | - |
RFQ |
Tube | G2RL | Active | Through Hole | 48VDC | DPDT (2 Form C) | 8 A | 440VAC, 300VDC - Max | 9 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 33.6 VDC | 4.8 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | ||
G2RL-24-CF DC5RELAY GENERAL PURPOSE DPDT 8A 5V |
2,880 | - |
RFQ |
Tube | G2RL | Active | Through Hole | 5VDC | DPDT (2 Form C) | 8 A | 440VAC, 300VDC - Max | 80 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.5 VDC | 0.5 VDC | 15 ms | 5 ms | -40°C ~ 85°C | Silver Alloy, Cadmium Free | ||

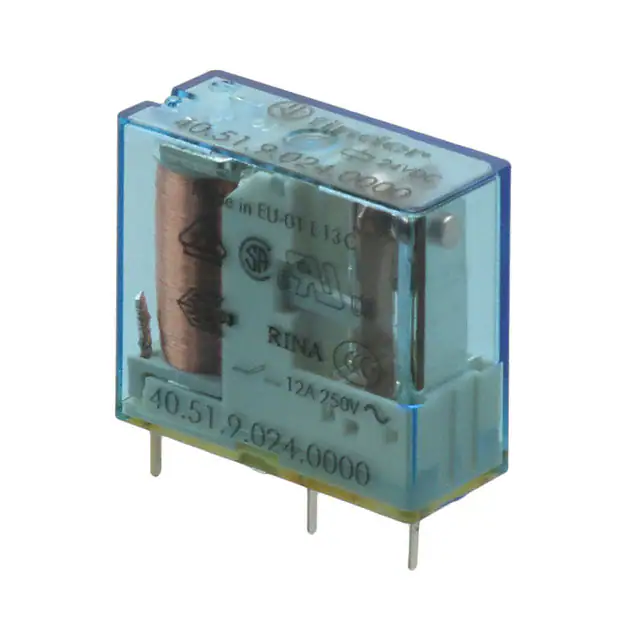

40.51.9.024.0000RELAY GEN PURPOSE SPDT 10A 24V |
2,507 | - |
RFQ |
Datasheet |
Bulk | 40 | Active | Socketable | 24VDC | SPDT (1 Form C) | 10 A | 400VAC - Max | 27 mA | Non Latching | - | Plug In | Sealed - Flux Protection | - | 17.5 VDC | 4.8 VDC | 7 ms | 3 ms | -40°C ~ 85°C | Silver Nickel (AgNi) |
