Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

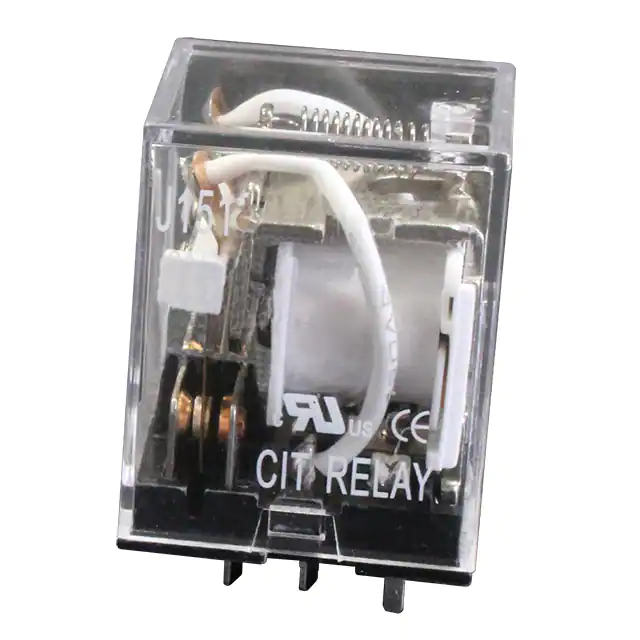

J1512CF12VDC.9RELAY GEN PURPOSE DPDT 20A 12V |
306 | - |
RFQ |
Datasheet |
Tray | J151 | Active | Chassis Mount | 12VDC | DPDT (2 Form C) | 20 A | 300VAC - Max | 75 mA | Non Latching | - | Plug In | - | - | 9 VDC | 1.2 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | |
RTB74012RELAY GEN PURPOSE SPDT 10A 12V |
268 | - |
RFQ |
Datasheet |
Tube | RT1, SCHRACK | Active | Through Hole | 12VDC | SPDT (1 Form C) | 10 A | 400VAC - Max | 20.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 9 VDC | 1.2 VDC | 10 ms | 8 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | |
APAN3109RELAY GEN PURPOSE SPST 5A 9V |
579 | - |
RFQ |
Datasheet |
Tube | PA-N | Active | Through Hole | 9VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 110VDC - Max | 12.2 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 6.3 VDC | 0.45 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Nickel (AgNi), Gold (Au) | |
APAN314HRELAY GEN PURPOSE SPST 5A 4.5V |
418 | - |
RFQ |
Datasheet |
Tube | PA-N | Active | Through Hole | 4.5VDC | SPST-NO (1 Form A) | 5 A | 250VAC, 110VDC - Max | 24.4 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 3.15 VDC | 0.225 VDC | 10 ms | 5 ms | -40°C ~ 90°C | Silver Nickel (AgNi), Gold (Au) | |
J1512CT24VDC.9RELAY GEN PURPOSE DPDT 20A 24V |
395 | - |
RFQ |
Datasheet |
Tray | J151 | Active | Socketable | 24VDC | DPDT (2 Form C) | 20 A | 300VAC - Max | 36.9 mA | Non Latching | - | Plug In | - | - | 18 VDC | 2.4 VDC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | |
G2R-1-DC5RELAY GEN PURPOSE SPDT 10A 5V |
916 | - |
RFQ |
Datasheet |
Tube | G2R | Active | Through Hole | 5VDC | SPDT (1 Form C) | 10 A | 380VAC, 125VDC - Max | 106 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.5 VDC | 0.75 VDC | 15 ms | 5 ms | -40°C ~ 70°C | Silver Alloy | |

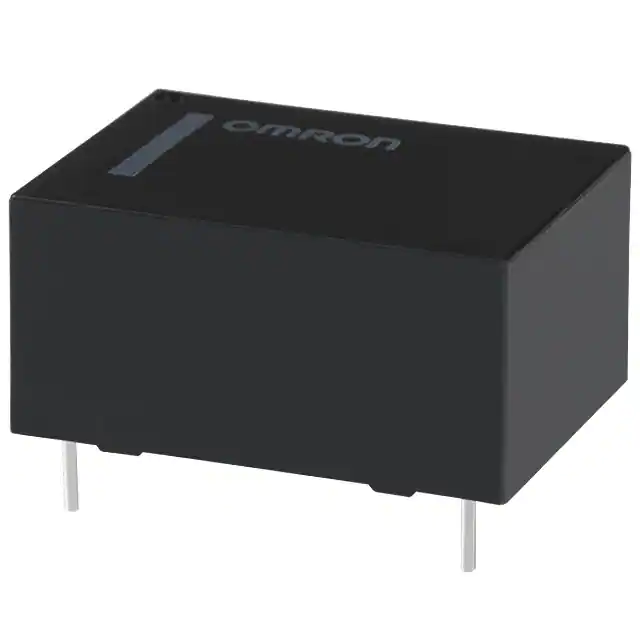

G5CA-1A4 DC12RELAY GEN PURPOSE SPST 10A 12V |
396 | - |
RFQ |
Datasheet |
Tube | G5CA | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 10 A | 250VAC, 125VDC - Max | 16.7 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 9 VDC | 1.2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | - | |

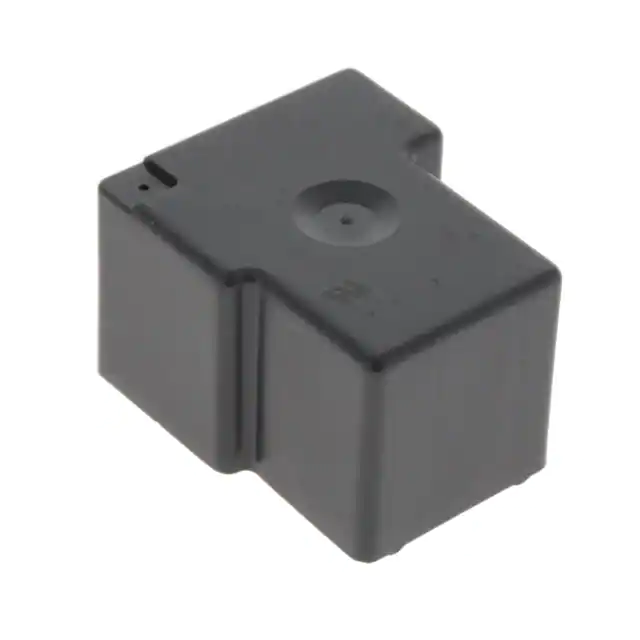

T9AV1L12-12RELAY GEN PURPOSE SPST 30A 12V |
2,264 | - |
RFQ |
Datasheet |
Bulk | T9A | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 77.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 9 VDC | 1.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | |
RTE24048FRELAY GEN PURPOSE DPDT 8A 48V |
3,444 | - |
RFQ |
Datasheet |
Box | RT2 | Active | Through Hole | 48VDC | DPDT (2 Form C) | 8 A | 400VAC - Max | 8.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 33.6 VDC | 4.8 VDC | 8 ms | 6 ms | -40°C ~ 85°C | Silver Nickel (AgNi) | |
T9AV1D12-22RELAY GEN PURPOSE SPST 30A 22V |
891 | - |
RFQ |
Datasheet |
Bulk | T9A | Active | Through Hole | 22VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 45.5 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.5 VDC | 2.2 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | |
J1512CF24VAC1.2RELAY GEN PURPOSE DPDT 20A 24V |
516 | - |
RFQ |
Datasheet |
Tray | J151 | Active | Chassis Mount | 24VAC | DPDT (2 Form C) | 20 A | 300VAC - Max | 130.4 mA | Non Latching | - | Plug In | - | - | 19.2 VAC | 7.2 VAC | 25 ms | 25 ms | -40°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | |
G5CA-1A-E-H DC12RELAY GEN PURPOSE SPST 15A 12V |
2,428 | - |
RFQ |
Datasheet |
Tube | G5CA | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 15 A | 250VAC, 125VDC - Max | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 9 VDC | 1.2 VDC | 15 ms | 10 ms | -25°C ~ 70°C | - | |

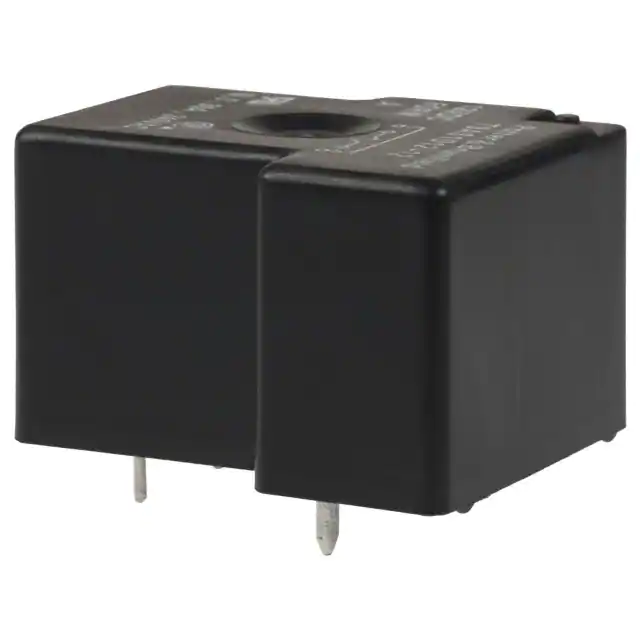

T9AS1D12-15RELAY GEN PURPOSE SPST 30A 15V |
986 | - |
RFQ |
Datasheet |
Bulk | T9A | Active | Through Hole | 15VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 11.25 VDC | 1.5 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | |
T9AS1D12-18RELAY GEN PURPOSE SPST 30A 18V |
3,808 | - |
RFQ |
Datasheet |
Bulk | T9A | Active | Through Hole | 18VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 55.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 13.5 VDC | 1.8 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) | |
JVN1AF-4.5V-FRELAY GEN PURPOSE SPST 16A 4.5V |
120 | - |
RFQ |
Datasheet |
Bulk | JV-N | Active | Through Hole | 4.5VDC | SPST-NO (1 Form A) | 16 A | 277VAC, 30VDC - Max | 44.4 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | - | 3.38 VDC | 0.23 VDC | 12 ms | 5 ms | -40°C ~ 70°C | Silver Tin Oxide (AgSnO) | |
1-1415898-9RELAY GEN PURPOSE SPST 16A 12V |
3,756 | - |
RFQ |
Datasheet |
Tube | RT1, Inrush, SCHRACK | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 33.3 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 8.4 VDC | 1.2 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | |
1-1415898-4RELAY GEN PURPOSE SPST 16A 24V |
290 | - |
RFQ |
Datasheet |
Tube | RT1, Inrush, SCHRACK | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 16 A | 400VAC - Max | 16.7 mA | Non Latching | - | PC Pin | Sealed - Flux Protection | Class F | 16.8 VDC | 2.4 VDC | 10 ms | 5 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | |
G6B-1114P-US-DC24RELAY GEN PURPOSE SPST 5A 24V |
3,355 | - |
RFQ |
Datasheet |
Bulk | G6B | Active | Through Hole | 24VDC | SPST-NO (1 Form A) | 5 A | 380VAC, 125VDC - Max | 8.3 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 16.8 VDC | 2.4 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | |
G6B-1114P-US DC20RELAY GEN PURPOSE SPST 5A 20V |
487 | - |
RFQ |
Datasheet |
Bulk | G6B | Active | Through Hole | 20VDC | SPST-NO (1 Form A) | 5 A | 380VAC, 125VDC - Max | 10 mA | Non Latching | - | PC Pin | Sealed - Fully | - | 14 VDC | 2 VDC | 10 ms | 10 ms | -25°C ~ 70°C | Silver Alloy, Cadmium Free | |
T9AS1D22-5RELAY GEN PURPOSE SPST 30A 5V |
3,506 | - |
RFQ |
Datasheet |
Bulk | T9A | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 200 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 15 ms | -55°C ~ 85°C | Silver Cadmium Oxide (AgCdO) |
