Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
L114FL1AS12VDC.40RELAY GEN PURPOSE SPST 20A 12V |
165 | - |
RFQ |
Datasheet |
Tube | L114FL | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 20 A | 300VAC - Max | 33.3 mA | Latching, Single Coil | - | PC Pin | Sealed - Fully | - | 8.4 VDC | - | 10 ms | 10 ms | -40°C ~ 85°C | Silver Tin Oxide (AgSnO) | |
R23-5D20-24RELAY GEN PURPOSE SPDT 20A 24V |
376 | - |
RFQ |
Datasheet |
Bulk | R23 | Active | - | 24VDC | SPDT (1 Form C) | 20 A | - | - | - | - | PC Pin | - | - | - | - | 8 ms | 3 ms | -40°C ~ 90°C | - | |
J115F21CL110VDCS.9RELAY GEN PURPOSE SPDT 40A 110V |
298 | - |
RFQ |
Datasheet |
Tube | J115F2 | Active | Through Hole | 110VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 8.2 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | |
J115F11C9VDCSH.9RELAY GEN PURPOSE SPDT 40A 9V |
298 | - |
RFQ |
Datasheet |
Tube | J115F1 | Active | Through Hole | 9VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 100 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | |
J115F21C110VDCS.9RELAY GEN PURPOSE SPDT 40A 110V |
295 | - |
RFQ |
Datasheet |
Tube | J115F2 | Active | Through Hole | 110VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 8.2 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | |
J115F11C9VDCSH.6RELAY GEN PURPOSE SPDT 40A 9V |
294 | - |
RFQ |
Datasheet |
Tube | J115F1 | Active | Through Hole | 9VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 66.7 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 6.75 VDC | 0.9 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | |
J115F21CL5VDCS.9RELAY GEN PURPOSE SPDT 40A 5V |
227 | - |
RFQ |
Datasheet |
Tube | J115F2 | Active | Through Hole | 5VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 178.6 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | |
J115F21C5VDCS.9RELAY GEN PURPOSE SPDT 40A 5V |
150 | - |
RFQ |
Datasheet |
Tube | J115F2 | Active | Through Hole | 5VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 178.6 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | |
R46-5D12-24RELAY GEN PURPOSE SPDT 12A 24V |
3,167 | - |
RFQ |
Datasheet |
Bulk | R46 | Active | - | 24VDC | SPDT (1 Form C) | 12 A | - | - | - | - | PC Pin | - | - | - | - | - | - | -40°C ~ 85°C | - | |
R46-5D12-6RELAY GEN PURPOSE SPDT 12A 6V |
3,504 | - |
RFQ |
Datasheet |
Bulk | R46 | Active | - | 6VDC | SPDT (1 Form C) | 12 A | - | - | - | - | PC Pin | - | - | - | - | - | - | -40°C ~ 85°C | - | |
R73-5D10-24RELAY GEN PURPOSE SPDT 10A 24V |
2,017 | - |
RFQ |
Datasheet |
Bulk | R73 | Active | - | 24VDC | SPDT (1 Form C) | 10 A | - | - | - | - | PC Pin | - | - | - | - | - | - | -55°C ~ 85°C | - | |
R46-5D12-12RELAY GEN PURPOSE SPDT 12A 12V |
993 | - |
RFQ |
Datasheet |
Bulk | R46 | Active | - | 12VDC | SPDT (1 Form C) | 12 A | - | - | - | - | PC Pin | - | - | - | - | - | - | -40°C ~ 85°C | - | |
J115F11C5VDCSH.9RELAY GEN PURPOSE SPDT 40A 5V |
230 | - |
RFQ |
Datasheet |
Tube | J115F1 | Active | Through Hole | 5VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 178.6 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | |
J115F11C5VDCSH.6RELAY GEN PURPOSE SPDT 40A 5V |
208 | - |
RFQ |
Datasheet |
Tube | J115F1 | Active | Through Hole | 5VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 119 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 3.75 VDC | 0.5 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | |
J115F21AL24VACSRELAY GEN PURPOSE SPST 40A 24V |
300 | - |
RFQ |
Datasheet |
Tube | J115F2 | Active | Through Hole | 24VAC | SPST-NO (1 Form A) | 40 A | 277VAC, 110VDC - Max | 200 mA | Non Latching | - | PC Pin, Quick Connect - 0.250 (6.3mm) | Sealed - Fully | Class F | 18 VAC | 7.2 VAC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | |
J115F11C48VDCSH.9RELAY GEN PURPOSE SPDT 40A 48V |
300 | - |
RFQ |
Datasheet |
Tube | J115F1 | Active | Through Hole | 48VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 18.8 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | |
J115F11C48VDCSH.6RELAY GEN PURPOSE SPDT 40A 48V |
285 | - |
RFQ |
Datasheet |
Tube | J115F1 | Active | Through Hole | 48VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 12.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 36 VDC | 4.8 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) | |

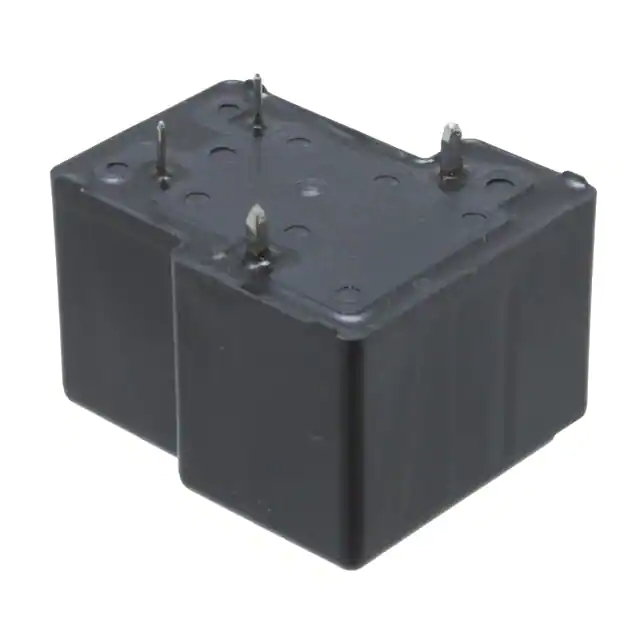

JTN1AG-PA-F-DC24VRELAY GEN PURPOSE SPST 30A 24V |
804 | - |
RFQ |
Datasheet |
Bulk | JT-N | Obsolete | Through Hole | 24VDC | SPST-NO (1 Form A) | 30 A | 277VAC - Max | 33.3 mA | Non Latching | - | PC Pin | - | Class F | 18 VDC | 2.4 VDC | 20 ms | 10 ms | -55°C ~ 85°C | Silver Tin Oxide (AgSnO) | |
AZ2280-1A-240AEFRELAY GEN PURPOSE SPST 40A 240V |
3,573 | - |
RFQ |
Datasheet |
Tray | - | Active | Chassis Mount | 240VAC | SPST-NO (1 Form A) | 40 A | 277VAC, 28VDC - Max | 17.8 mA | Non Latching | - | Quick Connect - 0.187/0.250 | Sealed - Fully | Class F | 187 VAC | 48 VAC | 15 ms | 10 ms | -55°C ~ 60°C | Silver Cadmium Oxide (AgCdO) | |
J115F11C110VDCS6.6RELAY GEN PURPOSE SPDT 40A 110V |
300 | - |
RFQ |
Datasheet |
Tube | J115F1 | Active | Through Hole | 110VDC | SPDT (1 Form C) | 40 A | 277VAC, 110VDC - Max | 5.5 mA | Non Latching | - | PC Pin | Sealed - Fully | Class F | 82.5 VDC | 11 VDC | 15 ms | 10 ms | -55°C ~ 125°C | Silver Tin Oxide (AgSnO) |
