Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
LR4-380XF PTC RESET FUSE 15V 3.8A STRAP Littelfuse Inc.	3,480	-	RFQ	Datasheet	Strap	Bulk	PolySwitch®, LR4	Active	Polymeric	15V	100 A	3.8 A	8.3 A	5 s	13 mOhms	37 mOhms	-	-	-	User Defined	1.339 L x 0.205 W (34.00mm x 5.20mm)	-	0.039 (1.00mm)

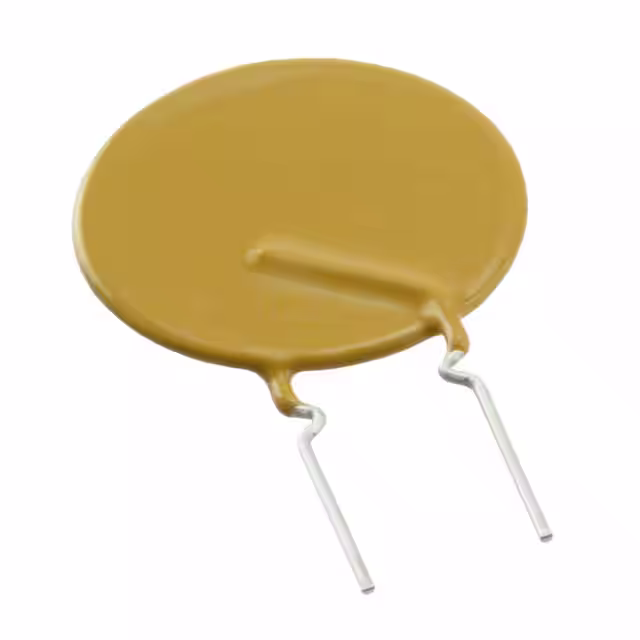

RXEF375K PTC RESET FUSE 72V 3.75A RADIAL Littelfuse Inc.	3,141	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	3.75 A	7.5 A	24 s	30 mOhms	80 mOhms	-	-40°C ~ 85°C	-	Through Hole	1.035 Dia x 0.118 T (26.30mm x 3.00mm)	1.224 (31.10mm)	-
RGEF1100 PTC RESET FUSE 16V 11A RADIAL Littelfuse Inc.	3,307	-	RFQ	Datasheet	Radial, Disc	Bag,Bag	PolySwitch®, RGEF	Active	Polymeric	16V	100 A	11 A	18.7 A	7 s	3.7 mOhms	8.9 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.669 L x 0.098 W (17.00mm x 2.50mm)	1.024 (26.00mm)	-
30R900UH PTC RESET FUSE 30V 9A RADIAL Littelfuse Inc.	3,112	-	RFQ	Datasheet	Radial, Disc	Bulk	POLY-FUSE®, 30R	Active	Polymeric	30V	40 A	9 A	18 A	20 s	5 mOhms	20 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.950 L x 0.120 W (24.10mm x 3.00mm)	1.244 (31.60mm)	-
600R150F PTC RESET FUSE 60V 150MA RADIAL Littelfuse Inc.	3,636	-	RFQ	Datasheet	Radial, Disc	Bulk	POLY-FUSE®, 600R	Active	Polymeric	60V (600V Int)	3 A	150 mA	300 mA	4 s	6 Ohms	17 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.354 L x 0.181 W (9.00mm x 4.60mm)	0.492 (12.50mm)	-
B59990C0120A070 PTC RESET FUSE 80V 50MA RADIAL EPCOS - TDK Electronics	2,847	-	RFQ	Datasheet	Radial, Disc	Bulk	Automotive, AEC-Q200	Active	Ceramic	80V	700 mA	50 mA	100 mA	-	-	-	55 Ohms	-40°C ~ 125°C	-	Through Hole	0.157 Dia x 0.138 T (4.00mm x 3.50mm)	0.295 (7.50mm)	-
RGEF1200-1 PTC RESET FUSE 16V 12A RADIAL Littelfuse Inc.	3,327	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, RGEF	Active	Polymeric	16V	100 A	12 A	20.4 A	7.5 s	3.3 mOhms	8.6 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.670 L x 0.115 W (16.95mm x 2.90mm)	1.102 (28.00mm)	-
600R150-RAF PTC RESET FUSE 60V 150MA RADIAL Littelfuse Inc.	2,093	-	RFQ	Datasheet	Radial, Disc	Bulk	POLY-FUSE®, 600R	Active	Polymeric	60V (600V Int)	3 A	150 mA	300 mA	4 s	7 Ohms	20 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.354 L x 0.181 W (9.00mm x 4.60mm)	0.492 (12.50mm)	-
B59880C0080A070 PTC RESET FUSE 265V 30MA RADIAL EPCOS - TDK Electronics	2,485	-	RFQ	Datasheet	Radial, Disc	Bulk	-	Active	Ceramic	265V	400 mA	30 mA	70 mA	-	-	-	70 Ohms	0°C ~ 60°C	-	Through Hole	0.256 Dia x 0.197 T (6.50mm x 5.00mm)	0.394 (10.00mm)	-
LR4-550F PTC RESET FUSE 20V 5.5A STRAP Littelfuse Inc.	2,145	-	RFQ	Datasheet	Strap	Bag	PolySwitch®, LR4	Active	Polymeric	20V	100 A	5.5 A	10.5 A	5 s	9 mOhms	22 mOhms	-	-40°C ~ 85°C	-	User Defined	1.417 L x 0.283 W (36.00mm x 7.20mm)	-	0.039 (1.00mm)
B59970C0080A070 PTC RESET FUSE 80V 90MA RADIAL EPCOS - TDK Electronics	2,518	-	RFQ	Datasheet	Radial, Disc	Bulk	Automotive, AEC-Q200	Active	Ceramic	80V	3 A	90 mA	190 mA	-	-	-	9.4 Ohms	-40°C ~ 85°C	-	Through Hole	0.354 Dia x 0.138 T (9.00mm x 3.50mm)	0.492 (12.50mm)	-
LVR075K-240 PTC RESET FUSE Littelfuse Inc.	3,348	-	RFQ	Datasheet	Radial, Disc	Bulk	LVR	Active	Polymeric	240V (265V Int)	7.5 A	750 mA	1.5 A	18 s	316 mOhms	839 mOhms	483 mOhms	-20°C ~ 85°C	-	Through Hole	0.453 L x 0.161 W (11.50mm x 4.10mm)	1.000 (25.40mm)	-
TRF600-160 PTC RESET FUSE 250V 160MA RADIAL Littelfuse Inc.	3,271	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®, TRF600	Active	Polymeric	250V (600V Int)	60 A	160 mA	320 mA	18 s	4 Ohms	18 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.630 L x 0.236 W (16.00mm x 6.00mm)	0.496 (12.60mm)	-
RHEF1000 PTC RESET FUSE 16V 10A RADIAL Littelfuse Inc.	3,920	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, RHEF	Active	Polymeric	16V	100 A	10 A	18.5 A	9 s	6.2 mOhms	15 mOhms	-	-40°C ~ 125°C	-	Through Hole	0.689 L x 0.118 W (17.50mm x 3.00mm)	1.043 (26.50mm)	-
B59890C0160A070 PTC RESET FUSE 160V 35MA RADIAL EPCOS - TDK Electronics	3,788	-	RFQ	Datasheet	Radial, Disc	Bulk	-	Active	Ceramic	160V	200 mA	35 mA	70 mA	-	-	-	150 Ohms	0°C ~ 60°C	-	Through Hole	0.157 Dia x 0.197 T (4.00mm x 5.00mm)	0.295 (7.50mm)	-
RXEF375-1 PTC RESET FUSE 72V 3.75A RADIAL Littelfuse Inc.	3,179	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	3.75 A	7.5 A	24 s	30 mOhms	80 mOhms	-	-40°C ~ 85°C	-	Through Hole	1.071 Dia x 0.118 T (27.20mm x 3.00mm)	1.252 (31.80mm)	-
AHRF1000 PTC RESET FUSE 16V 10A RADIAL Littelfuse Inc.	2,964	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, AHRF	Active	Polymeric	16V	100 A	10 A	20.5 A	10.5 s	5.1 mOhms	15 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.689 L x 0.118 W (17.50mm x 3.00mm)	1.043 (26.50mm)	-
LVR100K-240 PTC RESET FUSE Littelfuse Inc.	2,530	-	RFQ	Datasheet	Radial, Disc	Bulk	LVR	Active	Polymeric	240V (265V Int)	10 A	1 A	2 A	21 s	218 mOhms	580 mOhms	334 mOhms	-20°C ~ 85°C	-	Through Hole	0.736 Dia (18.70mm)	1.134 (28.80mm)	-
TRF600-400 PTC RESET FUSE 60V 400MA RADIAL Littelfuse Inc.	3,636	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, TRF600	Active	Polymeric	60V (600V Int)	60 A	400 mA	1 A	10 s	950 mOhms	1.9 Ohms	-	0°C ~ 85°C	-	Through Hole	0.583 L x 0.181 W (14.80mm x 4.60mm)	0.516 (13.10mm)	-
B59960C0080A070 PTC RESET FUSE 80V 130MA RADIAL EPCOS - TDK Electronics	3,116	-	RFQ	Datasheet	Radial, Disc	Bulk	Automotive, AEC-Q200	Active	Ceramic	80V	4.3 A	130 mA	265 mA	-	-	-	5.6 Ohms	-40°C ~ 85°C	-	Through Hole	0.433 Dia x 0.138 T (11.00mm x 3.50mm)	0.571 (14.50mm)	-
