Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)

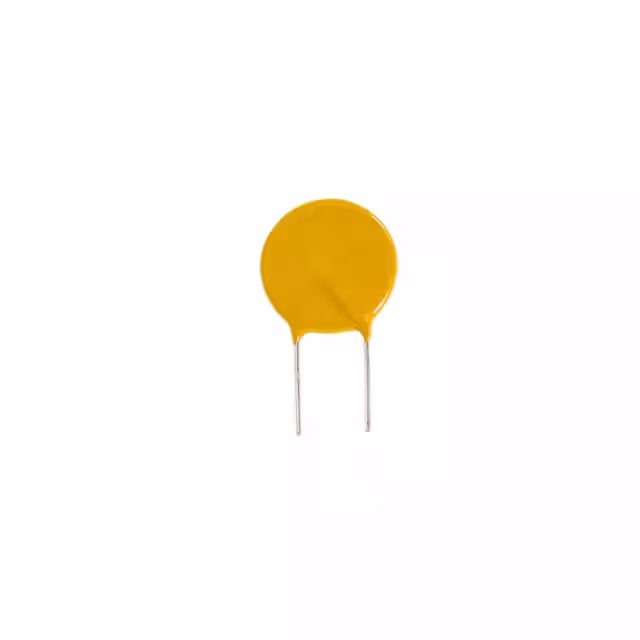

RS90-250 PTC RESET FUSE 72V 2.5A RADIAL OptiFuse	3,153	-	RFQ	Datasheet	Radial, Disc	Bulk	RS90	Active	Polymeric	72V (90V Int)	40 A	2.5 A	5 A	15.6 s	50 mOhms	130 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.839 Dia x 0.122 T (21.30mm x 3.10mm)	1.039 (26.40mm)	-
RS30-500 PTC RESET FUSE 30V 5A RADIAL OptiFuse	2,392	-	RFQ	Datasheet	Radial, Disc	Bulk	RS30	Active	Polymeric	30V	100 A	5 A	10 A	14.5 s	10 mOhms	50 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.551 L x 0.118 W (14.00mm x 3.00mm)	0.980 (24.90mm)	-
RGEF600K PTC RESET FUSE 16V 6A RADIAL Littelfuse Inc.	2,850	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, RGEF	Active	Polymeric	16V	100 A	6 A	10.2 A	3.3 s	10 mOhms	28 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.421 L x 0.098 W (10.70mm x 2.50mm)	0.709 (18.00mm)	-
MINIASMDC075F/33-2 PTC RESET FUSE 33V 750MA 1812 Littelfuse Inc.	2,222	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Bulk	PolySwitch®, miniASMD	Active	Polymeric	33V	100 A	750 mA	1.6 A	1 s	110 mOhms	390 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.057 (1.46mm)
CMF-RL25U-15-0 PTC RESET FUSE 220V 60MA RADIAL Bourns Inc.	3,128	-	RFQ	Datasheet	Radial, Disc	Bulk	CMF-RL	Active	Ceramic	220V (600V Int)	900 mA	60 mA	150 mA	250 ms	-	-	25 Ohms	-40°C ~ 125°C	-	Through Hole	0.205 L x 0.138 W (5.20mm x 3.50mm)	0.205 (5.20mm)	-
RXEF250K PTC RESET FUSE 72V 2.5A RADIAL Littelfuse Inc.	2,180	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	2.5 A	5 A	15.6 s	50 mOhms	130 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.785 Dia x 0.118 T (19.93mm x 3.00mm)	1.032 (26.20mm)	-
RS120-065 PTC RESET FUSE 120V 650MA RADIAL OptiFuse	3,517	-	RFQ	Datasheet	Radial, Disc	Bulk	RS120	Active	Polymeric	120V (135V Int)	5 A	650 mA	1.3 A	5.7 s	310 mOhms	720 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.382 Dia x 0.150 T (9.70mm x 3.80mm)	0.587 (14.90mm)	-
RUEF600-1 PTC RESET FUSE 30V 6A RADIAL Littelfuse Inc.	3,046	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, RUEF	Active	Polymeric	30V	100 A	6 A	12 A	16 s	5 mOhms	40 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.650 L x 0.118 W (16.50mm x 3.00mm)	0.949 (24.10mm)	-
0805L150/12SLYR LOW RHO SMD Littelfuse Inc.	2,676	-	RFQ	Datasheet	0805 (2012 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch® Low Rho	Active	Polymeric	12V	50 A	1.5 A	3 A	500 ms	7 mOhms	80 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.083 L x 0.053 W (2.10mm x 1.35mm)	-	0.030 (0.75mm)
RUEF700K PTC RESET FUSE 30V 7A RADIAL Littelfuse Inc.	250	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, RUEF	Active	Polymeric	30V	100 A	7 A	14 A	17.5 s	5 mOhms	30 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.752 L x 0.118 W (19.10mm x 3.00mm)	1.091 (27.70mm)	-
1206L700SLPR LOW RHO SMD Littelfuse Inc.	2,245	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch® 1206L	Active	Polymeric	6V	50 A	7 A	14 A	2 s	1 mOhms	7 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	0.055 (1.40mm)

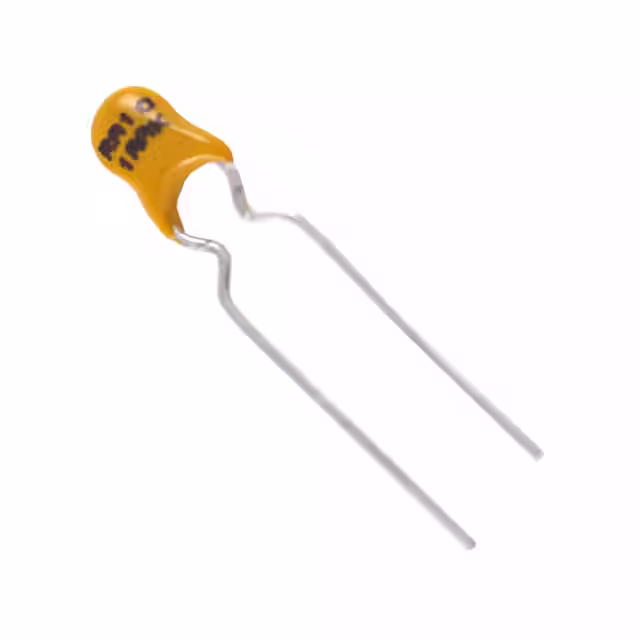

NTE16000-ECG PTC RESET FUSE 60V 100MA RADIAL NTE Electronics, Inc	2,533	-	RFQ	Datasheet	Radial, Disc	Bag	-	Active	Polymeric	60V	40 A	100 mA	200 mA	4 s	2.5 Ohms	7.5 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.290 Dia x 0.122 T (7.40mm x 3.10mm)	0.500 (12.70mm)	-
RUEF800K PTC RESET FUSE 30V 8A RADIAL Littelfuse Inc.	2,821	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, RUEF	Active	Polymeric	30V	100 A	8 A	16 A	18.8 s	5 mOhms	20 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.850 L x 0.118 W (21.60mm x 3.00mm)	1.189 (30.20mm)	-
AHRL1000 PTC RESET FUSE 10A 16V RAD Littelfuse Inc.	3,197	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®, AHRL	Active	Polymeric	16V	100 A	10 A	20 A	10 s	4.2 mOhms	6.8 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.567 L x 0.142 W (14.40mm x 3.60mm)	0.882 (22.40mm)	-

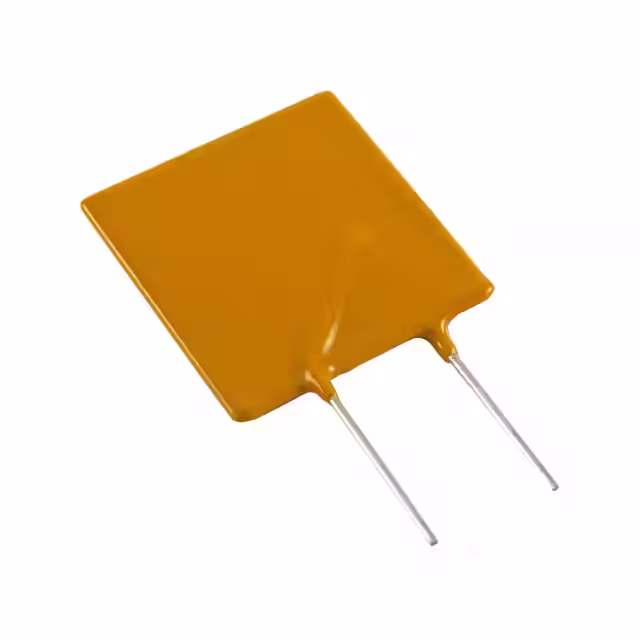

NTE16020-ECG PTC RESET FUSE 30V 7A RADIAL NTE Electronics, Inc	2,781	-	RFQ	Datasheet	Radial, Disc	Bag	-	Active	Polymeric	30V	40 A	7 A	14 A	17.5 s	5 mOhms	30 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.870 L x 0.118 W (22.10mm x 3.00mm)	1.173 (29.80mm)	-
AHRL1500 PTC RESET FUSE 15A 16V RAD Littelfuse Inc.	2,996	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®, AHRL	Active	Polymeric	16V	100 A	15 A	30 A	18 s	2.9 mOhms	4.3 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.724 L x 0.142 W (18.40mm x 3.60mm)	1.039 (26.40mm)	-
PTCCL11H251HBE PTC RESET FUSE 265V 250MA RADIAL Vishay Beyschlag/Draloric/BC Components	2,313	-	RFQ	Datasheet	Radial, Disc	Bulk	PTCCL - 265V	Active	Ceramic	265V	1.5 A	250 mA	375 mA	-	-	-	12 Ohms	0°C ~ 70°C	-	Through Hole	0.413 Dia x 0.217 T (10.50mm x 5.50mm)	0.610 (15.50mm)	-

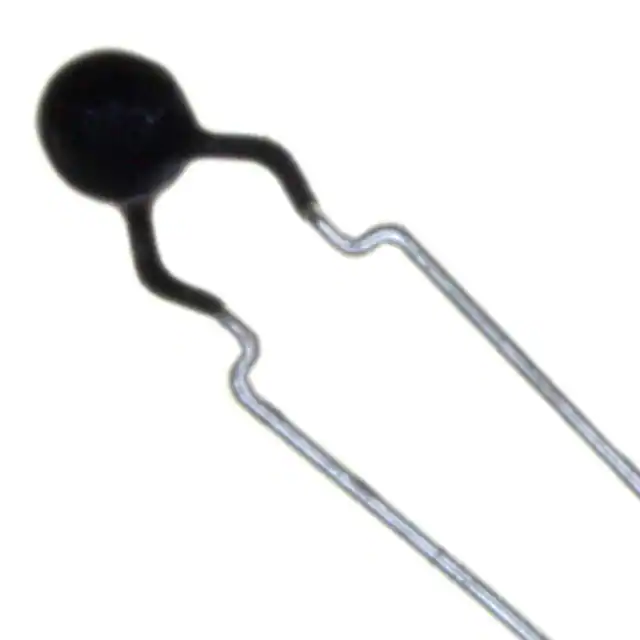

YM120C20N122 PTC RESET FUSE 265V 20MA RADIAL Amphenol Thermometrics	3,250	-	RFQ	Datasheet	Radial, Disc	Bulk	YM	Active	Ceramic	265V	100 mA	20 mA	28 mA	-	-	-	1.2 kOhms	0°C ~ 55°C	-	Through Hole	0.157 Dia x 0.177 T (4.00mm x 4.50mm)	0.256 (6.50mm)	-
SMD1206B005TF PPTC SMD 1206, 30V 0.05A, REEL 7 YAGEO	2,659	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR)	SMD1206	Active	Polymeric	30V	100 A	50 mA	150 mA	250 ms	3.6 Ohms	50 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	0.057 (1.45mm)
SMD1206B025TF/24 PPTC SMD 1206, 24V 0.25A, REEL 7 YAGEO	3,544	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR)	SMD1206	Active	Polymeric	24V	100 A	250 mA	550 mA	80 ms	550 mOhms	2.3 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	0.049 (1.25mm)
