Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
MF-RHT700-2-14 PTC 7.0A 16V RADIAL LEADED HI-TE Bourns Inc.	3,972	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	Multifuse®, MF-RHT	Active	Polymeric	16V	100 A	7 A	13 A	7 s	10 mOhms	25 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.551 L x 0.118 W (14.00mm x 3.00mm)	0.862 (21.90mm)	-
MF-R900-0-14 PTC RESETTABLE 9.0A 30V RADIAL L Bourns Inc.	2,313	-	RFQ	Datasheet	Radial, Disc	Bulk	Multifuse®, MF-R	Active	Polymeric	30V	40 A	9 A	18 A	20 s	5 mOhms	20 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.953 L x 0.118 W (24.20mm x 3.00mm)	1.295 (32.90mm)	-

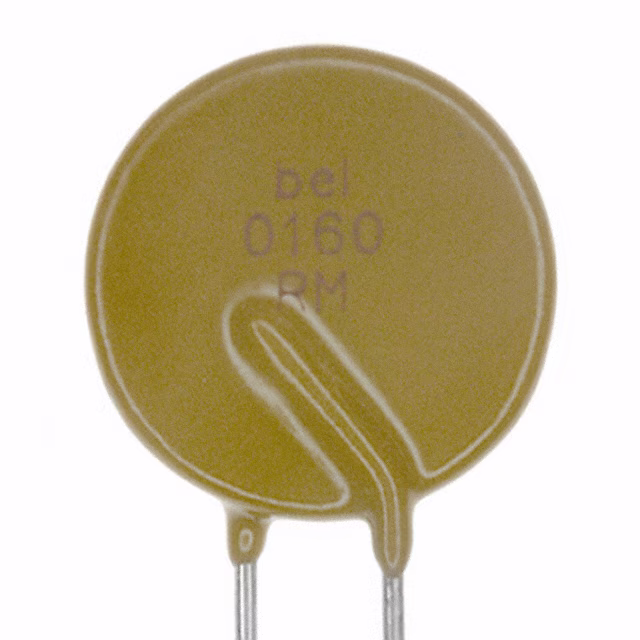

0ZRM0160FF1A PTC RESET FUSE 120V 1.6A RADIAL Bel Fuse Inc.	3,651	-	RFQ	Datasheet	Radial, Disc	Box	0ZRM	Active	Polymeric	120V	12 A	1.6 A	3.2 A	11.4 s	90 mOhms	220 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.689 Dia x 0.161 T (17.50mm x 4.10mm)	0.886 (22.50mm)	-
PTR030V0600-TR1 PTC RESET FUSE 30V 6A RADIAL Eaton - Electronics Division	3,315	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	PTR030V	Active	Polymeric	30V	100 A	6 A	12 A	16 s	5 mOhms	40 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.650 L x 0.118 W (16.50mm x 3.00mm)	1.346 (34.20mm)	-
MF-PSML175/6-2 PTC RESET FUSE 6V 1.75A 0805 Bourns Inc.	3,623	-	RFQ	Datasheet	0805 (2012 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-PSML/X	Active	Polymeric	6V	50 A	1.75 A	3.5 A	1 s	10 mOhms	65 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.085 L x 0.053 W (2.15mm x 1.35mm)	-	0.028 (0.70mm)
MF-PSML110/6-2 PTC RESET FUSE 6V 1.1A 0805 Bourns Inc.	2,172	-	RFQ	Datasheet	0805 (2012 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-PSML/X	Active	Polymeric	6V	50 A	1.1 A	2.2 A	300 ms	30 mOhms	210 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.085 L x 0.053 W (2.15mm x 1.35mm)	-	0.028 (0.70mm)
MF-USML350/12-2 PTC RESET FUSE 12V 3.5A 1210 Bourns Inc.	3,987	-	RFQ	Datasheet	1210 (3225 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-USML/X	Active	Polymeric	12V	50 A	3.5 A	7 A	5 s	2 mOhms	22 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.127 L x 0.101 W (3.22mm x 2.58mm)	-	0.047 (1.20mm)
PTR016V1500-BK1 PTC RESET FUSE 16V 15A RADIAL Eaton - Electronics Division	3,421	-	RFQ	Datasheet	Radial, Disc	Bulk	PTR016V	Active	Polymeric	16V	100 A	15 A	25.5 A	10 s	2 mOhms	7 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.989 L x 0.122 W (25.10mm x 3.10mm)	1.260 (32.00mm)	-
MF-RG900-AP PTC RESET FUSE 16V 9A RADIAL Bourns Inc.	3,146	-	RFQ	Datasheet	Radial, Disc	Tape & Box (TB)	Multifuse®, MF-RG	Active	Polymeric	16V	100 A	9 A	15.3 A	12 s	4 mOhms	15 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.551 L x 0.118 W (14.00mm x 3.00mm)	0.819 (20.80mm)	-
MF-R1100-2-14 PTC RESETTABLE 1.1A 16V RADIAL L Bourns Inc.	3,464	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	Multifuse®, MF-R	Active	Polymeric	16V	100 A	11 A	22 A	20 s	3 mOhms	14 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.953 L x 0.118 W (24.20mm x 3.00mm)	1.295 (32.90mm)	-
MF-RG800-AP-14 PTC RESETTABLE 8A 16V RADIAL LEA Bourns Inc.	3,884	-	RFQ	Datasheet	Radial, Disc	Tape & Box (TB)	Multifuse®, MF-RG	Active	Polymeric	16V	100 A	8 A	13.6 A	5 s	5.6 mOhms	17.5 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.500 L x 0.118 W (12.70mm x 3.00mm)	0.823 (20.90mm)	-
MF-RG800-2-14 PTC RESETTABLE 8A 16V RADIAL LEA Bourns Inc.	3,029	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	Multifuse®, MF-RG	Active	Polymeric	16V	100 A	8 A	13.6 A	5 s	5.6 mOhms	17.5 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.500 L x 0.118 W (12.70mm x 3.00mm)	0.823 (20.90mm)	-
MF-R1100-AP-14 PTC RESETTABLE 1.1A 16V RADIAL L Bourns Inc.	3,491	-	RFQ	Datasheet	Radial, Disc	Tape & Box (TB)	Multifuse®, MF-R	Active	Polymeric	16V	100 A	11 A	22 A	20 s	3 mOhms	14 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.953 L x 0.118 W (24.20mm x 3.00mm)	1.295 (32.90mm)	-
MF-R900-AP-14 PTC RESETTABLE 9.0A 30V RADIAL L Bourns Inc.	2,368	-	RFQ	Datasheet	Radial, Disc	Tape & Box (TB)	Multifuse®, MF-R	Active	Polymeric	30V	40 A	9 A	18 A	20 s	5 mOhms	20 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.953 L x 0.118 W (24.20mm x 3.00mm)	1.295 (32.90mm)	-
MF-R900-2-14 PTC RESETTABLE 9.0A 30V RADIAL L Bourns Inc.	3,367	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	Multifuse®, MF-R	Active	Polymeric	30V	40 A	9 A	18 A	20 s	5 mOhms	20 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.953 L x 0.118 W (24.20mm x 3.00mm)	1.295 (32.90mm)	-
MF-LSMF400/12X-2 PTC RESETTABLE 4.0A 12V SMD 2920 Bourns Inc.	3,730	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR)	Multifuse®, MF-LSMF	Active	Polymeric	12V	40 A	4 A	8 A	15 s	5 mOhms	-	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	0.063 (1.60mm)
PTR016V1300-BK1 PTC RESET FUSE 16V 13A RADIAL Eaton - Electronics Division	2,548	-	RFQ	Datasheet	Radial, Disc	Bulk	PTR016V	Active	Polymeric	16V	100 A	13 A	22.1 A	8.5 s	2 mOhms	8 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.850 L x 0.122 W (21.60mm x 3.10mm)	1.260 (32.00mm)	-
PTR016V0800-TR1 PTC RESET FUSE 16V 8A RADIAL Eaton - Electronics Division	3,553	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	PTR016V	Active	Polymeric	16V	100 A	8 A	13.6 A	5 s	5 mOhms	18 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.500 L x 0.122 W (12.70mm x 3.10mm)	0.906 (23.00mm)	-
PTR016V0900-TR1 PTC RESET FUSE 16V 9A RADIAL Eaton - Electronics Division	2,120	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	PTR016V	Active	Polymeric	16V	100 A	9 A	15.3 A	5.5 s	5 mOhms	14 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.551 L x 0.122 W (14.00mm x 3.10mm)	0.945 (24.00mm)	-
PTCTL4MR250GTE PTC RESET FUSE 220V 70MA RADIAL Vishay Beyschlag/Draloric/BC Components	3,940	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	-	Active	Ceramic	220V	4 A	70 mA	200 mA	2.5 s	-	-	25 Ohms	0°C ~ 70°C	-	Through Hole	0.335 Dia x 0.197 T (8.50mm x 5.00mm)	0.453 (11.50mm)	-
