Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
FRX065-90F RESETTABLE FUSE - PPTC RADIAL LE RFE/Fuzetec	1,000	-	RFQ	Datasheet	Radial, Disc	Bulk	FRX90	Active	-	72V (90V Int)	40 A	650 mA	1.3 A	5.3 s	310 mOhms	720 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.382 Dia (9.70mm)	0.571 (14.50mm)	-
FRX055-90F RESETTABLE FUSE - PPTC RADIAL LE RFE/Fuzetec	1,000	-	RFQ	Datasheet	Radial, Disc	Bulk	FRX90	Active	-	72V (90V Int)	40 A	550 mA	1.2 A	10 s	400 mOhms	1.5 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.382 Dia (9.70mm)	0.551 (14.00mm)	-
FSMD110-16-1206R RESETTABLE FUSE - SMD, 1206 SIZE RFE/Fuzetec	1,400	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR)	FSMD1206	Active	-	16V	100 A	1.1 A	2.2 A	300 ms	40 mOhms	180 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.128 L x 0.065 W (3.25mm x 1.65mm)	-	0.055 (1.40mm)
MPRV120V040 PTC RESET FUSE 120V 0.4A RADIAL Meritek	3,205	-	RFQ	Datasheet	Radial, Disc	Bulk	MPRV	Active	Polymeric	120V	3 A	400 mA	800 mA	6.5 s	550 mOhms	1.29 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.323 Dia x 0.150 T (8.20mm x 3.80mm)	0.559 (14.20mm)	-

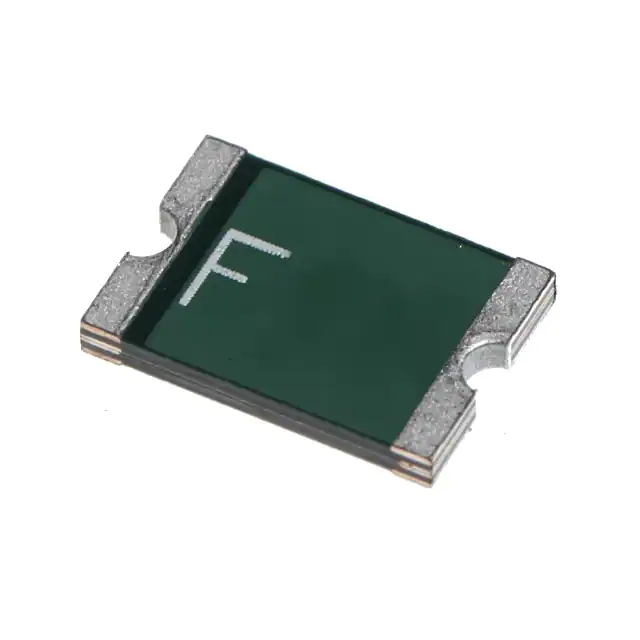

FSMD300-2920-R RESETTABLE FUSE - SMD, 2920 SIZE RFE/Fuzetec	1,850	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR)	FSMD2920	Active	-	6V	100 A	3 A	5.2 A	25 s	10 mOhms	48 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	0.035 (0.90mm)
FSMD185-2920-R RESETTABLE FUSE - SMD, 2920 SIZE RFE/Fuzetec	1,500	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR)	FSMD2920	Active	-	33V	100 A	1.85 A	3.7 A	2.5 s	40 mOhms	150 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	0.035 (0.90mm)
FSMD260-2920-R RESETTABLE FUSE - SMD, 2920 SIZE RFE/Fuzetec	1,950	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR)	FSMD2920	Active	-	6V	100 A	2.6 A	5.2 A	20 s	20 mOhms	75 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	0.035 (0.90mm)
FRX110-90F RESETTABLE FUSE - PPTC RADIAL LE RFE/Fuzetec	600	-	RFQ	Datasheet	Radial, Disc	Bulk	FRX90	Active	-	72V (90V Int)	40 A	1.1 A	2.2 A	8.2 s	150 mOhms	380 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.512 Dia (13.00mm)	0.709 (18.00mm)	-
FSMD250-2920-R RESETTABLE FUSE - SMD, 2920 SIZE RFE/Fuzetec	2,000	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR)	FSMD2920	Active	-	16V	100 A	2.5 A	5 A	16 s	25 mOhms	85 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	0.035 (0.90mm)
FSMD030-2920-R RESETTABLE FUSE - SMD, 2920 SIZE RFE/Fuzetec	2,000	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR)	FSMD2920	Active	-	60V	100 A	300 mA	600 mA	3 s	1 Ohms	4.8 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	0.045 (1.15mm)
FSMD125-2920-R RESETTABLE FUSE - SMD, 2920 SIZE RFE/Fuzetec	2,000	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR)	FSMD2920	Active	-	33V	100 A	1.25 A	2.5 A	2 s	50 mOhms	250 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	0.035 (0.90mm)
FSMD150-2920-R RESETTABLE FUSE - SMD, 2920 SIZE RFE/Fuzetec	2,000	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR)	FSMD2920	Active	-	33V	100 A	1.5 A	3 A	2 s	50 mOhms	230 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	0.035 (0.90mm)
FRU110-30F RESETTABLE FUSE - PPTC RADIAL LE RFE/Fuzetec	1,000	-	RFQ	Datasheet	Radial, Disc	Bulk	FRU	Active	-	30V	100 A	1.1 A	2.2 A	6.6 s	50 mOhms	170 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.291 L x 0.118 W (7.40mm x 3.00mm)	0.559 (14.20mm)	-
MPTR36V220 PTC RESET FUSE 36V 2.2A RADIAL Meritek	3,381	-	RFQ	Datasheet	Radial, Disc	Bulk	MPTR	Active	Polymeric	36V	40 A	2.2 A	3.5 A	-	25 mOhms	80 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.394 L x 0.118 W (10.00mm x 3.00mm)	0.669 (17.00mm)	-
MPRV240V025 PTC RESET FUSE 240V 0.25A RADIAL Meritek	3,291	-	RFQ	Datasheet	Radial, Disc	Bulk	MPRV	Active	Polymeric	240V	3.5 A	250 mA	560 mA	18.5 s	1.3 Ohms	3.8 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.378 Dia x 0.150 T (9.60mm x 3.80mm)	0.685 (17.40mm)	-
MPRV120V050 PTC RESET FUSE 120V 0.5A RADIAL Meritek	2,311	-	RFQ	Datasheet	Radial, Disc	Bulk	MPRV	Active	Polymeric	120V	3 A	500 mA	1 A	6 s	500 mOhms	1.17 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.362 Dia x 0.150 T (9.20mm x 3.80mm)	0.587 (14.90mm)	-
MPTR36V250 PTC RESET FUSE 36V 2.5A RADIAL Meritek	3,682	-	RFQ	Datasheet	Radial, Disc	Bulk	MPTR	Active	Polymeric	36V	40 A	2.5 A	4 A	-	20 mOhms	64 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.394 L x 0.118 W (10.00mm x 3.00mm)	0.768 (19.50mm)	-
AHS010-SM PTC RESET FUSE 60V 100MA RADIAL AHS Micro	10,000	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, RXEF	Active	Polymeric	60V	40 A	200 mA	100 mA	4 s	2.5 Ohms	7.5 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.118 T (7.40mm x 3.00mm)	0.457 (11.60mm)	-
FSMD075-33R RESETTABLE FUSE - SMD, 1812 SIZE RFE/Fuzetec	10,500	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR)	FSMD1812	Active	-	33V	100 A	750 mA	1.5 A	200 ms	110 mOhms	400 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.061 (1.55mm)
FSMD150-24R RESETTABLE FUSE - SMD, 1812 SIZE RFE/Fuzetec	1,800	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR)	FSMD1812	Active	-	24V	100 A	1.5 A	3 A	1.5 s	40 mOhms	120 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.061 (1.55mm)
