Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
MPTS1812L15012R PTC RESET FUSE 12V 1.5A 1812 Meritek	2,385	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR)	MPTS	Active	Polymeric	12V	100 A	1.5 A	3 A	500 ms	40 mOhms	110 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.061 (1.55mm)
MPTS1812L15012 PTC RESET FUSE 12V 1.5A 1812 Meritek	3,284	-	RFQ	Datasheet	1812 (4532 Metric)	Tape & Reel (TR)	MPTS	Active	Polymeric	12V	100 A	1.5 A	3 A	500 ms	40 mOhms	110 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.061 (1.55mm)
AHS075-SM PTC RESET FUSE 72V 750MA RADIAL AHS Micro	10,000	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	750 mA	1.5 A	6.3 s	250 mOhms	600 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.402 Dia x 0.118 T (10.20mm x 3.00mm)	0.598 (15.20mm)	-
FRG500-16F RESETTABLE FUSE - PPTC RADIAL LE RFE/Fuzetec	600	-	RFQ	Datasheet	Radial, Disc	Bulk	FRG	Active	-	16V	100 A	5 A	8.5 A	3.6 s	14 mOhms	44 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.409 L x 0.118 W (10.40mm x 3.00mm)	0.563 (14.30mm)	-
FSMD260-16R RESETTABLE FUSE - SMD, 1812 SIZE RFE/Fuzetec	10,250	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR)	FSMD1812	Active	-	16V	100 A	2.6 A	5 A	5 s	15 mOhms	50 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.061 (1.55mm)
MPRV120V110 PTC RESET FUSE 120V 1.1A RADIAL Meritek	3,265	-	RFQ	Datasheet	Radial, Disc	Bulk	MPRV	Active	Polymeric	120V	8 A	1.1 A	2.2 A	8.2 s	150 mOhms	380 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.524 Dia x 0.161 T (13.30mm x 4.10mm)	0.720 (18.30mm)	-
FRU400-30F RESETTABLE FUSE - PPTC RADIAL LE RFE/Fuzetec	300	-	RFQ	Datasheet	Radial, Disc	Bulk	FRU	Active	-	30V	100 A	4 A	8 A	12.7 s	10 mOhms	50 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.551 L x 0.118 W (14.00mm x 3.00mm)	0.791 (20.10mm)	-

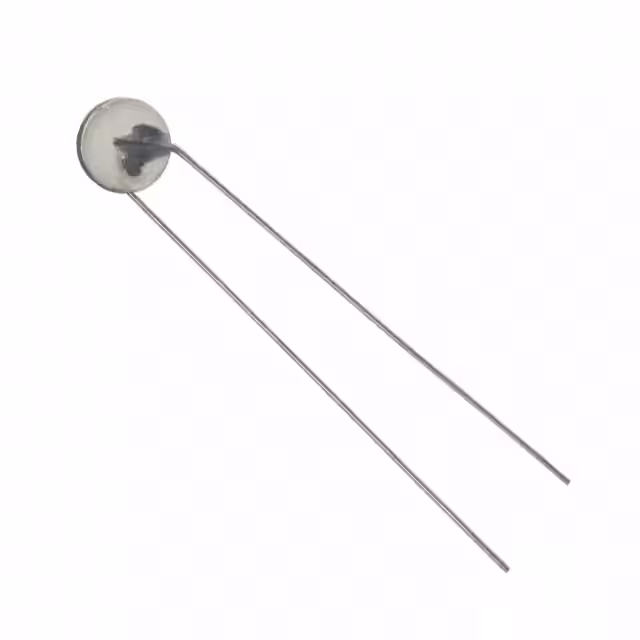

RL3006-50-70-25-PTO PTC RESET FUSE 25V RADIAL DISC Amphenol Thermometrics	2,475	-	RFQ	Datasheet	Radial, Disc	Bulk	PTO	Obsolete	Ceramic	25V	-	-	-	35 s	-	-	50 Ohms	-	-	Through Hole	0.350 Dia x 0.150 T (8.90mm x 3.80mm)	0.350 (8.89mm)	-
RL3006-50-100-25-PTO PTC RESET FUSE 25V RADIAL DISC Amphenol Thermometrics	2,580	-	RFQ	Datasheet	Radial, Disc	Bulk	PTO	Obsolete	Ceramic	25V	-	-	-	35 s	-	-	50 Ohms	-	-	Through Hole	0.350 Dia x 0.150 T (8.90mm x 3.80mm)	0.350 (8.89mm)	-
RL3006-50-110-25-PTO PTC RESET FUSE 25V RADIAL DISC Amphenol Thermometrics	3,473	-	RFQ	Datasheet	Radial, Disc	Bulk	PTO	Obsolete	Ceramic	25V	-	-	-	35 s	-	-	50 Ohms	-	-	Through Hole	0.350 Dia x 0.150 T (8.90mm x 3.80mm)	0.350 (8.89mm)	-
RL3006-50-80-25-PTO PTC RESET FUSE 25V RADIAL DISC Amphenol Thermometrics	3,627	-	RFQ	Datasheet	Radial, Disc	Bulk	PTO	Obsolete	Ceramic	25V	-	-	-	35 s	-	-	50 Ohms	-	-	Through Hole	0.350 Dia x 0.150 T (8.90mm x 3.80mm)	0.350 (8.89mm)	-
RL3006-50-90-25-PTO PTC RESET FUSE 25V RADIAL DISC Amphenol Thermometrics	3,714	-	RFQ	Datasheet	Radial, Disc	Bulk	PTO	Obsolete	Ceramic	25V	-	-	-	35 s	-	-	50 Ohms	-	-	Through Hole	0.350 Dia x 0.150 T (8.90mm x 3.80mm)	0.350 (8.89mm)	-
SRP175 PTC RESET FUSE 15V 1.75A STRAP Littelfuse Inc.	3,691	-	RFQ	Datasheet	Strap	Bulk	PolySwitch®, SRP	Obsolete	Polymeric	15V	100 A	1.75 A	3.8 A	5 s	50 mOhms	120 mOhms	-	-40°C ~ 85°C	-	User Defined	0.866 L x 0.199 W (22.00mm x 5.05mm)	-	0.039 (1.00mm)
30R500U PTC RESET FUSE 30V 5A RADIAL Littelfuse Inc.	3,311	-	RFQ	Datasheet	Radial, Disc	Bulk	POLY-FUSE®, 30R	Obsolete	Polymeric	30V	40 A	5 A	10 A	14.5 s	10 mOhms	50 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.551 L x 0.118 W (14.00mm x 3.00mm)	1.008 (25.60mm)	-
RXE020-2 PTC RESET FUSE 72V 200MA RADIAL Littelfuse Inc.	3,484	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	PolySwitch®, RXE	Obsolete	Polymeric	72V	40 A	200 mA	400 mA	2.2 s	1.83 Ohms	4.4 Ohms	-	-	-	Through Hole	0.291 Dia x 0.118 T (7.40mm x 3.00mm)	0.461 (11.70mm)	-
RXE040-2 PTC RESET FUSE 72V 400MA RADIAL Littelfuse Inc.	3,486	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	PolySwitch®, RXE	Obsolete	Polymeric	72V	40 A	400 mA	800 mA	3.8 s	550 mOhms	1.29 Ohms	-	-	-	Through Hole	0.299 Dia x 0.118 T (7.60mm x 3.00mm)	0.532 (13.50mm)	-
RXE025-2 PTC RESET FUSE 72V 250MA RADIAL Littelfuse Inc.	2,977	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	PolySwitch®, RXE	Obsolete	Polymeric	72V	40 A	250 mA	500 mA	2.5 s	1.25 Ohms	3 Ohms	-	-	-	Through Hole	0.291 Dia x 0.118 T (7.40mm x 3.00mm)	0.500 (12.70mm)	-
MPTR60V020 PTC RESET FUSE 60V 0.2A RADIAL Meritek	2,428	-	RFQ	Datasheet	Radial, Disc	Bulk	MPTR	Active	Polymeric	60V	40 A	200 mA	400 mA	2.2 s	1.83 Ohms	4.4 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.122 T (7.40mm x 3.10mm)	0.500 (12.70mm)	-
MPTR16V400 PTC RESET FUSE 16V 4A RADIAL Meritek	3,209	-	RFQ	Datasheet	Radial, Disc	Bulk	MPTR	Active	Polymeric	16V	100 A	4 A	6.8 A	3.5 s	20 mOhms	63 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.350 L x 0.118 W (8.90mm x 3.00mm)	0.504 (12.80mm)	-
MPTR60V110 PTC RESET FUSE 60V 1.1A RADIAL Meritek	2,762	-	RFQ	Datasheet	Radial, Disc	Bulk	MPTR	Active	Polymeric	60V	40 A	1.1 A	2.2 A	8.2 s	150 mOhms	380 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.512 Dia x 0.122 T (13.00mm x 3.10mm)	0.709 (18.00mm)	-
