Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
PTCTZ3MR250HTE PTC RESET FUSE 265V 120MA 2SMD Vishay Beyschlag/Draloric/BC Components	3,270	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	PTCTZ	Obsolete	Ceramic	265V	2 A	120 mA	220 mA	1.3 s	-	-	25 Ohms	-	-	Surface Mount	0.283 L x 0.394 W (7.20mm x 10.00mm)	-	0.142 (3.60mm)
PTCTZ3MR350MTE PTC RESET FUSE 425V 110MA 2SMD Vishay Beyschlag/Draloric/BC Components	3,315	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	PTCTZ	Obsolete	Ceramic	425V	700 mA	110 mA	175 mA	1 s	-	-	35 Ohms	-	-	Surface Mount	0.283 L x 0.394 W (7.20mm x 10.00mm)	-	0.142 (3.60mm)
PTCTZ3NR100GTE PTC RESET FUSE 245V 165MA 2SMD Vishay Beyschlag/Draloric/BC Components	2,763	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	PTCTZ	Obsolete	Ceramic	245V	2 A	165 mA	270 mA	3 s	-	-	10 Ohms	-	-	Surface Mount	0.283 L x 0.394 W (7.20mm x 10.00mm)	-	0.142 (3.60mm)
PTCTZ3NR339CTE PTC RESET FUSE 24V 400MA 2SMD Vishay Beyschlag/Draloric/BC Components	3,869	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	PTCTZ	Obsolete	Ceramic	24V	8 A	400 mA	650 mA	6 s	-	-	3.3 Ohms	-	-	Surface Mount	0.283 L x 0.394 W (7.20mm x 10.00mm)	-	0.142 (3.60mm)
PTCTZ3MR100GTE PTC RESET FUSE 245V 165MA 2SMD Vishay Beyschlag/Draloric/BC Components	3,060	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	PTCTZ	Obsolete	Ceramic	245V	2 A	165 mA	270 mA	3 s	-	-	10 Ohms	-	-	Surface Mount	0.283 L x 0.394 W (7.20mm x 10.00mm)	-	0.142 (3.60mm)
PTCTZ3MR200KTE PTC RESET FUSE 300V 120MA 2SMD Vishay Beyschlag/Draloric/BC Components	3,689	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	PTCTZ	Obsolete	Ceramic	300V	1.5 A	120 mA	250 mA	1.4 s	-	-	20 Ohms	-	-	Surface Mount	0.283 L x 0.394 W (7.20mm x 10.00mm)	-	0.142 (3.60mm)
PTCTZ3MR500MTE PTC RESET FUSE 425V 90MA 2SMD Vishay Beyschlag/Draloric/BC Components	3,267	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	PTCTZ	Obsolete	Ceramic	425V	700 mA	90 mA	150 mA	800 ms	-	-	50 Ohms	-	-	Surface Mount	0.283 L x 0.394 W (7.20mm x 10.00mm)	-	0.142 (3.60mm)
1206L110WR PTC RESET FUSE 8V 1.1A 1206 Littelfuse Inc.	3,269	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 1206L	Obsolete	Polymeric	8V	100 A	1.1 A	2.2 A	100 ms	40 mOhms	180 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	0.039 (1.00mm)
1206L150PR PTC RESET FUSE 8V 1.5A 1206 Littelfuse Inc.	2,545	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 1206L	Obsolete	Polymeric	8V	100 A	1.5 A	3 A	300 ms	40 mOhms	120 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	0.055 (1.40mm)
RGE1000 PTC RESET FUSE 16V 10A RADIAL Littelfuse Inc.	2,916	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®	Obsolete	Polymeric	16V	100 A	10 A	17 A	6 s	4 mOhms	-	-	-	-	Through Hole	0.630 L x 0.098 W (16.00mm x 2.50mm)	0.992 (25.20mm)	-
RHE070 PTC RESET FUSE 16V 700MA RADIAL Littelfuse Inc.	2,944	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®	Obsolete	Polymeric	16V	40 A	700 mA	1.4 A	4 s	300 mOhms	1.4 Ohms	-	-	-	Through Hole	0.272 L x 0.118 W (6.90mm x 3.00mm)	0.425 (10.80mm)	-

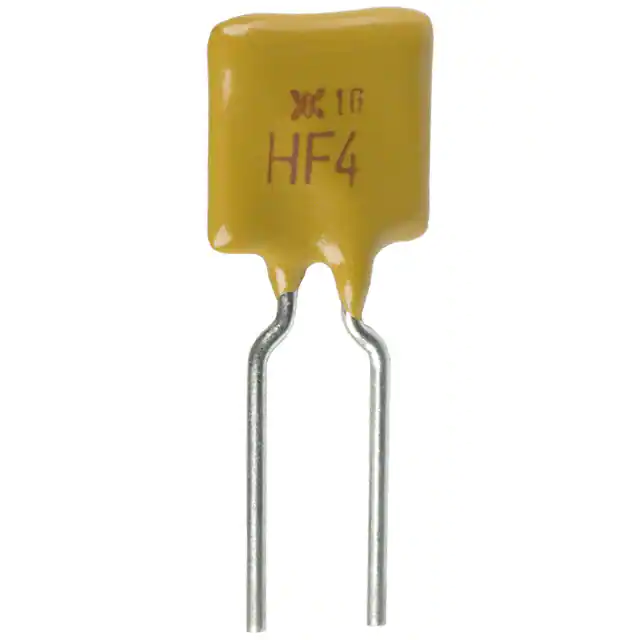

RHE400 PTC RESET FUSE 16V 4A RADIAL Littelfuse Inc.	3,971	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®	Obsolete	Polymeric	16V	100 A	4 A	7 A	8 s	18 mOhms	44 mOhms	-	-	-	Through Hole	0.449 L x 0.118 W (11.40mm x 3.00mm)	0.709 (18.00mm)	-
RHE650 PTC RESET FUSE 16V 6.5A RADIAL Littelfuse Inc.	3,024	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®	Obsolete	Polymeric	16V	100 A	6.5 A	12 A	5.5 s	11 mOhms	4.3 Ohms	-	-	-	Through Hole	0.500 L x 0.118 W (12.70mm x 3.00mm)	0.874 (22.20mm)	-
RHE1500 PTC RESET FUSE 16V 15A RADIAL Littelfuse Inc.	3,209	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®	Obsolete	Polymeric	16V	100 A	15 A	28 A	20 s	3.2 mOhms	-	-	-	-	Through Hole	0.925 L x 0.142 W (23.50mm x 3.60mm)	1.130 (28.70mm)	-

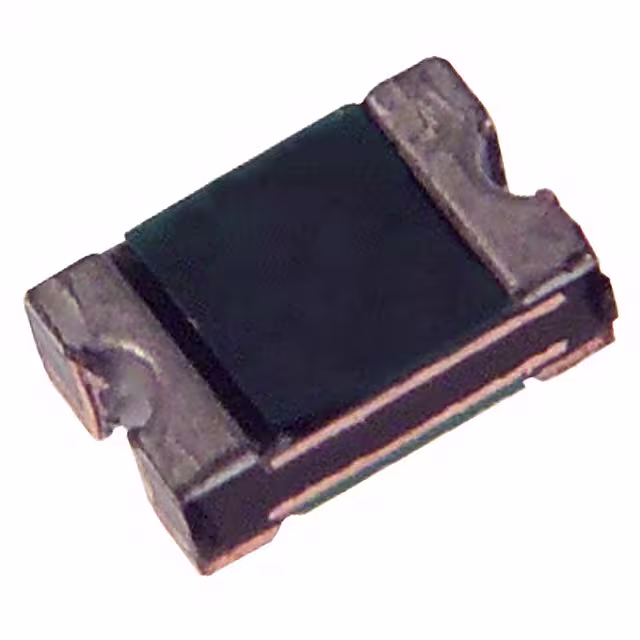

SMD0805P010TSA PTC RESET FUSE 15V 100MA 0805 Littelfuse Inc.	2,973	-	RFQ	Datasheet	0805 (2012 Metric), Concave	Tape & Reel (TR)	POLY-FUSE®, SMD0805	Obsolete	Polymeric	15V	40 A	100 mA	300 mA	1.5 s	1 Ohms	6 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.083 L x 0.053 W (2.10mm x 1.35mm)	-	0.039 (1.00mm)
SMD0805P020TSA PTC RESET FUSE 9V 200MA 0805 Littelfuse Inc.	3,239	-	RFQ	Datasheet	0805 (2012 Metric), Concave	Tape & Reel (TR)	POLY-FUSE®, SMD0805	Obsolete	Polymeric	9V	40 A	200 mA	500 mA	20 ms	650 mOhms	3.5 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.083 L x 0.053 W (2.10mm x 1.35mm)	-	0.039 (1.00mm)
SMD0805P035TSA PTC RESET FUSE 6V 350MA 0805 Littelfuse Inc.	3,275	-	RFQ	Datasheet	0805 (2012 Metric), Concave	Tape & Reel (TR)	POLY-FUSE®, SMD0805	Obsolete	Polymeric	6V	40 A	350 mA	750 mA	100 ms	250 mOhms	1.2 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.083 L x 0.053 W (2.10mm x 1.35mm)	-	0.024 (0.60mm)
SMD0805P050TSA PTC RESET FUSE 6V 500MA 0805 Littelfuse Inc.	2,660	-	RFQ	Datasheet	0805 (2012 Metric), Concave	Tape & Reel (TR)	POLY-FUSE®, SMD0805	Obsolete	Polymeric	6V	40 A	500 mA	1 A	100 ms	150 mOhms	850 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.083 L x 0.053 W (2.10mm x 1.35mm)	-	0.039 (1.00mm)
RLD30P090UF PTC RESET FUSE 30V 900MA RADIAL Littelfuse Inc.	3,473	-	RFQ	Datasheet	Radial, Disc	Tape & Box (TB)	POLY-FUSE®, RLD30	Obsolete	Polymeric	30V	40 A	900 mA	1.8 A	5.9 s	70 mOhms	220 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.291 L x 0.118 W (7.40mm x 3.00mm)	0.480 (12.20mm)	-
RLD30P110UF PTC RESET FUSE 30V 1.1A RADIAL Littelfuse Inc.	3,384	-	RFQ	Datasheet	Radial, Disc	Tape & Box (TB)	POLY-FUSE®, RLD30	Obsolete	Polymeric	30V	40 A	1.1 A	2.2 A	6.6 s	50 mOhms	170 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.291 L x 0.118 W (7.40mm x 3.00mm)	0.559 (14.20mm)	-
