Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
RXEF020-1 PTC RESET FUSE 72V 200MA RADIAL Littelfuse Inc.	2,783	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®, RXEF	Obsolete	Polymeric	72V	40 A	200 mA	400 mA	2.2 s	1.83 Ohms	4.4 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.118 T (7.40mm x 3.00mm)	0.461 (11.70mm)	-
RXEF025-1 PTC RESET FUSE 72V 250MA RADIAL Littelfuse Inc.	3,360	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®, RXEF	Obsolete	Polymeric	72V	40 A	250 mA	500 mA	2.5 s	1.25 Ohms	3 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.118 T (7.40mm x 3.00mm)	0.500 (12.70mm)	-
RXEF040-1 PTC RESET FUSE 72V 400MA RADIAL Littelfuse Inc.	2,453	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®, RXEF	Obsolete	Polymeric	72V	40 A	400 mA	800 mA	3.8 s	550 mOhms	1.29 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.299 Dia x 0.118 T (7.60mm x 3.00mm)	0.532 (13.50mm)	-
RXEF075-1 PTC RESET FUSE 72V 750MA RADIAL Littelfuse Inc.	2,183	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®, RXEF	Obsolete	Polymeric	72V	40 A	750 mA	1.5 A	6.3 s	250 mOhms	600 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.402 Dia x 0.118 T (10.20mm x 3.00mm)	0.598 (15.20mm)	-
RXEF160-1 PTC RESET FUSE 72V 1.6A RADIAL Littelfuse Inc.	3,556	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®, RXEF	Obsolete	Polymeric	72V	40 A	1.6 A	3.2 A	11.4 s	90 mOhms	220 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.642 Dia x 0.118 T (16.30mm x 3.00mm)	0.819 (20.80mm)	-
RXEF250-1 PTC RESET FUSE 72V 2.5A RADIAL Littelfuse Inc.	3,233	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®, RXEF	Obsolete	Polymeric	72V	40 A	2.5 A	5 A	15.6 s	50 mOhms	130 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.819 Dia x 0.118 T (20.80mm x 3.00mm)	1.000 (25.40mm)	-
RXEF375-2 PTC RESET FUSE 72V 3.75A RADIAL Littelfuse Inc.	3,498	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	PolySwitch®, RXEF	Obsolete	Polymeric	72V	40 A	3.75 A	7.5 A	24 s	30 mOhms	80 mOhms	-	-40°C ~ 85°C	-	Through Hole	1.071 Dia x 0.118 T (27.20mm x 3.00mm)	1.252 (31.80mm)	-
SRP120SSF PTC RESET FUSE 15V 1.2A STRAP Littelfuse Inc.	3,788	-	RFQ		Strap	Bulk	PolySwitch®, SRP	Obsolete	Polymeric	15V	100 A	1.2 A	2.7 A	5 s	85 mOhms	220 mOhms	-	-40°C ~ 85°C	-	User Defined	0.827 L x 0.199 W (21.00mm x 5.05mm)	-	0.039 (1.00mm)
TCF250-180 PTC RESET FUSE 60V 180MA SMD Littelfuse Inc.	2,445	-	RFQ	Datasheet	Nonstandard SMD	Bulk	PolySwitch®, TCF250	Obsolete	Polymeric	60V (250V Int)	3 A	180 mA	380 mA	3.4 s	1.9 Ohms	4.2 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.276 L x 0.276 W (7.00mm x 7.00mm)	-	0.063 (1.60mm)
TRF250-110U-2 PTC RESET FUSE 60V 110MA RADIAL Littelfuse Inc.	2,864	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	PolySwitch®, TRF250	Obsolete	Polymeric	60V (250V Int)	3 A	110 mA	220 mA	1.2 s	5 Ohms	16 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.209 Dia x 0.150 T (5.30mm x 3.80mm)	0.370 (9.40mm)	-
TRF250-145U-2 PTC RESET FUSE 60V 145MA RADIAL Littelfuse Inc.	2,985	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	PolySwitch®, TRF250	Active	Polymeric	60V (250V Int)	3 A	145 mA	290 mA	4 s	3.5 Ohms	14 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.236 L x 0.150 W (6.00mm x 3.80mm)	0.394 (10.00mm)	-
TRF250-180S-2 PTC RESET FUSE 100V 180MA RADIAL Littelfuse Inc.	2,332	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	PolySwitch®, TRF250	Obsolete	Polymeric	100V (250V Int)	10 A	180 mA	650 mA	2 s	800 mOhms	4 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.354 Dia x 0.150 T (9.00mm x 3.80mm)	0.453 (11.50mm)	-

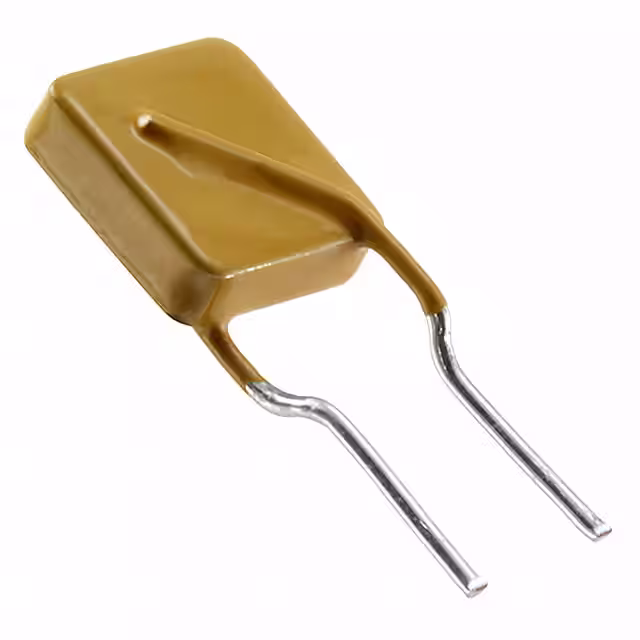

TRF600-150-R2-B-0.5 PTC RESET FUSE 250V 150MA RADIAL Littelfuse Inc.	2,703	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, TRF600	Obsolete	Polymeric	250V (600V Int)	3 A	150 mA	300 mA	3 s	7 Ohms	17 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.354 L x 0.181 W (9.00mm x 4.60mm)	0.492 (12.50mm)	-
TRF600-150-RB-2 PTC RESET FUSE 250V 150MA RADIAL Littelfuse Inc.	2,521	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	PolySwitch®, TRF600	Obsolete	Polymeric	250V (600V Int)	40 A	150 mA	300 mA	3 s	9 Ohms	22 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.354 L x 0.181 W (9.00mm x 4.60mm)	0.492 (12.50mm)	-
TRF600-160RAB0.5 POLYSWITCH PTC RESET 0.16A HOLD Littelfuse Inc.	2,495	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®	Active	-	250V	3 A	160 mA	320 mA	18 s	-	-	-	-	-	Through Hole	0.630 L x 0.236 W (16.00mm x 6.00mm)	0.496 (12.60mm)	-
TS250-130F-RC-2 PTC RESET FUSE 60V 130MA 2SMD Littelfuse Inc.	2,914	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR)	PolySwitch®, TS250	Active	Polymeric	60V (600V Int)	1 A	130 mA	260 mA	2 s	7 Ohms	17 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.352 L x 0.291 W (8.95mm x 7.40mm)	-	0.134 (3.40mm)
VLP270XUF PTC RESET FUSE 16V 2.7A STRAP Littelfuse Inc.	3,084	-	RFQ	Datasheet	Strap	Bulk	PolySwitch®, VLP	Discontinued at Mosen	Polymeric	16V	60 A	2.7 A	6.5 A	5 s	12 mOhms	36 mOhms	-	-40°C ~ 85°C	-	User Defined	0.866 L x 0.201 W (22.00mm x 5.10mm)	-	0.032 (0.80mm)
VLR110ULF PTC RESET FUSE 12V 1.1A STRAP Littelfuse Inc.	2,678	-	RFQ	Datasheet	Strap	Bulk	PolySwitch®, VLR	Discontinued at Mosen	Polymeric	12V	100 A	1.1 A	-	5 s	-	-	-	-	-	User Defined	0.866 L x 0.142 W (22.00mm x 3.60mm)	-	0.028 (0.70mm)
VLR170U-C30F PTC RESET FUSE 12V 1.7A STRAP Littelfuse Inc.	2,137	-	RFQ	Datasheet	Strap	Bulk	PolySwitch®, VLR	Obsolete	Polymeric	12V	100 A	1.7 A	4.1 A	5 s	18 mOhms	64 mOhms	-	-40°C ~ 70°C	-	User Defined	0.866 L x 0.142 W (22.00mm x 3.60mm)	-	0.032 (0.80mm)
VLR170ULAF PTC RESET FUSE 12V 1.7A STRAP Littelfuse Inc.	2,650	-	RFQ	Datasheet	Strap	Bulk	PolySwitch®, VLR	Discontinued at Mosen	Polymeric	12V	100 A	1.7 A	4.1 A	5 s	18 mOhms	64 mOhms	-	-40°C ~ 70°C	-	User Defined	0.866 L x 0.142 W (22.00mm x 3.60mm)	-	0.032 (0.80mm)
