Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
MF-SMHT160-2-6 PTC RESET FUSE 16V 1.6A 2SMD Bourns Inc.	2,437	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR)	Multifuse®, MF-SMHT	Active	Polymeric	16V	100 A	1.6 A	3.2 A	10 s	50 mOhms	150 mOhms	-	-40°C ~ 125°C	AEC-Q200	Surface Mount	0.374 L x 0.234 W (9.50mm x 5.94mm)	-	0.118 (3.00mm)
PRG18BB470MS1RB PTC RESET FUSE 16V 29MA 0603 Murata Electronics	2,258	-	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR)	POSISTOR®, PRG	Not For New Designs	Ceramic	16V	420 mA	29 mA	61 mA	-	-	-	47 Ohms	-20°C ~ 85°C	-	Surface Mount	0.063 L x 0.032 W (1.60mm x 0.80mm)	-	0.037 (0.95mm)
PRG18BB471MS1RB PTC RESET FUSE 16V 10MA 0603 Murata Electronics	3,979	-	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR)	POSISTOR®, PRG	Not For New Designs	Ceramic	16V	40 mA	10 mA	21 mA	-	-	-	470 Ohms	-20°C ~ 85°C	-	Surface Mount	0.063 L x 0.032 W (1.60mm x 0.80mm)	-	0.037 (0.95mm)
PTGL04AR130H2B51A0 PTC RESET FUSE 30V 180MA RADIAL Murata Electronics	3,122	-	RFQ	Datasheet	Radial, Disc	Tape & Box (TB)	POSISTOR®, PTGL	Obsolete	-	30V	700 mA	180 mA	350 mA	-	-	-	-	-	-	Through Hole	0.217 Dia x 0.157 W (5.50mm x 4.00mm)	0.453 (11.50mm)	-

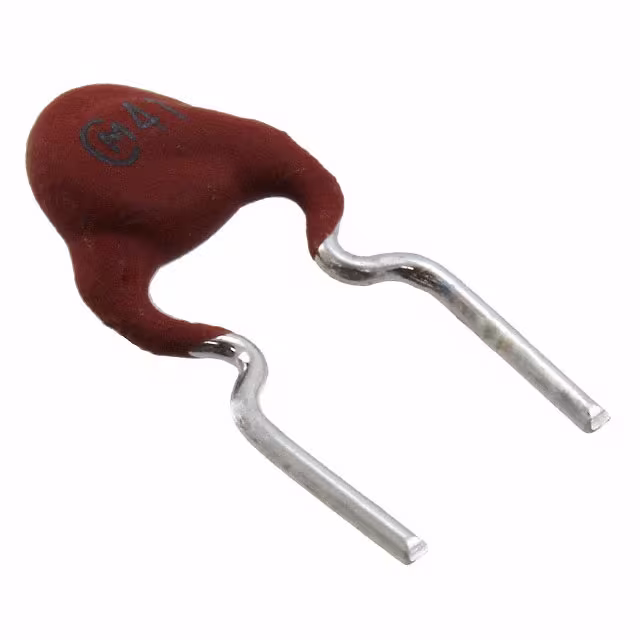

PTGL04AR130H2B51B0 PTC RESET FUSE 30V 180MA RADIAL Murata Electronics	3,673	-	RFQ	Datasheet	Radial, Disc	Bulk	POSISTOR®, PTGL	Obsolete	Ceramic	30V	700 mA	180 mA	350 mA	-	-	-	13 Ohms	-10°C ~ 60°C	-	Through Hole	0.217 Dia x 0.157 W (5.50mm x 4.00mm)	0.453 (11.50mm)	-
PTGL04AS100K2B51A0 PTC RESET FUSE 30V 212MA RADIAL Murata Electronics	2,997	-	RFQ	Datasheet	Radial, Disc	Tape & Box (TB)	POSISTOR®, PTGL	Obsolete	Ceramic	30V	2 A	212 mA	282 mA	-	-	-	10 Ohms	-30°C ~ 85°C	-	Through Hole	0.177 Dia x 0.138 T (4.50mm x 3.50mm)	0.551 (14.00mm)	-
PTGL04AS100K2N51A0 PTC RESET FUSE 30V 154MA RADIAL Murata Electronics	3,967	-	RFQ	Datasheet	Radial, Disc	Tape & Box (TB)	POSISTOR®, PTGL	Obsolete	Ceramic	30V	1.5 A	154 mA	205 mA	-	-	-	10 Ohms	-30°C ~ 85°C	-	Through Hole	0.177 Dia x 0.138 T (4.50mm x 3.50mm)	0.551 (14.00mm)	-
PTGL04AS100K3B51A0 PTC RESET FUSE 51V 213MA RADIAL Murata Electronics	2,843	-	RFQ	Datasheet	Radial, Disc	Tape & Box (TB)	POSISTOR®, PTGL	Obsolete	Ceramic	51V	1 A	213 mA	283 mA	-	-	-	10 Ohms	-30°C ~ 85°C	-	Through Hole	0.177 Dia x 0.138 T (4.50mm x 3.50mm)	0.551 (14.00mm)	-
PTGL04AS220K4B51A0 PTC RESET FUSE 60V 145MA RADIAL Murata Electronics	2,315	-	RFQ	Datasheet	Radial, Disc	Tape & Box (TB)	POSISTOR®, PTGL	Obsolete	Ceramic	60V	1 A	145 mA	193 mA	-	-	-	22 Ohms	-30°C ~ 85°C	-	Through Hole	0.177 Dia x 0.138 T (4.50mm x 3.50mm)	0.551 (14.00mm)	-
PTGL04AS220K4N51A0 PTC RESET FUSE 60V 112MA RADIAL Murata Electronics	3,045	-	RFQ	Datasheet	Radial, Disc	Tape & Box (TB)	POSISTOR®, PTGL	Obsolete	Ceramic	60V	1 A	112 mA	149 mA	-	-	-	22 Ohms	-30°C ~ 85°C	-	Through Hole	0.177 Dia x 0.138 T (4.50mm x 3.50mm)	0.551 (14.00mm)	-
PTGL05AR121M9N51A0 PTC RESET FUSE 265V 47MA RADIAL Murata Electronics	2,281	-	RFQ	Datasheet	Radial, Disc	Tape & Box (TB)	Posistor®	Obsolete	Ceramic	265V	300 mA	47 mA	75 mA	-	-	-	120 Ohms	-20°C ~ 60°C	-	Through Hole	0.256 Dia x 0.256 W (6.50mm x 6.50mm)	0.551 (14.00mm)	-

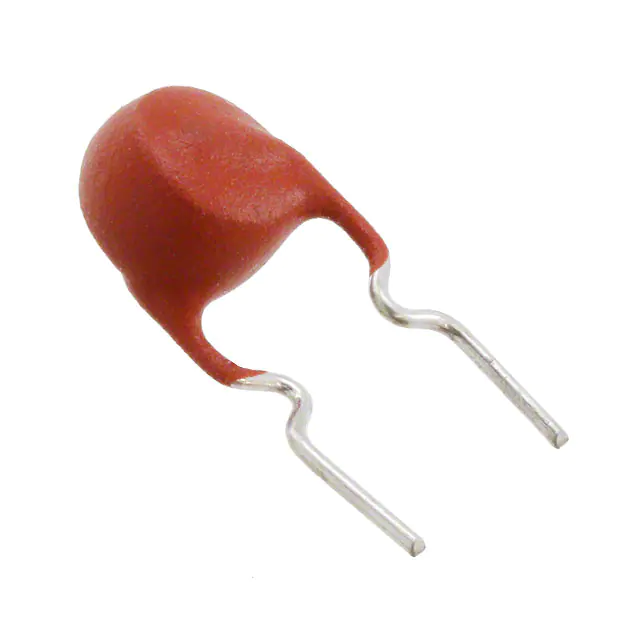

PTGL05AR121M9N51B0 PTC RESET FUSE 265V 47MA RADIAL Murata Electronics	2,268	-	RFQ	Datasheet	Radial, Disc	Bulk	POSISTOR®, PTGL	Obsolete	Ceramic	265V	300 mA	47 mA	75 mA	-	-	-	120 Ohms	-10°C ~ 60°C	-	Through Hole	0.256 Dia x 0.256 T (6.50mm x 6.50mm)	0.512 (13.00mm)	-
PTGL05AR151H8P52A0 PTC RESET FUSE 265V 35MA RADIAL Murata Electronics	2,496	-	RFQ	Datasheet	Radial, Disc	Tape & Box (TB)	POSISTOR®, PTGL	Obsolete	Ceramic	265V	200 mA	35 mA	65 mA	-	-	-	150 Ohms	-10°C ~ 60°C	-	Through Hole	0.236 Dia x 0.236 T (6.00mm x 6.00mm)	0.472 (12.00mm)	-
PTGL05AR151H8P52B0 PTC RESET FUSE 265V 35MA RADIAL Murata Electronics	3,680	-	RFQ	Datasheet	Radial, Disc	Bulk	POSISTOR®, PTGL	Obsolete	Ceramic	265V	200 mA	35 mA	65 mA	-	-	-	150 Ohms	-10°C ~ 60°C	-	Through Hole	0.236 Dia x 0.236 T (6.00mm x 6.00mm)	0.472 (12.00mm)	-
PTGL05AR181M7P52A0 PTC RESET FUSE 125V 38MA RADIAL Murata Electronics	2,909	-	RFQ	Datasheet	Radial, Disc	Tape & Box (TB)	POSISTOR®, PTGL	Obsolete	Ceramic	125V	300 mA	38 mA	64 mA	-	-	-	180 Ohms	-10°C ~ 60°C	-	Through Hole	0.236 Dia x 0.197 T (6.00mm x 5.00mm)	0.472 (12.00mm)	-
PTGL05AR181M7P52B0 PTC RESET FUSE 125V 38MA RADIAL Murata Electronics	3,505	-	RFQ	Datasheet	Radial, Disc	Bulk	POSISTOR®, PTGL	Obsolete	Ceramic	125V	300 mA	38 mA	64 mA	-	-	-	180 Ohms	-10°C ~ 60°C	-	Through Hole	0.236 Dia x 0.197 T (6.00mm x 5.00mm)	0.472 (12.00mm)	-

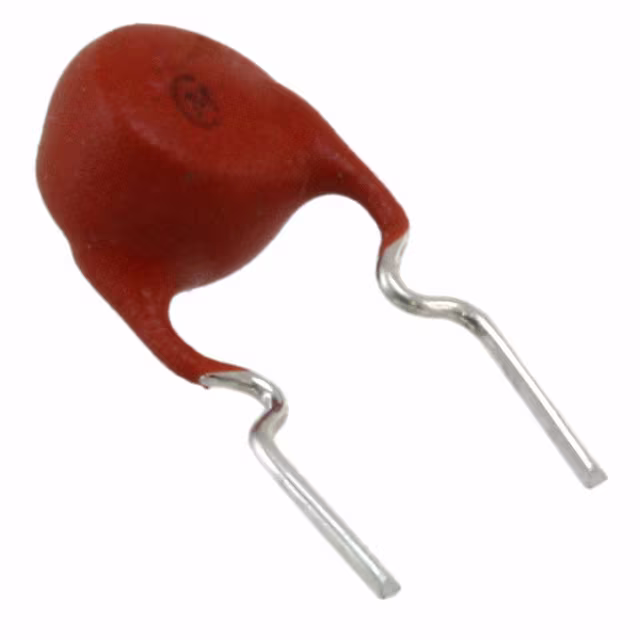

PTGL05AR181M9N51B0 PTC RESET FUSE 265V 37MA RADIAL Murata Electronics	2,797	-	RFQ	Datasheet	Radial, Disc	Bulk	POSISTOR®, PTGL	Obsolete	Ceramic	265V	300 mA	37 mA	60 mA	-	-	-	180 Ohms	-10°C ~ 60°C	-	Through Hole	0.256 Dia x 0.256 T (6.50mm x 6.50mm)	0.492 (12.50mm)	-
PTGL05AR181M9N52A0 PTC RESET FUSE 265V 180OHM 120C Murata Electronics	3,473	-	RFQ	Datasheet	Radial, Disc	Tape & Box (TB)	Posistor®	Obsolete	Ceramic	-	-	-	-	-	-	-	18.1 Ohms	-	-	Through Hole	-	-	-
PTGL05AR181M9N52B0 THERMISTOR PTC 265V 180 OHM 120C Murata Electronics	2,971	-	RFQ	Datasheet	Radial, Disc	Bulk	Posistor®	Obsolete	Ceramic	-	-	-	-	-	-	-	18.1 Ohms	-	-	Through Hole	-	-	-
PTGL05AR331M7A52B0 PTC RESET FUSE 330OHM 120C Murata Electronics	2,436	-	RFQ	Datasheet	Radial, Disc	Bulk	Posistor®	Obsolete	Ceramic	-	-	-	-	-	-	-	330 mOhms	-	-	Through Hole	-	-	-
