Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
MF-SM200-2 PTC RESET FUSE 15V 2A 2SMD Bourns Inc.	26,853	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-SM	Active	Polymeric	15V	100 A	2 A	4 A	12 s	45 mOhms	125 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.344 L x 0.264 W (8.75mm x 6.71mm)	-	0.118 (3.00mm)
NANOSMDC110F-2 PTC RESET FUSE 6V 1.1A 1206 Littelfuse Inc.	51,780	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, nanoSMD	Active	Polymeric	6V	100 A	1.1 A	2.2 A	100 ms	70 mOhms	200 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.59mm)	-	0.026 (0.67mm)
MICROSMD050F-2 PTC RESET FUSE 13.2V 500MA 1210 Littelfuse Inc.	5,425	-	RFQ	Datasheet	1210 (3225 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, microSMD	Active	Polymeric	13.2V	40 A	500 mA	1 A	50 ms	250 mOhms	900 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.127 L x 0.102 W (3.22mm x 2.58mm)	-	0.024 (0.62mm)
NANOSMDC020F-2 PTC RESET FUSE 24V 200MA 1206 Littelfuse Inc.	63,619	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, nanoSMDC020F	Active	Polymeric	24V	100 A	200 mA	420 mA	0.1 s	650 mOhms	3.1 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.59mm)	-	0.028 (0.70mm)

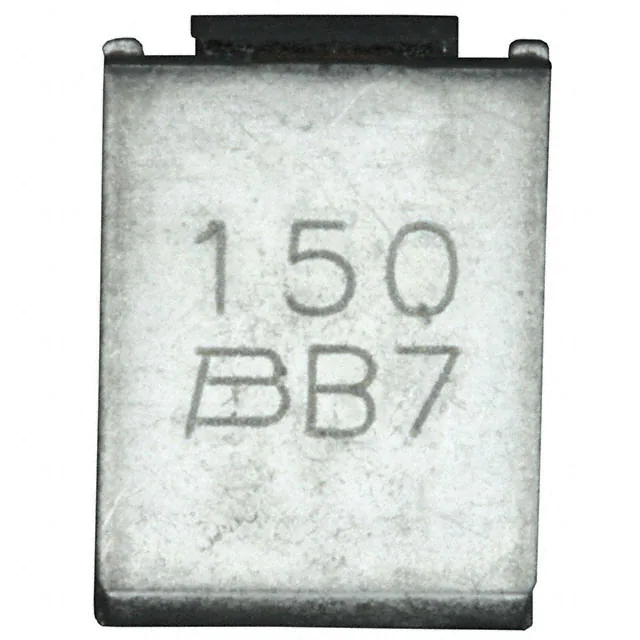

MF-SM150/33-2 PTC RESET FUSE 33V 1.5A 2SMD Bourns Inc.	48,400	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-SM	Active	Polymeric	33V	40 A	1.5 A	3 A	5 s	60 mOhms	230 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.344 L x 0.264 W (8.75mm x 6.71mm)	-	0.118 (3.00mm)
NANOSMDC050F/13.2-2 PTC RESET FUSE 13.2V 500MA 1206 Littelfuse Inc.	61,890	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, nanoSMD	Active	Polymeric	13.2V	100 A	500 mA	1.1 A	100 ms	200 mOhms	-	-	-	-	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.60mm)	-	0.029 (0.74mm)
NANOSMDC035F-2 PTC RESET FUSE 16V 350MA 1206 Littelfuse Inc.	10,405	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, nanoSMD	Active	Polymeric	16V	20 A	350 mA	750 mA	100 ms	450 mOhms	1.35 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.59mm)	-	0.032 (0.82mm)
MINISMDC030F-2 PTC RESET FUSE 30V 300MA 1812 Littelfuse Inc.	22,318	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, miniSMD	Active	Polymeric	30V	40 A	300 mA	600 mA	100 ms	200 mOhms	1.75 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.035 (0.89mm)
RXEF050-2 PTC RESET FUSE 72V 500MA RADIAL Littelfuse Inc.	91,853	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	500 mA	1 A	4 s	500 mOhms	1.17 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.311 Dia x 0.118 T (7.90mm x 3.00mm)	0.539 (13.70mm)	-
MINISMDC260F-2 PTC RESET FUSE 6V 2.6A 1812 Littelfuse Inc.	24,784	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, miniSMD	Active	Polymeric	6V	100 A	2.6 A	5 A	5 s	15 mOhms	43 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.031 (0.78mm)
MF-MSMF110/24X-2 PTC RESET FUSE 24V 1.1A 1812 Bourns Inc.	40,459	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-MSMF	Active	Polymeric	24V	20 A	1.1 A	2.2 A	500 ms	60 mOhms	180 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.181 L x 0.128 W (4.60mm x 3.24mm)	-	0.033 (0.85mm)
SMD100F-2 PTC RESET FUSE 30V 1.1A 2SMD Littelfuse Inc.	133,210	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, SMD	Active	Polymeric	30V	40 A	1.1 A	2.2 A	500 ms	120 mOhms	480 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	0.118 (3.00mm)
1206L012WR PTC RESET FUSE 30V 125MA 1206 Littelfuse Inc.	189,234	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 1206L	Active	Polymeric	30V	100 A	125 mA	290 mA	200 ms	1.5 Ohms	6 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	0.057 (1.45mm)
1206L016WR PTC RESET FUSE 30V 160MA 1206 Littelfuse Inc.	169,365	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 1206L	Active	Polymeric	30V	100 A	160 mA	370 mA	300 ms	1.2 Ohms	4.5 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	0.057 (1.45mm)
1206L050/15YR PTC RESET FUSE 15V 500MA 1206 Littelfuse Inc.	120,604	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 1206L	Active	Polymeric	15V	100 A	500 mA	1 A	100 ms	150 mOhms	750 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	0.030 (0.75mm)
1206L035/16YR PTC RESET FUSE 16V 350MA 1206 Littelfuse Inc.	116,773	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 1206L	Active	Polymeric	16V	100 A	350 mA	750 mA	100 ms	300 mOhms	1.2 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	0.030 (0.75mm)
1206L025YR PTC RESET FUSE 16V 250MA 1206 Littelfuse Inc.	96,869	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 1206L	Active	Polymeric	16V	100 A	250 mA	500 mA	80 ms	550 mOhms	2.3 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	0.039 (1.00mm)
1206L050YR PTC RESET FUSE 6V 500MA 1206 Littelfuse Inc.	76,937	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 1206L	Active	Polymeric	6V	100 A	500 mA	1 A	100 ms	150 mOhms	700 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	0.030 (0.75mm)
1206L075THYR PTC RESET FUSE 8V 750MA 1206 Littelfuse Inc.	49,919	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 1206L	Active	Polymeric	8V	100 A	750 mA	1.5 A	200 ms	90 mOhms	290 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	0.030 (0.75mm)
1206L020YR PTC RESET FUSE 24V 200MA 1206 Littelfuse Inc.	45,120	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 1206L	Active	Polymeric	24V	100 A	200 mA	420 mA	100 ms	650 mOhms	2.6 Ohms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	0.039 (1.00mm)
