Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
PFNF.050.2 PTC RESET FUSE 13.2V 500MA 1206 SCHURTER Inc.	2,795	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PFNF	Active	Polymeric	13.2V	100 A	500 mA	1 A	100 ms	150 mOhms	700 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.60mm)	-	0.033 (0.85mm)
PFUF.035.2 PTC RESET FUSE 6V 350MA 1210 SCHURTER Inc.	2,560	-	RFQ	Datasheet	1210 (3225 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PFUF	Active	Polymeric	6V	40 A	350 mA	750 mA	200 ms	200 mOhms	1.3 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.127 L x 0.102 W (3.22mm x 2.58mm)	-	0.028 (0.70mm)
PFNF.150.2 PTC RESET FUSE 6V 1.5A 1206 SCHURTER Inc.	2,289	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PFNF	Active	Polymeric	6V	100 A	1.5 A	3 A	1 s	30 mOhms	130 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.60mm)	-	0.028 (0.70mm)
PFNF.075.2 PTC RESET FUSE 6V 750MA 1206 SCHURTER Inc.	1,316	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PFNF	Active	Polymeric	6V	100 A	750 mA	1.5 A	100 ms	100 mOhms	400 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.60mm)	-	0.028 (0.70mm)
PFUF.010.2 PTC RESET FUSE 30V 100MA 1210 SCHURTER Inc.	1,285	-	RFQ	Datasheet	1210 (3225 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PFUF	Active	Polymeric	30V	10 A	100 mA	300 mA	600 ms	800 mOhms	15 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.127 L x 0.093 W (3.22mm x 2.35mm)	-	0.037 (0.95mm)
PFUF.050.2 PTC RESET FUSE 13.2V 500MA 1210 SCHURTER Inc.	1,265	-	RFQ	Datasheet	1210 (3225 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PFUF	Active	Polymeric	13.2V	40 A	500 mA	1 A	100 ms	180 mOhms	900 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.127 L x 0.102 W (3.22mm x 2.58mm)	-	0.028 (0.70mm)
PFNF.035.2 PTC RESET FUSE 6V 350MA 1206 SCHURTER Inc.	1,040	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PFNF	Active	Polymeric	6V	100 A	350 mA	750 mA	100 ms	300 mOhms	1.2 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.60mm)	-	0.033 (0.85mm)
PFSM.100.2 PTC RESET FUSE 30V 1.1A 2SMD SCHURTER Inc.	1,200	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	PFSM	Active	Polymeric	30V	80 A	1.1 A	2.2 A	500 ms	120 mOhms	480 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.289 L x 0.214 W (7.36mm x 5.44mm)	-	0.118 (3.00mm)
PFSM.150.33.2 PTC RESET FUSE 33V 1.5A 2SMD SCHURTER Inc.	1,188	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	PFSM	Active	Polymeric	33V	40 A	1.5 A	3 A	5 s	60 mOhms	230 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.344 L x 0.264 W (8.75mm x 6.71mm)	-	0.118 (3.00mm)

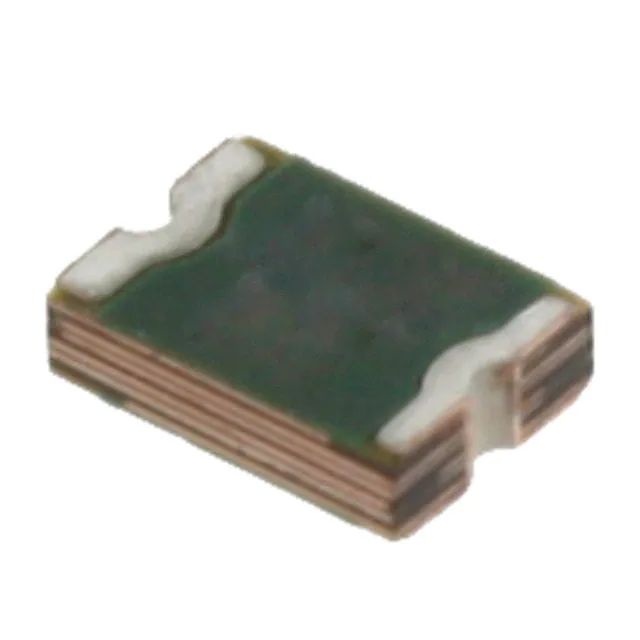

MINISMDC260F/16-2 PTC RESET FUSE 16V 2.6A 1812 Littelfuse Inc.	117	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, miniSMD	Active	Polymeric	16V	100 A	2.6 A	5 A	5 s	15 mOhms	50 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.181 L x 0.128 W (4.60mm x 3.24mm)	-	0.060 (1.52mm)
SRP120F PTC RESET FUSE 15V 1.2A STRAP Littelfuse Inc.	739	-	RFQ	Datasheet	Strap	Bulk	PolySwitch®, SRP	Active	Polymeric	15V	100 A	1.2 A	2.7 A	5 s	85 mOhms	220 mOhms	-	-40°C ~ 85°C	-	User Defined	0.827 L x 0.199 W (21.00mm x 5.05mm)	-	0.039 (1.00mm)
MF-R700 PTC RESET FUSE 30V 7A RADIAL Bourns Inc.	3,694	-	RFQ	Datasheet	Radial, Disc	Bulk	Multifuse®, MF-R	Active	Polymeric	30V	40 A	7 A	14 A	17.5 s	5 mOhms	30 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.870 L x 0.118 W (22.10mm x 3.00mm)	1.173 (29.80mm)	-
TRF600-150 PTC RESET FUSE 250V 150MA RADIAL Littelfuse Inc.	681	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, TRF600	Active	Polymeric	250V (600V Int)	40 A	150 mA	300 mA	4 s	6 Ohms	17 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.354 L x 0.181 W (9.00mm x 4.60mm)	0.492 (12.50mm)	-
PTR016V0300-BK PTC RESET FUSE 16V 3A RADIAL Eaton - Electronics Division	293	-	RFQ	Datasheet	Radial, Disc	Bulk	PTR016V	Active	Polymeric	16V	100 A	3 A	5.1 A	1 s	38 mOhms	98 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.280 L x 0.122 W (7.10mm x 3.10mm)	0.433 (11.00mm)	-

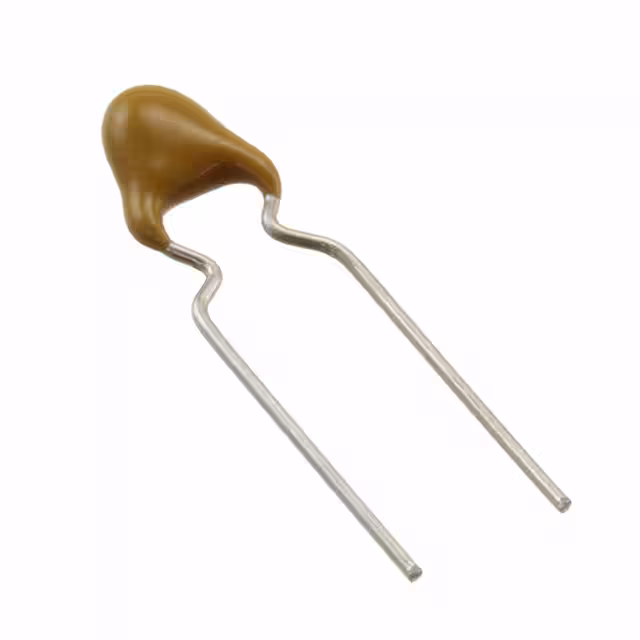

0ZRR0010FF1E PTC RESET FUSE 60V 100MA RADIAL Bel Fuse Inc.	635	-	RFQ	Datasheet	Radial, Disc	Bulk	0ZRR	Active	Polymeric	60V	40 A	100 mA	200 mA	4 s	2.5 Ohms	7.5 Ohms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.291 Dia x 0.122 T (7.40mm x 3.10mm)	0.500 (12.70mm)	-

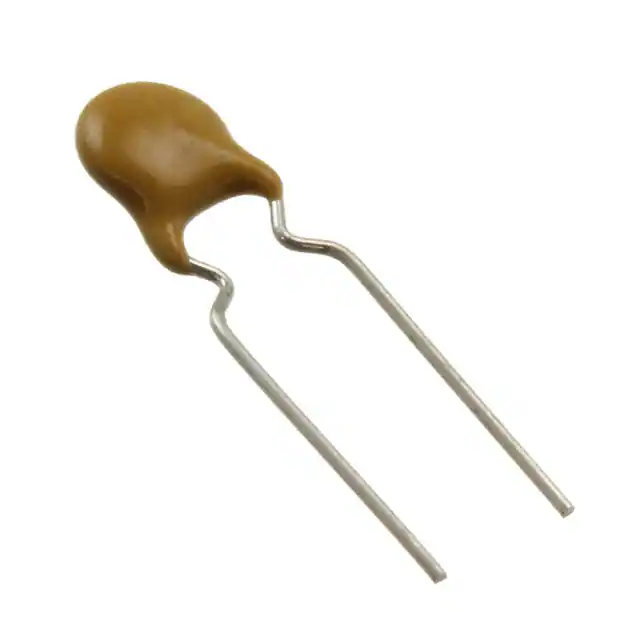

0ZRR0025FF1E PTC RESET FUSE 60V 250MA RADIAL Bel Fuse Inc.	215	-	RFQ	Datasheet	Radial, Disc	Bulk	0ZRR	Active	Polymeric	60V	40 A	250 mA	500 mA	2.5 s	1.25 Ohms	3 Ohms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.291 Dia x 0.122 T (7.40mm x 3.10mm)	0.500 (12.70mm)	-
MF-R040 PTC RESET FUSE 60V 400MA RADIAL Bourns Inc.	738	-	RFQ	Datasheet	Radial, Disc	Bulk	Multifuse®, MF-R	Active	Polymeric	60V	40 A	400 mA	800 mA	3.8 s	520 mOhms	1.29 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.122 T (7.40mm x 3.10mm)	0.539 (13.70mm)	-
0ZRG0155FF1E PTC RESET FUSE 30V 1.55A RADIAL Bel Fuse Inc.	675	-	RFQ	Datasheet	Radial, Disc	Bulk	0ZRG	Active	Polymeric	30V	40 A	1.55 A	2.7 A	2.2 s	30 mOhms	120 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.272 Dia x 0.118 T (6.90mm x 3.00mm)	0.461 (11.70mm)	-

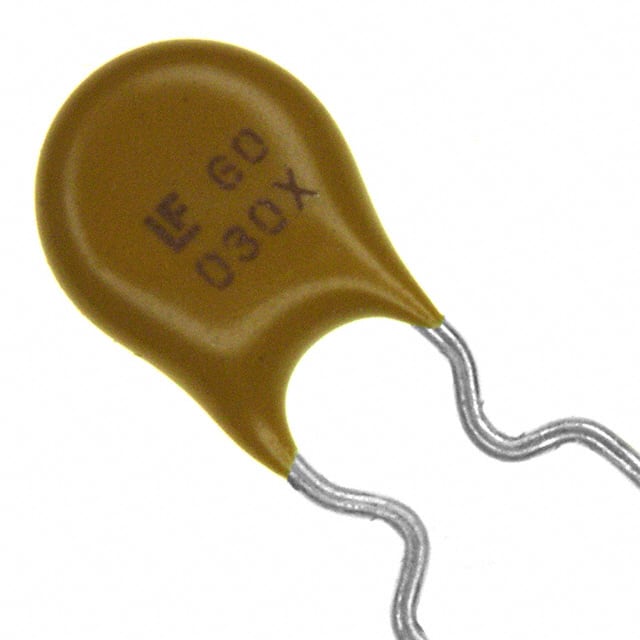

60R030XU PTC RESET FUSE 60V 300MA RADIAL Littelfuse Inc.	167	-	RFQ	Datasheet	Radial, Disc	Bulk	POLY-FUSE®, 60R	Active	Polymeric	60V	40 A	300 mA	600 mA	3 s	880 mOhms	2.1 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.122 T (7.40mm x 3.10mm)	0.500 (12.70mm)	-

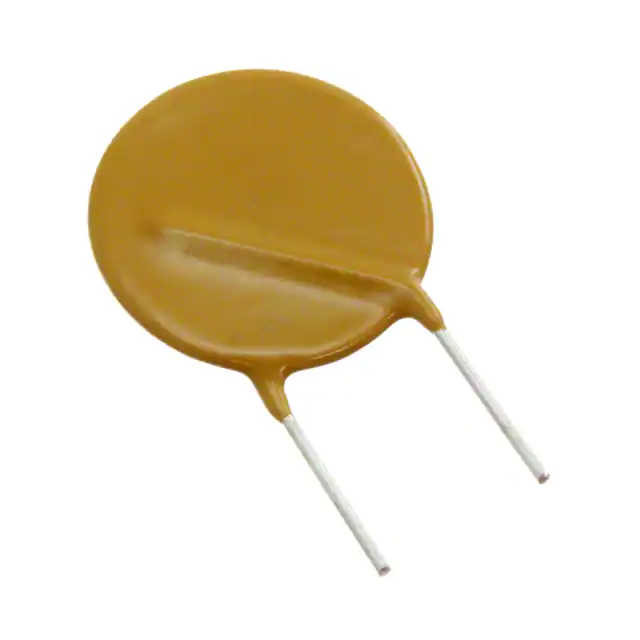

0ZRR0250FF1A PTC RESET FUSE 60V 2.5A RADIAL Bel Fuse Inc.	578	-	RFQ	Datasheet	Radial, Disc	Bulk	0ZRR	Active	Polymeric	60V	40 A	2.5 A	5 A	15.6 s	50 mOhms	130 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.839 Dia x 0.122 T (21.30mm x 3.10mm)	1.039 (26.40mm)	-
