Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
TRF600-150S PTC RESET FUSE 250V 150MA RADIAL Littelfuse Inc.	620	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, TRF600	Active	Polymeric	250V (600V Int)	40 A	150 mA	300 mA	4 s	6 Ohms	17 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.354 L x 0.181 W (9.00mm x 4.60mm)	0.492 (12.50mm)	-
AGRF1100 PTC RESET FUSE 16V 11A RADIAL Littelfuse Inc.	537	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, AGRF	Active	Polymeric	16V	100 A	11 A	20.3 A	7.5 s	3.3 mOhms	8.9 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.689 L x 0.118 W (17.50mm x 3.00mm)	1.043 (26.50mm)	-
TR600-150F-EX PTC RESET FUSE 250V 150MA RADIAL Littelfuse Inc.	490	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, TR600	Active	Polymeric	250V (600V Int)	40 A	150 mA	300 mA	8 s	6 Ohms	22 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.532 L x 0.236 W (13.50mm x 6.00mm)	0.496 (12.60mm)	-
B59960C0130A070 PTC RESET FUSE 80V 250MA RADIAL EPCOS - TDK Electronics	421	-	RFQ	Datasheet	Radial, Disc	Bulk	Automotive, AEC-Q200	Active	Ceramic	80V	3 A	250 mA	380 mA	-	-	-	8 Ohms	-40°C ~ 125°C	-	Through Hole	0.354 Dia x 0.138 T (9.00mm x 3.50mm)	0.492 (12.50mm)	-
TRF600-150-RB PTC RESET FUSE 250V 150MA RADIAL Littelfuse Inc.	145	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, TRF600	Active	Polymeric	250V (600V Int)	40 A	150 mA	300 mA	3 s	9 Ohms	22 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.354 L x 0.181 W (9.00mm x 4.60mm)	0.492 (12.50mm)	-
B59860C0130A070 PTC RESET FUSE 265V 140MA RADIAL EPCOS - TDK Electronics	1,000	-	RFQ	Datasheet	Radial, Disc	Bulk	-	Active	Ceramic	265V	1 A	140 mA	230 mA	-	-	-	25 Ohms	0°C ~ 60°C	-	Through Hole	0.354 Dia x 0.197 T (9.00mm x 5.00mm)	0.492 (12.50mm)	-
LVR125K-240 PTC RESET FUSE Littelfuse Inc.	238	-	RFQ	Datasheet	Radial, Disc	Bulk	LVR	Active	Polymeric	240V (265V Int)	12.5 A	1.25 A	2.5 A	23 s	165 mOhms	440 mOhms	253 mOhms	-20°C ~ 85°C	-	Through Hole	0.835 Dia (21.20mm)	1.252 (31.80mm)	-
AHRF1300 PTC RESET FUSE 16V 13A RADIAL Littelfuse Inc.	250	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, AHRF	Active	Polymeric	16V	100 A	13 A	27 A	15 s	3.4 mOhms	10 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.925 L x 0.138 W (23.50mm x 3.50mm)	1.130 (28.70mm)	-
B59850C0080A070 PTC RESET FUSE 265V 110MA RADIAL EPCOS - TDK Electronics	518	-	RFQ	Datasheet	Radial, Disc	Bulk	-	Active	Ceramic	265V	2.2 A	110 mA	230 mA	-	-	-	10 Ohms	0°C ~ 60°C	-	Through Hole	0.532 Dia x 0.197 T (13.50mm x 5.00mm)	0.669 (17.00mm)	-
B59850C0120A070 PTC RESET FUSE 265V 200MA RADIAL EPCOS - TDK Electronics	472	-	RFQ	Datasheet	Radial, Disc	Bulk	-	Active	Ceramic	265V	2.2 A	200 mA	400 mA	-	-	-	10 Ohms	0°C ~ 60°C	-	Through Hole	0.532 Dia x 0.197 T (13.50mm x 5.00mm)	0.669 (17.00mm)	-
LVR200K-240 PTC RESET FUSE Littelfuse Inc.	232	-	RFQ	Datasheet	Radial, Disc	Bulk	LVR	Active	Polymeric	240V (265V Int)	20 A	2 A	4 A	28 s	89 mOhms	221 mOhms	131 mOhms	-20°C ~ 85°C	-	Through Hole	0.980 L x 0.161 W (24.90mm x 4.10mm)	1.370 (34.80mm)	-

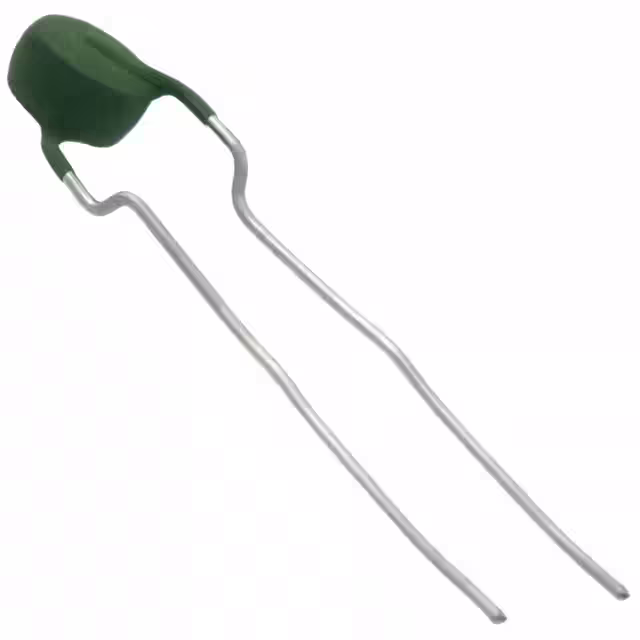

YQD100N1000 PTC RESET FUSE 265V 15MA RADIAL Amphenol Thermometrics	612	-	RFQ	Datasheet	Radial, Disc	Bulk	YQ	Active	Ceramic	265V	200 mA	15 mA	30 mA	-	-	-	1 kOhms	0°C ~ 60°C	-	Through Hole	0.256 Dia x 0.197 T (6.50mm x 5.00mm)	-	-
YQS5934PTO PTC RESET FUSE 480V RADIAL DISC Amphenol Thermometrics	2,938	-	RFQ	Datasheet	Radial, Disc	Bulk	PTO	Active	Ceramic	480V	-	-	-	-	-	-	5 kOhms	10°C ~ 55°C	-	Through Hole	0.350 Dia x 0.300 T (8.89mm x 7.62mm)	0.350 (8.89mm)	-
B59830C0120A070 PTC RESET FUSE 265V 460MA RADIAL EPCOS - TDK Electronics	618	-	RFQ	Datasheet	Radial, Disc	Bulk	-	Active	Ceramic	265V	7 A	460 mA	920 mA	-	-	-	3.7 Ohms	0°C ~ 60°C	-	Through Hole	0.866 Dia x 0.197 T (22.00mm x 5.00mm)	1.004 (25.50mm)	-
LVB125 PTC RESET FUSE 240V 1.25A RADIAL Littelfuse Inc.	2,050	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®, LVB	Active	Polymeric	240V	12.5 A	1.25 A	2.5 A	5 s	152 mOhms	482 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.984 L x 0.175 W (25.00mm x 4.40mm)	1.071 (27.20mm)	-

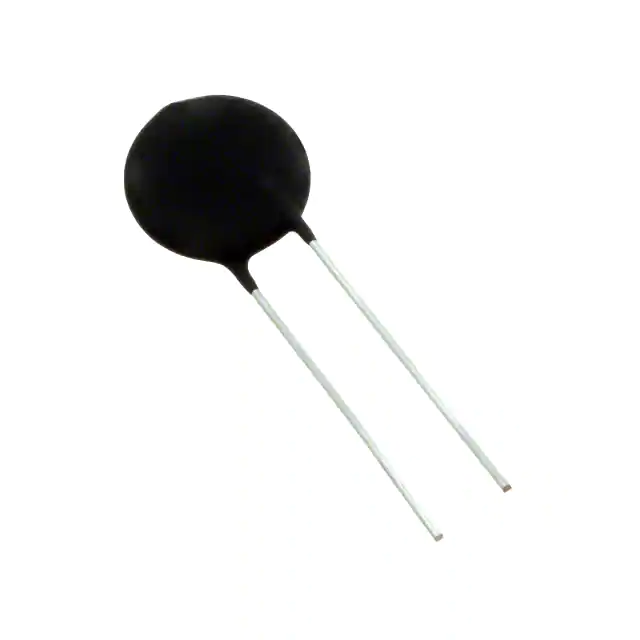

CL20 7R0120 PTC RESET FUSE 350V 850MA RADIAL Ametherm	556	-	RFQ	Datasheet	Radial, Disc	Bulk	-	Active	-	350V	-	850 mA	1.6 A	-	-	-	7 Ohms	-	-	Through Hole	0.827 Dia x 0.236 T (21.00mm x 6.00mm)	-	-
PTR060V0017-BK PTC RESET FUSE 60V 170MA RADIAL Eaton - Electronics Division	879	-	RFQ	Datasheet	Radial, Disc	Bulk	PTR060V	Active	Polymeric	60V	40 A	170 mA	340 mA	3 s	3.3 Ohms	8 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.118 T (7.40mm x 3.00mm)	0.500 (12.70mm)	-
PTR060V0030-BK PTC RESET FUSE 60V 300MA RADIAL Eaton - Electronics Division	353	-	RFQ	Datasheet	Radial, Disc	Bulk	PTR060V	Active	Polymeric	60V	40 A	300 mA	600 mA	3 s	880 mOhms	2.1 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.118 T (7.40mm x 3.00mm)	0.512 (13.00mm)	-
PTR016V0400-BK PTC RESET FUSE 16V 4A RADIAL Eaton - Electronics Division	342	-	RFQ	Datasheet	Radial, Disc	Bulk	PTR016V	Active	Polymeric	16V	100 A	4 A	6.8 A	1.7 s	21 mOhms	60 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.350 L x 0.122 W (8.90mm x 3.10mm)	0.504 (12.80mm)	-

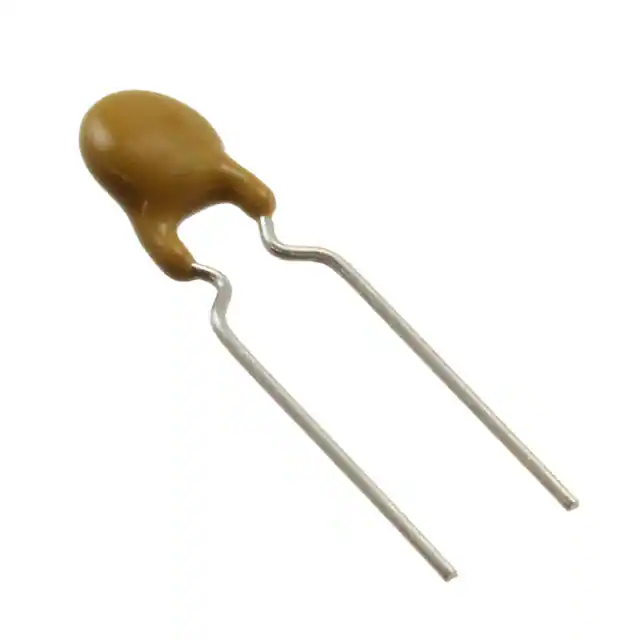

0ZRR0017FF1E PTC RESET FUSE 60V 170MA RADIAL Bel Fuse Inc.	310	-	RFQ	Datasheet	Radial, Disc	Bulk	0ZRR	Active	Polymeric	60V	40 A	170 mA	340 mA	3 s	2 Ohms	8 Ohms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.291 Dia x 0.122 T (7.40mm x 3.10mm)	0.500 (12.70mm)	-
