Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
AHRF300 PTC RESET FUSE 16V 3A RADIAL Littelfuse Inc.	300	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, AHRF	Active	Polymeric	16V	100 A	3 A	6.5 A	5 s	29 mOhms	79 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.346 L x 0.118 W (8.80mm x 3.00mm)	0.543 (13.80mm)	-

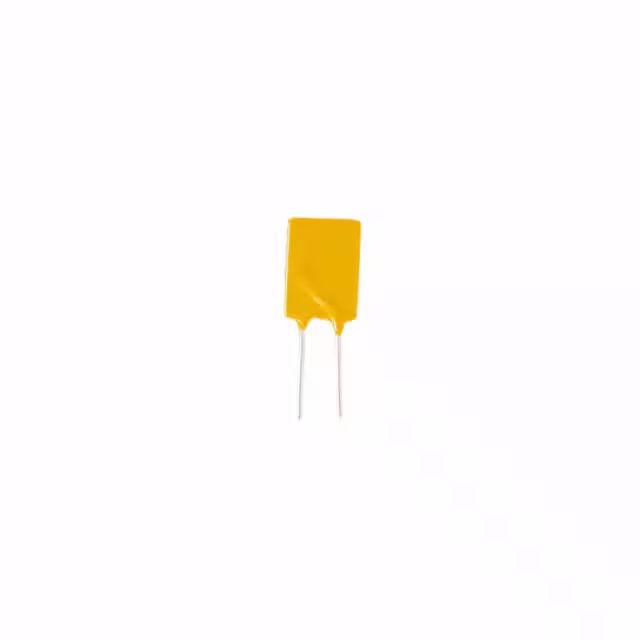

RS16HT-550 PTC RESET FUSE 16V 5.5A RADIAL OptiFuse	699	-	RFQ	Datasheet	Radial, Disc	Bulk	RS16HT	Active	Polymeric	16V	100 A	5.5 A	10 A	6 s	15 mOhms	37 mOhms	-	-40°C ~ 125°C	-	Through Hole	0.441 L x 0.118 W (11.20mm x 3.00mm)	0.744 (18.90mm)	-
RUEF600K PTC RESET FUSE 30V 6A RADIAL Littelfuse Inc.	193	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, RUEF	Active	Polymeric	30V	100 A	6 A	12 A	16 s	5 mOhms	40 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.650 L x 0.118 W (16.50mm x 3.00mm)	1.032 (26.20mm)	-
AHRF450S-1 PTC RESET FUSE 16V 4.5A RADIAL Littelfuse Inc.	500	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, AHRF	Active	Polymeric	16V	100 A	4.5 A	8.7 A	4 s	17 mOhms	54 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.409 Dia x 0.122 T (10.40mm x 3.10mm)	0.563 (14.30mm)	-

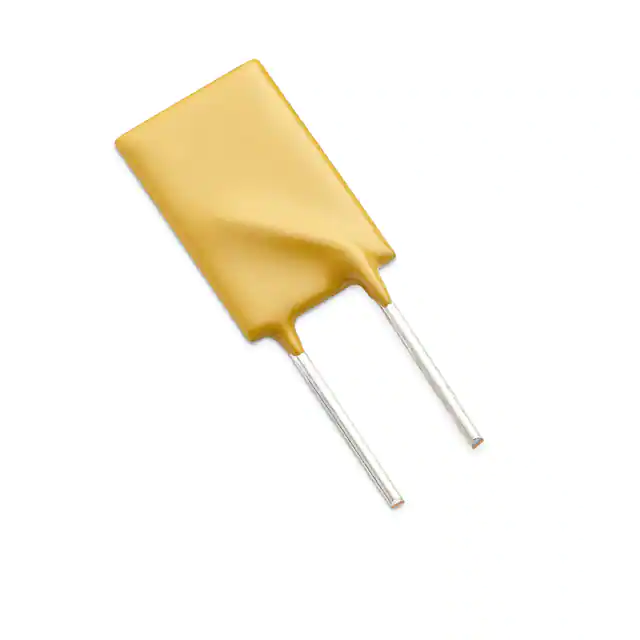

AHRL400 PTC RESET FUSE 4A 16V RAD Littelfuse Inc.	450	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®, AHRL	Active	Polymeric	16V	50 A	4 A	8 A	5 s	16 mOhms	28 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.331 L x 0.118 W (8.40mm x 3.00mm)	0.528 (13.40mm)	-
AHRL350 PTC RESET FUSE 3.5A 16V RAD Littelfuse Inc.	395	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®, AHRL	Active	Polymeric	16V	50 A	3.5 A	7 A	4.5 s	18 mOhms	32 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.331 L x 0.118 W (8.40mm x 3.00mm)	0.488 (12.40mm)	-

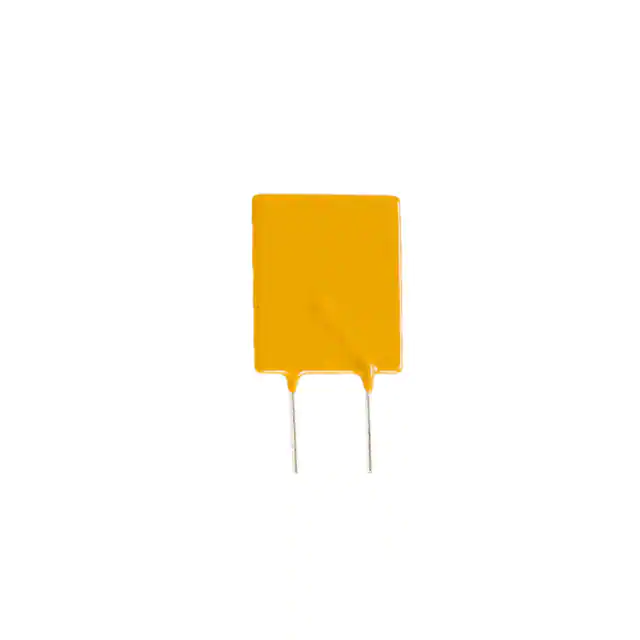

RS30-800 PTC RESET FUSE 30V 8A RADIAL OptiFuse	3,734	-	RFQ	Datasheet	Radial, Disc	Bulk	RS30	Active	Polymeric	30V	100 A	8 A	16 A	18.8 s	5 mOhms	20 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.850 L x 0.118 W (21.60mm x 3.00mm)	1.150 (29.20mm)	-
RHEF700 PTC RESET FUSE 16V 7A RADIAL Littelfuse Inc.	491	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, RHEF	Active	Polymeric	16V	100 A	7 A	13 A	7 s	10 mOhms	25 mOhms	-	-40°C ~ 125°C	-	Through Hole	0.551 L x 0.118 W (14.00mm x 3.00mm)	0.862 (21.90mm)	-
AHRL450 PTC RESET FUSE 4.5A 16V RAD Littelfuse Inc.	470	-	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®, AHRL	Active	Polymeric	16V	50 A	4.5 A	9 A	5.5 s	14.5 mOhms	26 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.331 L x 0.118 W (8.40mm x 3.00mm)	0.555 (14.10mm)	-
PRG18BC6R8MM1RB PTC RESET FUSE 20V 120MA 0603 Murata Electronics	122	-	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	POSISTOR®, PRG	Not For New Designs	Ceramic	20V	3.5 A	120 mA	260 mA	-	-	-	6.8 Ohms	-20°C ~ 85°C	-	Surface Mount	0.063 L x 0.032 W (1.60mm x 0.80mm)	-	0.037 (0.95mm)
1206L012/48WR PTC RESET FUSE 48V 125MA 1206 Littelfuse Inc.	756	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 1206L	Active	Polymeric	48V	10 A	125 mA	290 mA	200 ms	1.5 Ohms	6 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	0.049 (1.25mm)
MINIASMDC010F-2 PTC RESET FUSE 60V 100MA 1812 Littelfuse Inc.	408	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, miniASMD	Active	Polymeric	60V	40 A	100 mA	300 mA	5 s	700 mOhms	12.7 Ohms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.035 (0.89mm)
1206L025/24YR PTC RESET FUSE 24V 25MA 1206 Littelfuse Inc.	307	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 1206L	Active	Polymeric	24V	100 A	250 mA	550 mA	80 ms	550 mOhms	2.3 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	0.039 (1.00mm)
RXEF090-AP PTC RESET FUSE 72V 900MA RADIAL Littelfuse Inc.	281	-	RFQ	Datasheet	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	900 mA	1.8 A	7.2 s	200 mOhms	470 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.441 Dia x 0.118 T (11.20mm x 3.00mm)	0.622 (15.80mm)	-
PICOASMDC012S-2 PTC RESET FUSE 15V 120MA 0805 Littelfuse Inc.	956	-	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, picoASMDC	Active	Polymeric	15V	20 A	120 mA	300 mA	100 ms	1.5 Ohms	9 Ohms	-	-	PS300, PS400	Surface Mount	0.083 L x 0.055 W (2.10mm x 1.40mm)	-	0.027 (0.68mm)
PICOASMDCH050F-2 PPTC-MINI-PSW Littelfuse Inc.	925	-	RFQ	Datasheet	0805 (2012 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, picoASMD	Active	Polymeric	16V	40 A	500 mA	1.7 A	100 ms	250 mOhms	1.6 Ohms	-	-40°C ~ 125°C	AEC-Q200	Surface Mount	0.083 L x 0.055 W (2.10mm x 1.40mm)	-	0.047 (1.20mm)
RXEF250-2 PTC RESET FUSE 72V 2.5A RADIAL Littelfuse Inc.	785	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	2.5 A	5 A	15.6 s	50 mOhms	130 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.819 Dia x 0.118 T (20.80mm x 3.00mm)	1.000 (25.40mm)	-
AGRF600 PTC RESET FUSE 16V 6A RADIAL Littelfuse Inc.	477	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, AGRF	Active	Polymeric	16V	100 A	6 A	10.7 A	3.5 s	9.5 mOhms	28 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.421 L x 0.118 W (10.70mm x 3.00mm)	0.724 (18.40mm)	-
RUEF500K-AP PTC RESET FUSE 30V 5A RADIAL Littelfuse Inc.	1,000	-	RFQ	Datasheet	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	PolySwitch®, RUEF	Active	Polymeric	30V	100 A	5 A	10 A	14.5 s	10 mOhms	50 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.551 L x 0.118 W (14.00mm x 3.00mm)	1.008 (25.60mm)	-
RXEF300-1 PTC RESET FUSE 72V 3A RADIAL Littelfuse Inc.	250	-	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	3 A	6 A	19.8 s	40 mOhms	100 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.941 Dia x 0.118 T (23.90mm x 3.00mm)	1.126 (28.60mm)	-
