Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BFM-1A-05CRELAY REED SPST .5A 5V |
3,110 | - |
RFQ |
Datasheet |
Tube | BFM | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 13.5 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C | |
BFM-1A-12CRELAY REED SPST .5A 12V |
2,563 | - |
RFQ |
Datasheet |
Tube | BFM | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 8 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.1 ms | -25°C ~ 85°C | |
BFM-1C-05RELAY REED SPDT .25A 5V |
3,703 | - |
RFQ |
Datasheet |
Tube | BFM | Active | Through Hole | 5VDC | SPDT (1 Form C) | 250 mA | 150VDC - Max | 21.7 mA | Non Latching | - | PC Pin | - | 3.8 VDC | 0.4 VDC | 1 ms | 2 ms | -25°C ~ 85°C | |

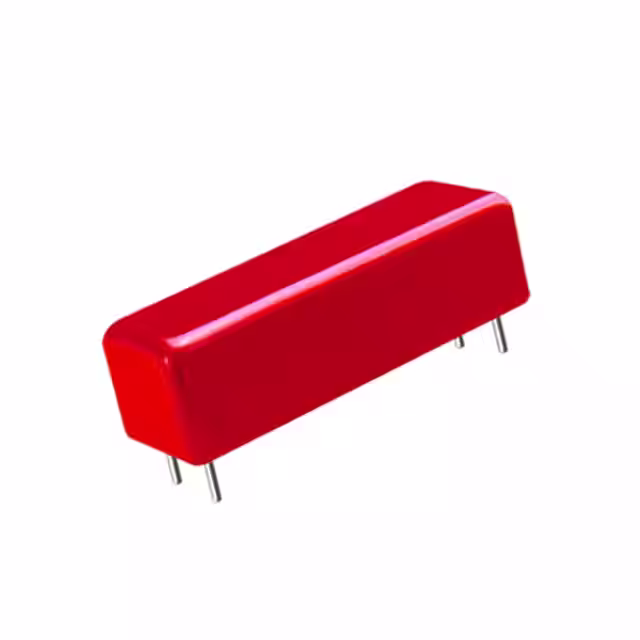

7301-05-1000RELAY REED SPST 500MA 5V |
3,889 | - |
RFQ |
Datasheet |
Bulk | 7000 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 500VAC, 500VDC - Max | 28.6 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 1 ms | 0.1 ms | -20°C ~ 85°C | |

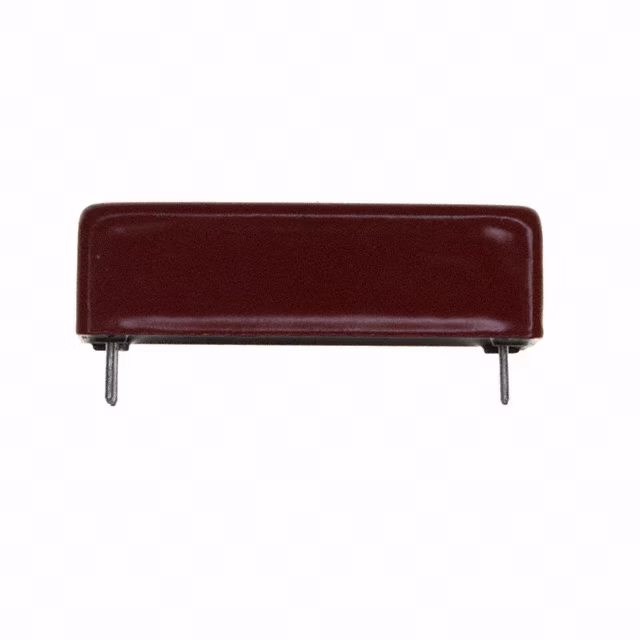

7201-05-1100RELAY REED SPST 1A 5V |
3,199 | - |
RFQ |
Datasheet |
Bulk | 7000 | Obsolete | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 500VAC, 500VDC - Max | 71.4 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.4 VDC | 2 ms | 1 ms | -20°C ~ 85°C | |
DAR72405SURELAY REED SPST-NO 5KV 24V |
3,266 | - |
RFQ |
Datasheet |
Bulk | DA | Active | Chassis Mount | 24VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 30.8 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | 20 VDC | 4 VDC | 3 ms | 2 ms | -20°C ~ 70°C | |

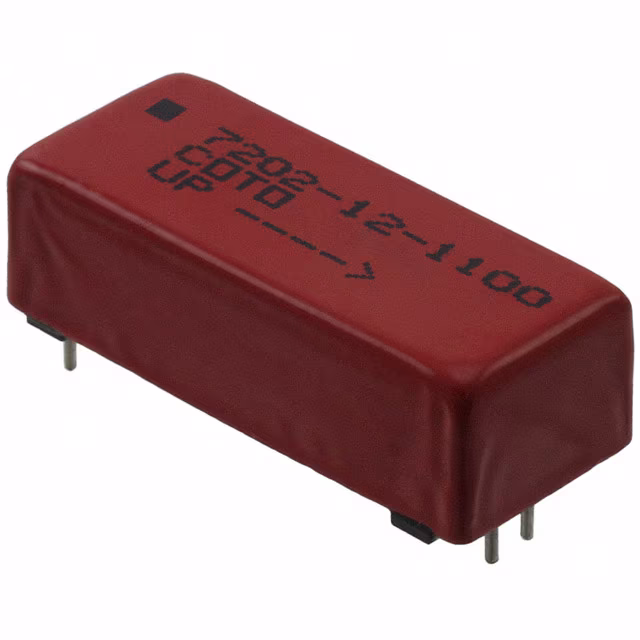

7202-12-1100RELAY REED DPST 1A 12V |
3,157 | - |
RFQ |
Datasheet |
Tube | 7000 | Obsolete | Through Hole | 12VDC | DPST-NO (2 Form A) | 1 A | 500VAC, 500VDC - Max | 35.2 mA | Non Latching | - | PC Pin | - | 9 VDC | 1 VDC | 2 ms | 1 ms | -20°C ~ 85°C | |
3350-4275-056RELAY REED HV SPST-NC 200W 3A 5V |
2,137 | - |
RFQ |
Datasheet |
Bulk | 3350 | Active | Through Hole | 5VDC | SPST-NC (1 Form B) | 3 A | 3500VAC, 3500VDC - Max | 125 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 3 ms | 3 ms | -20°C ~ 85°C | |
DAT71275SURELAY REED SPST-NO 7.5KV 12V |
2,427 | - |
RFQ |
Datasheet |
Bulk | DA | Active | Chassis Mount | 12VDC | SPST-NO (1 Form A) | 2 A | 5000VAC, 5000VDC - Max | 80 mA | Non Latching | - | Quick Connect - 0.250 (6.3mm) | - | 9 VDC | 1.25 VDC | 3 ms | 2 ms | -20°C ~ 70°C | |
DAR70510FRELAY REED SPST-NO 3A 5V |
2,731 | - |
RFQ |
Datasheet |
Tray | DA | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 3 A | 1000VAC, 1000VDC - Max | 179 mA | Non Latching | - | PC Pin, Wire Leads | - | 3.7 VDC | 0.5 VDC | 3 ms | 2 ms | -20°C ~ 70°C | |
DBR71275TURELAY REED SPST-NC 7.5KV 12V |
3,794 | - |
RFQ |
Datasheet |
Bulk | DB | Active | Through Hole | 12VDC | SPST-NC (1 Form B) | 3 A | 1000VAC, 1000VDC - Max | 50 mA | Non Latching | - | PC Pin, Solder Turret | - | 9 VDC | 1.25 VDC | 2 ms | 3 ms | -20°C ~ 70°C | |
FRD12019RF N/O 25KV 6A 24V COIL |
3,260 | - |
RFQ |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||
HE3621A0540RELAY REED SPST 500MA 5V |
3,845 | - |
RFQ |
Datasheet |
Tube | HE3600 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VDC - Max | 10 mA | Non Latching | EMI Shielded | PC Pin | - | 3.75 VDC | 0.5 VDC | 1 ms | 1 ms | -40°C ~ 85°C | |
HE722A2410RELAY REED DPST 500MA 24V |
3,867 | - |
RFQ |
Datasheet |
Tube | HE700 | Active | Through Hole | 24VDC | DPST-NO (2 Form A) | 500 mA | 200VDC - Max | 11.1 mA | Non Latching | Diode | PC Pin | - | 16 VDC | 2 VDC | 1 ms | 1 ms | -40°C ~ 85°C | |
CRR05-1ARELAY REED SPST 500MA 5V |
3,149 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CRR | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 500 mA | 170VAC, 170VDC - Max | 33.3 mA | Non Latching | - | SMD (SMT) Tab | - | 3.75 VDC | 0.75 VDC | 0.6 ms | 0.05 ms | -40°C ~ 125°C | |
9091-12-01RELAY REED SPST 500MA 12V |
2,213 | - |
RFQ |
Datasheet |
Tube | 9091 | Active | Through Hole | 12VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 12 mA | Non Latching | Diode | PC Pin | - | 9 VDC | 1 VDC | 0.5 ms | 0.3 ms | -20°C ~ 85°C | |
9091-05-01RELAY REED SPST 500MA 5V |
3,615 | - |
RFQ |
Datasheet |
Tube | 9091 | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 500 mA | 200VAC, 200VDC - Max | 10 mA | Non Latching | Diode | PC Pin | - | 3.75 VDC | 0.4 VDC | 0.5 ms | 0.3 ms | -20°C ~ 85°C | |
KT05-1A-40L-SMDREED RELAY 1 FORM A 5V SMD |
3,436 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | KT | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 63 mA | Non Latching | - | Gull Wing | Sealed - Fully | 3.5 VDC | 0.5 VDC | - | - | -40°C ~ 100°C | |
9901-05-20RELAY REED SPST 250MA 5V |
2,334 | - |
RFQ |
Datasheet |
Tube | 9900 | Active | Surface Mount | 5VDC | SPST-NO (1 Form A) | 250 mA | 100VAC, 100VDC - Max | 33.3 mA | Non Latching | EMI Shielded | J Lead | - | 3.8 VDC | 0.4 VDC | 0.25 ms | 0.05 ms | -20°C ~ 85°C | |

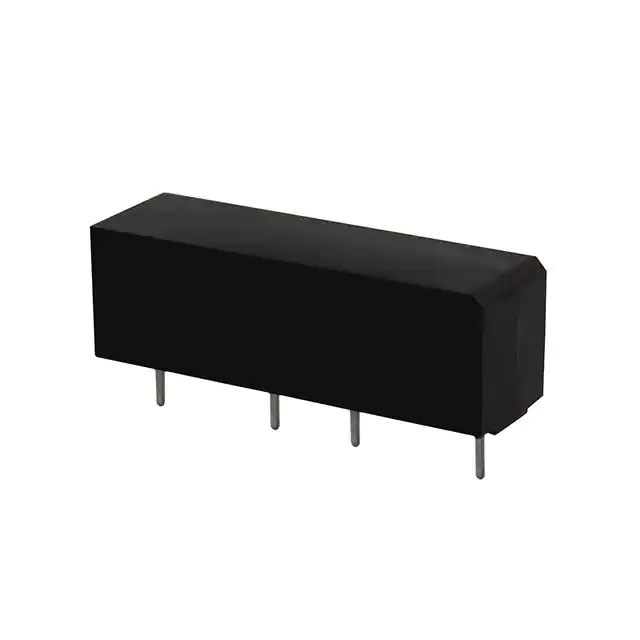

SHV05-1A85-78L3KRELAY REED SPST 1A 5V |
3,362 | - |
RFQ |
Datasheet |
Tube | SHV | Active | Through Hole | 5VDC | SPST-NO (1 Form A) | 1 A | 1000VAC, 1000VDC - Max | 27.8 mA | Non Latching | - | PC Pin | - | 3.75 VDC | 0.5 VDC | 1.1 ms | 0.1 ms | -40°C ~ 100°C |
