Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HM1-26BHM1-26B = HM RELAY |
2,531 | - |
RFQ |
Bulk | HM, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | - | - | - | - | PC Pin | Sealed - Hermetically | - | 17 VDC | - | 4 ms | 3 ms | -55°C ~ 85°C | Silver Palladium (AgPd), Gold (Au) | ||
JMAWDD-26XLJMAWDD-26XL=M39016/20-012L |
2,307 | - |
RFQ |
Bulk | Military, MIL-R-39016/20, MADD, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 18.5 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 15.2 VDC | 1.8 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
1617147-5JMGAP-26P = M39016/17-030P |
3,941 | - |
RFQ |
Bulk | Military, MIL-R-39016/17, MGA, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | - | - | - | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
JMGAC-12PJMGAC-12P = M39016/17-034P |
2,785 | - |
RFQ |
Bulk | Military, MIL-R-39016/17, MGA, CII | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
JMGAC-26PJMGAC-26P = M39016/17-036P |
2,103 | - |
RFQ |
Bulk | Military, MIL-R-39016/17, MGA, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 1.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
JMACDG-26XLSJMACDG-26XLS = M39016/15-117L |
2,158 | - |
RFQ |
Bulk | MAC | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 17 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
9-1617351-9JMACDG-12XLS=M39016/15-115L |
3,835 | - |
RFQ |
Bulk,Box | MAC | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 30.8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||

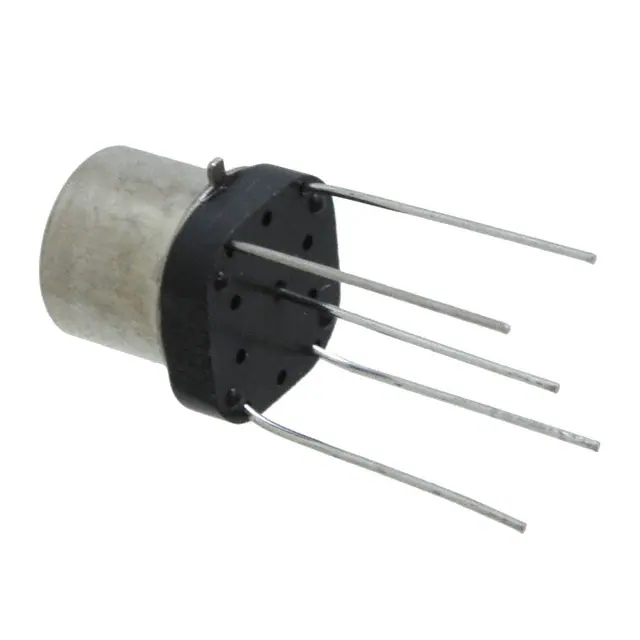

J1MACD-26XMSRELAY GEN PURPOS SPDT 1A 26.5VDC |
2,482 | - |
RFQ |
Bulk | Military, MIL-R-39016/23, 1MAD, CII | Active | Through Hole | 26.5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
J1MACD-12XLSJ1MACD-12XLS = M39016/23-034L |
3,934 | - |
RFQ |
Bulk | 1MA | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 24 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
J1MACD-12XMSJ1MACD-12XMS = M39016/23-034M |
2,227 | - |
RFQ |
Bulk | 1MA | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 24 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
J1MSCD-12XLJ1MSCD-12XL = M39016/25-035L |
3,332 | - |
RFQ |
Bulk | 1MS | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 11.7 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
3-1617119-0J1MSCD-12XM = M39016/25-035M |
3,978 | - |
RFQ |
Bulk | - | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 28VDC - Nom | 11.7 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 9 VDC | 0.4 VDC | 4 ms | - | -65°C ~ 165°C | - | ||
JMAWD-26XPRELAY GEN PURPOS DPDT 1A 26.5VDC |
3,894 | - |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/15, MAD, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | |
JMGSCD-12MWJMGSCD-12MW = M39016/42-051M |
3,538 | - |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/42, MGSD, CII | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.64 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | |
JMGSCD-5MWJMGSCD-5MW = M39016/42-049M |
2,008 | - |
RFQ |
Bulk | Military, MIL-R-39016/42, MGSD, CII | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.6 VDC | 0.23 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
JMGSCD-6MWJMGSCD-6MW=M39016/42-050M |
3,426 | - |
RFQ |
Bulk | Military, MIL-R-39016/42, MGSD, CII | Active | Through Hole | 6VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 3.4 VDC | 0.28 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
JMGSCD-26LWJMGSCD-26LW = M39016/42-052L |
3,106 | - |
RFQ |
Bulk | Military, MIL-R-39016/42, MGSD, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.4 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
1-1617572-0JMGSCD-6LW=M39016/42-050L |
3,250 | - |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/16, MSD, CII | Active | Through Hole | 6VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 3.4 VDC | 0.28 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | |
9-1617542-5JMGSC-18L=M39016/41-040L |
2,935 | - |
RFQ |
Bulk | MGS | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 11.3 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 9.8 VDC | 0.92 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
JMSP-12XMJMSP-12XM=M39016/11-022M |
2,925 | - |
RFQ |
Bulk | Military, MIL-R-39016/11, MS, CII | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.64 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) |
