Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | MountingType | CoilVoltage | ContactForm | ContactRating(Current) | SwitchingVoltage | CoilCurrent | CoilType | Features | TerminationStyle | SealRating | CoilInsulation | MustOperateVoltage | MustReleaseVoltage | OperateTime | ReleaseTime | OperatingTemperature | ContactMaterial |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
J1MACD-18XMJ1MACD-18XM=M39016/23-029M |
2,374 | - |
RFQ |
Bulk | 1MA | Active | Through Hole | 18VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 15.9 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 10.5 VDC | 0.91 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
2-1617351-6J1MAPD-26XL=M39016/23-024L |
3,510 | - |
RFQ |
Bulk | 1MA | Active | Through Hole | 26.5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 13.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
J1MAPD-12XLJ1MAPD-12XL = M39016/23-022L |
2,425 | - |
RFQ |
Bulk | 1MA | Active | Through Hole | 12VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 24 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.63 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
J1MAPD-18XMJ1MAPD-18XM = M39016/23-023M |
3,596 | - |
RFQ |
Bulk | 1MA | Active | Through Hole | 18VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 15.9 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 10.5 VDC | 0.91 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
J1MACD-5XMJ1MACD-5XM = M39016/23-025M |
2,707 | - |
RFQ |
Bulk | 1MA | Active | Through Hole | 5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 79.4 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 2.8 VDC | 0.23 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
1617352-9J1MAWD-26XL=M39016/23-018L |
2,745 | - |
RFQ |
Bulk | 1MA | Active | Through Hole | 26.5VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 13.3 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 14.2 VDC | 1.37 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
SMGSD-12SMGSD-12=SMGS .100 GRID SURFAC |
3,605 | - |
RFQ |
Bulk | SMGSD, CII | Active | Surface Mount | 12VDC | DPDT (2 Form C) | 1 A | - | - | - | - | Gull Wing | Sealed - Hermetically | - | 7 VDC | 0.64 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
7-1617351-4J1MACD-9XPS=M39016/23-033P |
3,331 | - |
RFQ |
Bulk,Box | 1MA | Active | Through Hole | 9VDC | SPDT (1 Form C) | 1 A | 115VAC, 28VDC - Max | 32.1 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 5.3 VDC | 0.54 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||

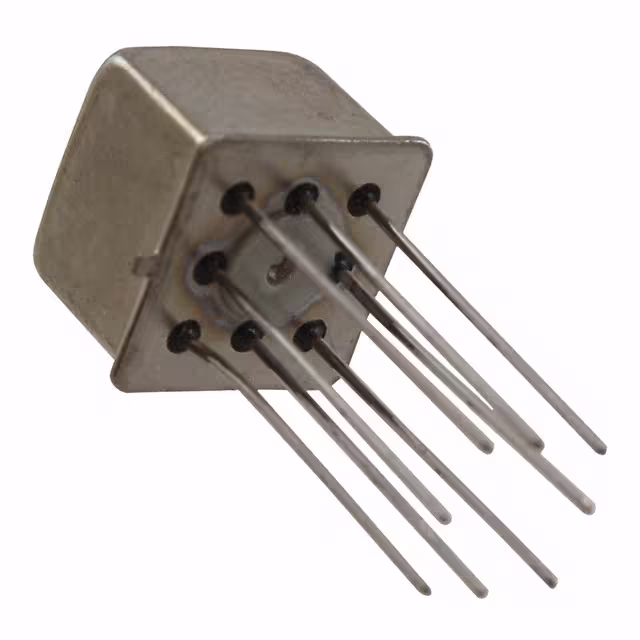

JMGACD-5MWRELAY GEN PURPOSE DPDT 1A 5VDC |
3,789 | - |
RFQ |
Datasheet |
Bulk | Military, MIL-R-39016/18, MGA, CII | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 28VDC - Nom | 100 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.7 VDC | 0.22 VDC | 2 ms | 4 ms | -65°C ~ 125°C | - | |
5-1617542-0JMAWDD-12XL=M39016/20-010L |
2,129 | - |
RFQ |
Bulk | MAW | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 30.8 mA | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 8 VDC | 1.1 VDC | 2 ms | 4 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
JMSW-12XPJMSW-12XP=M39016/11-021P |
3,280 | - |
RFQ |
Bulk | Military, MIL-R-39016/11, MS, CII | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.64 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
JMSC-26XPJMSC-26XP = M39016/11-036P |
2,011 | - |
RFQ |
Bulk | Military, MIL-R-39016/11, MS, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.4 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
JMSC-18XPJMSC-18XP = M39016/11-040P |
2,215 | - |
RFQ |
Bulk | Military, MIL-R-39016/11, MS, CII | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 9.8 VDC | 0.92 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
9-1617350-9JMSC-6XP=M39016/11-034P |
2,396 | - |
RFQ |
Bulk,Box | MSC | Active | Through Hole | 6VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 30 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 3.4 VDC | 0.28 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
5-1617543-9JMSP-5XP=M39016/11-018P |
3,263 | - |
RFQ |
Bulk,Box | MSP | Active | Through Hole | 5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | 50 mA | Non Latching | - | PC Pin | Sealed - Hermetically | - | 2.6 VDC | 0.23 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
JMSCD-48XLSJMSCD-48XLS=M39016/16-046L |
3,043 | - |
RFQ |
Bulk | Military, MIL-R-39016/16, MSD, CII | Active | Through Hole | 48VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | Diode | PC Pin | Sealed - Hermetically | - | 25.8 VDC | 2.4 VDC | 4 ms | 7.5 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
JMSC-12XPJMSC-12XP=M39016/11-035P |
2,568 | - |
RFQ |
Bulk | Military, MIL-R-39016/11, MS, CII | Active | Through Hole | 12VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 7 VDC | 0.64 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
JMGSC-26MJMGSC-26M = M39016/41-036M |
3,712 | - |
RFQ |
Bulk | Military, MIL-R-39016/41, MGS, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.4 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
JMGSP-26MJMGSP-26M = M39016/41-044M |
2,857 | - |
RFQ |
Bulk | Military, MIL-R-39016/41, MGS, CII | Active | Through Hole | 26.5VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 14 VDC | 1.4 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) | ||
JMGSP-18MJMGSP-18M=M39016/41-048M |
3,147 | - |
RFQ |
Bulk | Military, MIL-R-39016/41, MGS, CII | Active | Through Hole | 18VDC | DPDT (2 Form C) | 1 A | 115VAC, 28VDC - Max | - | Non Latching | - | PC Pin | Sealed - Hermetically | - | 9.8 VDC | 0.92 VDC | 4 ms | 2 ms | -65°C ~ 125°C | Silver Palladium (AgPd), Gold (Au) |
